PARAMETRIC HELICAL THREAD MILLING CYCLE

Turn Complex Thread Milling Into a Simple Parametric CNC Cycle

Stop programming long helical toolpaths manually.

The Parametric Helical Thread Milling Cycle converts the complete machining process into a reusable parametric cycle. Enter the required thread dimensions, cutter size, depth, pitch, feeds and speeds — the macro calculates the cutter path, roughing passes, finishing pass and complete helical interpolation automatically.

Define the job. Run the cycle. Reuse it again for the next size.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

⚙️ WHAT THE CYCLE DOES

The cycle automatically calculates:

✅ Minor-diameter cutter-center radius

✅ Major-diameter cutter-center radius

✅ Total radial material removal

✅ Number of roughing passes

✅ Equalized radial roughing increments

✅ Final finishing allowance

✅ Final-size finishing pass

✅ Spring pass at final size

✅ Circular lead-in and lead-out

✅ Complete X/Y/Z helical interpolation

✅ Pitch-to-angle calculations

✅ Partial final helix when thread depth is not an exact multiple of pitch

✅ Basic parameter validation before machining

The supplied strategy generates the thread using simultaneous X, Y and Z movement, with the helix calculated directly from the programmed pitch.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

📐 SIMPLE EDITABLE PARAMETERS

You only need to define the machining information.

MAJOR DIAMETER

Final programmed thread major diameter.

MINOR DIAMETER

Thread minor diameter and starting reference for the cutter path.

TOOL DIAMETER

Actual diameter of the thread-milling cutter.

THREAD DEPTH

Total Z depth of the thread.

THREAD PITCH

Axial movement produced for one complete 360° revolution.

ROUGH PASS RADIAL SIZE

Controls the maximum radial material removed during each roughing pass.

FINAL PASS RADIAL SIZE

Defines the material reserved for the final finishing pass.

SPINDLE RPM

Programmed cutter spindle speed.

Z FEED

Feed used when positioning to thread depth.

THREAD FEED

Feed used during the thread-milling operation.

CENTER X / CENTER Y

Defines the exact center position of the thread.

The Fanuc G65 version exposes these values directly through one simple cycle call.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

🚀 FANUC — ONE G65 CALL

Instead of programming the entire thread manually, the Fanuc version can be called with:

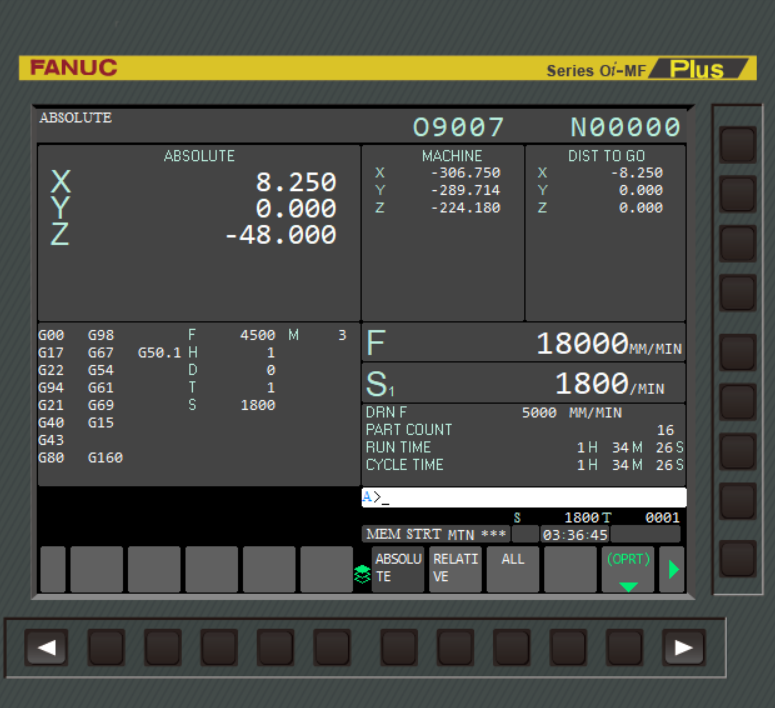

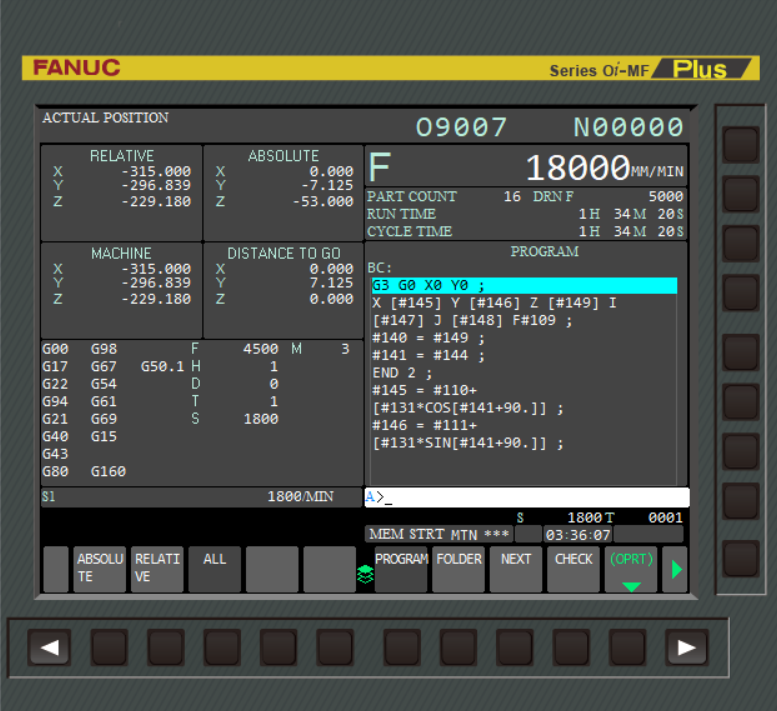

G65 P9005 A36.0 B32.0 C20.0 D50.0 E4.0 F0.25 H0.25 S1800. Q600. R800. X0. Y0.

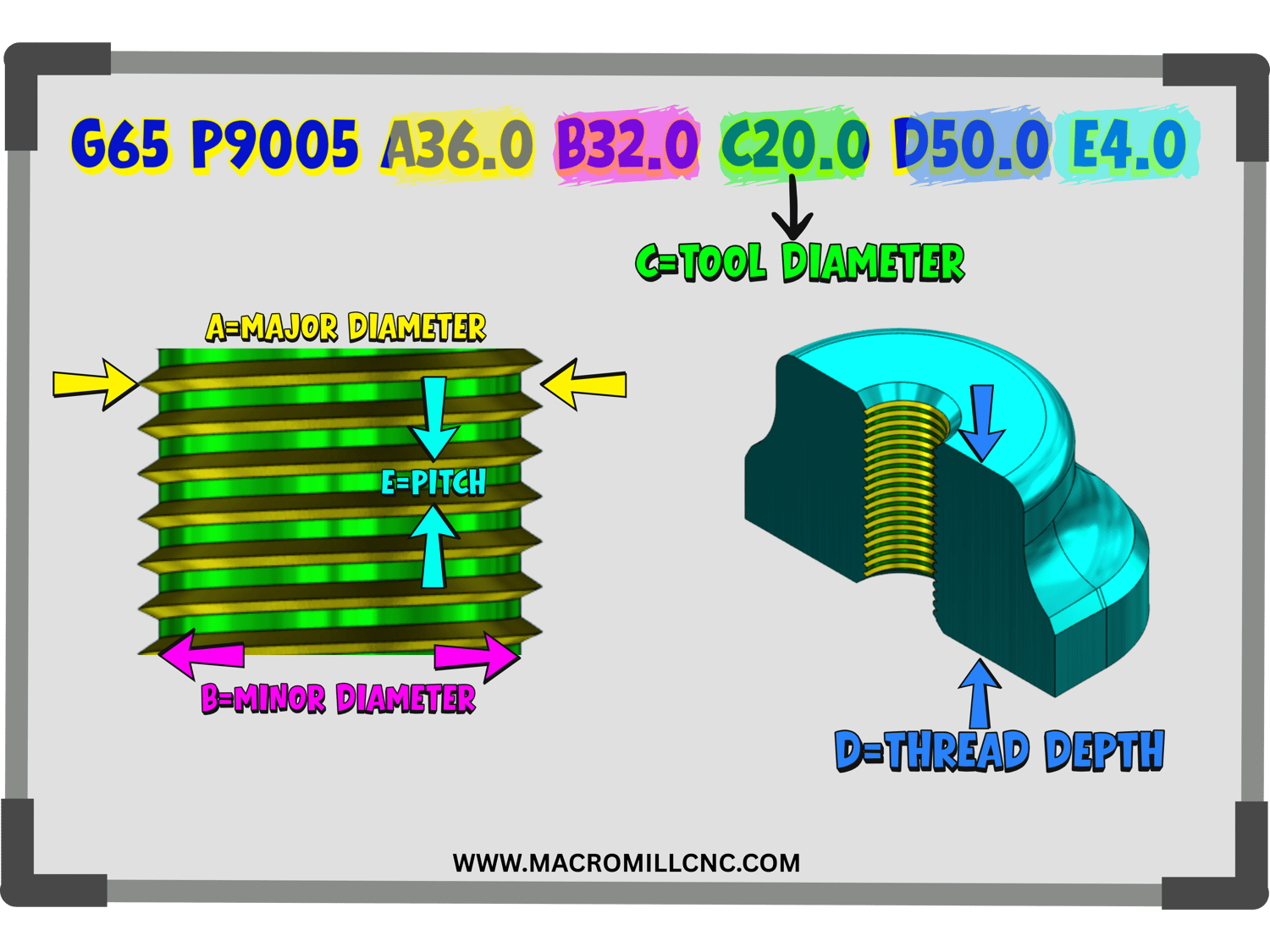

G65 PARAMETERS

A = MAJOR DIAMETER

B = MINOR DIAMETER

C = TOOL DIAMETER

D = THREAD DEPTH

E = THREAD PITCH

F = ROUGH PASS RADIAL SIZE

H = FINAL PASS RADIAL SIZE

S = SPINDLE RPM

Q = Z FEED

R = THREAD FEED

X = CENTER X

Y = CENTER Y

The O9005 macro receives these values and automatically calculates the complete machining strategy.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

🌍 MULTI-CONTROLLER PACKAGE

Versions are supplied for:

FANUC

HAAS

SIEMENS SINUMERIK 828D / 840D

HEIDENHAIN

OKUMA OSP

MAZAK EIA / ISO

MITSUBISHI

The programming format changes for each controller while maintaining the same parametric machining concept.

Siemens uses R parameters, Okuma uses V variables, and Heidenhain uses Q parameters.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

📦 WHAT YOU RECEIVE

This is not just a macro file.

The download includes a complete CNC programming module designed to help you understand, configure and use the cycle correctly.

INCLUDED:

✅ Parametric Helical Thread Milling Cycle

✅ Multi-controller program versions

✅ Fanuc G65 custom canned cycle

✅ Example main program

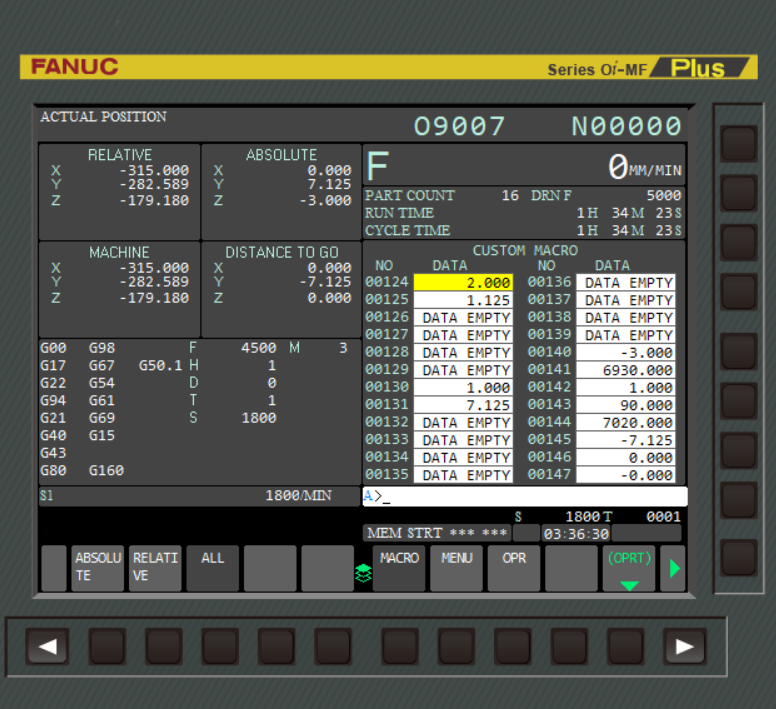

✅ Complete variable explanation

✅ Cycle operation breakdown

✅ Mathematical calculation explanation

✅ Cutter-center calculation guide

✅ Roughing and finishing strategy explanation

✅ Helical interpolation explanation

✅ Internal-variable decode

✅ Step-by-step user guide

✅ Setup instructions

✅ Pre-machining checklist

✅ Troubleshooting guide

✅ First-run and prove-out recommendations

You can use the macro as a practical machining tool while also studying exactly how a professional parametric CNC cycle is constructed.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

💡 WHY USE A PARAMETRIC CYCLE?

Traditional programming means changing and recalculating toolpaths whenever the thread size, depth, pitch or cutter changes.

With this cycle, the machining logic stays in the macro.

You simply change the parameters.

That makes it ideal for:

✅ Different thread diameters

✅ Different thread depths

✅ Different pitches

✅ Different cutter diameters

✅ Different hole positions

✅ Different roughing requirements

✅ Repeat production work

✅ Learning advanced CNC macro programming

Less repetitive programming. More reusable automation.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

🛒 TWO WAYS TO GET ACCESS

OPTION 1 — PURCHASE THIS CYCLE SEPARATELY

Download the Parametric Helical Thread Milling Cycle as a standalone package directly from this Payhip page.

Ideal if this is the specific cycle you need.

OPTION 2 — JOIN CNC AUTOMATION PRO

Want more than one cycle?

Join CNC Automation Pro and get access to 100s of custom canned cycles, CNC macros, programming modules, training resources, software and continuously expanding CNC automation content.

CNC AUTOMATION PRO

https://payhip.com/b/9IpYU

www.macromillcnc.com

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

🎯 FROM PARAMETERS TO A COMPLETE HELICAL TOOLPATH

Enter the dimensions.

Let the macro perform the calculations.

Reuse the same programming logic for the next job.
