Farmhouse Blueprints: Timber Frame House System

The Farmhouse: Tropical Timber Frame Design System

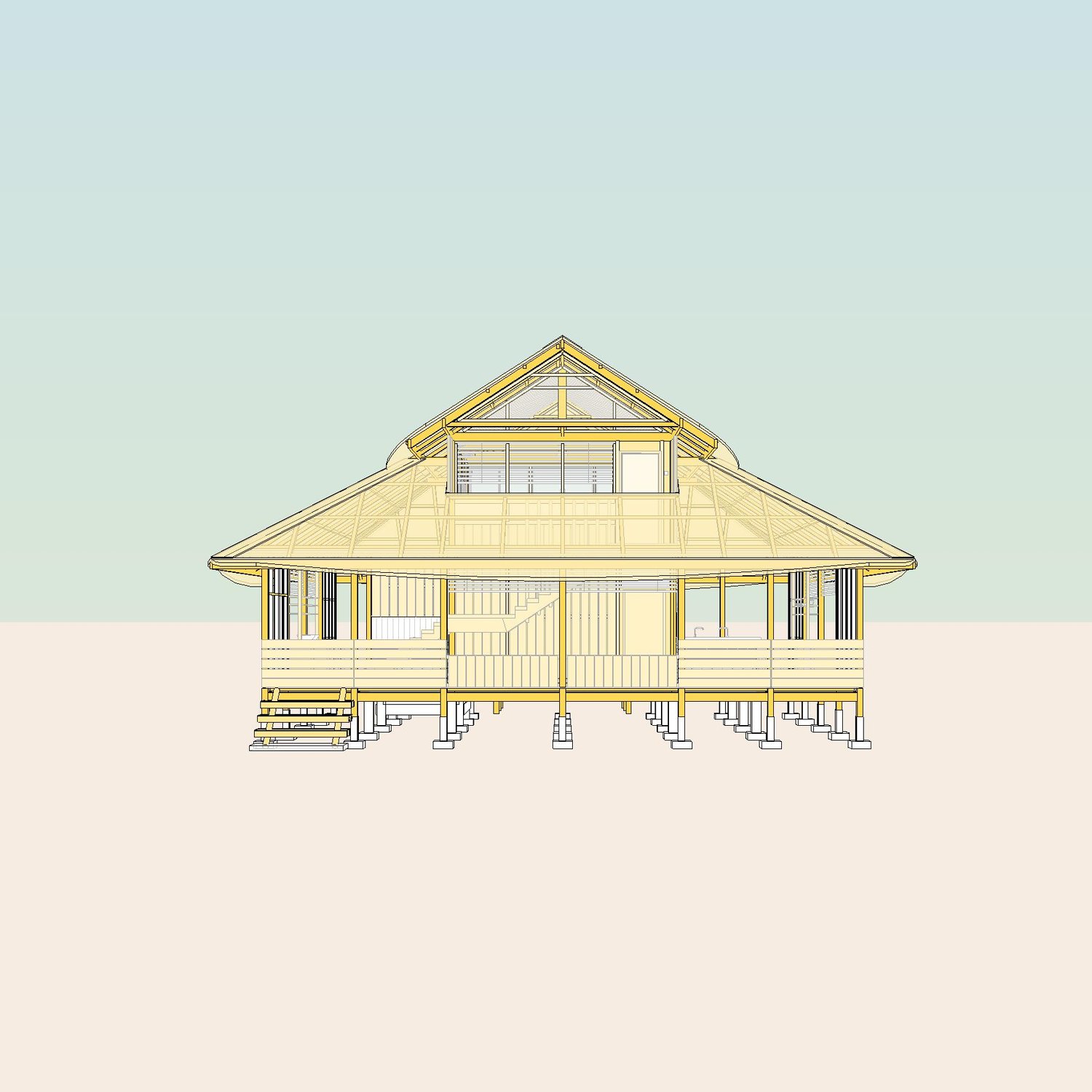

Bring an elegant, sustainable tropical home to life with this 80 m² two story timber frame design. Perfect for learning, inspiration or adaptation, this study set lets you explore architectural detail, build sequences and 3D visualization.

Available Editions

2D Drawings Study Sets

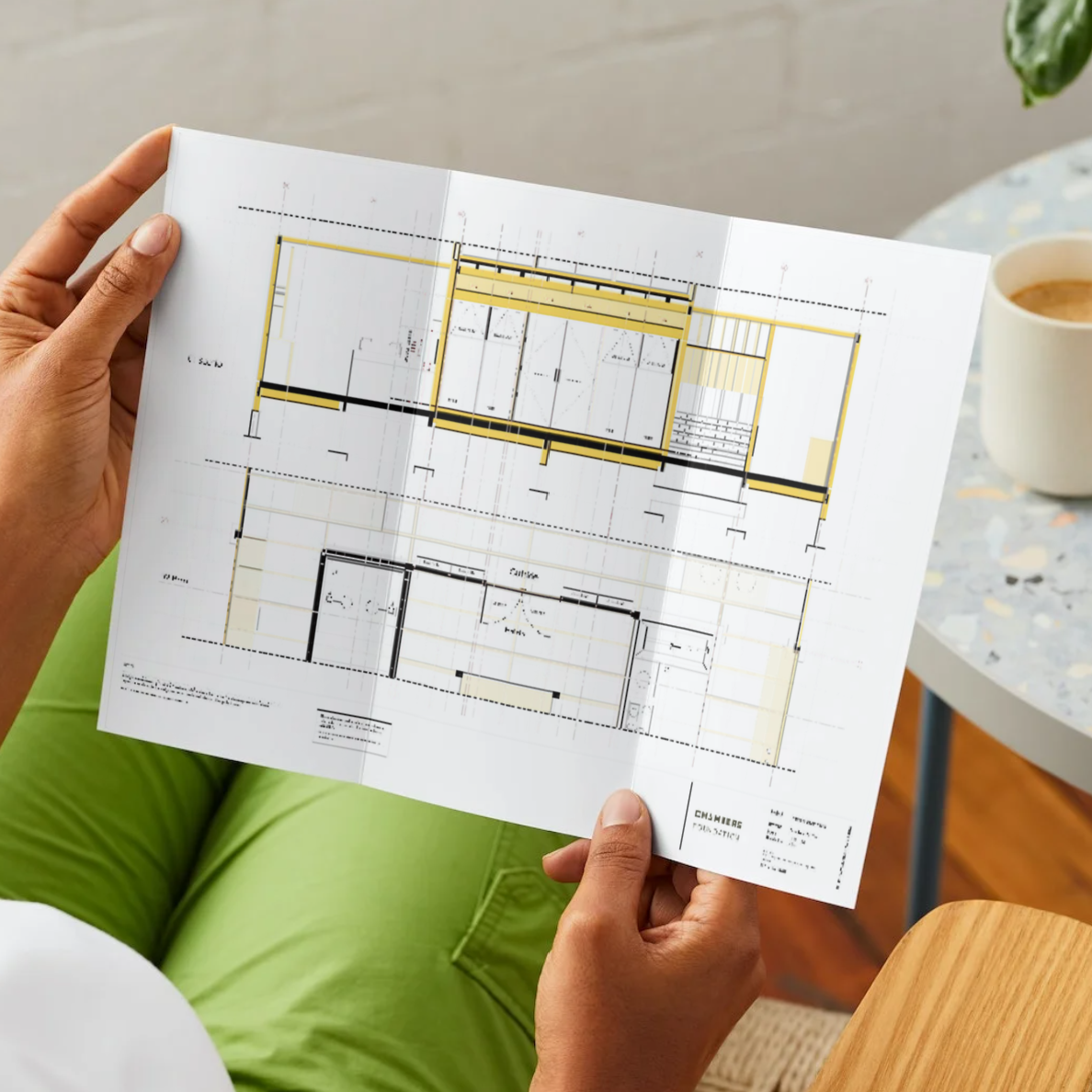

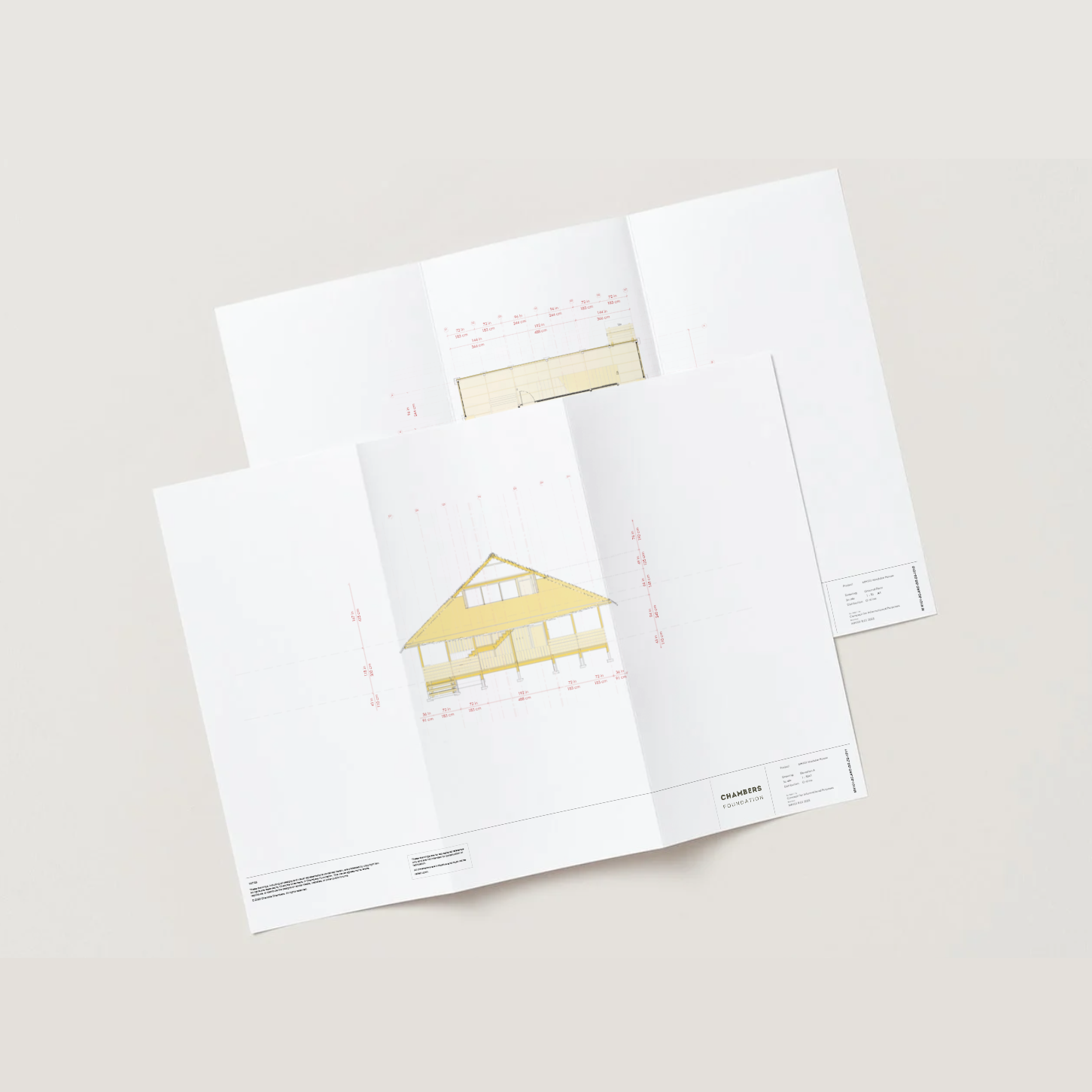

Highresolution images of every plan, section and elevation for easy reference and study. Printable, scalable and fully detailed, with dimensions in feet and centimetres. Ideal for serious study or adaptation.

3D Model Viewer Edition

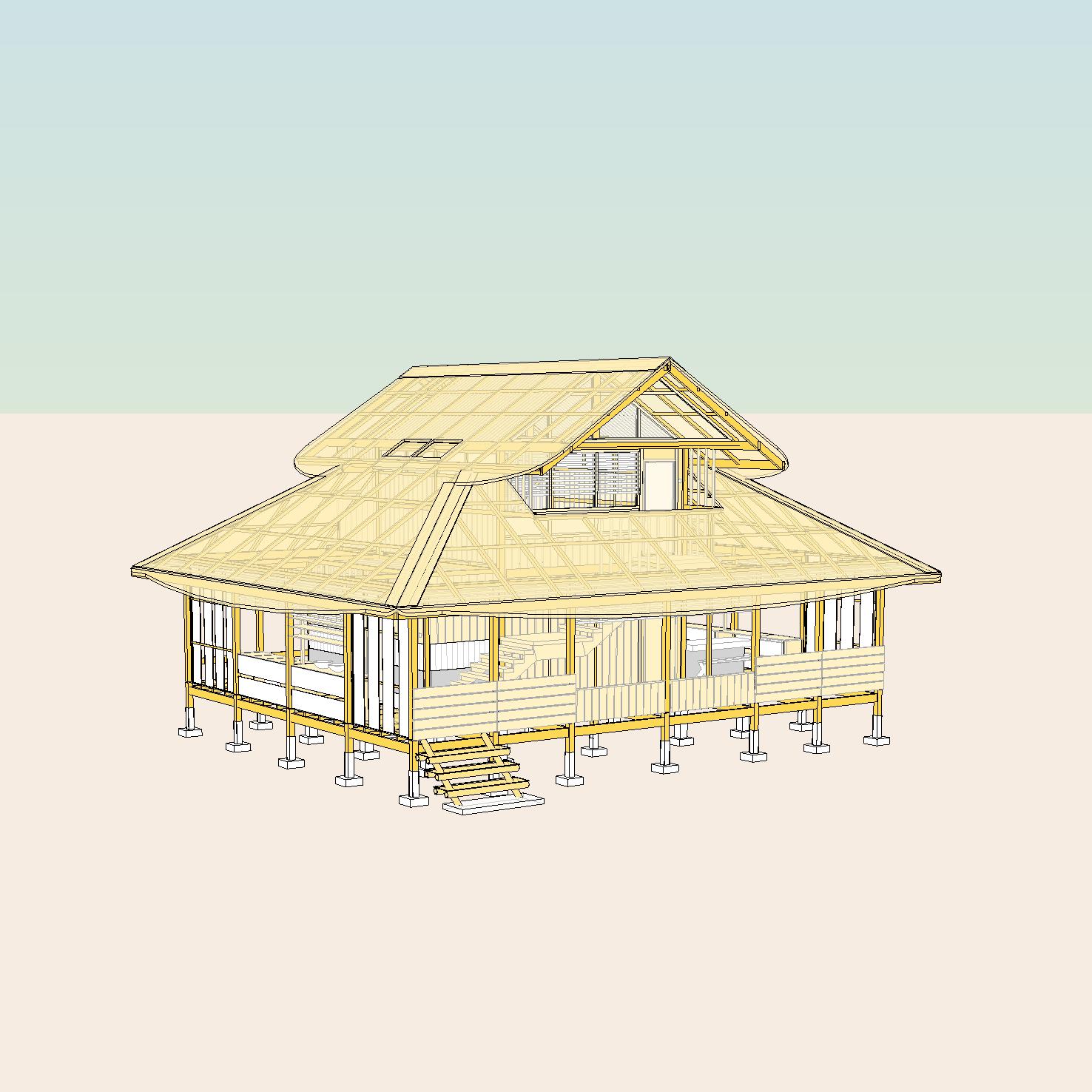

Interactive 3D model of the home, letting you explore spatial layout, structure, and roof detail in real time.

Included in Drawing Sets

• Ground floor, first floor and roof plans
• Build sequence cuts for clarity on construction order
• Foundation and roof layouts
• Elevations and sections
• Key callouts for kitchen, toilet, shower and stair

Proposed Building Size

• Main roof perimeter: 14 x 11.5 metres (entrance stair not included)

All drawings are for educational purposes. Architectural customisation is available on request.
