TRIANGULATION for IntelliCAD, trial version
On Sale
$2.00
(25% off)
$1.50

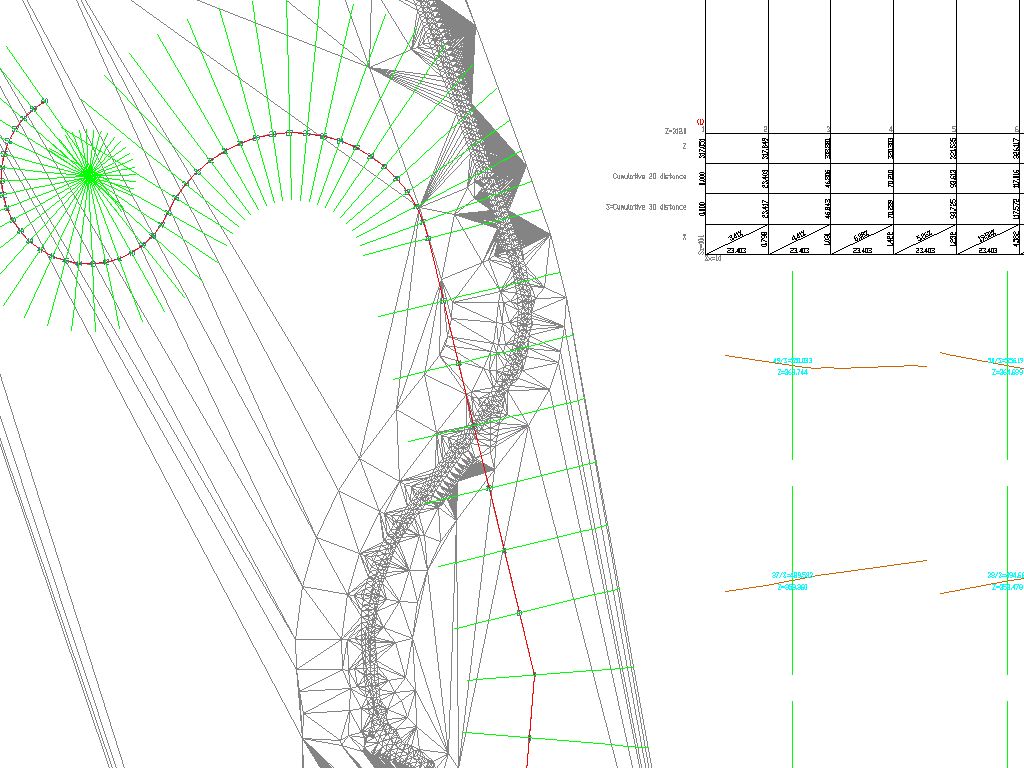

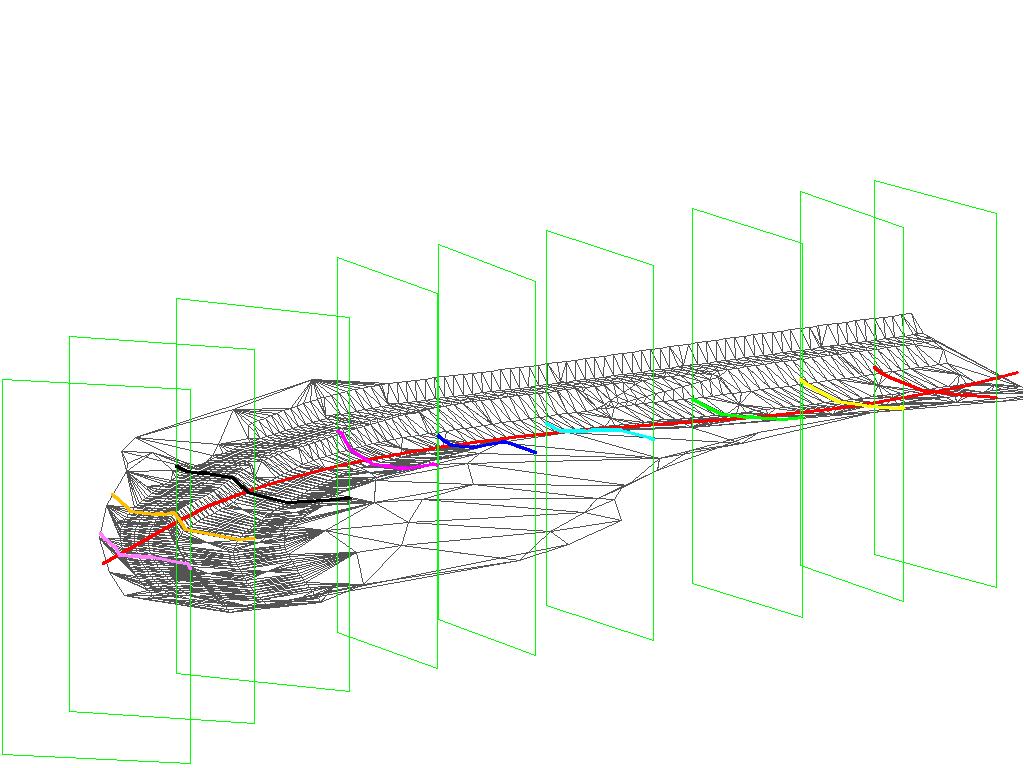

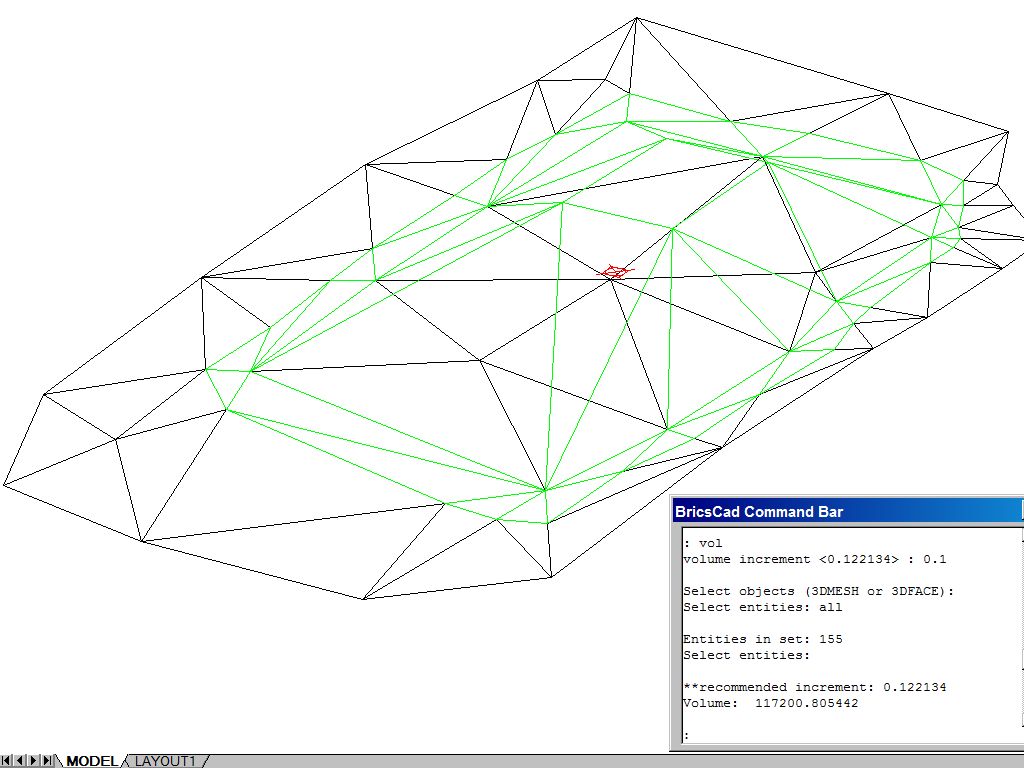

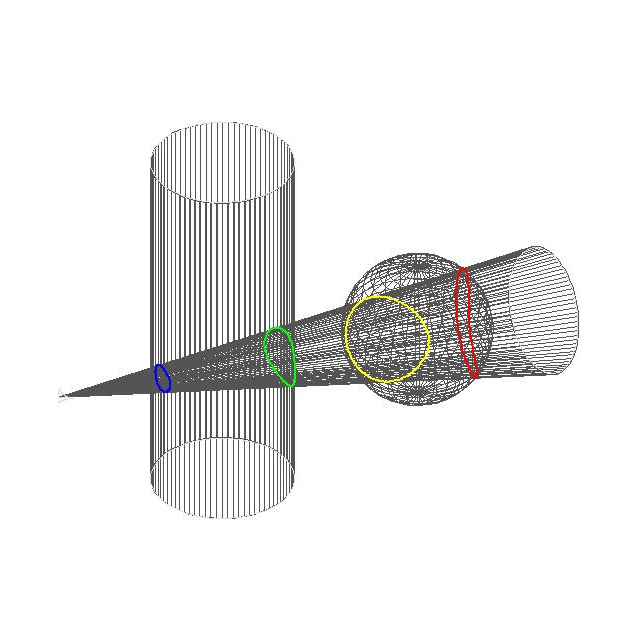

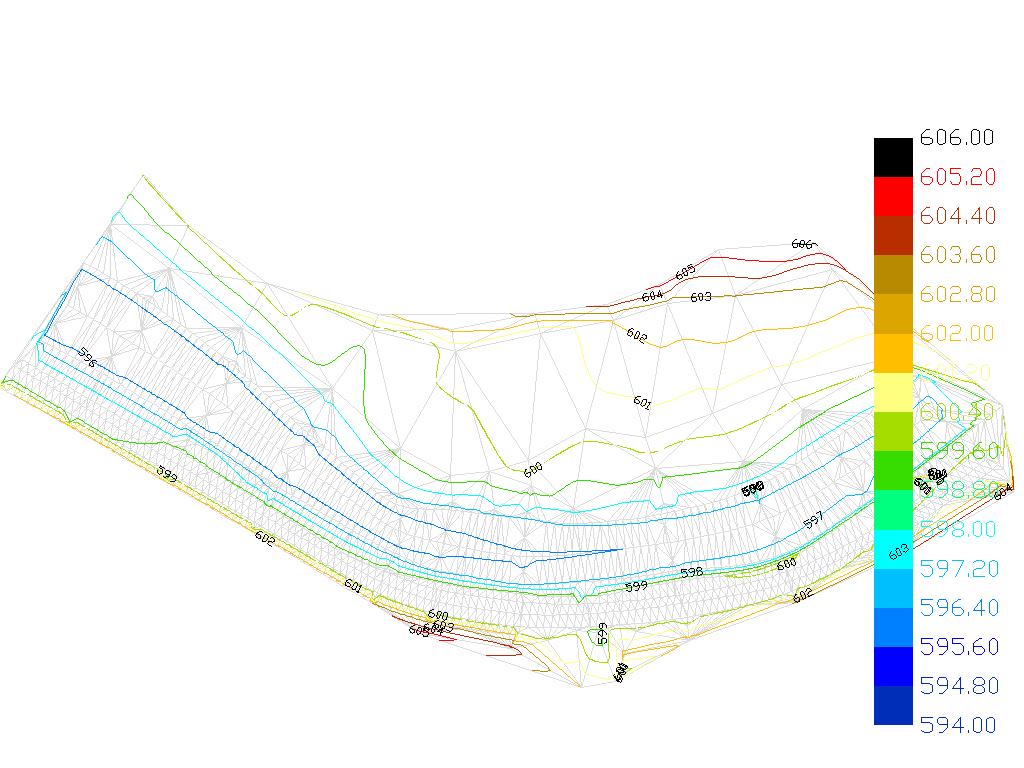

7 add-ons for IntelliCAD at most 6.6 version: TRIANGULATION-triangulation of a set of 3D points; ISOLINES-the curves of intersection of a set of 3DFACE entities with a set of equidistance planes; VOLUME-volume and center of gravity of a body limited by 3DMESH and 3DFACE; you can load and draw a XYZ points file; 3DINTERSECTION-the intersection curves between 2 sets of 3DFACE and 3DMESH; you can make cross sections, longitudinal profile and color-filled contour map.
The trial version:
- runs only 14 times
- TRIANGR command: only 25000 triangles are drawn permanently at triangulation, the rest are drawn temporarily,
- VOL command: the calculated volume is not displayed in clear,
- 3DINT command: only two intersections are permanently drawn.
