Professional Internal Figure-8 Oil Grooving From Simple Editable Parameters

Turn complex internal crossed oil-groove programming into a reusable parametric CNC lathe cycle.

The Parametric Figure 8 Oil Groove Turning Cycle uses synchronized X/Z machining to generate two controlled internal groove paths at different spindle phases, producing the characteristic Figure-8 lubrication pattern inside a bore.

Define the bore. Define the groove. Run the cycle. Reuse it for the next job.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

⚙️ CYCLE CAPABILITIES

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

✅ 2-axis X/Z CNC lathe machining

✅ Internal Figure-8 oil grooving

✅ Synchronized spindle-to-axis machining strategy

✅ Parametric bore / ID diameter

✅ Editable groove length

✅ Editable final groove diameter

✅ Adjustable X diameter increment per cutting leg

✅ Editable spindle RPM

✅ Automatic synchronized lead calculation

✅ Automatic starting X calculation

✅ Progressive internal groove generation

✅ Controlled forward and return synchronized passes

✅ 0° first groove phase

✅ 180° second groove phase

✅ Automatic X progression

✅ Automatic reset between groove phases

✅ Automatic retract after cycle completion

✅ Reusable for different bore sizes and groove lengths

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

🔩 MACHINING STRATEGY

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

1 — FIRST FIGURE-8 GROOVE PATH

The tool begins at the calculated internal starting diameter. Synchronized X/Z passes progressively machine the first groove path through the programmed bore length while increasing the groove diameter in controlled increments.

2 — SECOND 180° GROOVE PATH

Once the first path is complete, the cycle resets and generates the second synchronized path from a 180° spindle phase. The second path crosses the first to produce the complete internal Figure-8 lubrication groove.

FIRST PATH → PROGRESSIVE X CUTTING → RESET → 180° PATH → COMPLETE FIGURE-8 GROOVE

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

🚀 FANUC G65 CUSTOM CANNED CYCLE

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

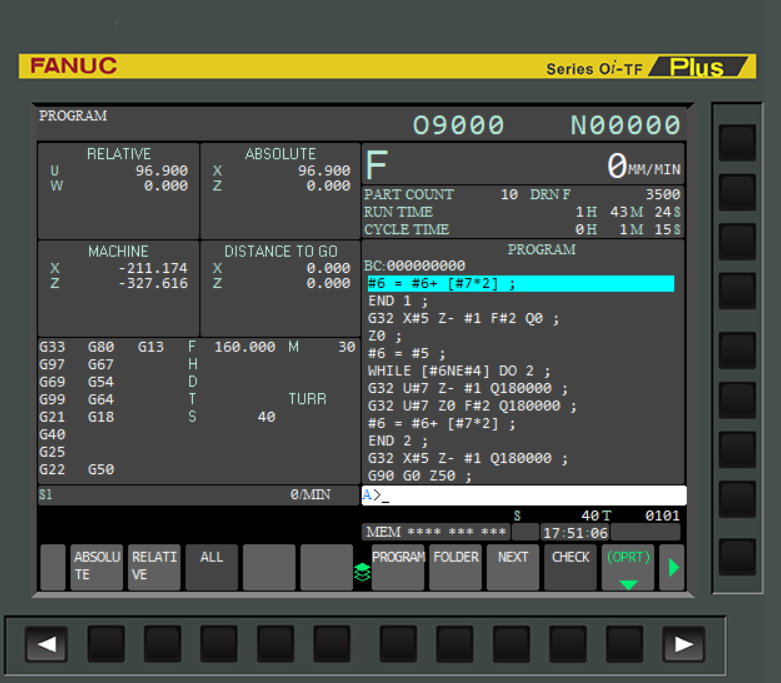

The Fanuc version includes a compact G65 call controlling the complete operation from one programmable line.

Example:

G65 P8011 A80.0 C100.0 I101.9 D0.10 S40.

Simply edit the required bore diameter, groove length, final groove diameter, machining increment and spindle speed.

The complete Figure-8 machining strategy remains stored inside the custom cycle.

One G65 line. One reusable internal oil-grooving cycle.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

📦 COMPLETE DOWNLOAD PACKAGE

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

✅ Parametric Figure 8 Oil Groove Turning Cycle

✅ Fanuc G65 custom canned-cycle version

✅ Example main program

✅ Complete parameter mapping

✅ Siemens R-variable version

✅ Heidenhain Q-parameter version

✅ Okuma V-variable version

✅ Fagor P-variable version

✅ GSK version

✅ Haas version

✅ Mazak EIA/ISO versions

✅ Mitsubishi versions

✅ Controller-specific user guides

✅ Parameter maps

✅ Quick-start guides

✅ Setup information

✅ First-run and prove-out guidance

✅ Editable CNC programming files

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

💡 WHY USE THIS CYCLE?

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

Different bore diameter? Change the diameter.

Different groove length? Change the length.

Different final groove depth? Change the final groove diameter.

Want finer progressive machining? Change the X increment.

Different machining conditions? Change the spindle RPM.

The Figure-8 machining strategy stays inside the cycle.

Less repetitive programming. Faster setup. Reusable CNC automation.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

🛒 AVAILABLE STANDALONE OR INSIDE CNC AUTOMATION PRO

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

Purchase the Parametric Figure 8 Oil Groove Turning Cycle as a standalone downloadable module, or access it through CNC Automation Pro together with 100s of custom canned cycles, CNC macros, programming modules, software and training resources.
