ATSG - FORD - 10 SPEED - 10R80 - (2022).pdf

The Ford 10R80 transmission was co-enginneered by Ford and General Motors (10L90), and

introduced for the 2017 model year, as a rear wheel drive ten speed transmission using full

electronic controls and four planetary gearsets, two multi-disc holding clutches, four multi-plate

drive clutches, a one-way clutch, a main valve body control unit and a torque converter with an

internal clutch to attain ten forward speeds and one reverse gear.

Vehicles equipped with the 10R80 can utilize either an externally mounted Powertrain Control

Module or a Transmission Control Module.

The PCM or TCM operates electrical control components to control gear selection, shift pressure and converter clutch control.

The 10R80 can be found behind the 2.7, 3.0, 3.5 or 5.0 liter engines in a number of Ford cars and

trucks. There is also a lower capacity 10R60 transmission that can be found behind the 2.3 liter

engine. The 10R80 is very similar in construction and operation of the 10R140 which is found in

medium duty truck use with larger gas and diesel engines and is a much larger transmission.

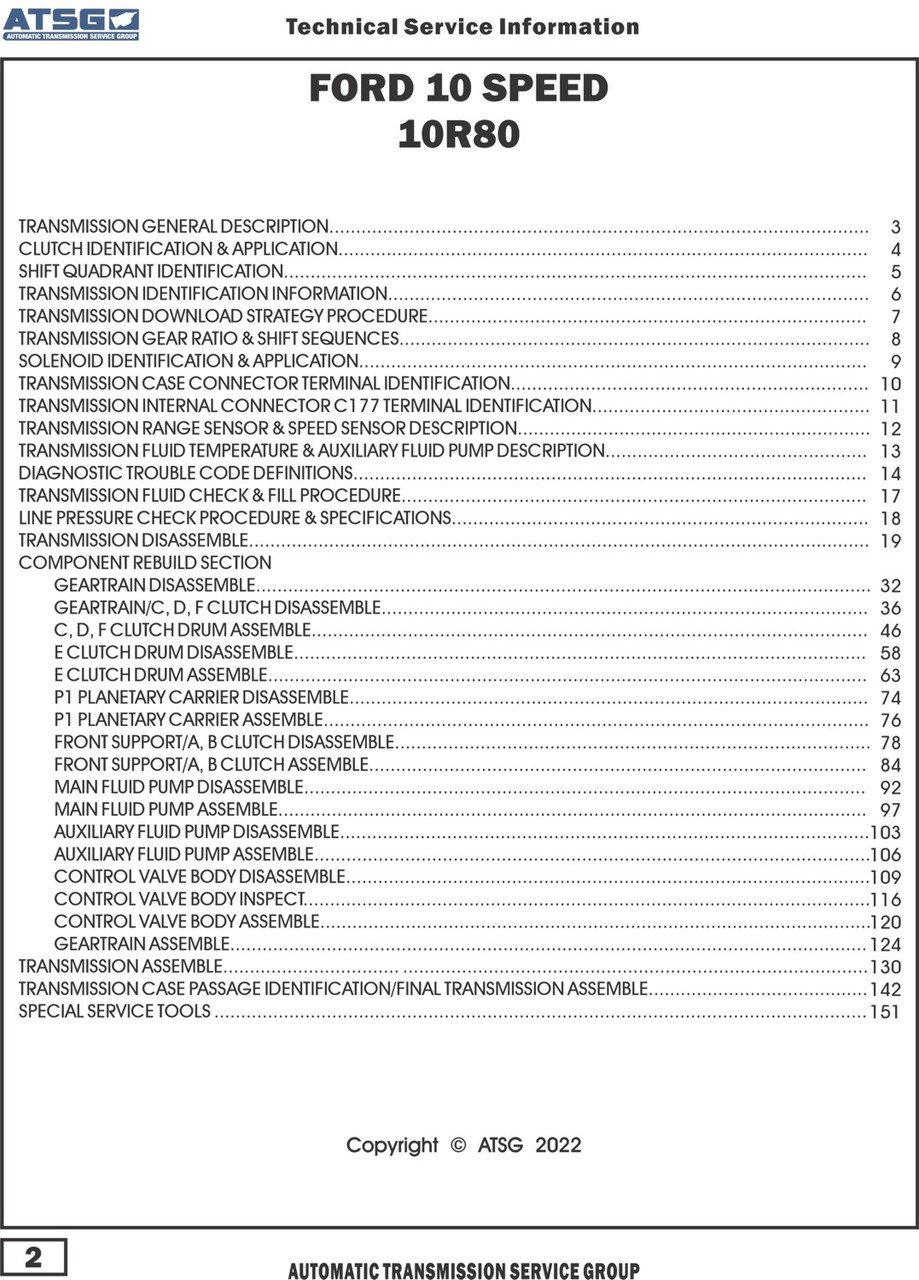

This manual will aid the technician in the teardown and assembly of the 10R80 transmission with

some diagnostics included.

Product Details:

File Format: PDF

Bookmarked / Searchable: Yes

Language: English

Printable: Without any restriction

Delivery: Link will appear on the checkout page after payment is complete

Requirements: Adobe Reader

Shop Manual Page155
