BMW E46 320D Hybrid turbo map
On Sale
$299.99
$299.99
HPF GT1752V map
This map is only for hybrid turbo. Including Map Pack.
Requirements:
GT1752V hybrid turbo
Stock injectors
EGR delete
Swirl flap delete
FMIC (similar to Airtec)
Stock air intake
Downpipe with catalytic converter removed
Service every 10 000km's after remap!
Map features:
EGR hysteresis delete
Boost target: 1.8 bar

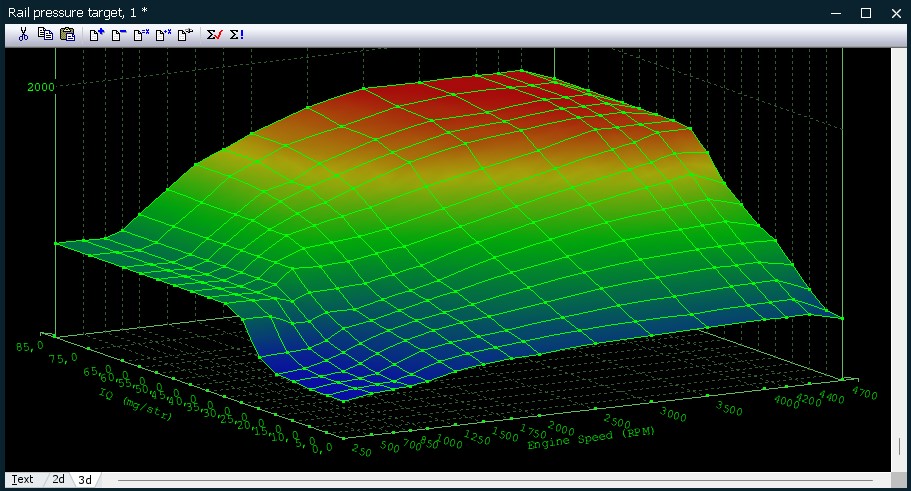

Rail pressure target: 1700 bar

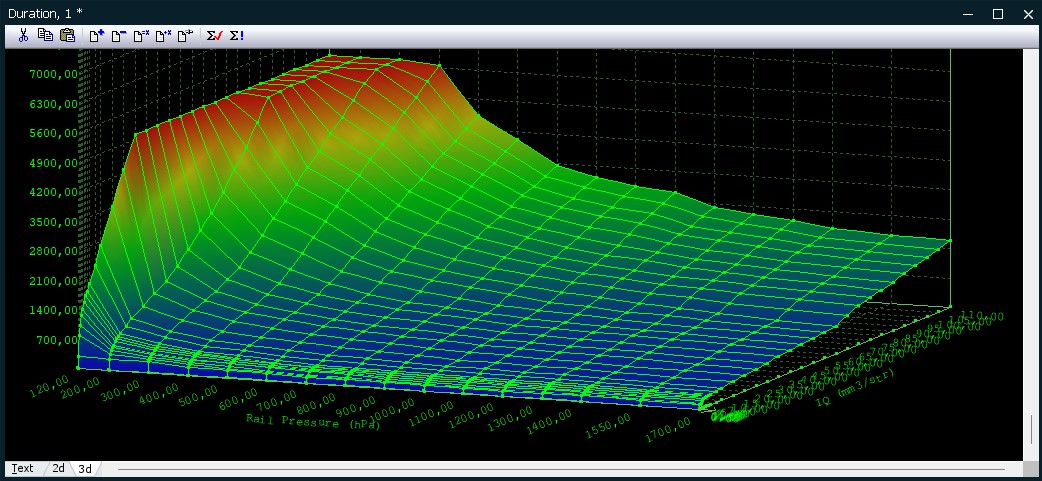

Duration: 110mm3/stroke
AFR: 14.5-16
Hardcut limiter: 4700rpm
Launch control: 3000rpm
Safe for stock clutch
All engine protection maps active
All DTC's active
This map is for:
BMW M47N
Vacuum VNT
Injectors: 131 (last 3 digit)
ECU: EDC16C31
Software version: 361858
Read/write: Kess V2
Adjustments can be made at additional cost if Testo data logs are supplied.
Join the HPF family! 😈
Discalimer: HPF is not responsible for any damage to engine/ECU. It is the sole responsibility of the individual to ensure all requirements are met before making any purchase. It will be necessary for the individual to connect Testo to the vehicle before and after loading our files to take data logs of performance as some adjustments to the map might be necessary. We offer this service at additional cost.
