ATSG - FORD - ATX - REVISED EDITION.pdf

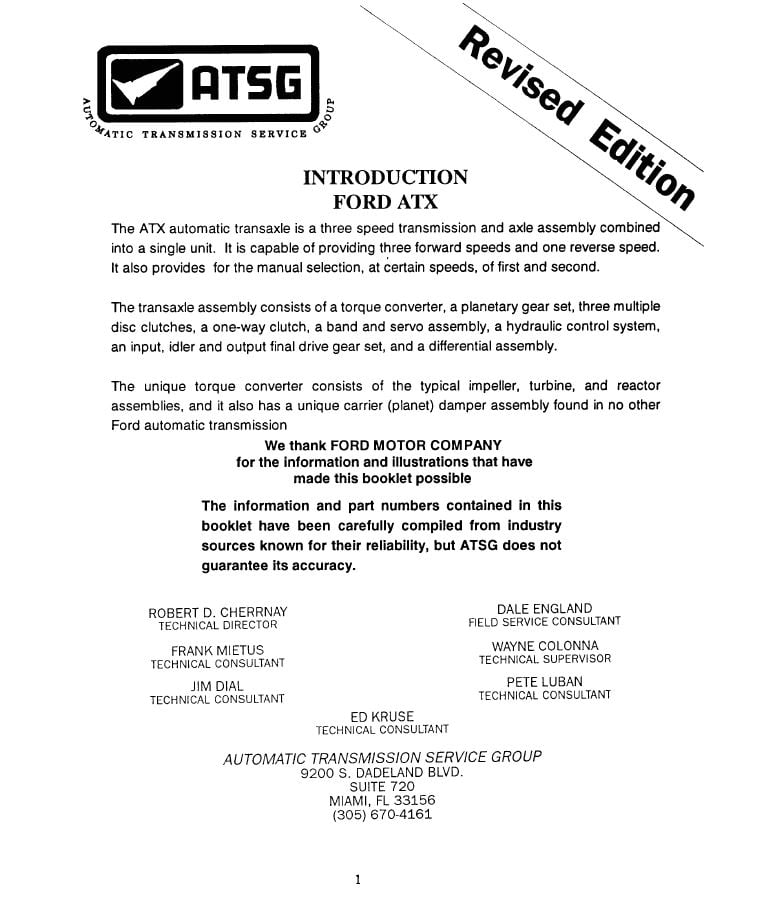

Ford ATX – ATSG (Automatic Transmission Service Group) PDF. The ATX automatic transaxle is a three speed transmission and axle assembly combined into a single unit. It is capable of providing three forward speeds and one reverse speed. It also provides for the manual selection, at certain speeds, of first and second.

The transaxle assembly consists of a torque converter, a planetary gear set, three multiple disc clutches, a one-way clutch, a band and servo assembly, a hydraulic control system, an input, idler and output final drive gear set, and a differential assembly.

The unique torque converter consists of the typical impeller, turbine, and reactor assemblies, and it also has a unique carrier (planet) damper assembly found in no other Ford automatic transmission.

Applications:

• 1981-1987 Mercury Lynx
• 1981-1990 Ford Escort
• 1982-1988 Ford EXP
• 1982-1983 Mercury LN7
• 1984-1994 Ford Tempo
• 1984-1994 Mercury Topaz
• 1986-1991 Ford Taurus

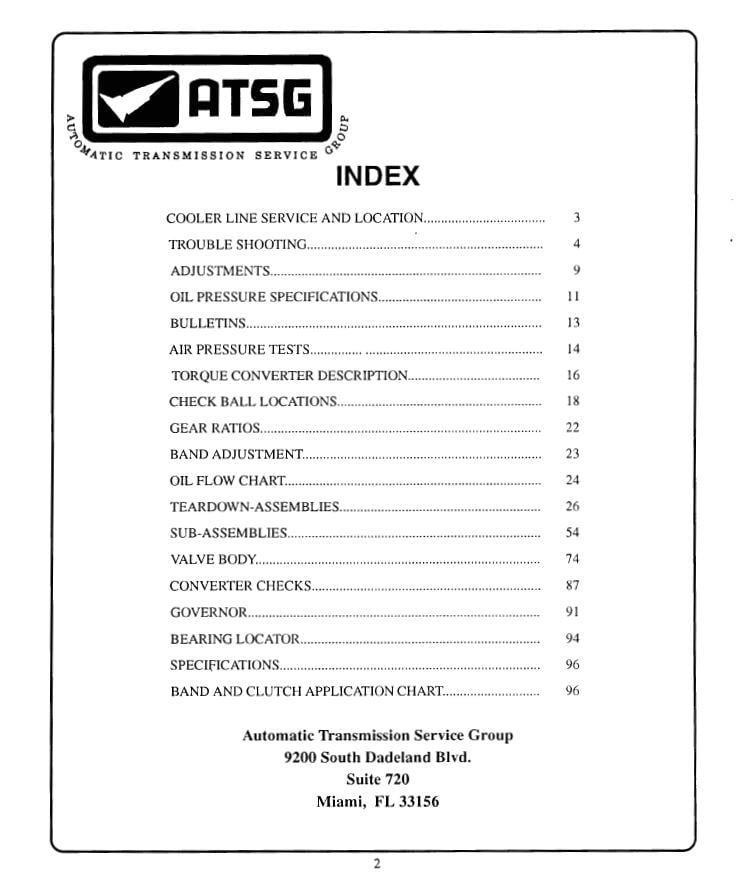

CONTENTS

• COOLER LINE SERVICE AND LOCATION
• TROUBLE SHOOTING
• ADJUSTMENTS
• OIL PRESSURE SPECIFICATIONS
• BULLETINS
• AIR PRESSURE TESTS
• TORQUE CONVERTER DESCRIPTION
• CHECK BALL LOCATIONS
• GEAR RATIOS
• BAND ADJUSTMENT
• OIL FLOW CHART
• TEARDOWN ASSEMBLIES
• SUB-ASSEMBLIES
• VALVE BODY
• CONVERTER CHECKS
• GOVERNOR
• BEARING LOCATOR
• SPECIFICATIONS
• BAND AND CLUTCH APPLICATION CHART

Language: English

Format: PDF

Pages: 96
