V-513D France| Modern two Bedroom house Plan + 2 bathroom with swimming pool one story home floor Plan Tiny house with terrace roof

V-513D

------------------

House Description:

Bedroom 2 Nos.

Bathroom 2 Nos.

Living 1 No.

Visitors 1 No.

Dinning 1 No.

Kitchen 1 No.

Porch 1 No.

Balcony 1 No.

Laundry 1 No.

Pantry 1 No.

------------------

Floor Print WxL 37 x 47.6 Feet (11.3 x 14.5 Meter)

Total Area 146 M2 = 1575 Sq.Ft

------------------

Drawing Description:

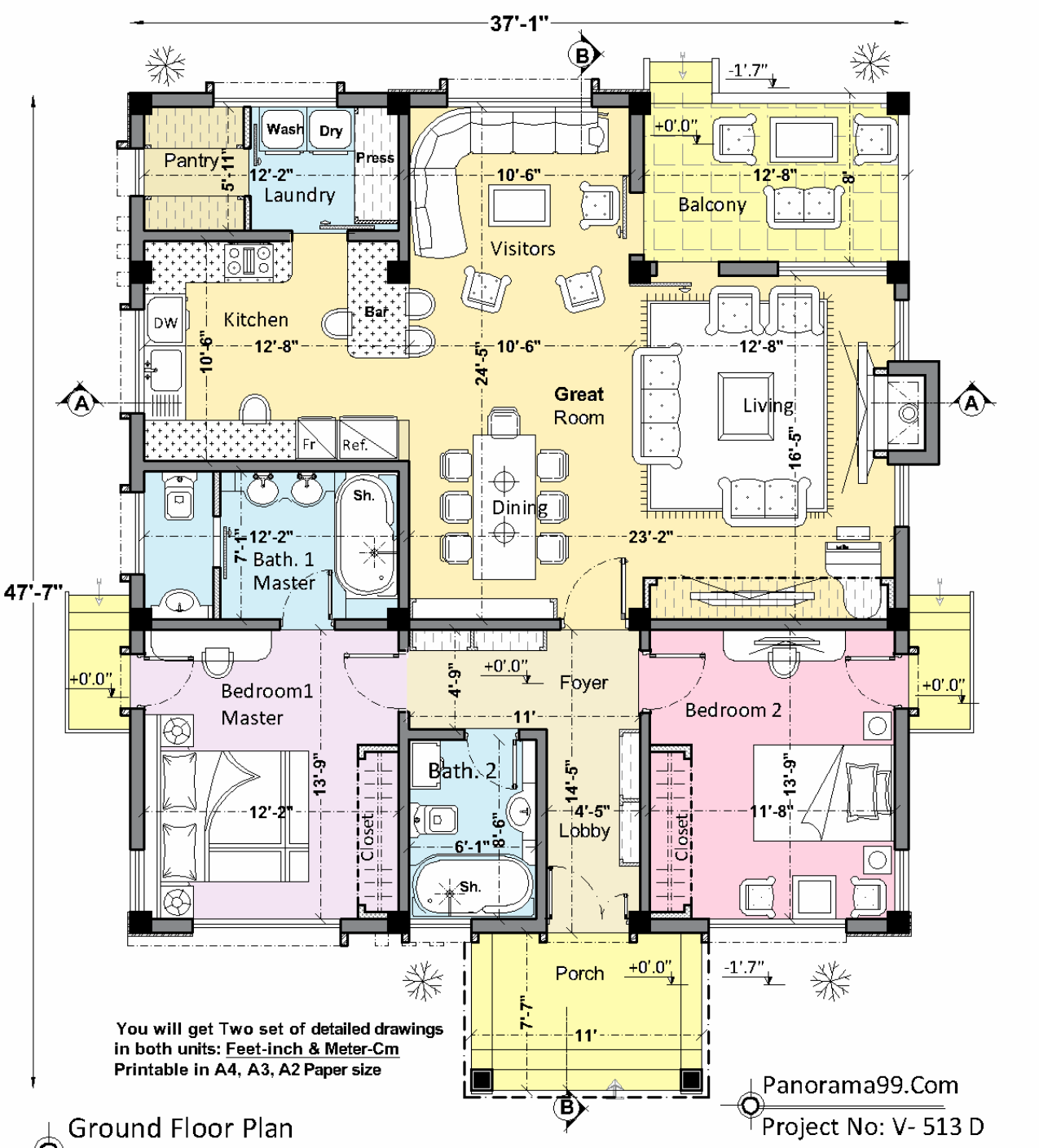

Furniture's Layout  1 No.

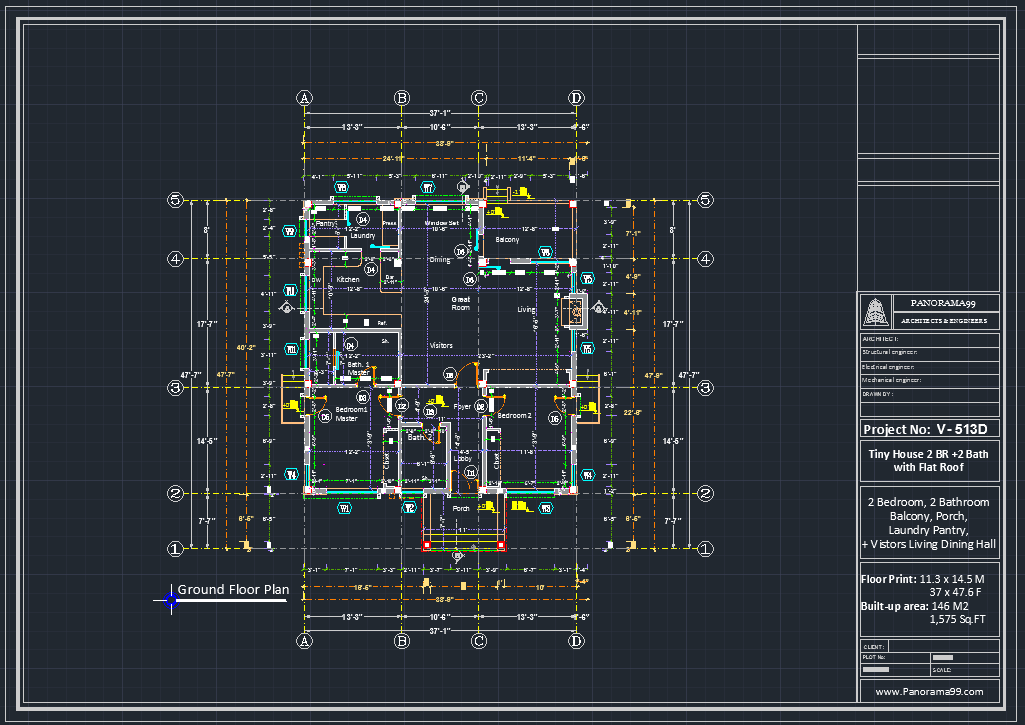

Floor Plan         1 No.

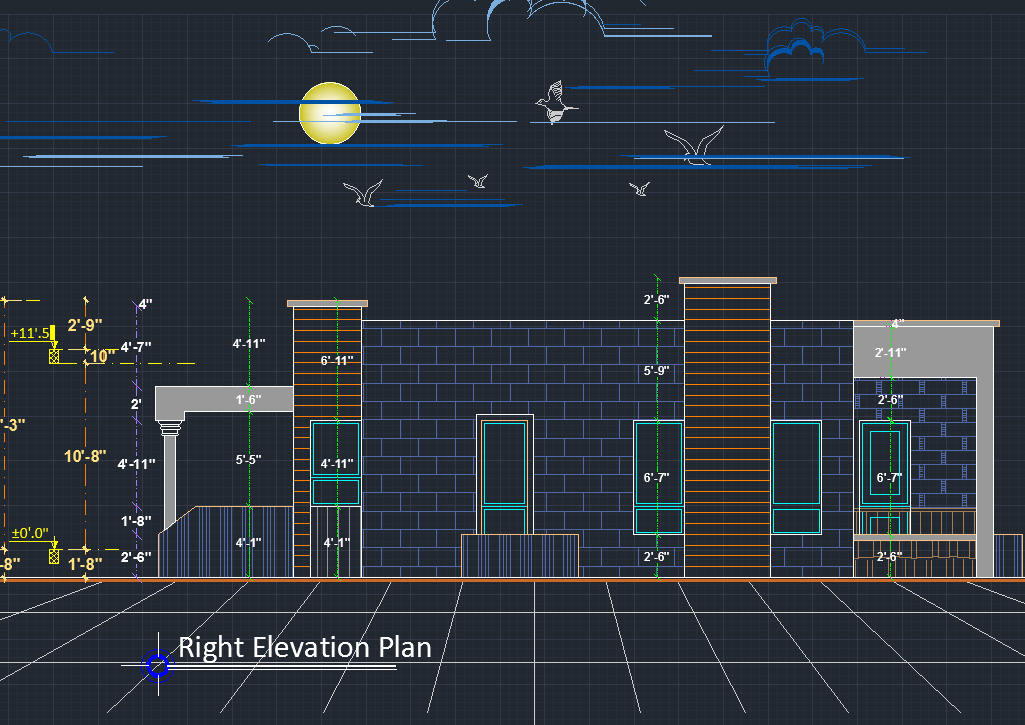

Elevation Plan     4 Nos.

Section Plan       2 Nos.

Roof Deck Plan     1 No.

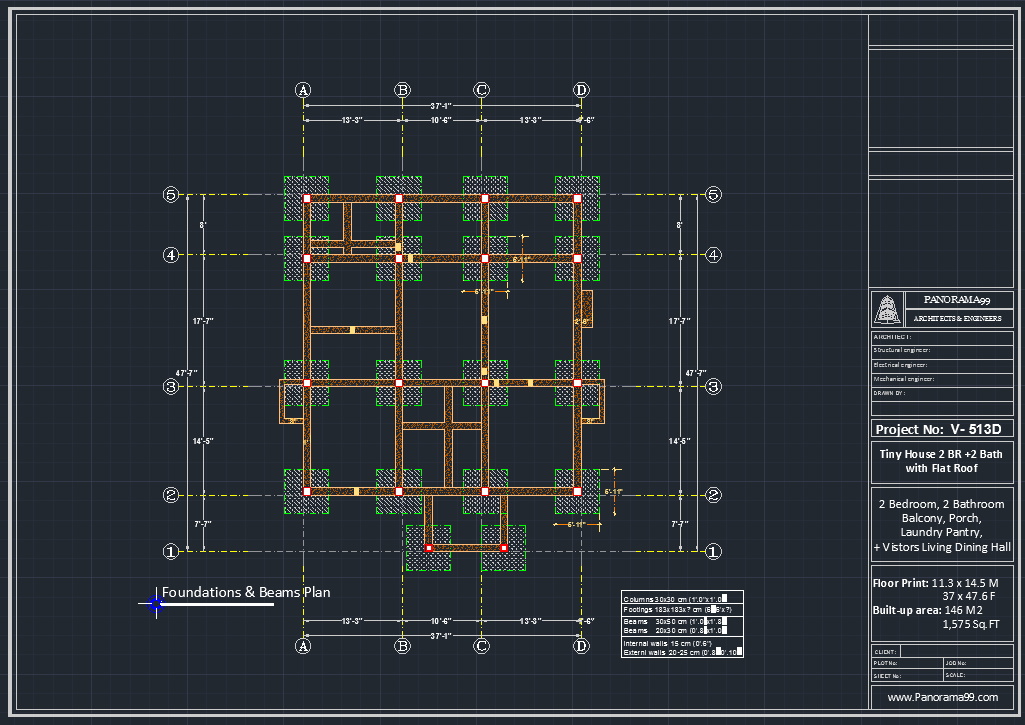

Foundations Beams 1 No.

Columns Centre   1 No.

Typical Details      1 No.

D & W Schedule     1 No.

3D Rendering       9 Nos.

------------------

* General Notes:

* General Notes:

1- We are selling all our house plans as PDF digital file only, and Nothing will be sent by post.

2- You will get Two Sets of Detailed Drawings as PDF file, in Both units (Feet - inch and Meter-Cm)

so you can print multi copies any time in any Paper size A3, A2 only

3- All the house plan drawings are ready and you can download them once payment confirmed.
