Instrumentation (ICAO 022): The Global ATPL Ground Study Manual

YOUR ATPL EXAM PATTERN HAS CHANGED. How long will you keep studying from age-old conventional books? Switch to a modern Instrumentation manual built for the new pattern — the most up-to-date theory, formulae and memory aids, mapped to every major regulator.

Instrumentation is a high-standard 022 paper, and this 529-page full-colour manual takes you from first principles to exam-ready. Every instrument is explained and drawn, every formula is shown and memorised, and every concept is tested.

WHAT'S INSIDE

• 19 chapters covering the complete 022 syllabus — pressure instruments and the pitot-static system; altimeter, ASI, VSI and Machmeter; the Air Data Computer and ADIRS; temperature and angle-of-attack sensing; aircraft magnetism and the direct-reading compass; gyroscopic principles, the attitude indicator and the slaved heading reference; turn and balance; inertial navigation (INS/IRS, ring-laser and strapdown); EFIS; autoflight and autoland; the FMS; warning and recording systems (stall warning, GPWS/EGPWS, TCAS, FDR/CVR); and a dedicated chapter on integrated displays — Boeing EICAS, Airbus ECAM and the ATR 72-600 — side by side.

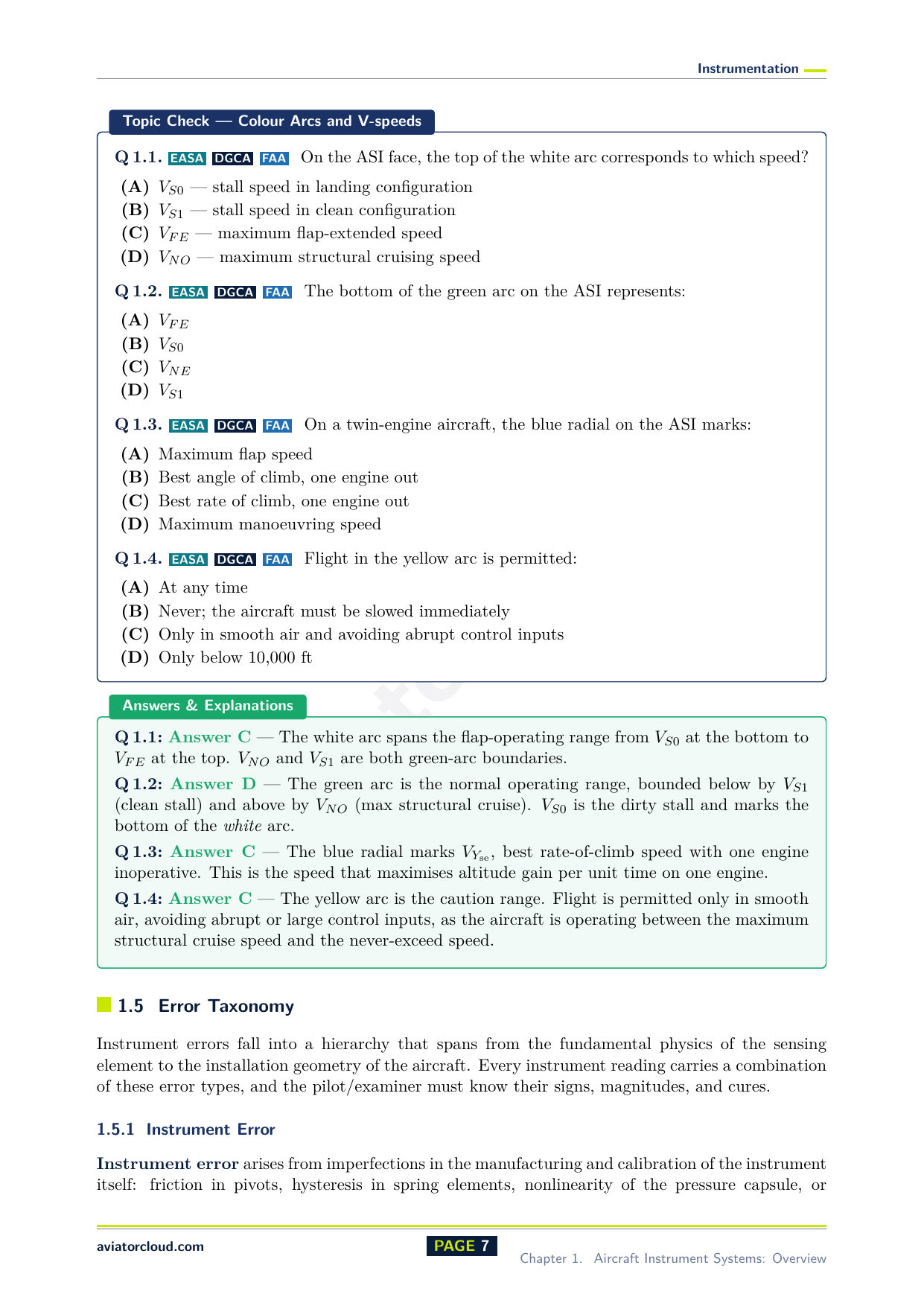

• 864 worked exam-style multiple-choice questions — topic checks, question-bank-style exam-practice sets, a Regulator-Differences exam check per chapter, and a PhD-level Advance Study question set.

• 75+ original, purpose-drawn instrument diagrams — fully-marked dials, real internal mechanisms and glass-cockpit layouts, every feature labelled.

• Memory built in — a quick-recall table in every chapter, a shortcut and mnemonic for every key formula, and an error-recall mnemonic for every instrument error (ANDS, UNOS, ACTS, step-on-the-ball, Schuler 84.4 min, GPWS modes, and more).

• A Regulator-Differences section in every chapter, with comparison tables and exam questions on where the authorities diverge.

• A deep-researched Advance Study section per chapter on the 2027–2028 exam frontier.

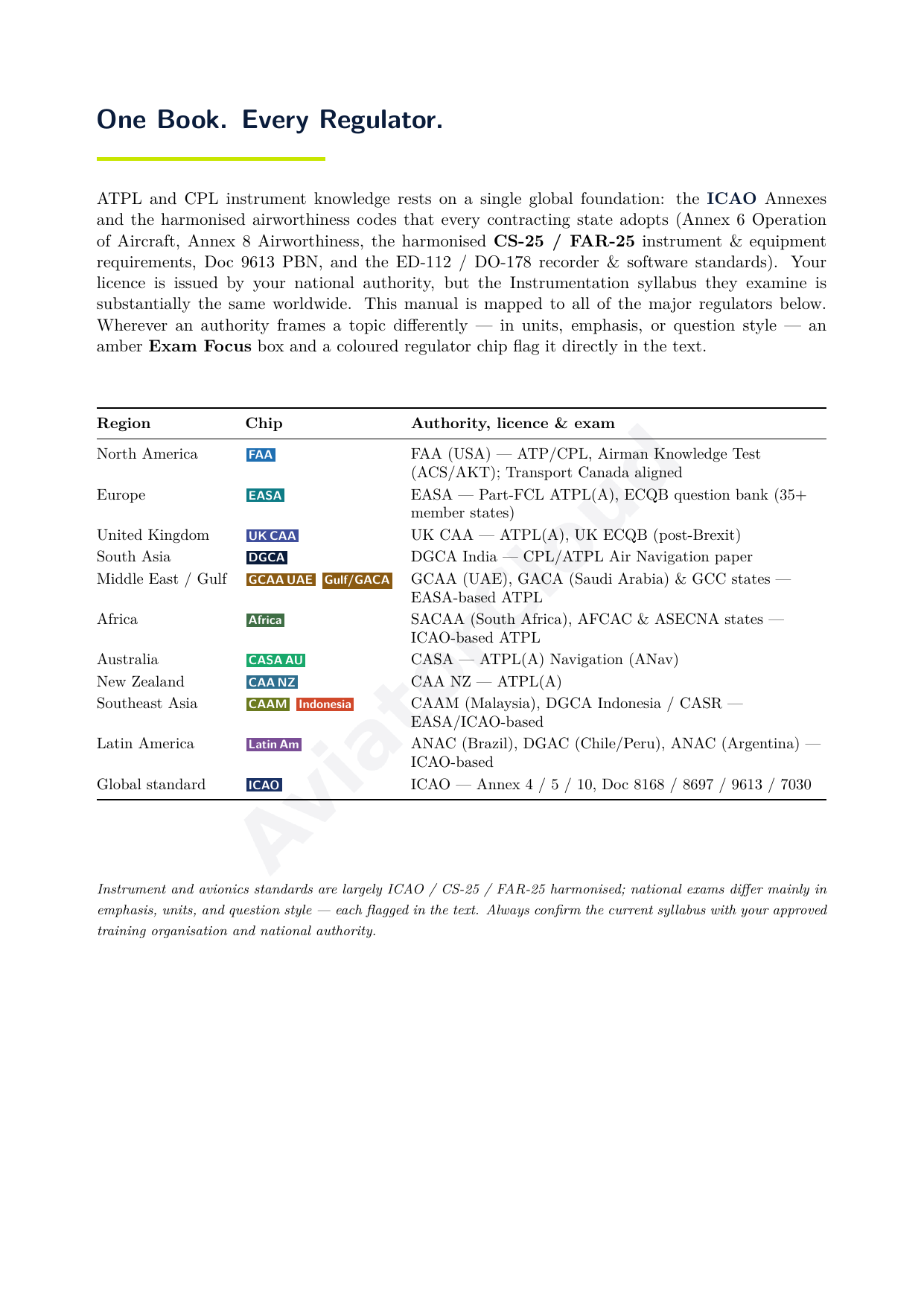

EVERY REGULATOR, ONE BOOK

Concepts are mapped to ICAO, EASA, UK CAA, FAA and DGCA, so the same manual works whether you are sitting EASA ATPL theory, the Indian DGCA papers, the FAA knowledge tests, or a Gulf / Asia-Pacific conversion.

WHO IT'S FOR

Student pilots and cadets preparing ATPL or CPL Instrumentation; flight-school ground instructors; and qualified pilots refreshing avionics and instrument systems for a type rating, command upgrade or conversion.

Independently fact-checked end to end — every MCQ re-solved, every diagram quality-checked. Original content throughout: all questions and diagrams are written and drawn for this book. Includes a detailed section-level Contents and full chapter/section bookmarks for fast navigation (GoodReader-ready).

This is a fixed-layout, full-colour PDF. For the best experience read it on a tablet (iPad or Android), where the diagrams display at full size.

AviatorCloud — modern manuals for the new exam pattern. aviatorcloud.com
