Lifting Bed and Lounge Design

This file contains the blueprints for a loung/dinning area and the unique HappiJac lifting bed design allowing for quick set up and store away of the main bed as well as allowing for a bunk-bed sleeping configuration when main bed is stopped half way down the tracks.

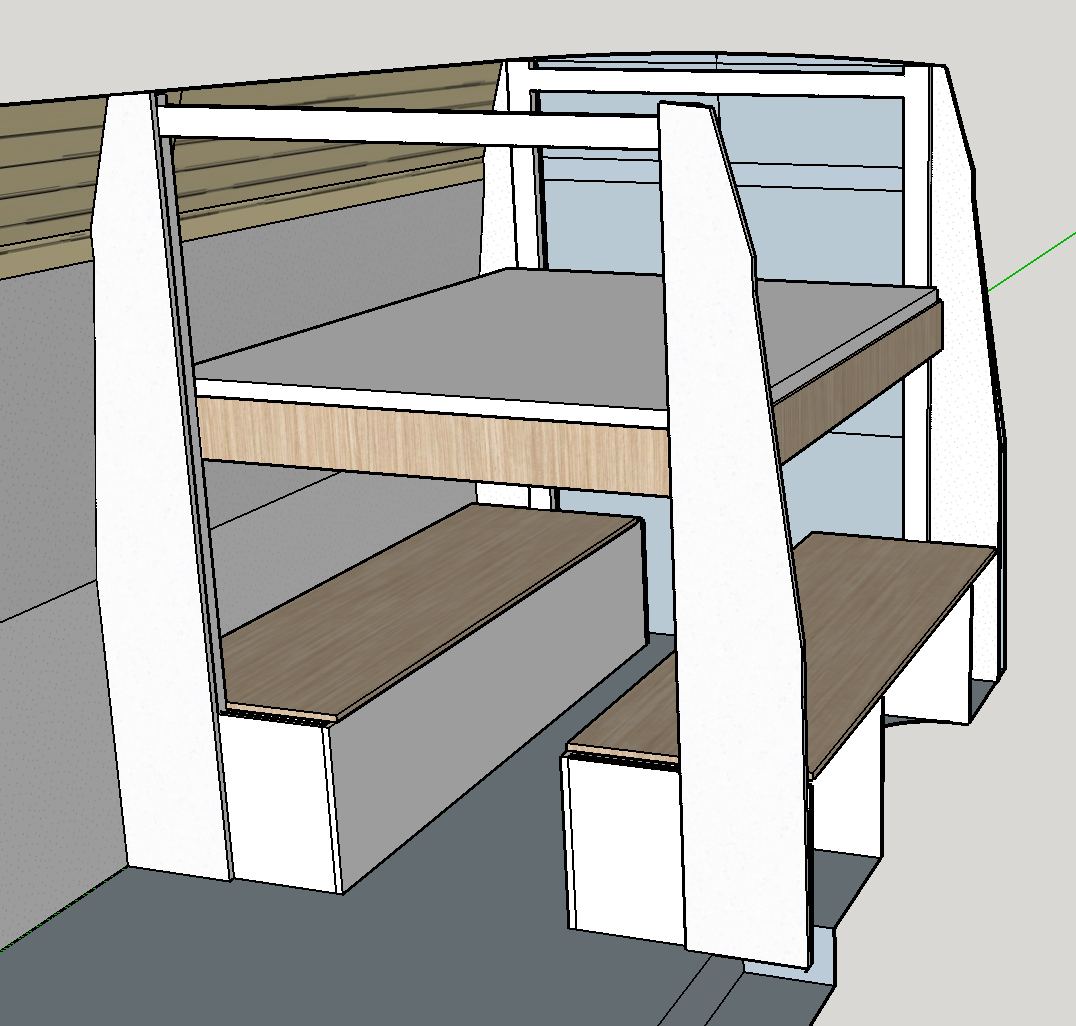

The lounge/dinning area can comfortably seat 6 adults and is positioned at the rear barn-doors ensuring you can relax and enjoy the view wherever you are parked.

This design file provides the measurements and contours compatible with the 144 Sprinter van 2007-2019.

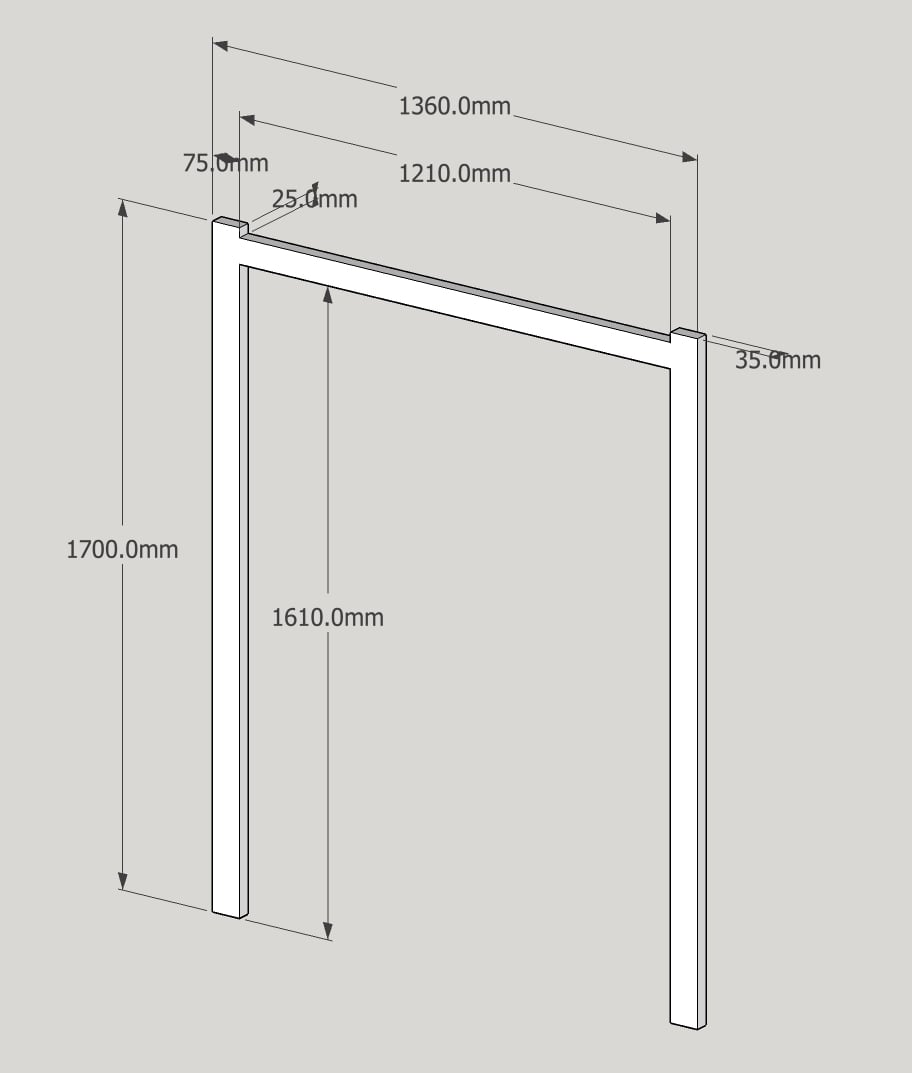

All assets in this design (walls, floor cabinetry, bed, HappiJac frames etc.) are saved as individual components and can be isolated and manipulated within the workspace.

This is a .SKP design file for use with SketchUp 3D modeling software. You can import this file into a free version of SketchUp here www.sketchup.com/try-sketchup#for-personal
