V-788 Venus| Three floor house plan, blueprints Modern triplex

V-788 Venus

------------------

House Description:

Bedroom 6 Nos.

Bathroom 5 Nos.

Living 1 No.

Dinning 1 No.

Kitchen 1 No.

Sitting 2 Nso.

Media / TV 1 No.

-------------

Pantry 1 No.

Laundry 1 No.

Porch 1 No.

Balcony 1 No.

Pergola 1 No.

Terrace 1 No.

Garage 2 Cars

------------------

Footprint WxL: (37 x 47 Feet) (11.4 x 14.3 Meter)

------------------

Total Built up Area: 335 M2 = 3605 Sq.Ft

------------------

Drawings Description:

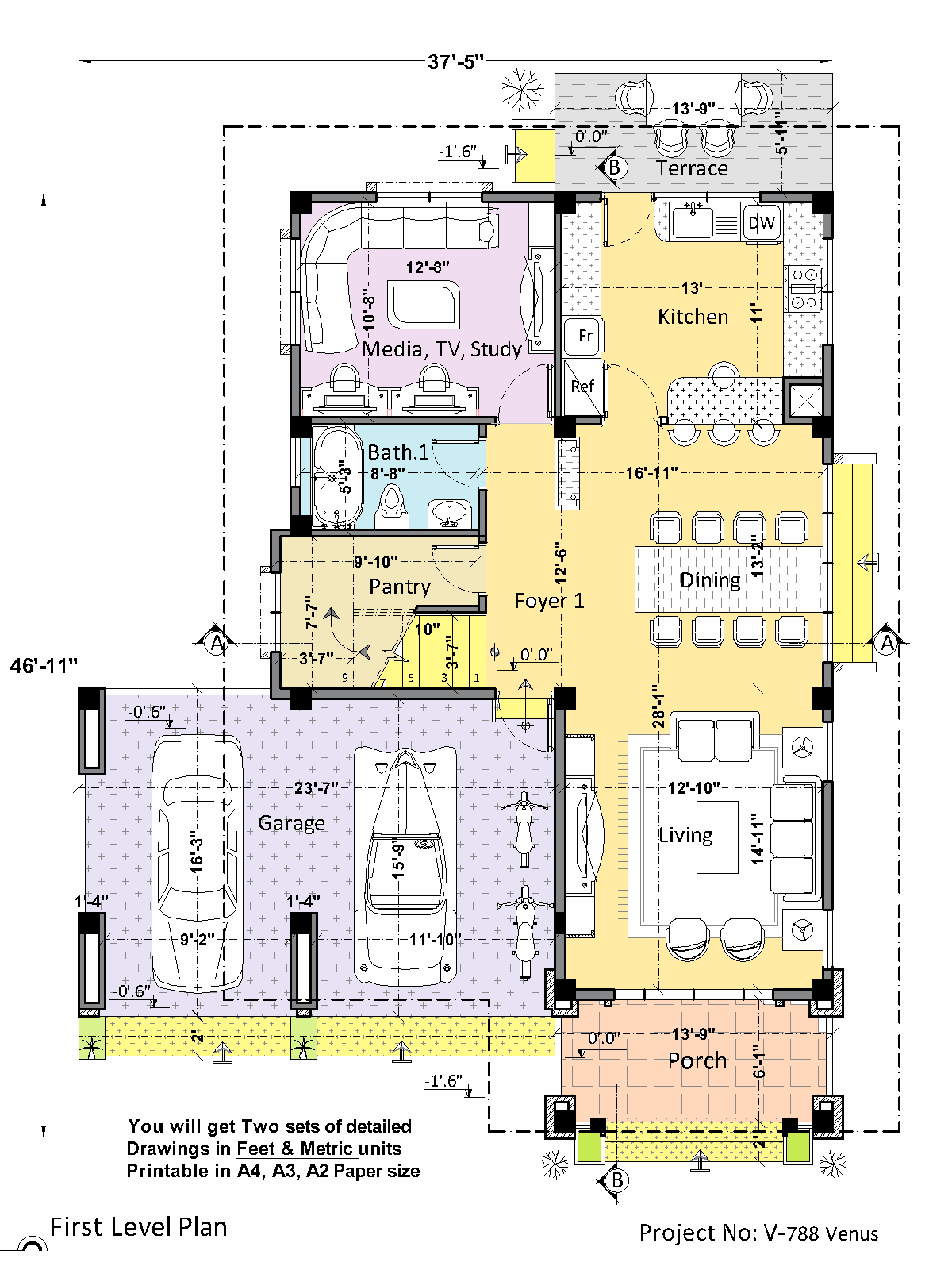

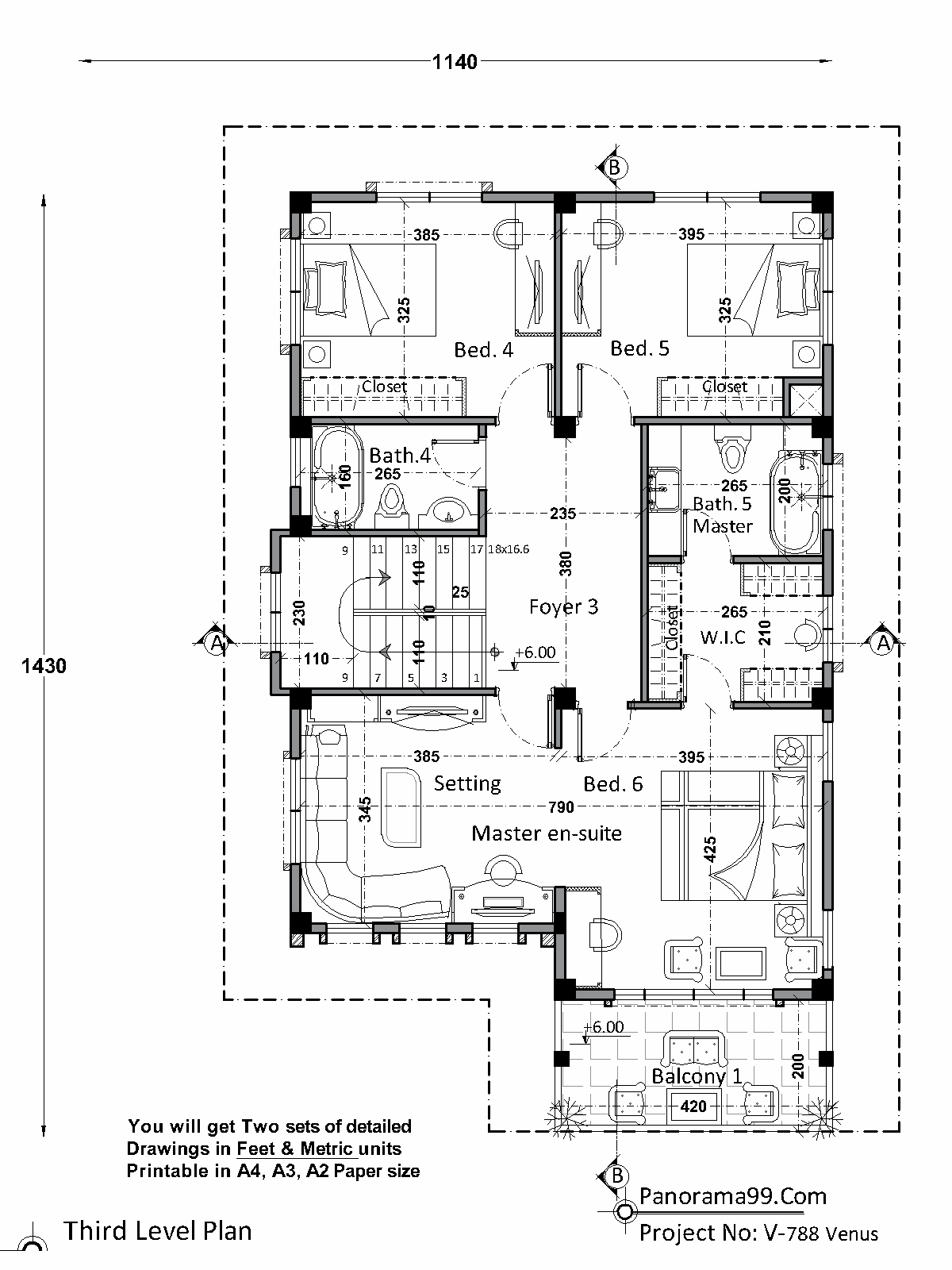

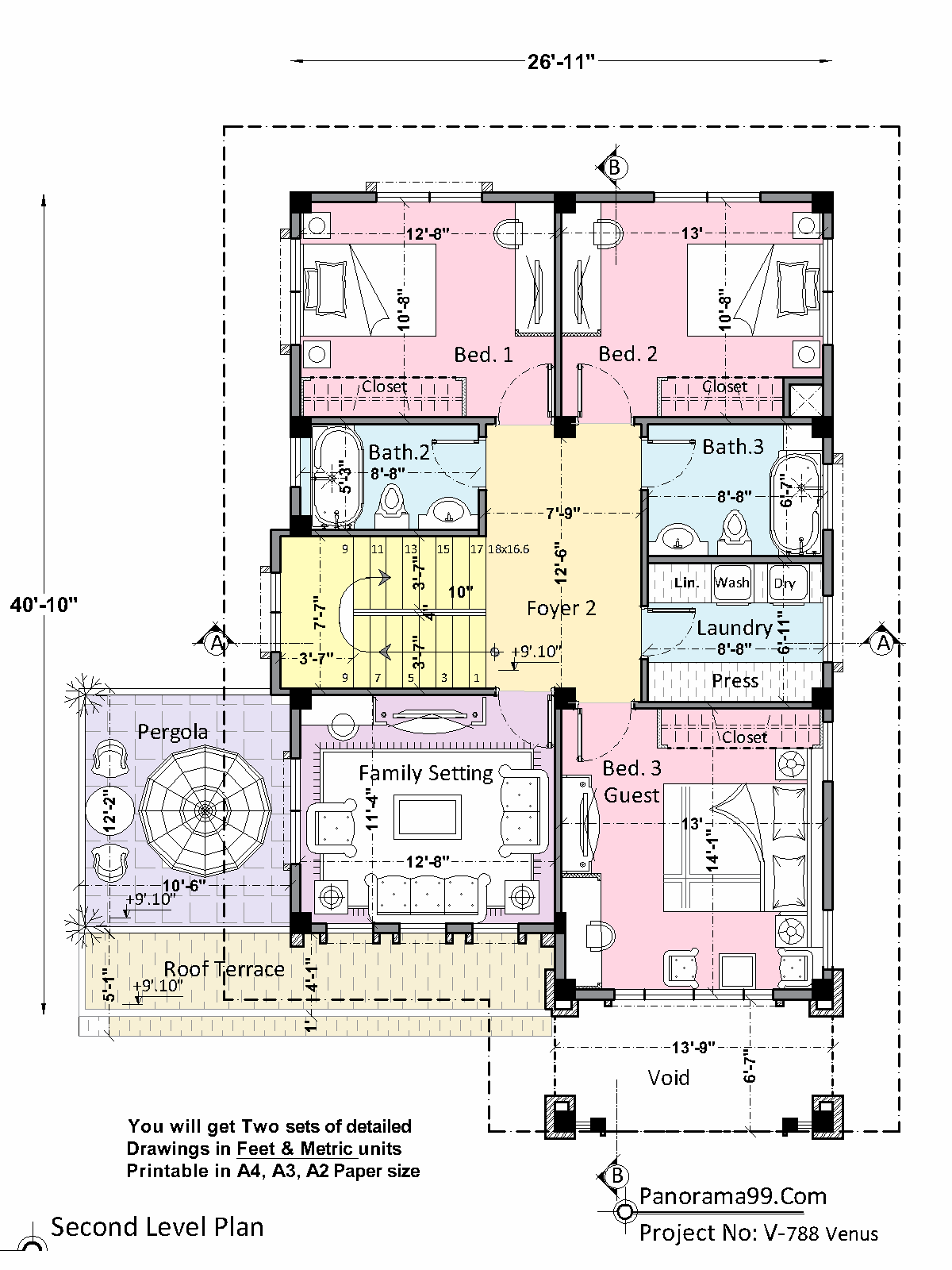

Floor Plan 2 Nos.

Furniture Layout 2 Nos.

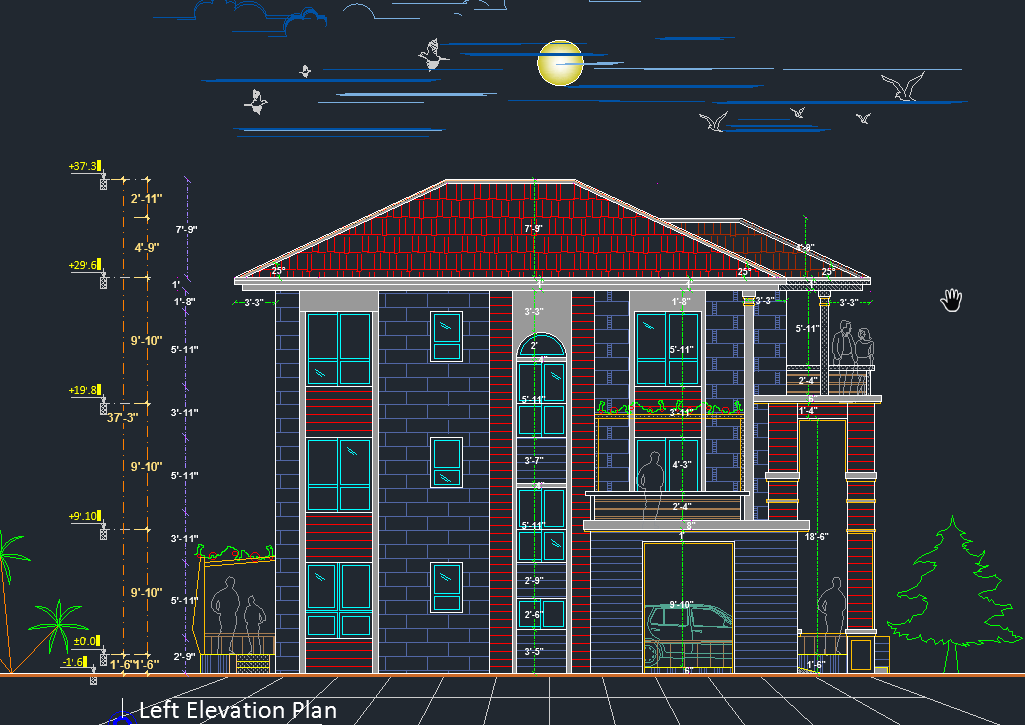

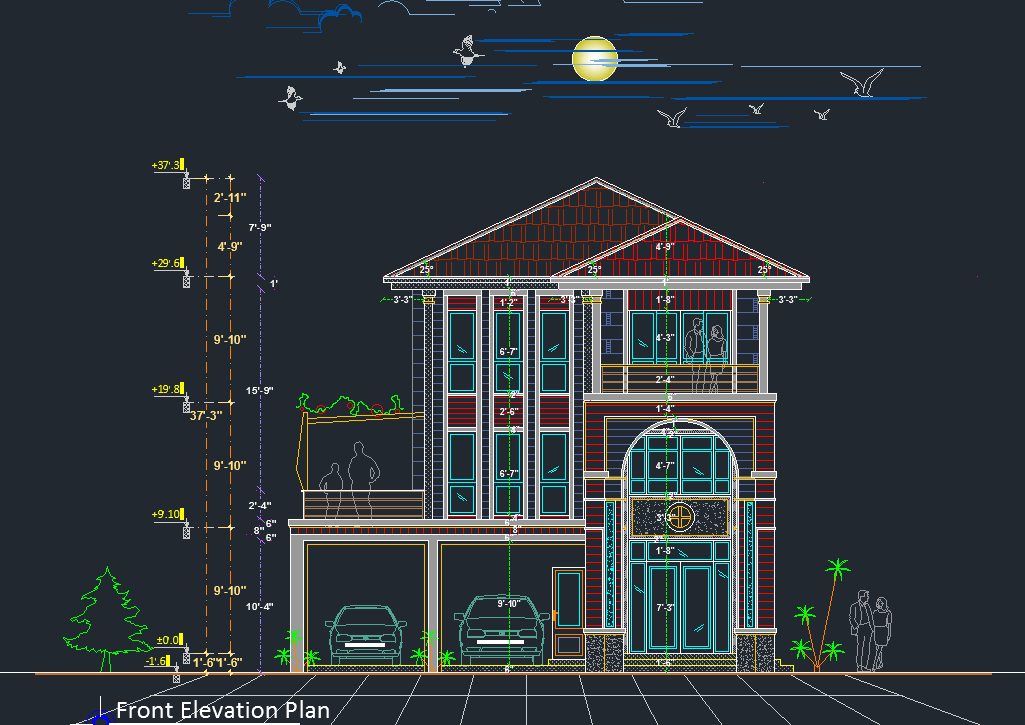

Elevation Plan 4 Nos.

Section Plan 2 Nos.

Roof Location 1 No.

Roof Top Plan 1 No.

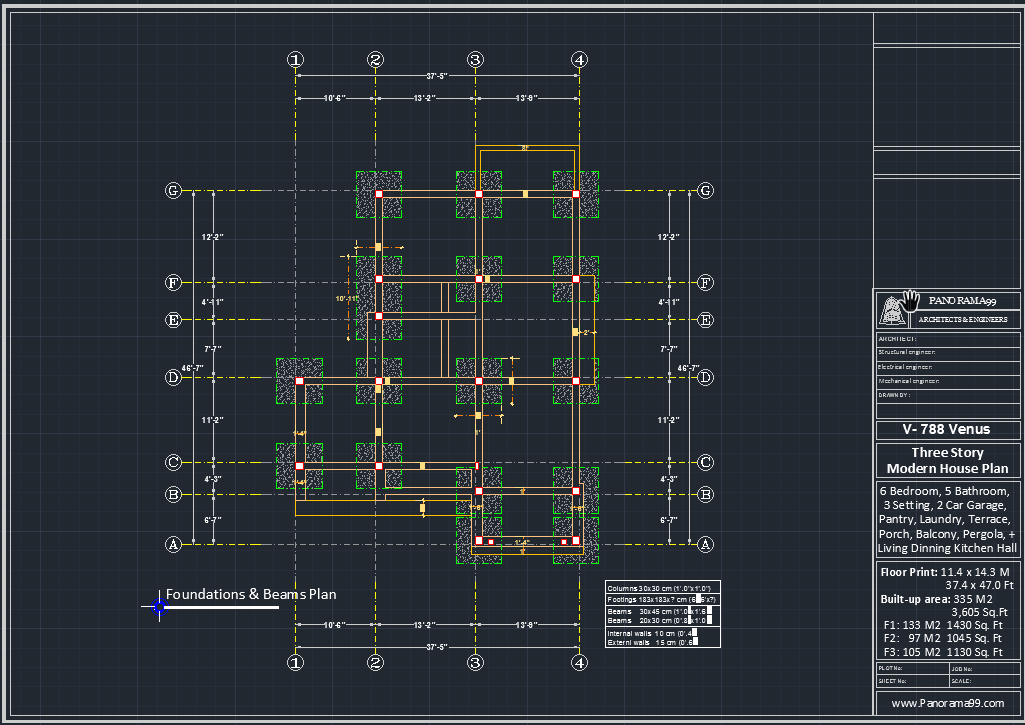

Foundation Beams 1 No.

Columns Centre 1 No.

Typical Details 1 No.

D & W Schedule 1 No.

3D Rendering 5 Nos.

------------------

* General Notes:

1- We are selling all our house plans as PDF digital file only, Nothing will be sent by post.

2- You will get Two sets of detailed drawings as PDF file, in both units (Feet-inch & Meter-cm).

3- You can print multi copies in any time,

4- please print using (A2 or A3) paper size only, please Don't print in A4 .

5- All the house plans are ready to download
