V-910| Modern luxury villa, Spanish style, Duplex house plan, with 5-6 bedroom + 5-7 bath, 3 car garage

V-910

------------------

House Description:

Bedroom :5 Nos.

Bathroom:5 Nos.

Living

Visitors

Setting

Dinning

Kitchen

Porch

Lobby

Laundry

Maid Room

Stair + Left

Balcony: 4 Nos.

Pergola: 3 Nos.

W.C: 2 Nos.

Garage: 3 Cars

----------

Footprint WxL:

18,75x16,25 Meter

61,6x53,4 Feet

----------

Total Built Area

483 M2 5200 Sq. Ft

----------

GF: 255 M2 2,745 Sq. Ft

FF: 228 M2 2,455 Sq. Ft

---------------

Drawing Description:

Furniture Layout 2 Nos.

Floor Plan 2 Nos.

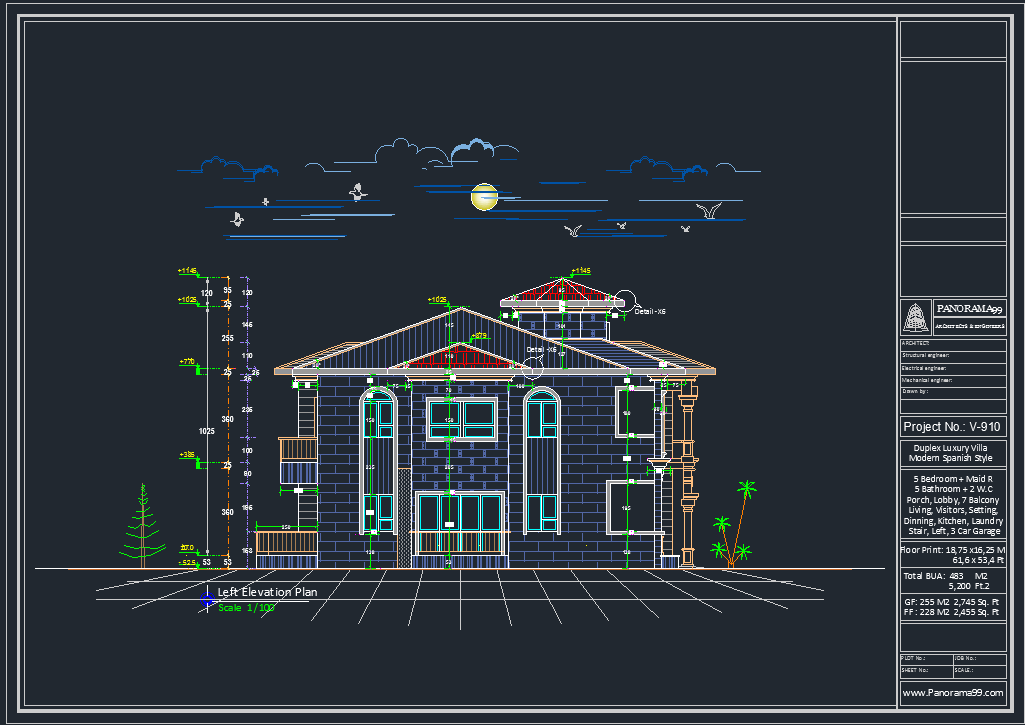

Elevation Plan 4 Nos.

Section Plan 2 Nos.

Columns Centre Line 1 No.

Footing, Beams Plan 1 No.

Roof Location 1 No.

Roof Top Plan 2 Nos.

Projections Plan 2 Nos.

D & W Schedule 1 No.

Details 1 No.

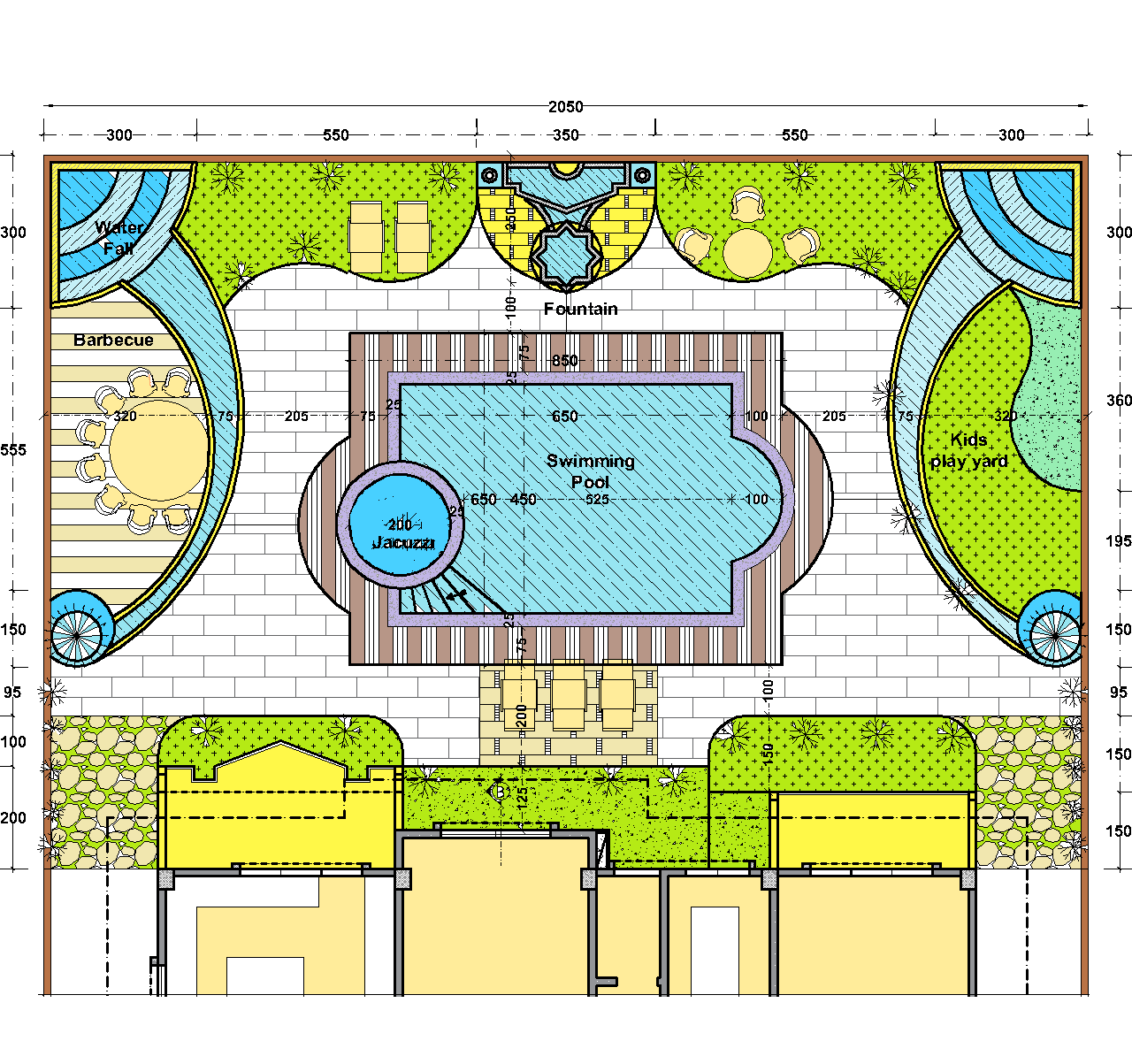

S.Pool Concept 2 No.

3D Rendering 6 Nos.

------------------

* General Notes:

1- We are selling all our house plans as PDF digital file only, Nothing will be sent by post.

2- You will get Two sets of detailed drawings as PDF file, in both units (Feet-inch & Meter-cm).

3- You can print multi copies in any time,

4- please print using (A2 or A3) paper size only, Don't print in A4 .

5- All the house plans are ready to download
