V-439-Arizona| Luxury Villa 4 bedroom with 5 bathroom, 2 living, 1visitors 1 dinning+ 2 car garage, blueprint modern double story house

V-439-Arizona|

House Description:
Bedroom 4 Nos.
Bathroom 5 Nos.
Living 1 No.
Sitting 1 No.
Visitors 1 No.
Dinning 1 No.
Kitchen 1 No.
Pantry 1 No.
Laundry 1 No.
Porch 1 No.
Balcony 3 Nos.
Terrace 2 Nos.
Pergola 1 No.
Garage 2 Cars
------------------
Floor Print WxL: (51 x 48) Feet) (15.50 x 14.60 Meter)
Total Area: 442 M2 = 4750 F2
------------------

Drawings Description:

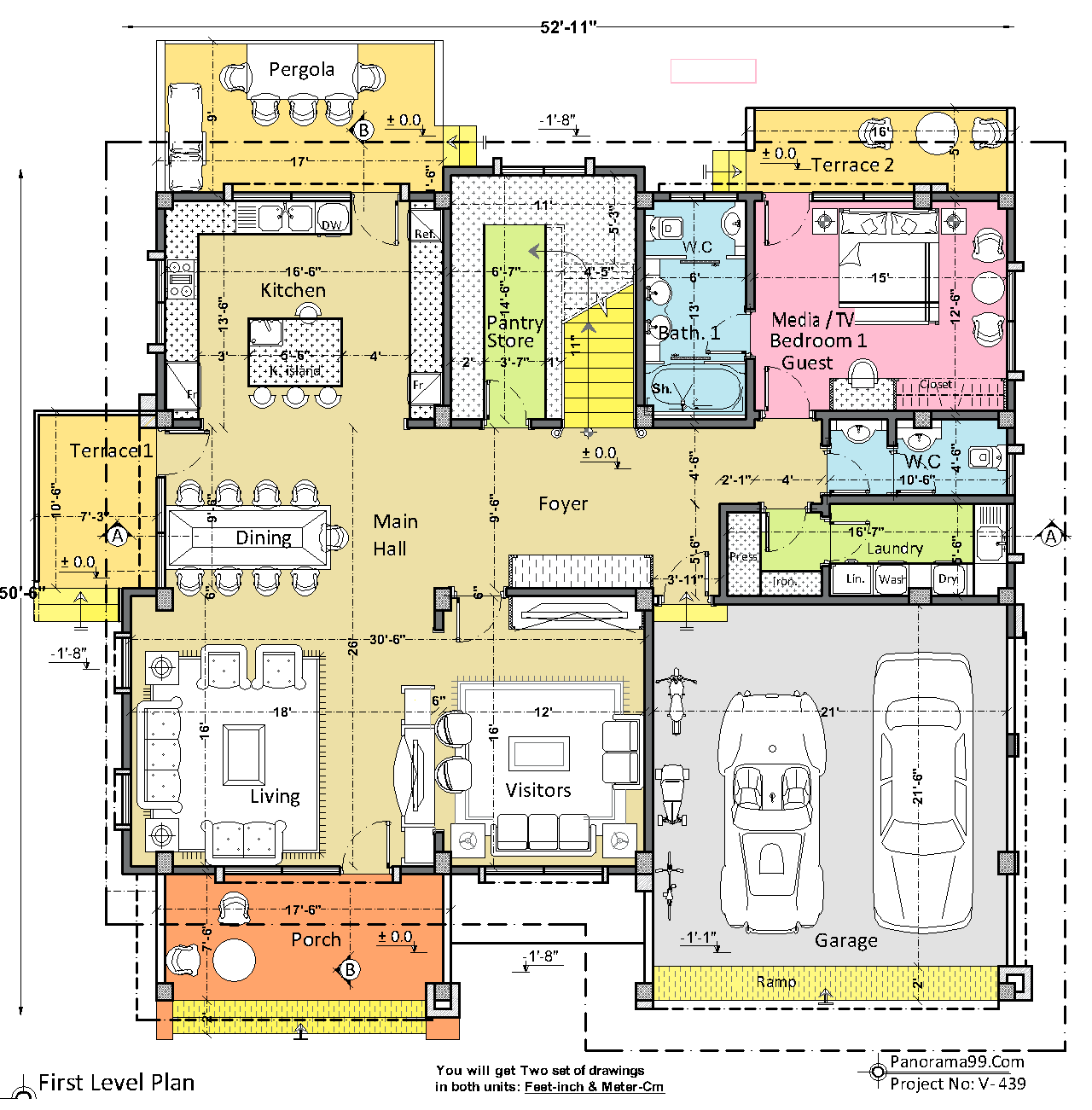

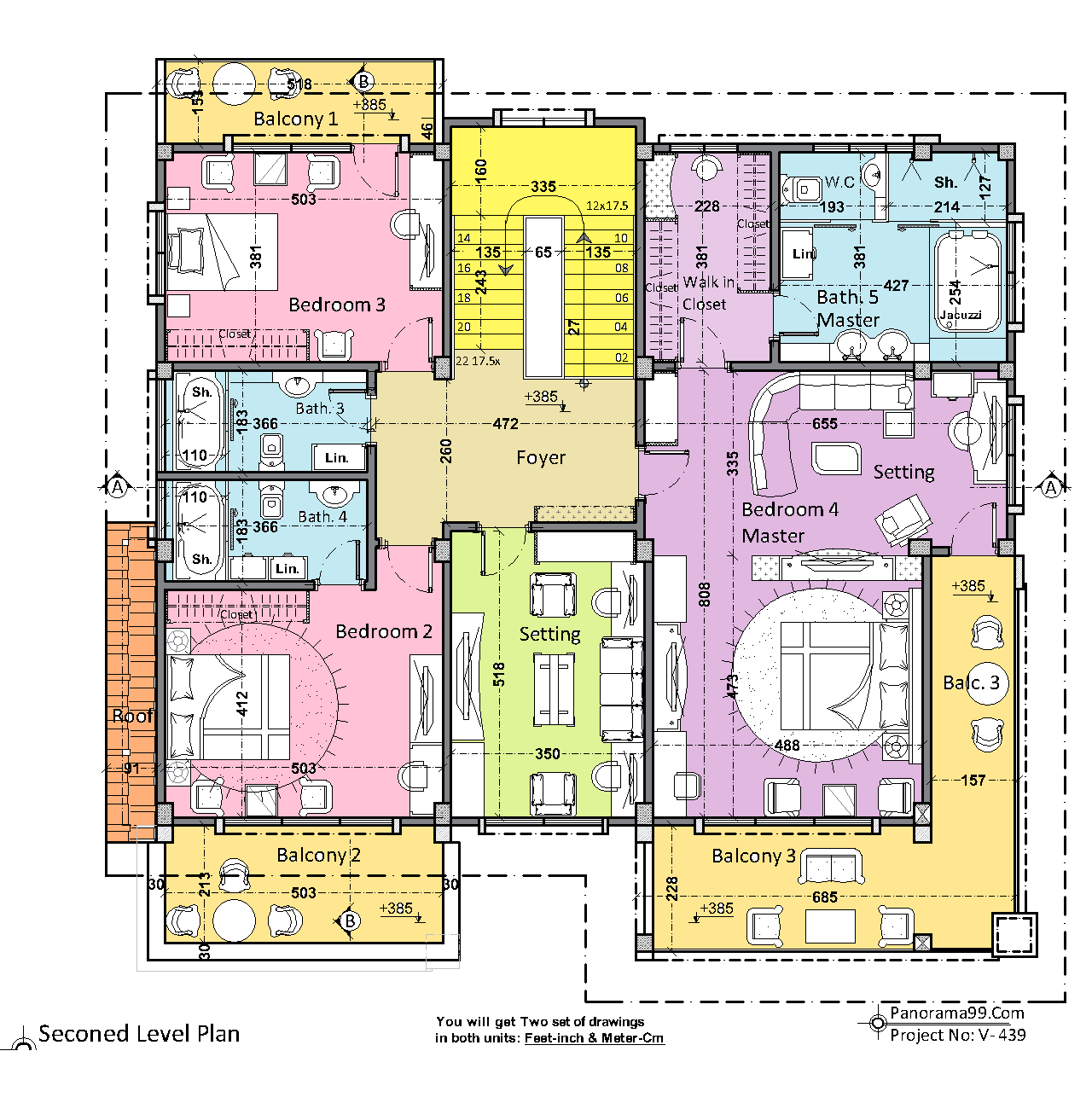

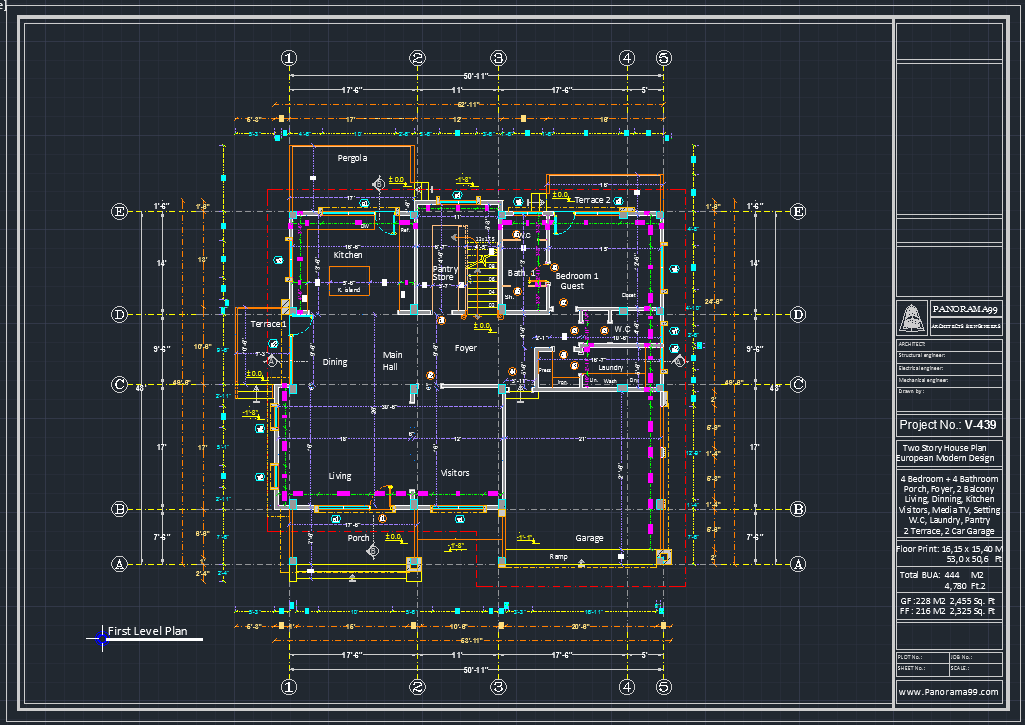

Floor Plan 2 Nos.
Furniture Layout 2 Nos.
Elevation Plan 4 Nos.
Section Plan 2 Nos.
Roof Location 1 No.

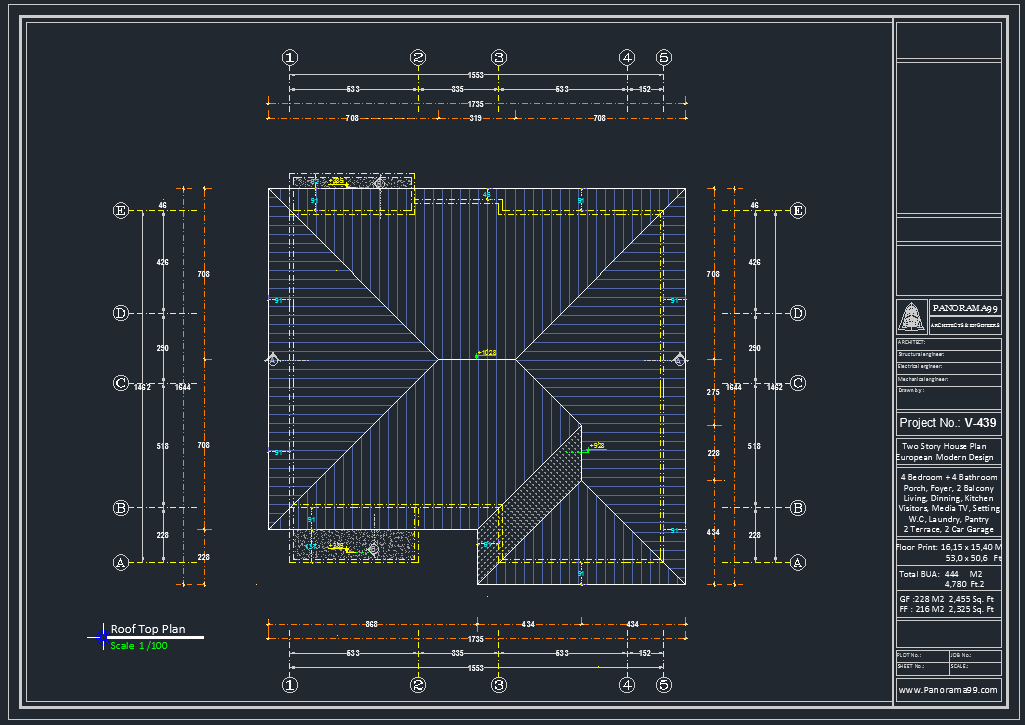

Roof Top Plan 1 No.
Foundation Beams 1 No.
Columns Centre 1 No.
Typical Details 1 No.
D & W Schedule 1 No.
3D Rendering 1 No.
------------------
* General Notes:
1- We are selling all our house plans as PDF digital file only, and Nothing will be sent by post.
2- You will get Two Sets of Detailed Drawings as PDF file, in Both units (Feet - inch and Meter-Cm)
so you can print multi copies any time in any Paper size A3, A2 only
3- All the house plan drawings are ready and you can download them once payment confirmed.
------------------
