V-725 Oscar| Two story modern house plans, 6 7 bedroom house plans | house plan 6 7 bedroom #blueprints home design, floor plan
On Sale
$250.00
(50% off)
$125.00
V-725
House Description:
Bedroom 6-7 Nos.
Bathroom 5 Nos.
Sitting 1 No.
Living 1 No.
Visitors 1 No.
Dinning 1 No.
Kitchen 1 No.
Pantry 1 No.
Laundry 1 No.
Media / TV 1 No.
Maid Room 1 No.
-------------
Porch 1 No.
Balcony 2 Nos.
Terrace 1 No.
Pergola 1 No.
Garage 2 Cars
------------------
Footprint
WxL (64x44 Feet) (19.65x13.4 Meter)
Total Built up Area: 435 M2 = 4675 Sq.Ft
GF 225 M2= 2415 Sq.Ft
FF 210 M2= 2260 Sq.Ft
------------------
Drawings Description:

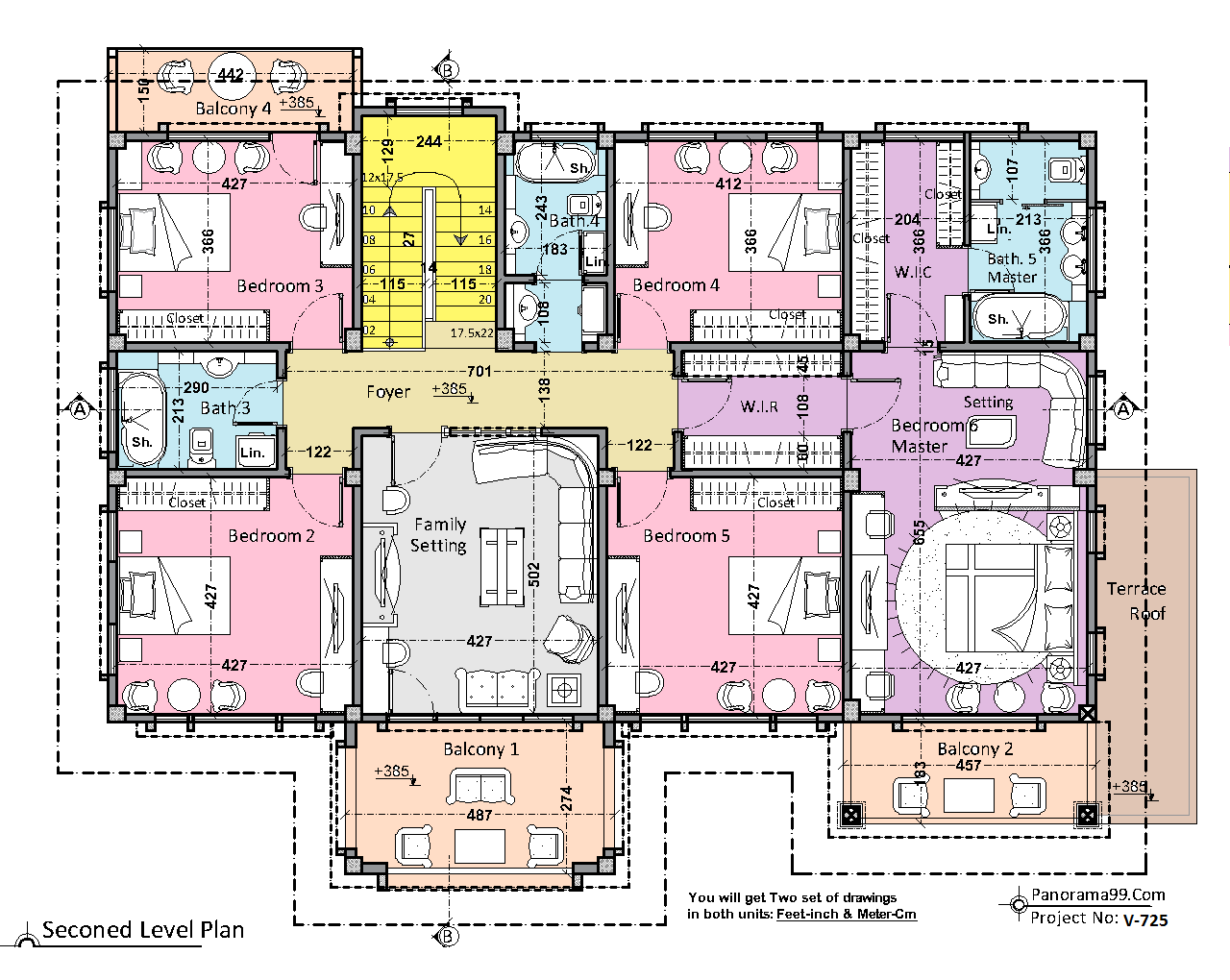

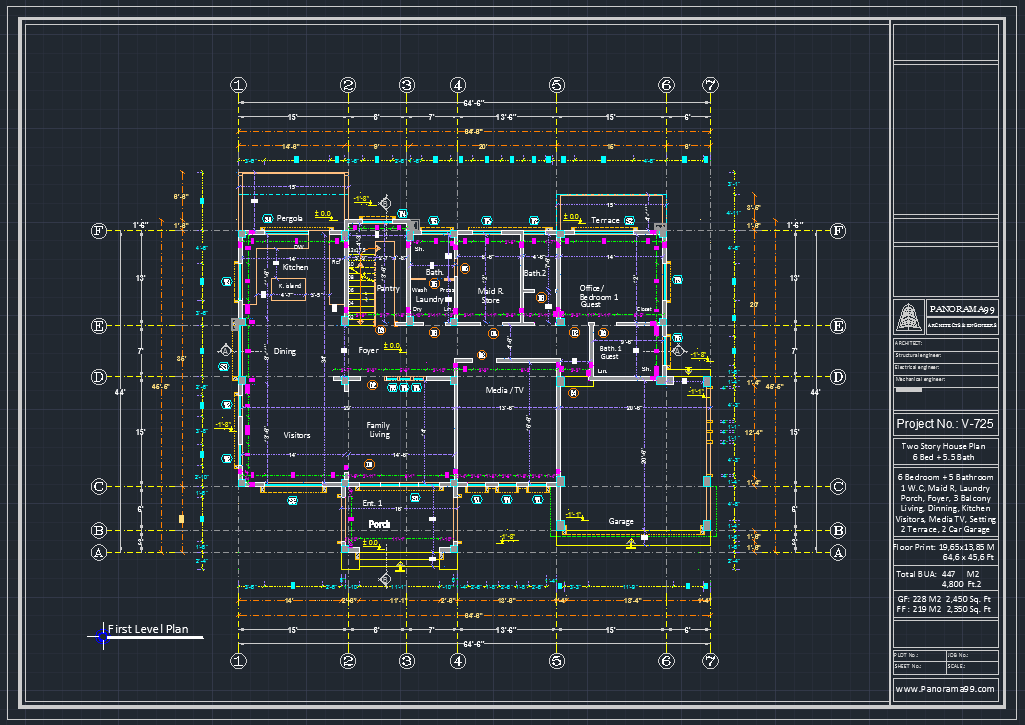

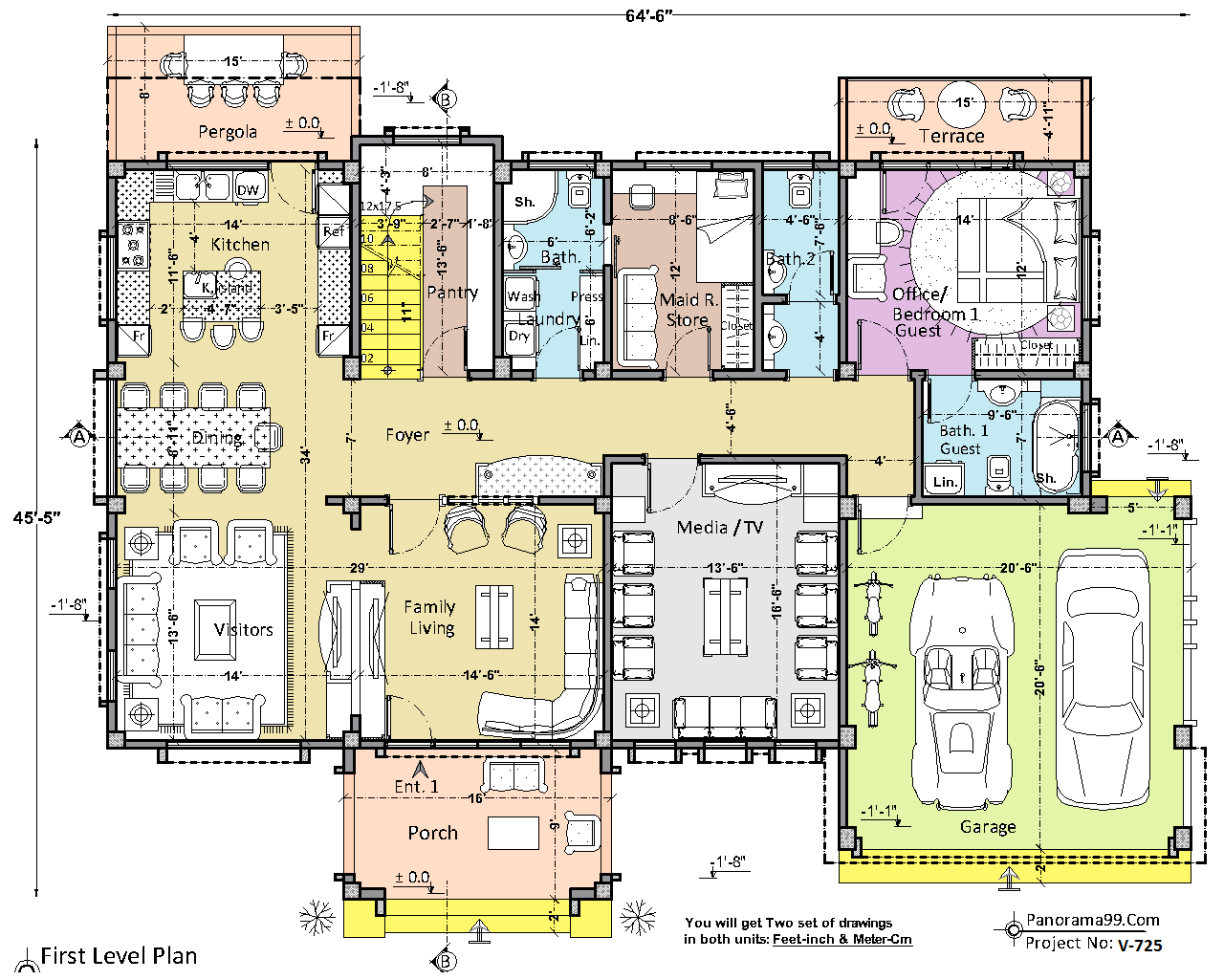

Floor Plan 2 Nos.
Furniture Layout 2 Nos.
Elevation Plan 4 Nos.

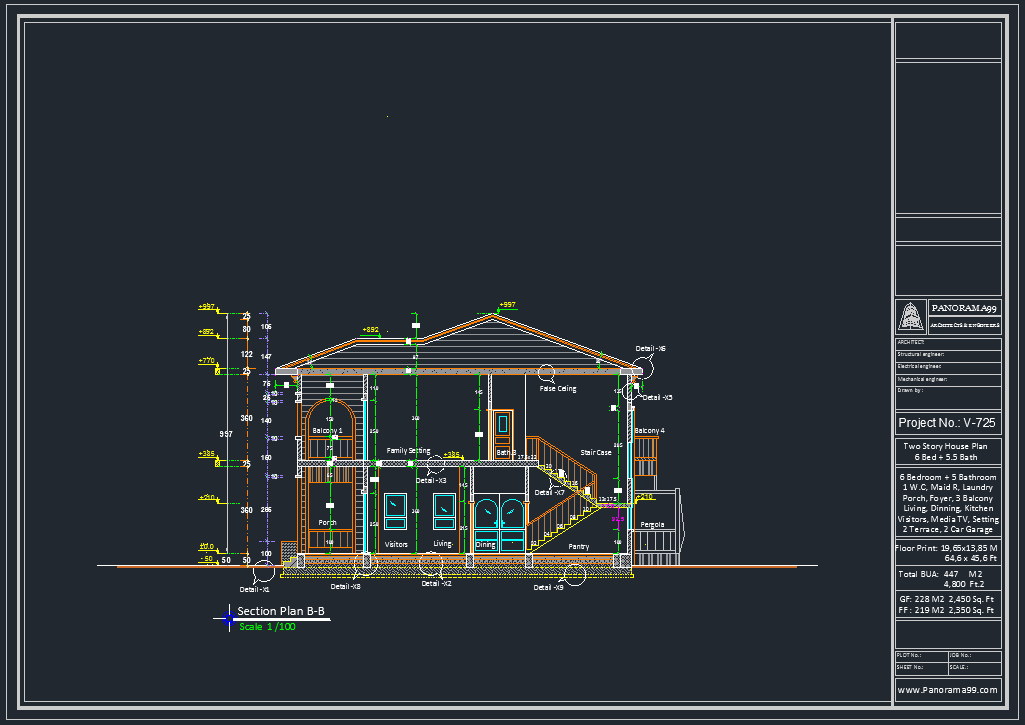

Section Plan 2 Nos.
Roof Location 1 No.
Roof Top Plan 1 No.
Foundation Beams 1 No.
Columns Centre 1 No.
Typical Details 1 No.
D & W Schedule 1 No.
3D Rendering 1 No.
------------------
* General Notes:
V-439| Arizona|
------------------
House Description:
Bedroom 4 Nos.
Bathroom 4.5 Nos.
Living 1 No.
Sitting 1 No.
Visitors 1 No.
Dinning 1 No.
Kitchen 1 No.
Pantry 1 No.
Laundry 1 No..
Porch 1 No.
Balcony 3 Nos.
Terrace 2 Nos.
Pergola 1 No.
Garage 2 Cars
------------------
Footprint WxL (53 x 60,6 Feet) (16.15 x 15.4 Meter)
Total Built up Area: 444 M2 = 4780 F2
------------------
Drawings Description:
Furniture Layout 2 Nos.
Floor Plan 2 Nos.
Elevation Plan 4 Nos.
Section Plan 2 Nos.
Roof Location 1 No.
Roof Top Plan 1 No.
Foundation Beams 1 No.
Columns Centre 1 No.
Typical Details 1 No.
D & W Schedule 1 No.
3D Rendering 5 No.
------------------
* General Notes:
1- We are selling all our house plans as PDF digital file only, Nothing will be sent by post.
2- You will get Two sets of detailed drawings as PDF file, in both units (Feet-inch & Meter-cm).
3- You can print multi copies in any time,
4- please print using (A2 or A3) paper size only, Don't print in A4 .
5- All the house plans are ready to download
