V-634 Africa| #Modern mansion Plans | 5 6 bedroom House Plans # two floors Home with terrace flat deck, blueprints Duplex home

V-634 Africa|

-------------

House Description:

Bedroom 6-7 Nos.

Bathroom 6 Nos.

Sitting 1 No.

Living 1 No.

Visitors 1 No.

Dinning 1 No.

Kitchen 1 No.

Pantry 1 No.

Laundry 1 No.

Media / TV 1 No.

Maid Room 1 No.

-------------

Porch 1 No.

Balcony 2 Nos.

Terrace 1 No.

Pergola 1 No.

Garage 2 Cars

------------------

Footprint WxL (64x44 Feet) (19.65x13.4 Meter)

Total Built up Area: 455 M2 = 4895 Sq.Ft

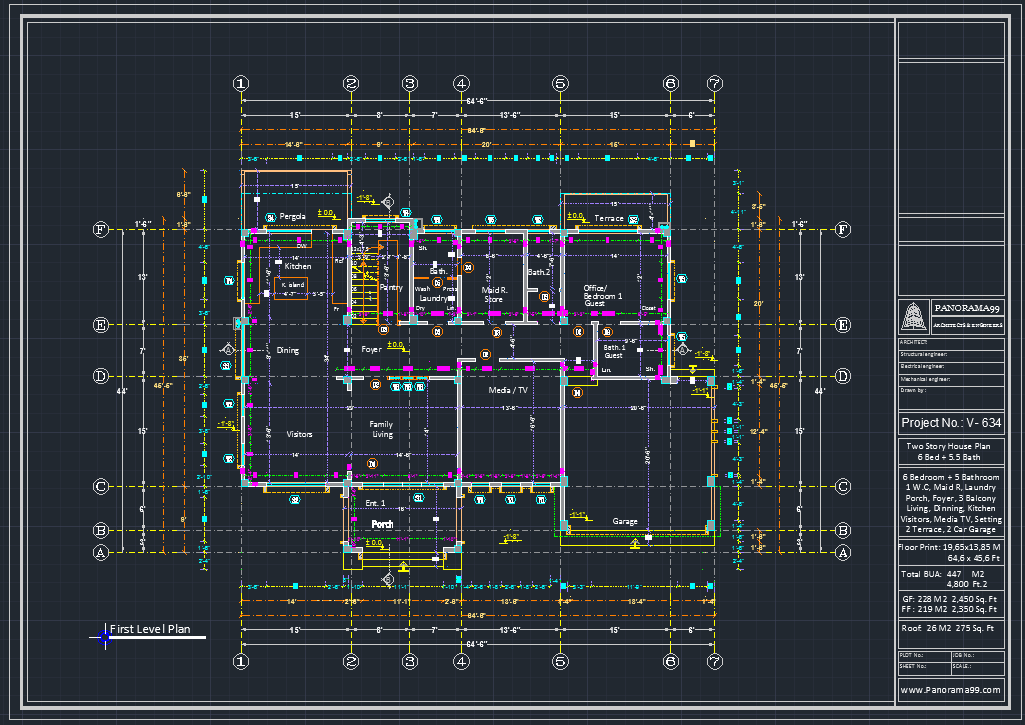

GF 225 M2= 2415 Sq.Ft

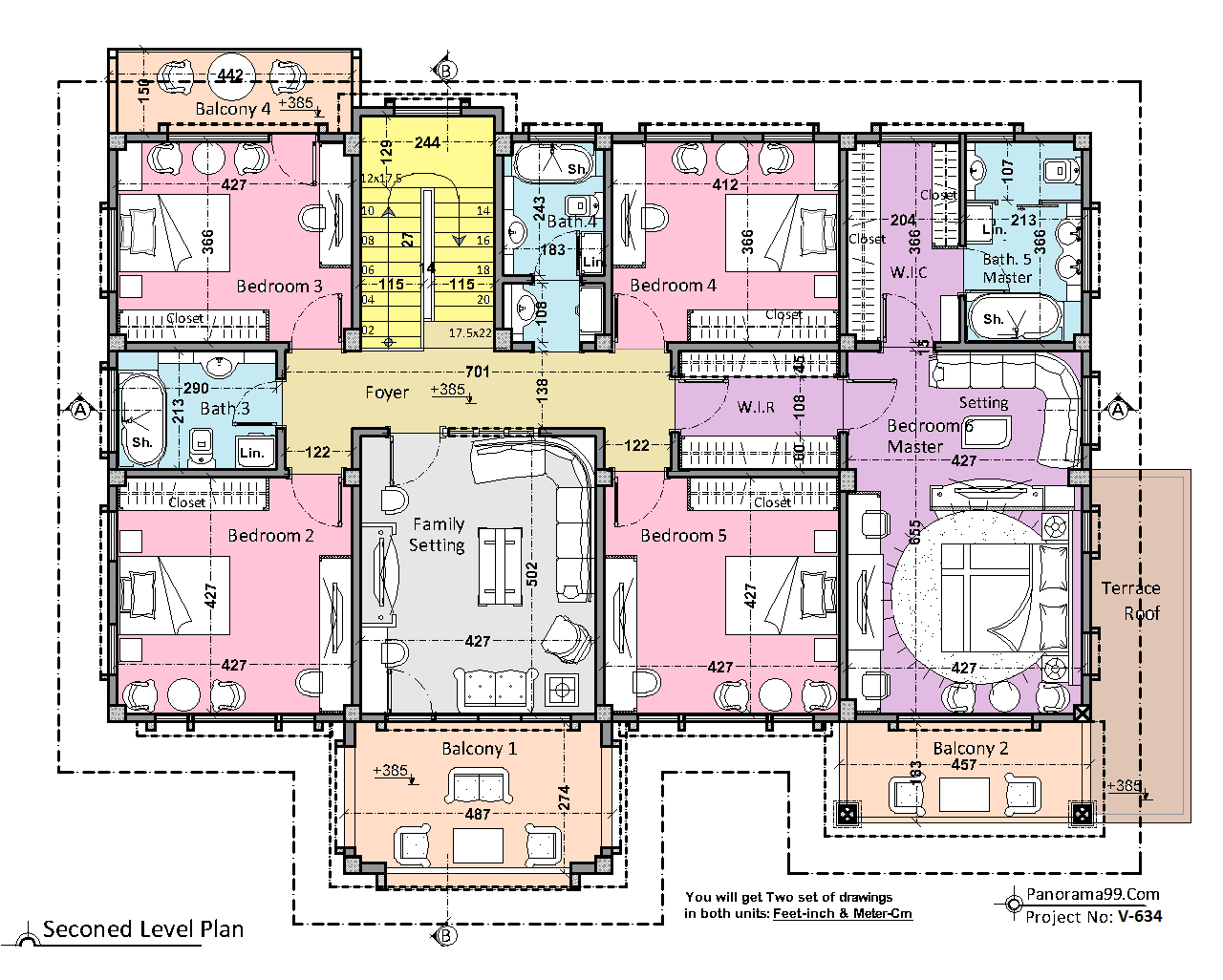

FF 210 M2= 2260 Sq.Ft

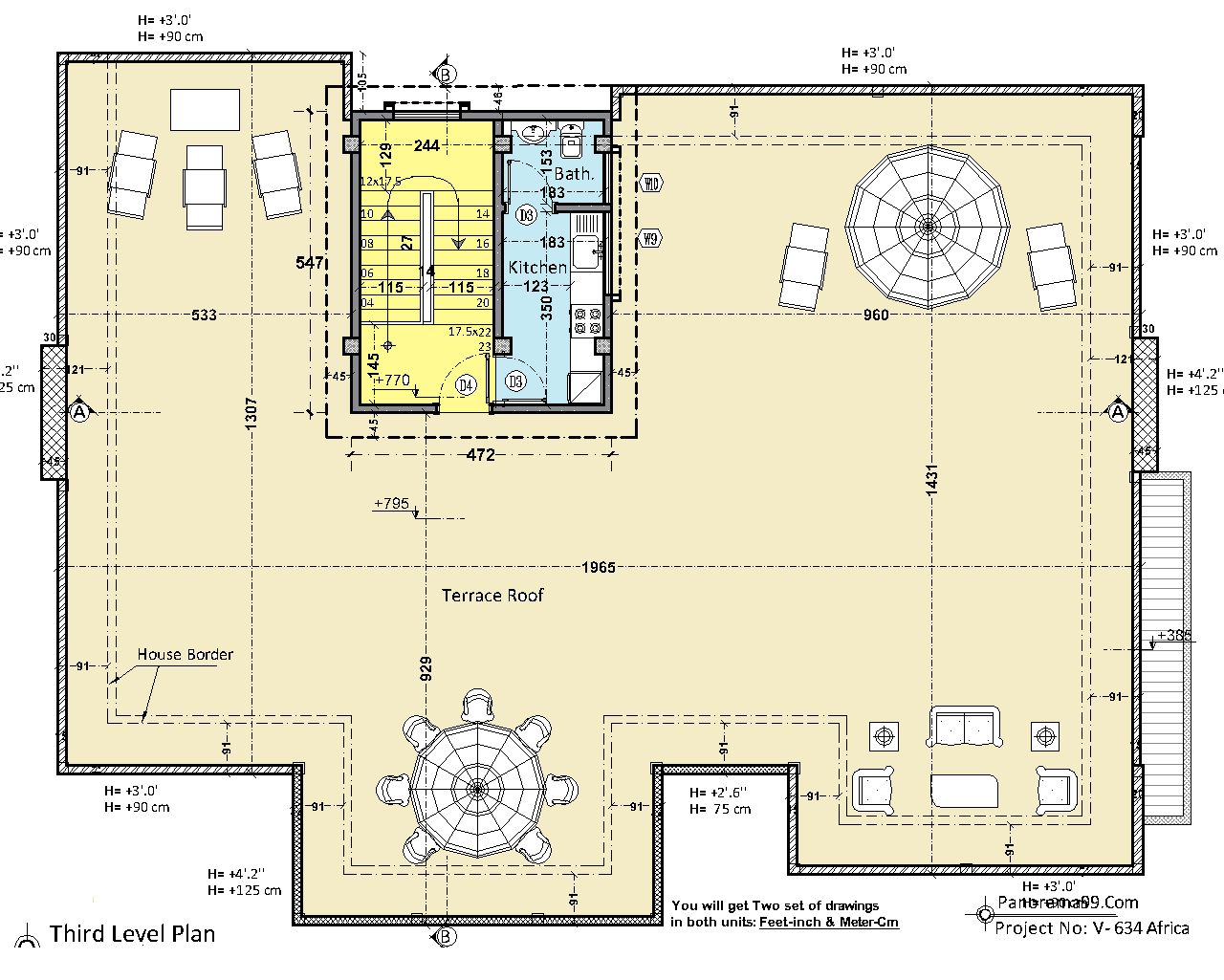

Roof 20 M2 = 215 Sq.Ft

------------------

Drawings Description:

Floor Plan 2 Nos.

Furniture Layout 2 Nos.

Elevation Plan 4 Nos.

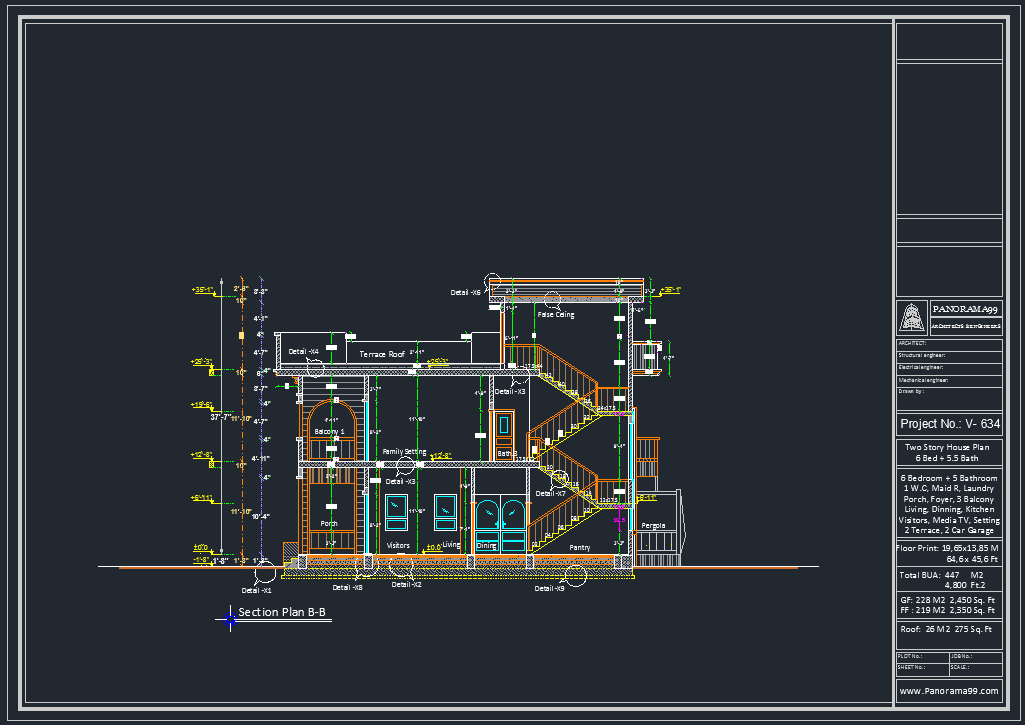

Section Plan 2 Nos.

Roof Location 1 No.

Roof Top Plan 1 No.

Foundation Beams 1 No.

Columns Centre 1 No.

Typical Details 1 No.

D & W Schedule 1 No.

3D Rendering 1 No.

------------------

* General Notes:

1- We are selling all our house plans as PDF digital file only, and Nothing will be sent by post.

2- You will get Two Sets of Detailed Drawings as PDF file, in Both units (Feet - inch and Meter-Cm)

so you can print multi copies any time in any Paper size A3, A2

3- All the house plan drawings are ready to download them once payment confirmed.
