V-476The Princess| 4 5 bedroom house plan + 3 Bathroom, Two story modern house, duplex house design plans, with gable and terrace roof

V-476

------------------

House Description:

V-476 The Princess|

------------------

House Description:

Bedroom 4 Nos.

Bathroom 3 Nos.

Family Living 1 Nos.

Visitors 1 No.

Dinning 1 No.

Kitchen 1 No.

Porch  1 No.

Roof Terrace

Terrace 1 No. .

Laundry 1 No.

------------------

Footprint WxL 9.15 x 12.3 Meter 30 x 40.6 Feet

Total Area 209 M2 = 2250 F2

------------------

Drawing Description:

Furniture's Layout 2 Nos.

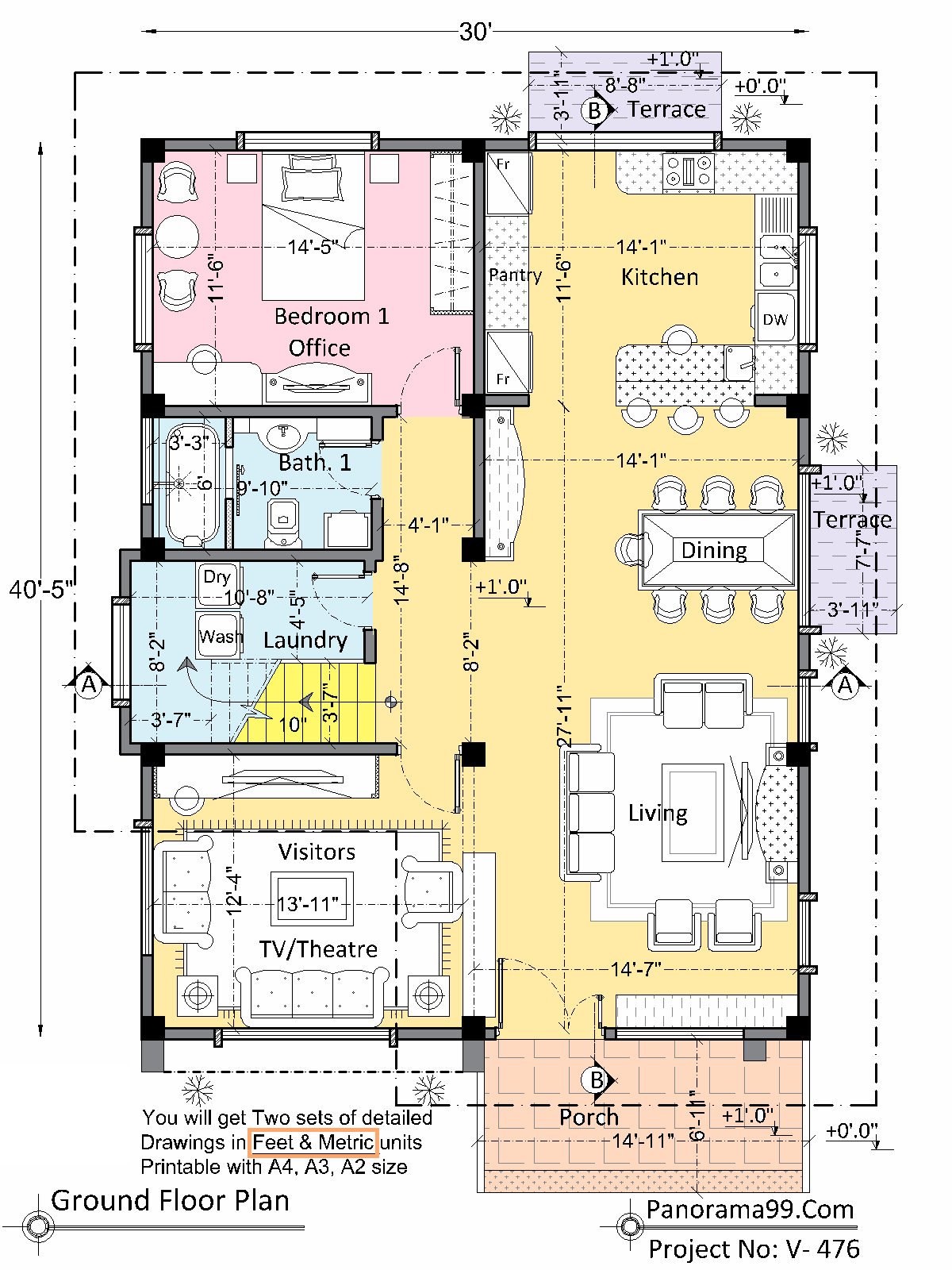

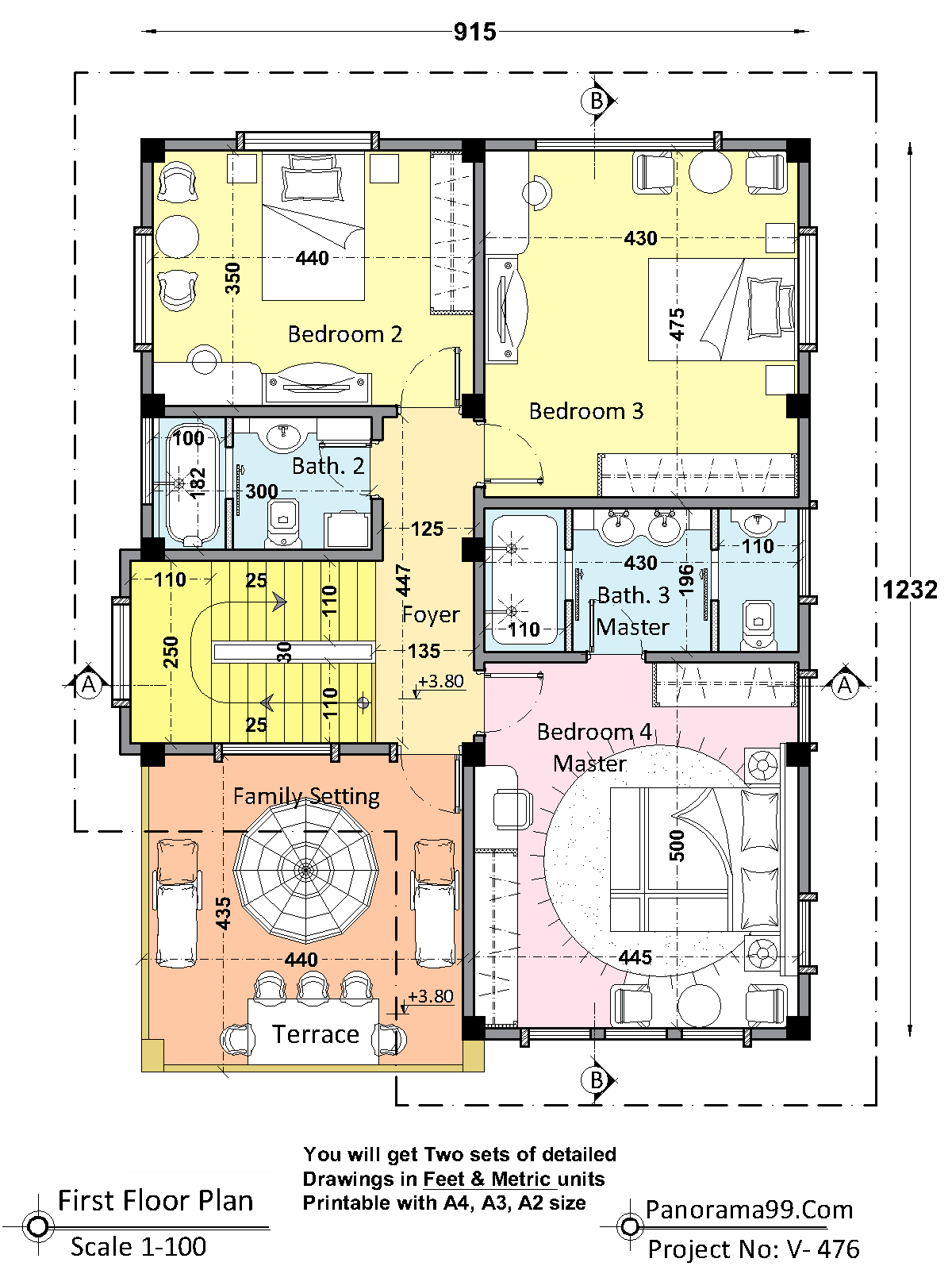

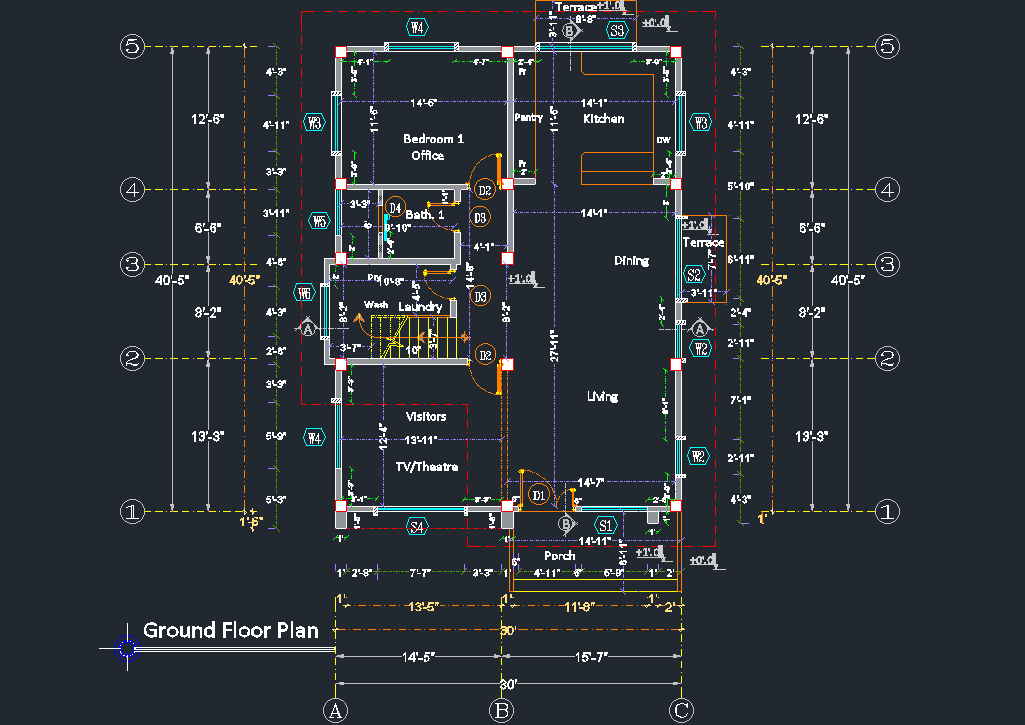

Floor Plan    2 Nos.

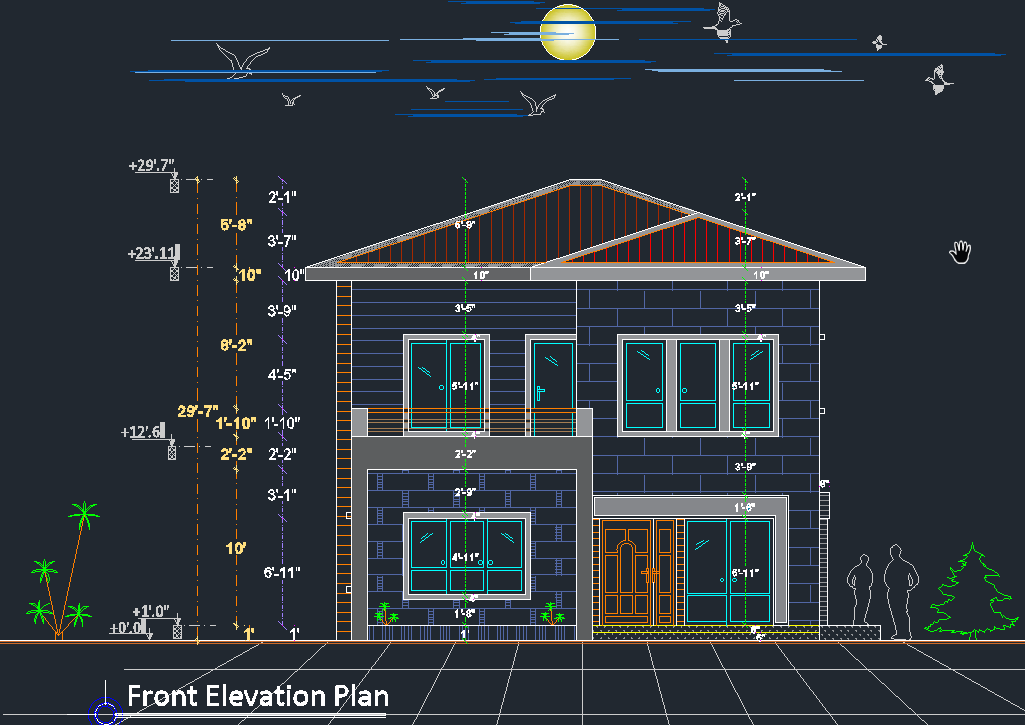

Elevation Plan      4 Nos.

Section Plan     2 No.

Roof Location 1 No.

Roof Top Plan 1 No.

Columns Centre Plan 1 No.

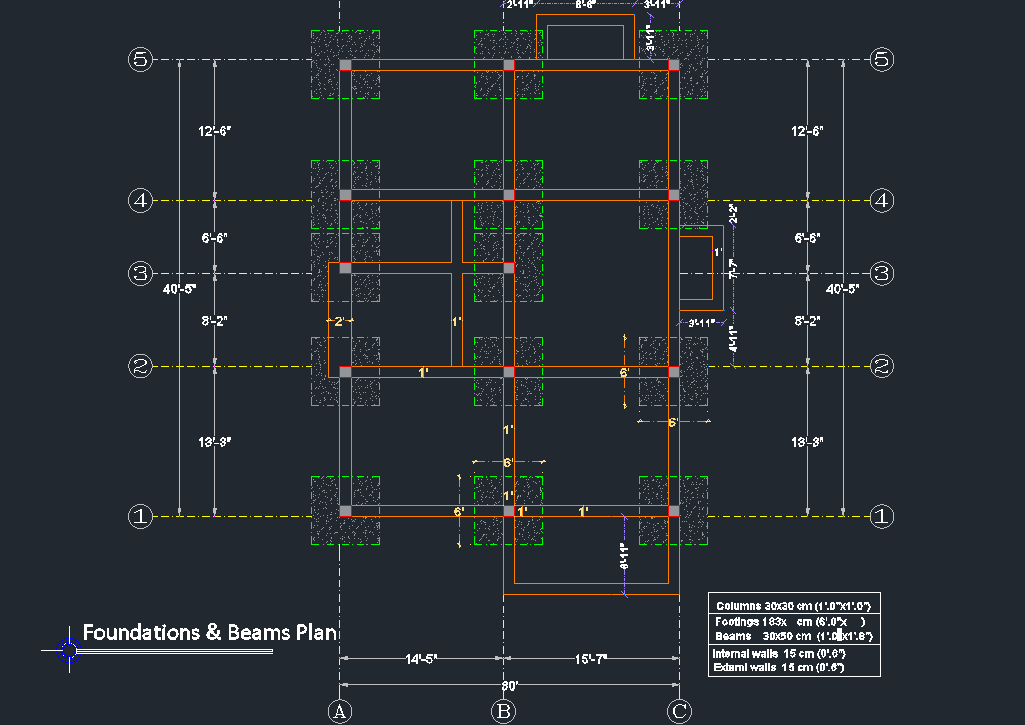

Foundation Beams Plan 1 No.

D & W Schedule 1 No.

Typical Details 1 No.

3D Rendering       1 No.

------------------

* General Notes:

1- We are selling all our house plans as PDF digital file only, Nothing will be sent by post.

2- You will get Two sets of detailed drawings as PDF file, in both units (Feet-inch & Meter-cm).

3- You can print multi copies in any time,

4-please print using (A2 or A3) paper size only, Don't print inA4 paper size.

5- All the house plan drawings are ready to download.

----------------
