V-377 Texas| Two story house plan,Digital download, blueprint plan, Duplex home design, 4 bedroom, 2 car garage

V-377
----------------
House Description:
Bedroom 4 Nos.
Bathroom 4 Nos.
Living 1 No.
Sitting 1 No.
Visitors 1 No.
Dinning 1 No.
Kitchen 1 No.
Pantry 1 No.
Laundry 1 No.
Porch 1 No.
Balcony 2Nos.
Terrace 2 Nos.
Pergola 1 No.
Garage 2 Cars
------------------
House size
WxL (50 x 43 Feet) (15.24 x 13.10 Meter)
Total Area 338 M2 = 3635 F2
------------------
Drawings Description:

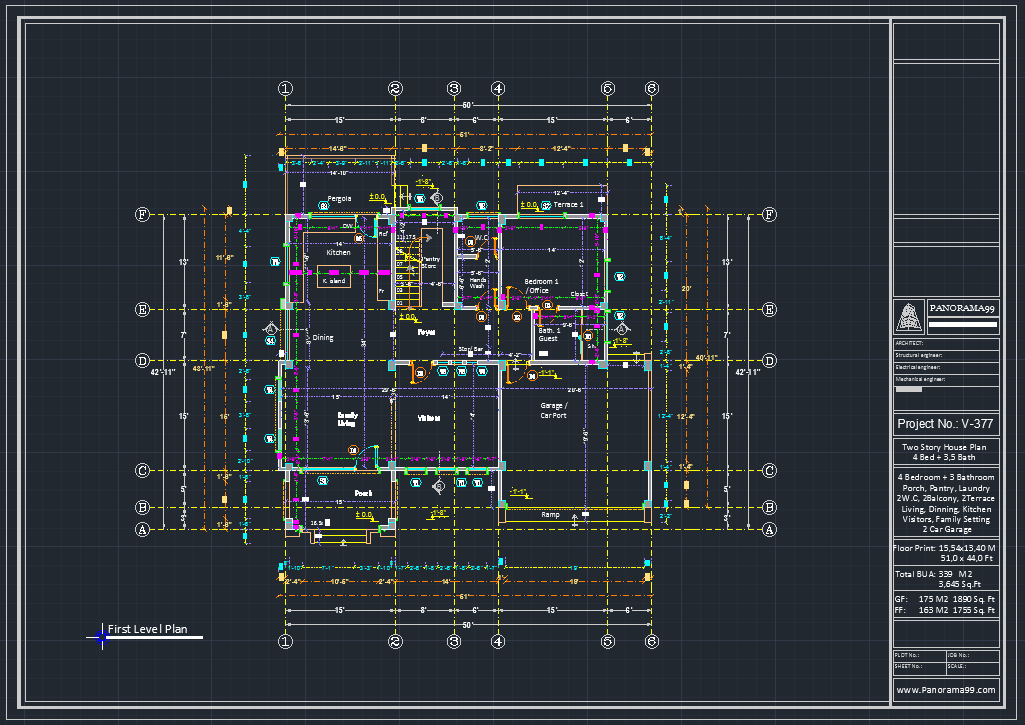

Floor Plan 2 Nos.

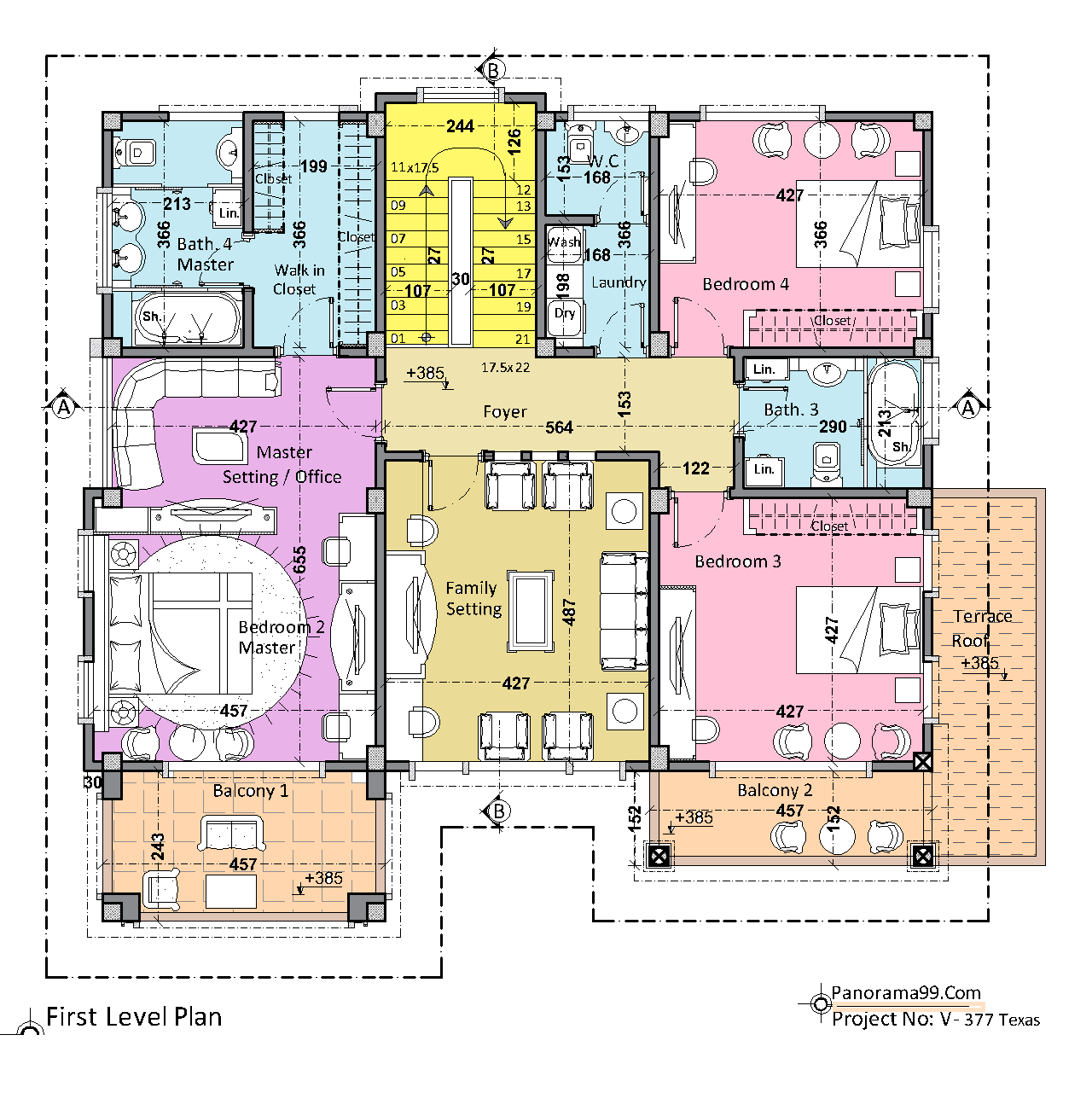

Furniture Layout 2 Nos.
Elevation Plan 4 Nos.
Section Plan 2 Nos.
Roof Location 1 No.
Roof Top Plan 1 No.
Foundation Beams 1 No.
Columns Centre 1 No.
Typical Details 1 No.
D & W Schedule 1 No.

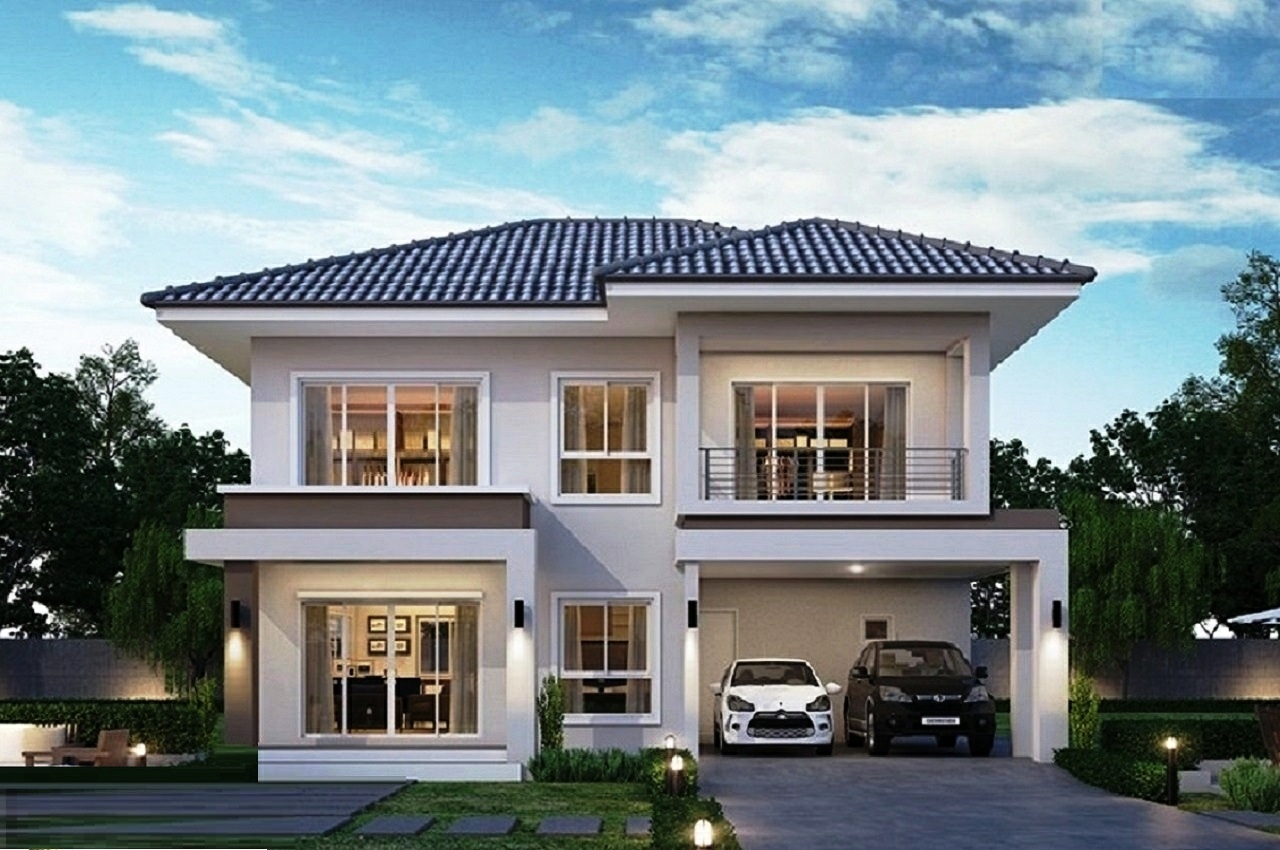

3D Rendering 1 No.
------------------
* General Notes:
1- We are selling all our house plans as PDF digital file only, Nothing will be sent by post.
2- You will get Two Sets of detailed drawings as PDF file, in both units (Feet-inch & Meter-cm).
3- Please print using (A2 or A3) paper size only, Don't print in A4 paper size.
4- All the house plan drawings are ready to download.
