Advanced Scale Factor Conversion Pro v1.2

Take the guesswork out of architectural measurements, roof pitches, scale factors, and unit conversions with Advanced Scale Factor & Unit Conversion Pro v1.2.

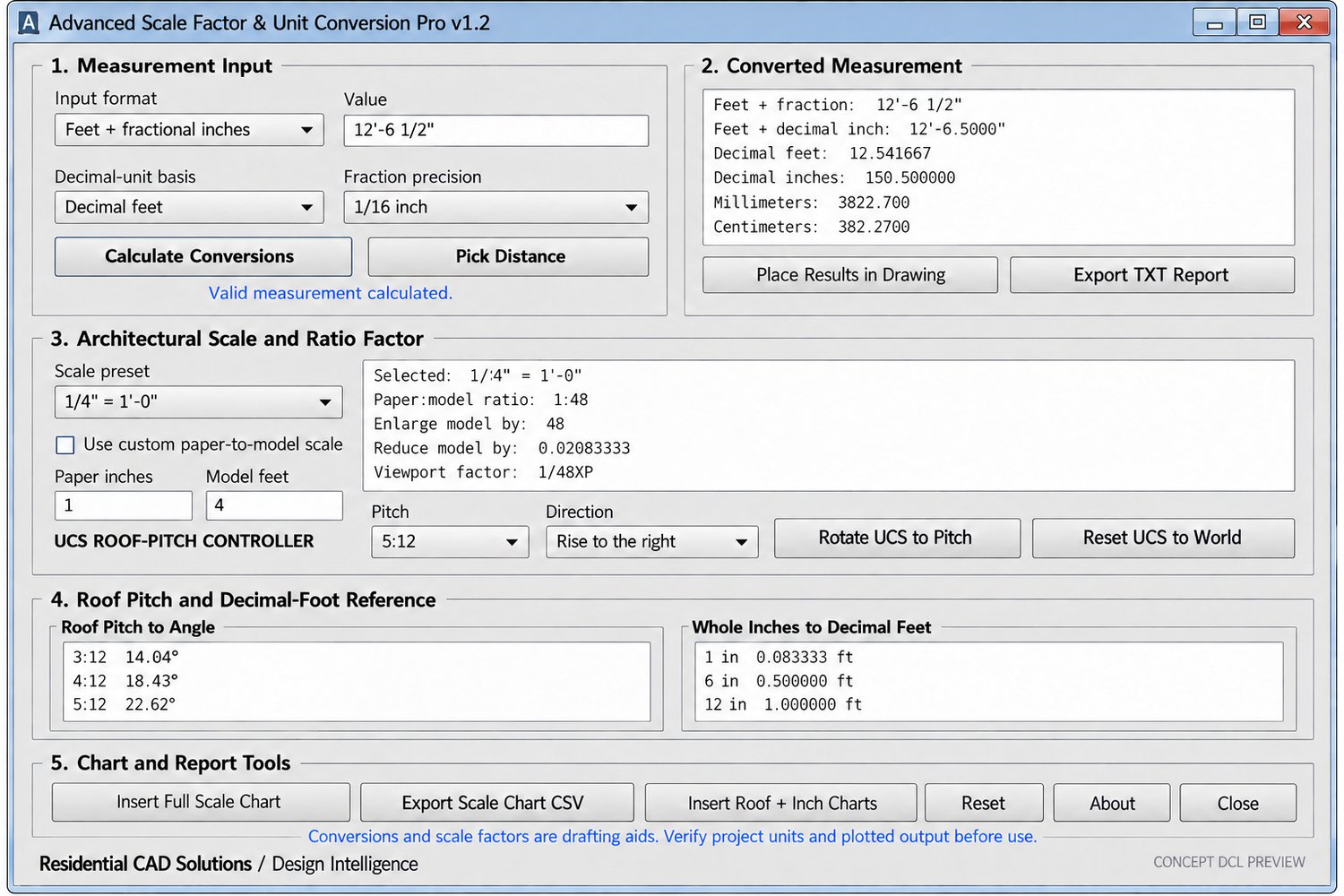

Designed for AutoCAD 2002 and later Windows versions, this advanced AutoLISP and DCL package combines essential drafting calculations in one professional interface.

Features include:

• Convert feet and fractional inches

• Convert feet and decimal inches

• Convert decimal feet and decimal inches

• Convert millimeters, centimeters, and meters

• Calculate architectural and ratio scale factors

• Generate enlargement and reduction factors

• Calculate paper-space viewport XP factors

• Convert roof pitches from 1:12 through 12:12 into angles

• Display percent slope and sloped-length factors

• Convert whole inches into decimal feet

• Rotate the UCS to the selected roof-pitch angle

• Choose Rise Right or Rise Left

• Reset the UCS to World with one click

• Insert scale-factor and roof-pitch charts into drawings

• Place conversion results directly into AutoCAD

• Export TXT reports and CSV reference charts

For example, selecting a 6:12 roof pitch rotates the UCS to 26.57 degrees, helping you draft accurately along sloped roof lines. When finished, simply select Reset UCS to World.
