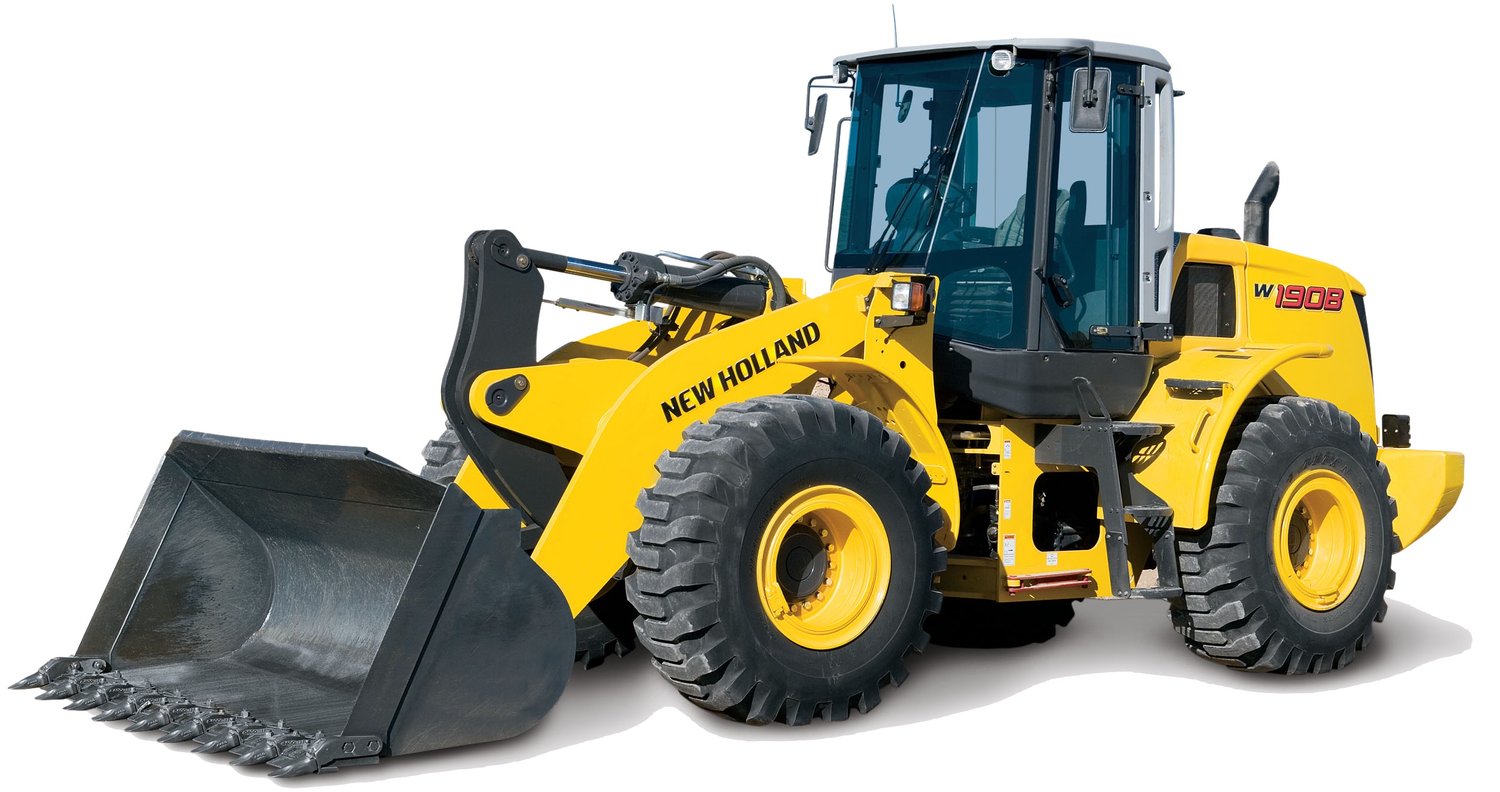

New Holland Wheel Loader W190/W190B Factory Service & Shop Manual
New Holland Wheel Loader W190/W190B Factory Service & Shop Manual
Complete workshop & service manual with electrical wiring diagrams for New Holland Wheel Loader W190/W190B. It's the same service manual used by dealers that guaranteed to be fully functional and intact without any missing page.
This New Holland Wheel Loader W190/W190B service & repair manual (including maintenance, overhaul, disassembling & assembling, adjustment, tune-up, operation, inspecting, diagnostic & troubleshooting…) is divided into different sections. Each section covers a specific component or system with detailed illustrations. A table of contents is placed at the beginning of each section. Pages are easily found by category, and each page is expandable for great detail. The printer-ready PDF documents work like a charm on all kinds of devices.
804 + 508 + 87 pages, bookmarked, Searchable, Printable, high quality PDF
FILELIST:
604.07.229.50 - Flat Rate Time Manual W190 - W230 - W270.pdf
604.13. 502.01 - W190 Wheel Loader Workshop Manual.pdf
87614929 - W190B Wheel Loader Workshop Manual.pdf
EXCERPT:
SUMMARY
SAFETY RULES...... page 1
SPECIFICATIONS - WHEEL LOADER ....page 8
TABLE OF FLUID CAPACITIES ......page 11
UNITS OF MEASURE .....page 12
TORQUE TABLES...........page 13
ENGINE ........ Section 1
TRANSMISSION.......... Section 2
BRAKE SYSTEM......... Section 3
STEERING SYSTEM ........... Section 4
BUCKET BOOMS AND FRAME ........ Section 5
EQUIPMENT HYDRAULIC SYSTEM ......... Section 6
ELECTRICAL SYSTEM ...... Section 7
CAB ...... Section 8
...
BUCKET BOOMS AND FRAME
5.1 GENERAL DESCRIPTION
The load handling system is composed of:
- booms
- strut
- link
- bucket
- bucket cylinder
- boom cylinders
- pins
The bucket positioner device and the boom kick-out ensure an optimised efficiency of the equipment.
All pivot pins of the handling system have dust seals to prevent the entry of debris.
The three bucket pivot pins and the lower strut hinging pin are equipped with O-rings. All pivot pins are mounted with securing screws.
For the part relative to bucket and boom cylinders, please refer to Section 6 (Hydraulic system).
...
