Neodent GM Digital SuperScanPost for CEREC

Youtube Demo

Description

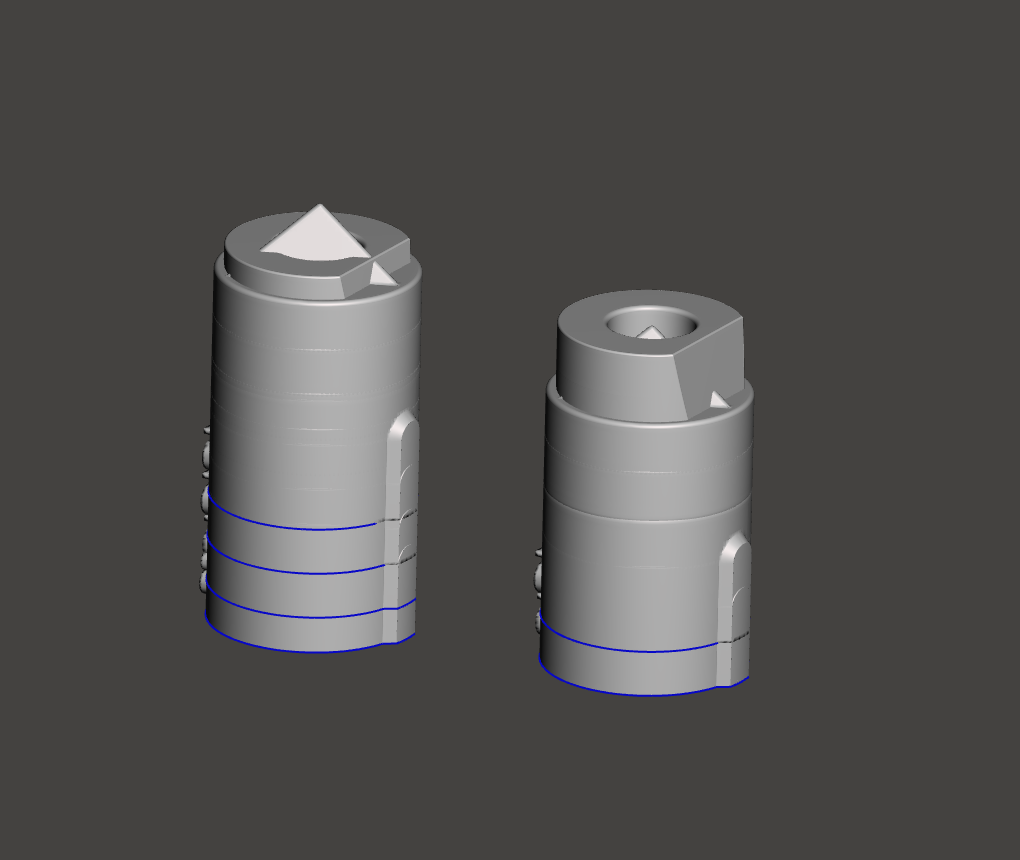

The Neodent GM Digital SuperScanPost is comprised of several shells, superimposed over one another. Once aligned to your intra-oral scan with free software (Meshmixer or Medit), you can choose the tibase height that is right for the case (0.8mm, 1.5mm, 2.5mm, 3.5mm) or (0.8mm, 1.8mm, 2.8, 3.8mm). This lets you swap one tibase for another.

You can also create your own library within Medit for swapping tibases, as they are all correlated relative to one another.

Features

Ultimate flexibility for restoring Neodent GM Implants. ONE scanpost for all workflows:

• Export scans to your lab or any other dental software with the Neodent GM library (3shape, Exocad, DentalWings, Straumann CARES).

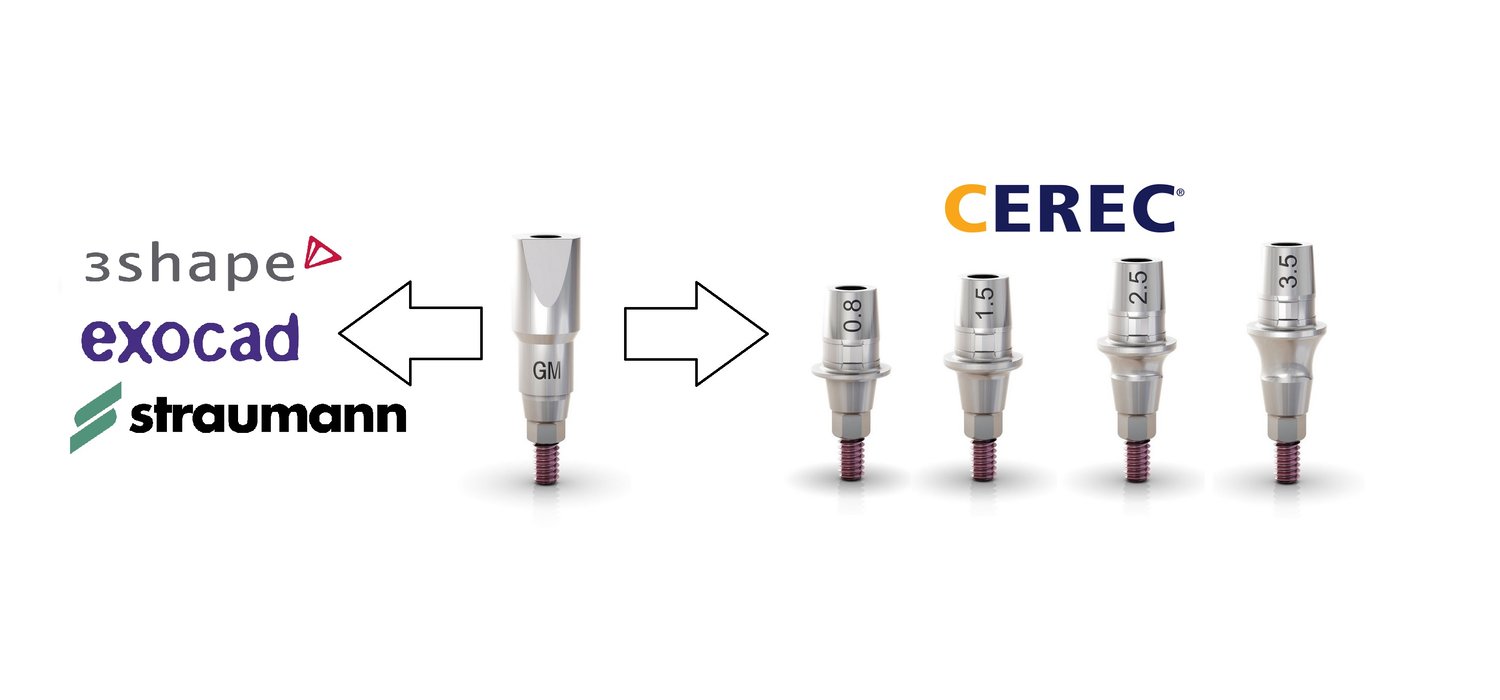

• Switch between 0.8mm, 1.5mm, 2.5mm, or 3.5mm GH Tibase C from Neodent.
• Switch between 0.8mm, 1.8mm, 2.8mm, or 3.8mm GH TruBase from TruAbutment.
• Clinically tested and verified workflow accuracy.

Benefits

Using the same Neodent GM scanpost for all workflows:

• Saves chair-side time. Decisions about tibase GH or workflow is made after scanning.
• Save on inventory: Order the appropriate tibase GH after designing.
• Eliminates need for re-scanning patients due to change in workflow or GH.

Important NOTES:

1. You may need InLab software with the ability to import STL files
2. You need to download Meshmixer or Medit (FREE) and be comfortable with aligning and manipulating digital files. Please visit my Youtube Channel for learning these skills.
3. The files are .3mf format, which is a better format than .stl. You can open .3mf, stl, obj in Meshmixer. You can Separate shells as needed in Meshmixer and save as STL as needed.
4. There are two files. One contains 0.8, 1.5, 2.5, 3.5 GH for Neodent Tibase C. The other is for Truabutment Trubase GH 0.8mm, 1.8mm, 2.8mm, 3.8mm.
5. These represent the tibase heights as if scanning the tibase directly with the sirona scanbody. They are not tall sirona scanposts.
6. Neodent GM Scanpost (REF#108.207): https://shop.straumann.com/neodent/ca/en_ca/Prosthetic-Auxiliaries/Scanbodies/GM-Implant-Intraoral-Scanbody/p/108.207/
