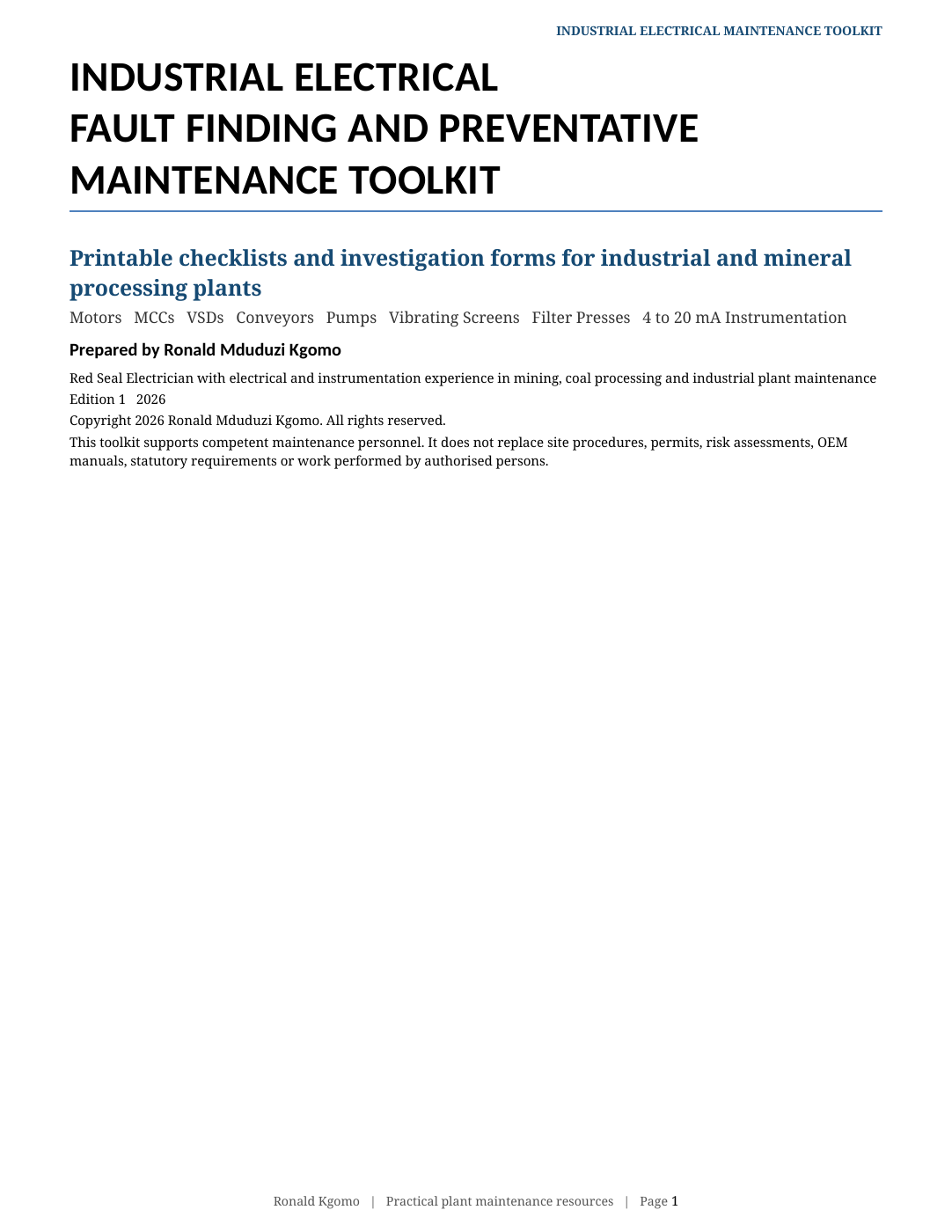

Industrial Electrical Fault Finding and Preventative Maintenance Toolkit

Practical printable checklists and investigation forms for industrial and mineral processing plants.

Created by Ronald Mduduzi Kgomo, a Red Seal Electrician with mining, coal processing and industrial electrical and instrumentation experience.

This 13 page PDF includes three phase motor inspections, MCC and VSD fault reporting, conveyor, pump and vibrating screen checks, filter press maintenance, 4 to 20 mA instrumentation records, a preventative maintenance planner, fault notification and work handback forms, root cause investigation, an electrical inspection report template and quick reference fault questions.

Use the forms to capture measurements, document defects, plan maintenance and record corrective actions. Print and adapt them to your site.

Digital PDF download. No physical item. Edition 1, 2026.

For competent, authorised maintenance personnel. This toolkit does not replace site procedures, permits, risk assessments, isolation rules, OEM instructions or statutory requirements. Review and adapt the forms before use.
