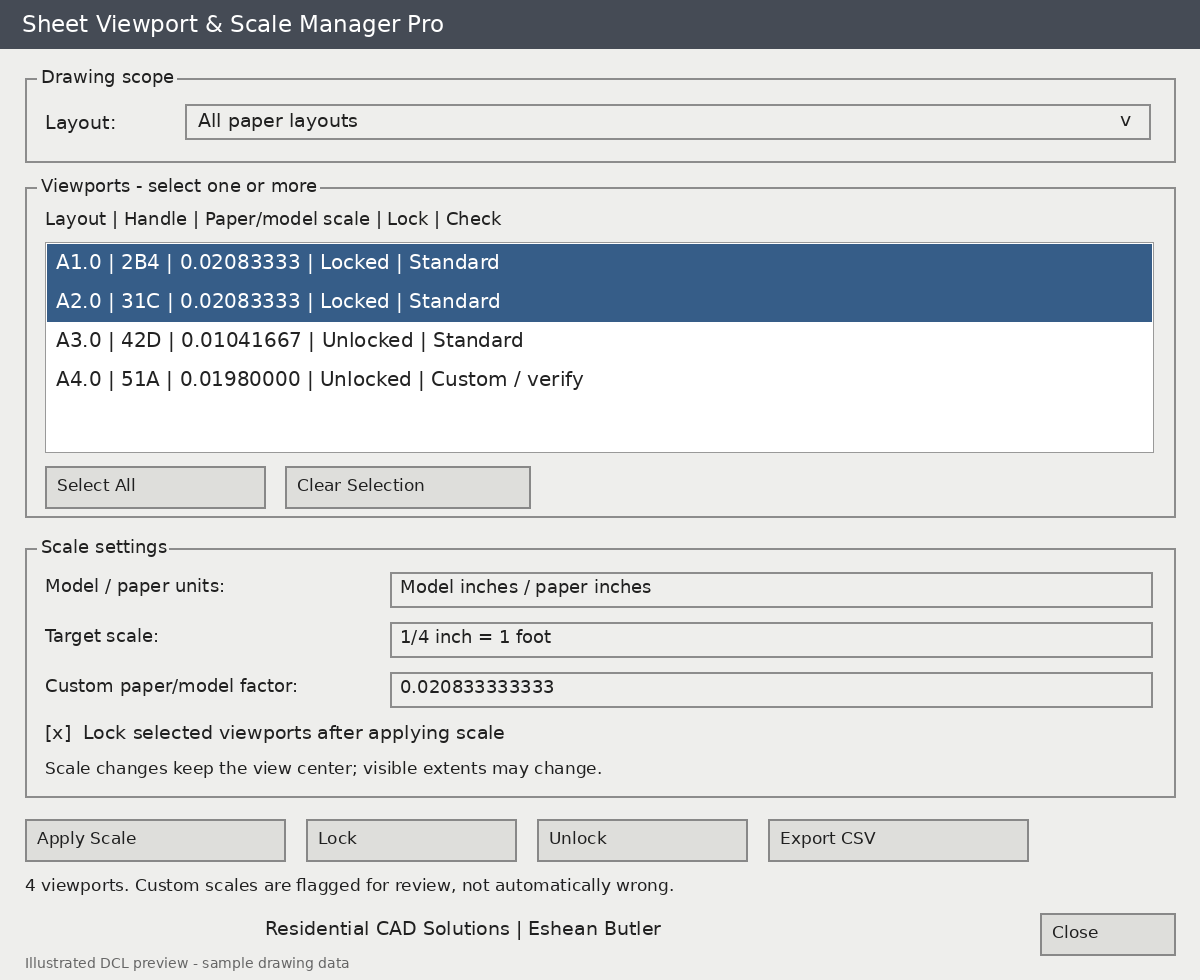

Take control of your drawing’s viewport scales and locking from one organized dialog. Built for architectural drafting workflows, this AutoLISP + DCL utility helps you manage existing viewports across a single layout or your entire drawing.

Features include:

• Batch scale controls: Apply architectural presets or a custom scale factor to selected viewports.
• Viewport locking: Lock or unlock multiple viewports, with an option to lock automatically after changing scales.
• Flexible unit settings: Choose model inches/paper inches, model feet/paper inches, or matching metric units.
• Scale review flags: Identify scales that do not match the selected preset list.
• CSV audit reports: Export layout names, viewport handles, scale factors, lock states, and layers.
• Batch undo: Reverse a group of changes with AutoCAD’s UNDO command.

Your download includes:

• AutoLISP program (.LSP)
• Dialog interface (.DCL)
• Installation and operating instructions
• Matching DCL preview image

Compatibility: Requires Windows AutoCAD with Visual LISP and ActiveX support. Designed using legacy APIs for AutoCAD 2002; runtime compatibility has not yet been verified. Test on a copied drawing before production use.

This utility manages existing layout viewports. It does not create or combine PDFs.

Created by Eshean Butler | Residential CAD Solutions
