Arielle Farmhouse Home Plan: 3 Bed, 2 Bath, 1610 sq ft (PDF Blueprint)

The Arielle Home Plan – 3 Bed / 2 Bath Farmhouse-Style 2 Story House | 1610 sq ft Living | Instant PDF Blueprint Download

Looking for a charming, affordable farmhouse that’s easy to build and perfect for a family?

The Arielle Plan is an efficient 3-bedroom, 2-bathroom affordable home with a classic gable roof, inviting front porch, and clean layout that feels spacious and stylish—without the high cost. This plan makes building simple and stress-free.

Instant Digital Download – Your plans arrive within minutes of purchase, ready to print and build!

Home Specifications:

First Floor Heated Area: 960 sq. ft.

Second Floor Heated Area: 650 sq. ft.

Total Heated Living Area: 1610 sq. ft.

Covered Porch: 192 sq. ft.

Total Area Under Roof: 1802 sq. ft.

Home Dimensions: 24'-0" W x 54'-0" D

Height: 24’-4”

Ceilings: 9' first floor; 8' second floor

Roof: Metal Gable Roof (8:12 main pitch; 3:12 secondary pitch)

Exterior: Hardiplank or Vinyl Siding

Foundation: Pier & Beam Stemwall

What's Included in Your PDF Plan Set:

Your complete construction-ready blueprint set includes everything your builder needs to bring The Mya to life:

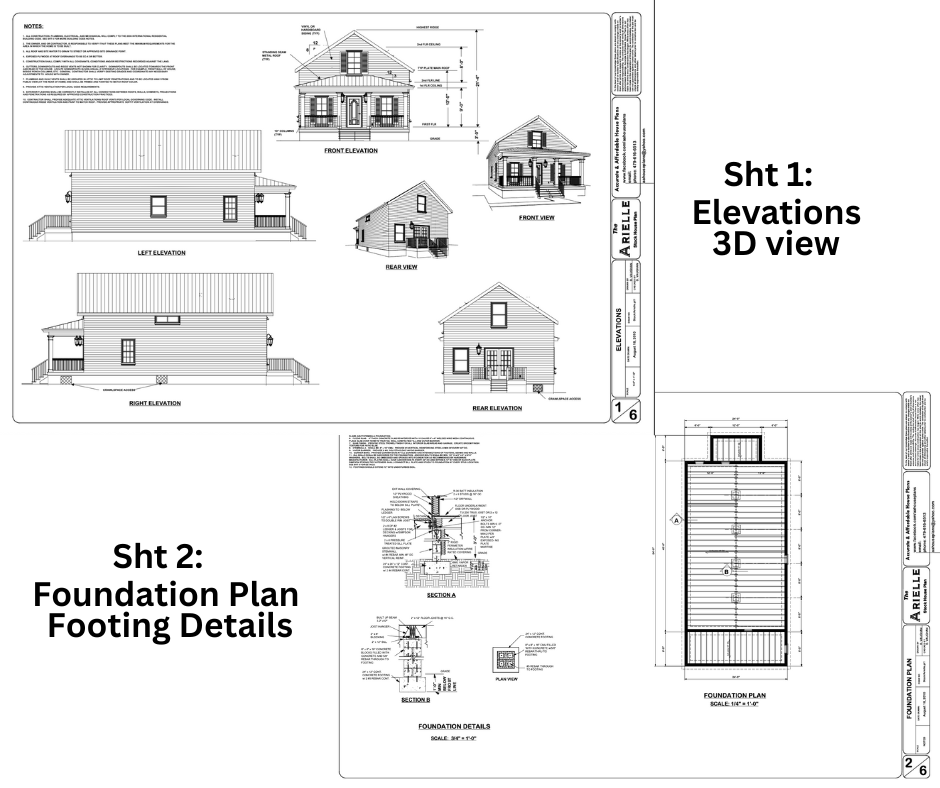

✅ Front, Rear & Side Elevations

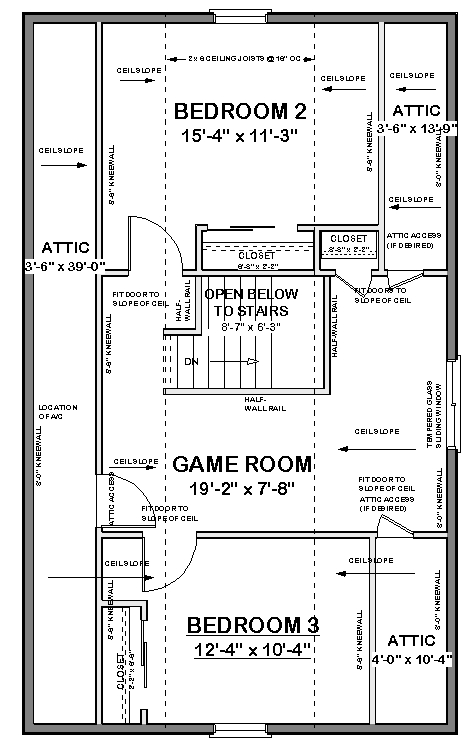

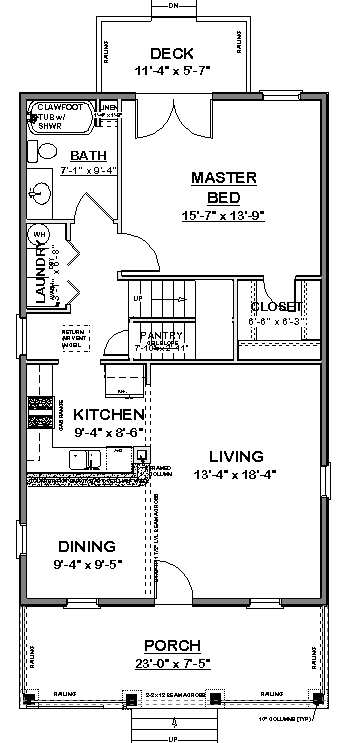

✅ Detailed Floor Plan

✅ Foundation & Footing Plans (Pier & Beam)

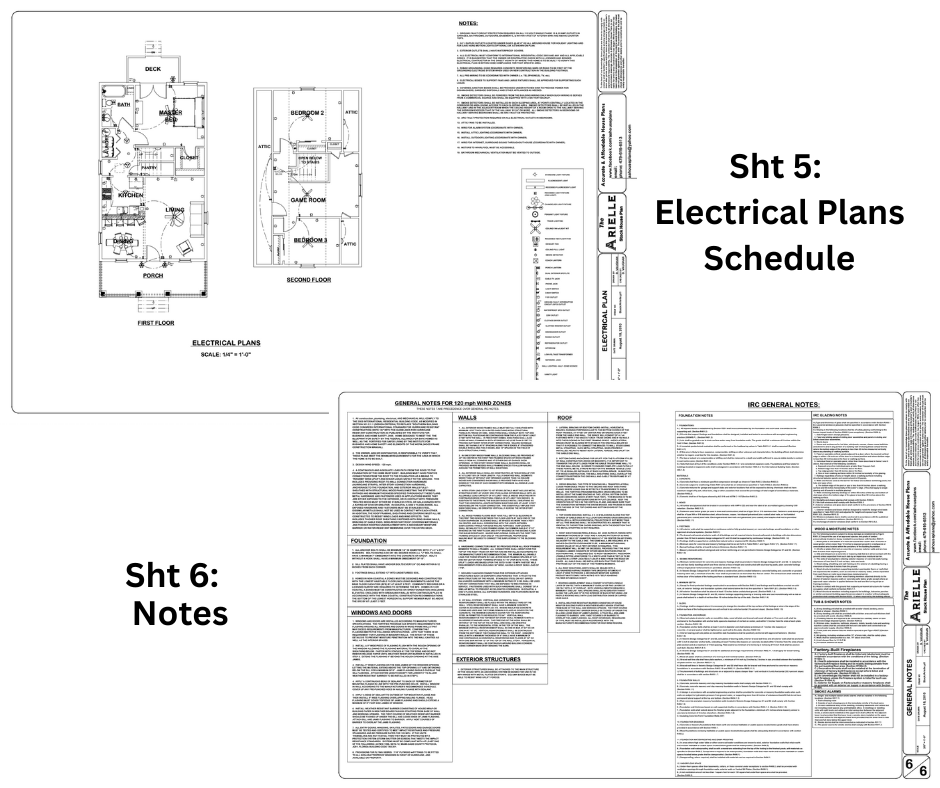

✅ Electrical Layout

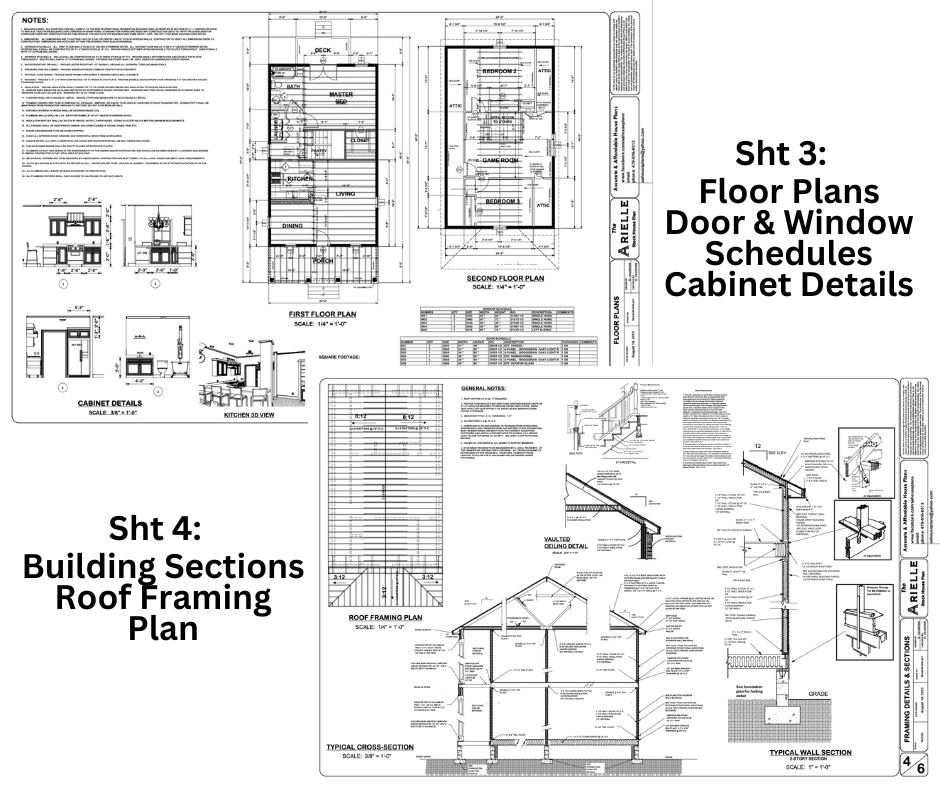

✅ Roof Framing Plan

✅ Door & Window Schedules

✅ Cabinet Layouts

✅ Cross Sections & Wall Sections

✅ IRC Building Notes & 120mph Wind Rating Notes

✅ May include 3D views or additional framing details (when applicable)

All plans print to scale on 24” x 36” paper and can be scaled down for subs (11”x17” or 18”x24”).

Not Included in Plan Set:

--Architectural or Engineer Stamp (check your local code)

--Site Plan for your specific lot

--HVAC or Plumbing Drawings (typically done by your local contractor)

--Material List, Energy Calculations, or Revisions

Why Buyers Love The Arielle Plan:

--Instant Access – No waiting on shipping or delivery

--Unlimited Prints – Print exactly what you need, when you need it

--Flexible Sizing – Full-size for permits or half-size for contractors

--Budget-Friendly Build – Simple layout + cost-efficient materials

--Created by a Pro – Designed by a Residential Designer with 40+ years of experience

Perfect for families, builders, or Airbnb investors—this is a stylish small home with BIG potential.

Terms & Refund Policy:

This is a digital product – no physical item will be shipped.

Plans are copyrighted for personal use only – resale or sharing is not allowed.

Because this is an instant download, no refunds or exchanges can be issued.

Ready to build something beautiful, simple, and smart?

Add The Arielle Plan to your cart now and start building your dream home today!
