PMM AirCon Pro Diagnostic | Automotive A/C Inspection & Diagnostic Worksheet

PMM AirCon Pro Diagnostic is a browser-based automotive A/C worksheet for vehicle details, diagnostic measurements, inspection findings, DTC/scan notes, diagnosis and repair verification. Includes measurement Record buttons, case save/load where supported, CSV export and print/save as PDF. Digital HTML product; no physical item is shipped.

Make air-conditioning diagnostic jobs easier to document with PMM AirCon Pro Diagnostic.

This browser-based worksheet gives technicians a structured place to record vehicle and customer details, enter A/C operating measurements, capture inspection findings, document scan/DTC information, and record diagnosis and repair verification.

FEATURES

• Vehicle and customer/job details

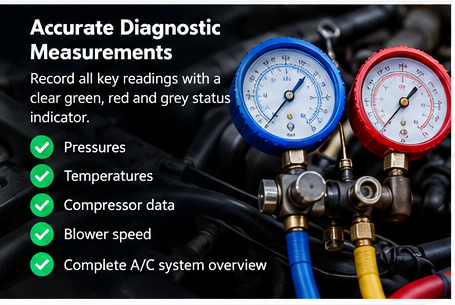

• Dedicated A/C measurement fields, including ambient and vent temperature, low/high-side pressure, static pressure, compressor command/current, condenser inlet/outlet, evaporator temperature and blower speed

• Individual Record buttons to confirm entered measurements

• Customer complaint and initial inspection checklists

• Space for scan results, DTCs, diagnostic notes, diagnosis and repair details

• Save/load case controls where browser storage is supported

• Complete CSV export for record keeping

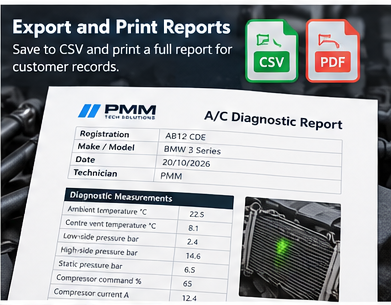

• Print or save the worksheet as PDF through the browser print dialog

• Responsive layout for desktop and suitable tablet-sized screens

WHO IT IS FOR

Automotive technicians, independent garages, workshop staff and training environments that need a structured way to document A/C diagnostic work.

HOW IT WORKS

1. Download and extract the ZIP.

2. Open PMM_AirCon_Pro_Diagnostic.html in a modern browser such as Firefox, Edge or Chrome.

3. Enter the vehicle/job information and test readings.

4. Press Record beside a measurement to confirm it.

5. Use Save Case, Load Case, Export Complete CSV or Print/PDF as required.

IMPORTANT INFORMATION

• This is a digital HTML worksheet, not a vehicle interface or scan tool. It does not connect to an ECU, pressure sensor, A/C service station or vehicle automatically.

• Diagnostic guidance is an aid only. Always verify readings and procedures against the vehicle manufacturer's specifications and approved refrigerant handling procedures.

• Browser-based saving depends on browser settings and how the file is opened. Export important records regularly.

• Digital product: no physical item will be shipped.

PMM AirCon Pro Diagnostic — Quick Start

Open PMM_AirCon_Pro_Diagnostic.html in Firefox, Edge or Chrome. Enter each measurement and press its Record button to confirm it. The button changes to green and displays “Recorded ✓”. Use Save Case, Load Case, Export Complete CSV and Print/PDF from the main toolbar.

V7 includes a stronger responsive layout fix: at widths up to 1200 CSS pixels, the main worksheet panels stack vertically, and the page prevents horizontal overflow.

Diagnostic aid only. Verify readings and procedures against vehicle/OEM specifications and refrigerant requirements.

CUSTOMER FAQ — PMM AIRCON PRO DIAGNOSTIC

Does this connect to my vehicle?

No. It is a browser-based worksheet for manually recording diagnostic findings. It does not communicate with vehicle ECUs or sensors.

Does it work offline?

The HTML worksheet is designed to open locally in a modern browser. Some browser storage behaviour can vary depending on browser settings and how the file is opened. Use CSV export to keep a separate copy of important records.

Can I save or export a job?

The worksheet includes Save Case, Load Case, Export Complete CSV and Print/PDF controls. Browser storage availability can vary, so export important records regularly.

Is this a physical product?

No. This is a digital download. No physical item will be shipped.

Are the diagnostic recommendations a substitute for OEM data?

No. Always confirm test conditions, pressure/temperature values and repair procedures against the vehicle manufacturer's specifications and approved refrigerant handling requirements.

SUPPORT

PMM Tech Solutions

www.pmmtechsolutions.co.uk
