LINEUP Pro

Professional Visual Dimensioning for Blender

LINEUP Pro brings professional dimensioning into Blender.

Create accurate length, radius, diameter, angle, and distance measurements directly on your model. Organize them with layers and reusable styles, customize their appearance with fonts, line patterns, labels, and endpoint shapes, then turn them into real camera-facing geometry that renders directly into your final images.

Whether you're designing a product, explaining an engineering concept, creating technical presentations, or simply want your dimensions to look as good as your model, LINEUP Pro gives you control over both the measurement and how it is presented.

Measure. Style. Render.

Key features

• Precise dimensions — Length, radius, diameter, angle, object-to-object distance, and multi-edge measurements.
• LINEUP Live — Automatically detect common geometry such as cylinders, spheres, rings, angles, edge lengths, and bounding boxes.
• Layers — Organize dimensions like a CAD drawing with independent visibility, colors, line weights, and typography.
• Styles — Save a dimension's appearance and reuse it across your project.
• Custom fonts — Import and use your own fonts for dimension labels.
• Line patterns — Solid, dashed, dotted, and dash-dot lines, available in both viewport and renders.
• Advanced labels — Control precision, units, prefixes, suffixes, and label placement.
• Endpoint styles — Arrowheads, ticks, T-endings, and linked endpoints.
• Render Object — Bake dimensions into real geometry with flat or light-responsive materials.
• Auto re-bake — Camera-facing dimensions automatically update when your camera moves.
• Persistent dimensions — Measurements stay attached to your model as you transform and edit it.

Built for the final image

LINEUP Pro isn't just about knowing how large something is. It's about showing it clearly.

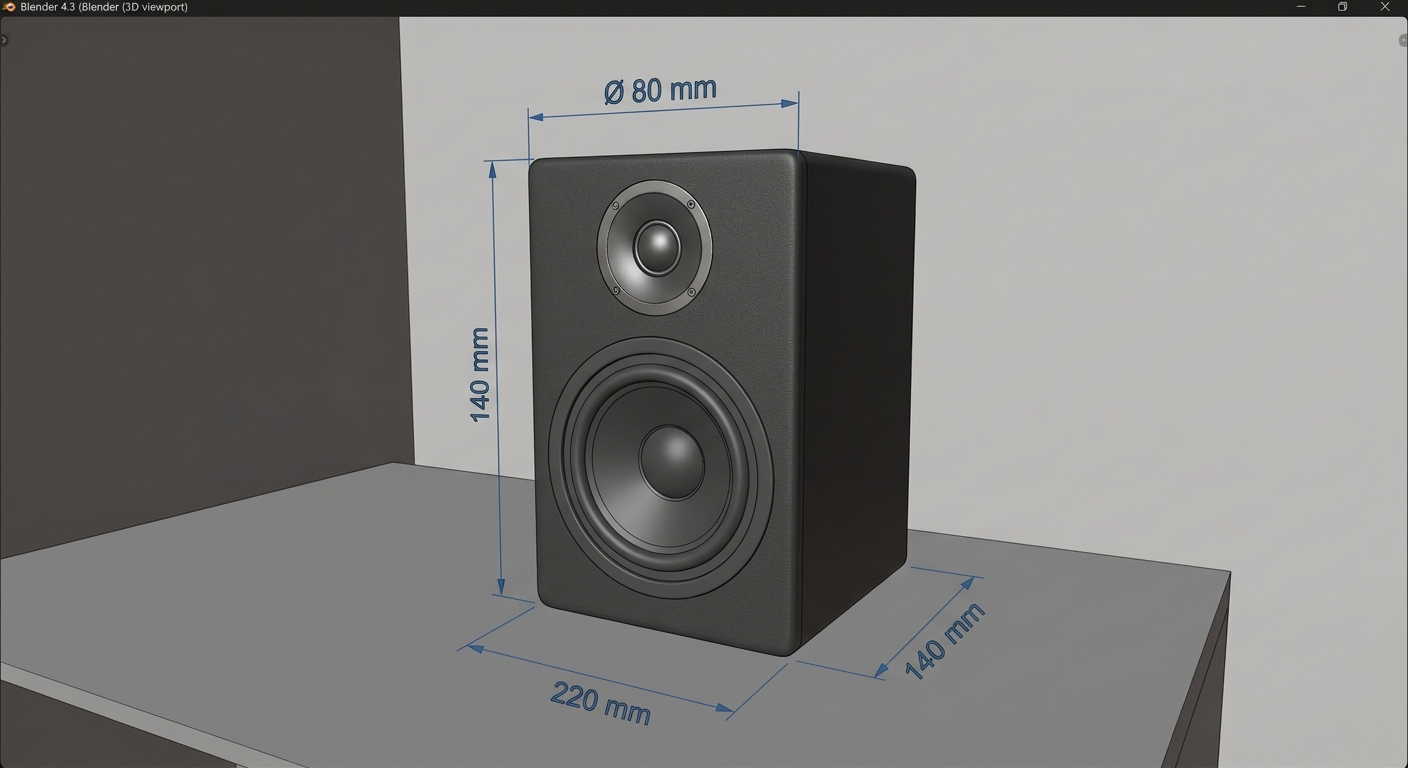

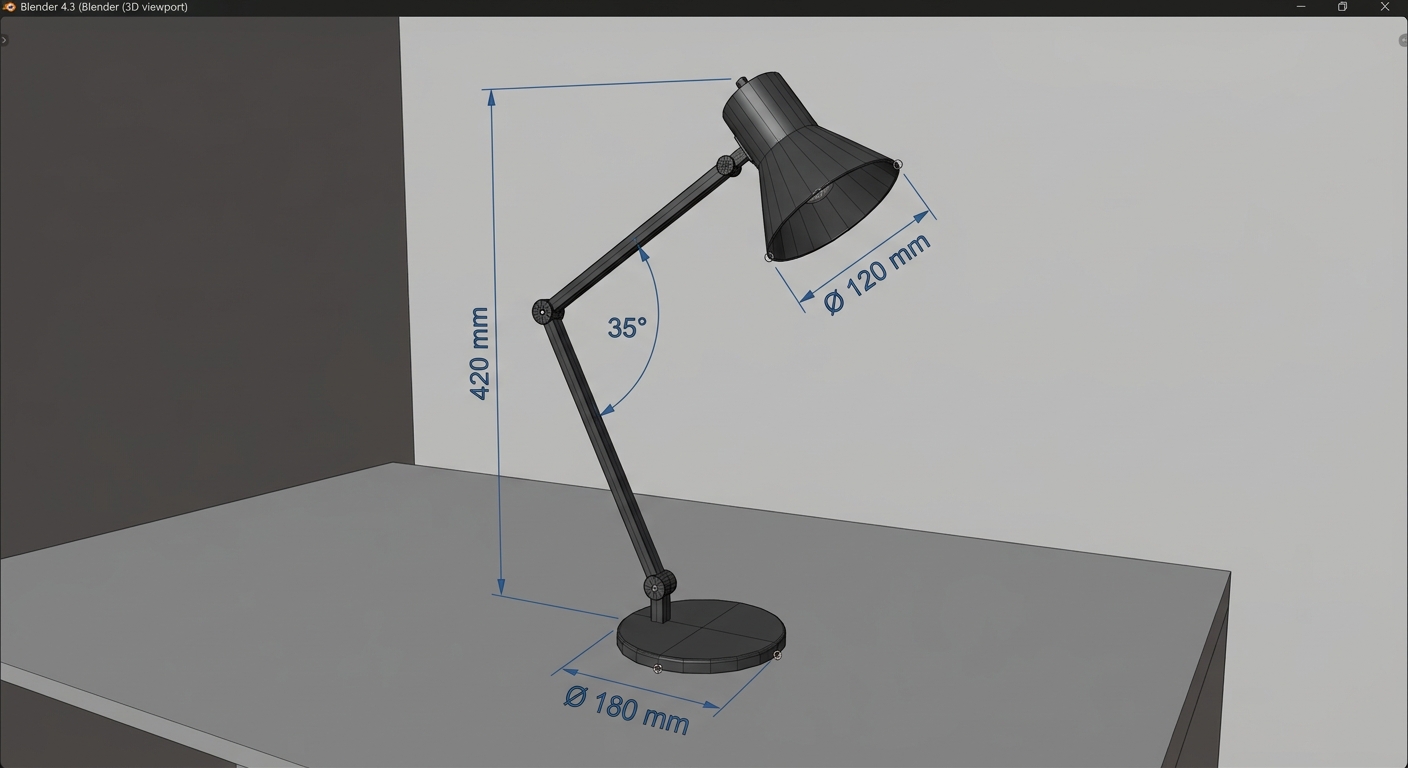

Use dimensions while modeling, then bring selected measurements directly into product renders, technical visuals, diagrams, presentations, and animations.

Works alongside LINEUP

LINEUP Pro is a separate upgrade and can be installed alongside the free version of LINEUP without conflict.

Requirements: Blender 4.2+

Verified through: Blender 5.2

License: GPL-3.0-or-later

Dependencies: None
