The Madison Ranch Home Plan | 3 bedrooms 3 baths | Study | 2099 sq ft heated | PDF download
The Madison Home Plan – 3 Bedroom, 3 Bath Modern Ranch House Design with Office | Digital Floor Plan Download (PDF Blueprints)
The Madison Home Plan is a thoughtfully crafted modern ranch-style home plan that blends comfort, charm, and practical living. This 3-bedroom, 3-bathroom house design includes a study that can be used as a 4th bedroom, making it perfect for families, retirees, or anyone wanting a functional family home with timeless appeal.
This is a DIGITAL DOWNLOAD — no physical products will be shipped. You’ll receive professional, construction-ready blueprints (PDF format) you can print instantly at home or through your favorite print shop.
What’s Included
Your purchase comes with a complete, detailed set of house plans and digital blueprints ready for your builder or permitting office:

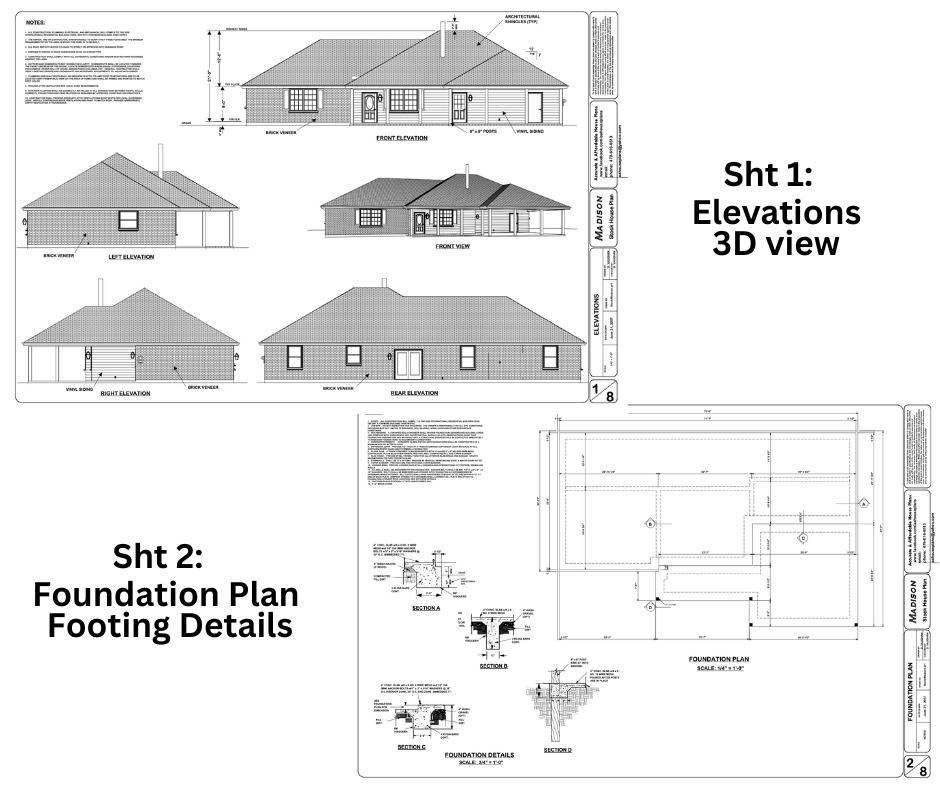

✅ Front, Rear & Side Elevations

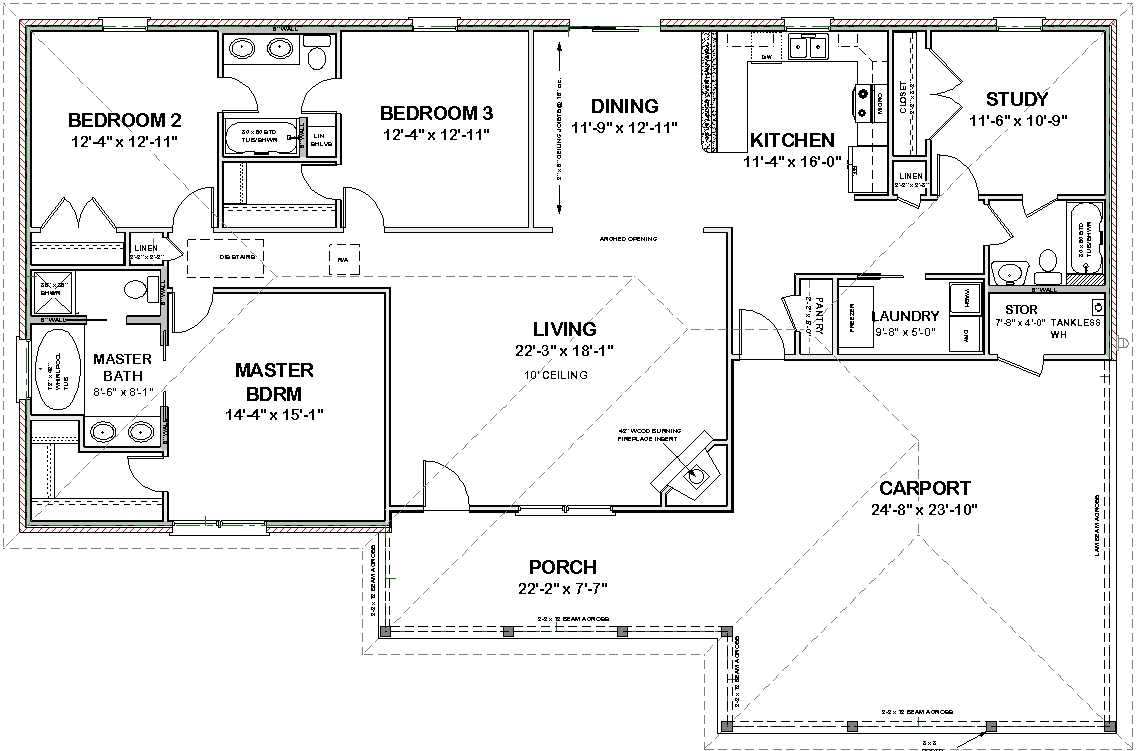

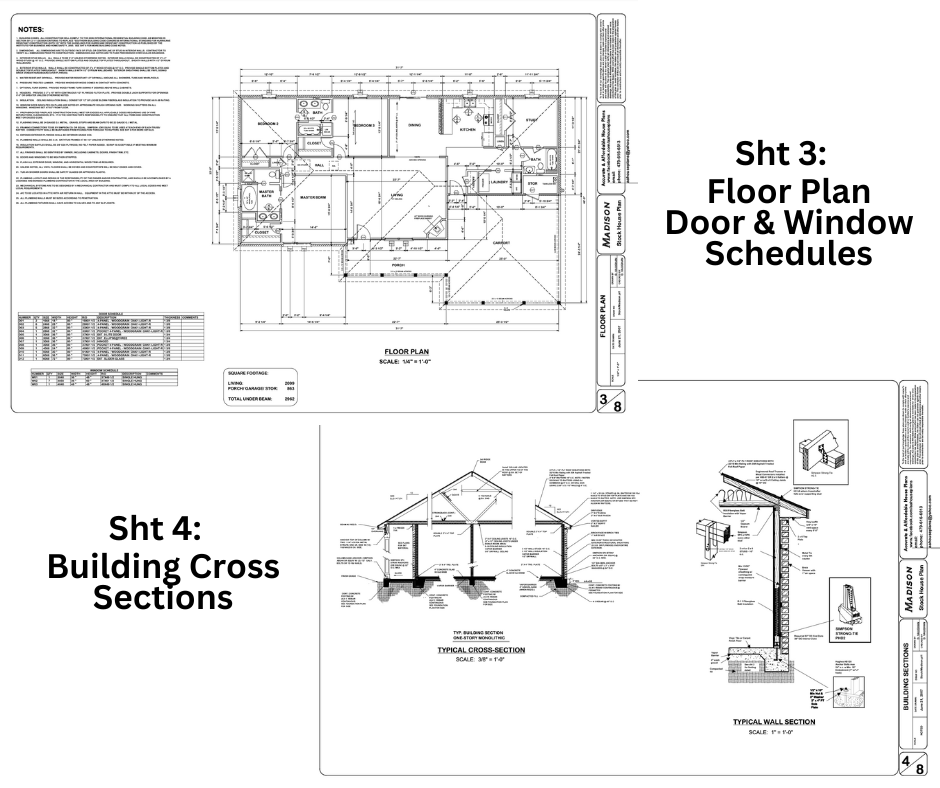

✅ Floor Plan Layout
✅ Foundation Plan (Slab-on-Grade)
✅ Footing Details

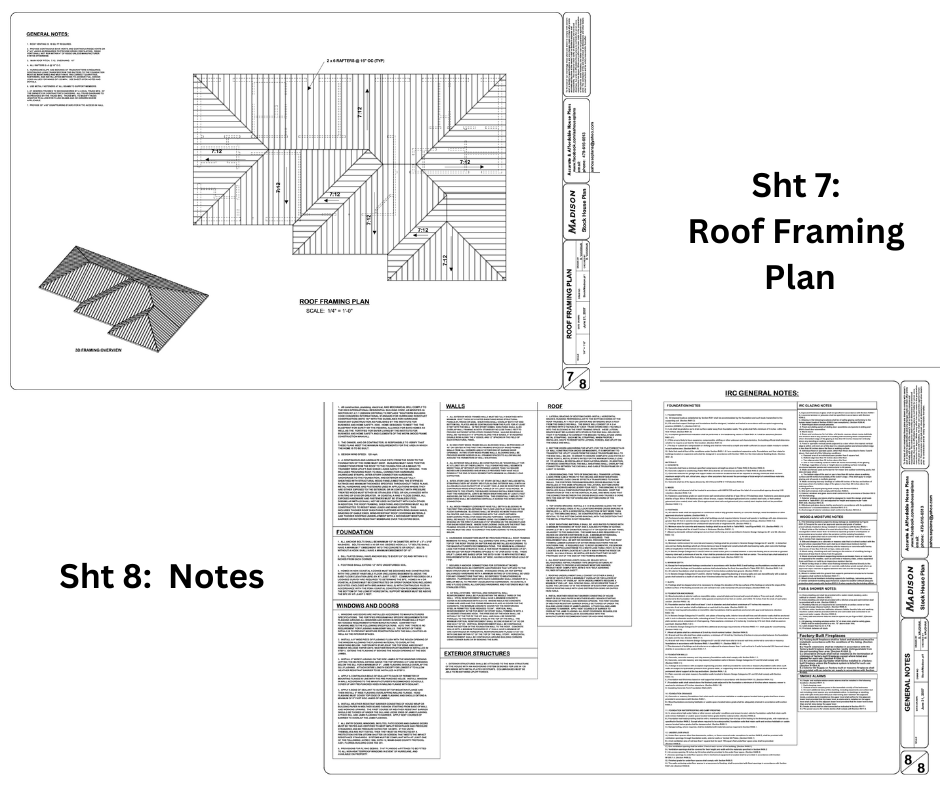

✅ Roof Framing Plan

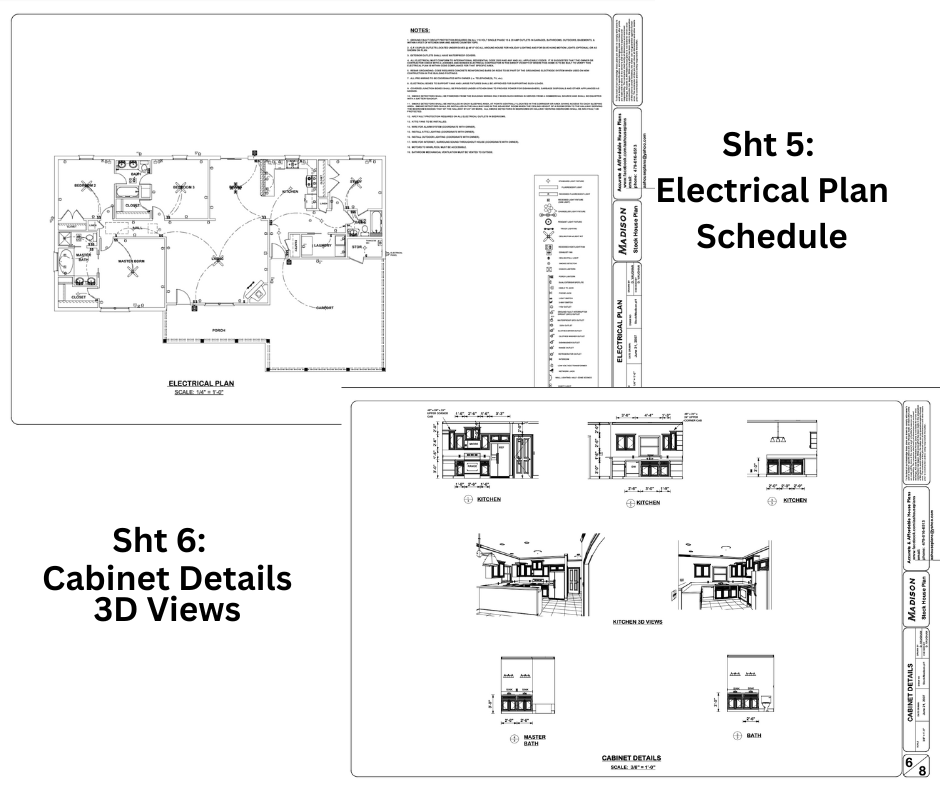

✅ Electrical Plan
✅ Door & Window Schedules
✅ Cabinet Details
✅ Wall & Cross Sections
✅ IRC Compliance Notes & 120mph Wind Rating (where applicable)
✅ Bonus: Some plans include 3D Views & Ceiling Framing Details
Sized for 24" x 36" printing — scalable for 11x17, 18x24, or full permit size.
The Madison Home Specs
Heated Living: 2,099 sq. ft.
Porch/Carport/Storage: 863 sq ft:
Total Area Under Roof: 2,062 sq. ft.
Dimensions: 72'-6" W x 47'-2" D x 21'-8" H
Ceilings: 9’ standard with 10' ceiling in Living.
Roof: Hip roof 7:12
Exterior: Brick Veneer and Vinyl Siding
Foundation: Slab-on-grade
Why You’ll Love This Modern Ranch Home Plan
✔️ Instant Access – Download immediately, no waiting or shipping delays
✔️ Easy to Print – Use at home or a local print shop in multiple sizes
✔️ Affordable and Reusable – One low price for unlimited prints
✔️ Expertly Designed – Created by a residential designer with over 40 years of experience
✔️ Permit & Builder Ready – Includes standard drawings for construction and approval
What’s Not Included
Architectural or Engineering Stamp (check local requirements)
Site Plan (specific to your property)
HVAC, Plumbing, or Energy Calculations
Material List or Custom Revisions
How It Works
Purchase the listing.
Check your email for your instant download link.
Save the file and print your blueprints at your convenience.
You have complete control over how many sets you print and the paper size used.
Important Notes
This is a digital product — no refunds or exchanges after file delivery.
All designs are copyright protected and may not be resold or shared.
Bring your dream home to life with The Madison Home Plan — a small family house design that delivers modern comfort, accessibility, and lasting value in one affordable package.
Add to Cart & Download Instantly — start building today!
