Ruhk Toy Foam Dart Flycore Blaster .STL Files

These are the digital .STL files to 3D Print the shell for a RUHK toy foam dart blaster.

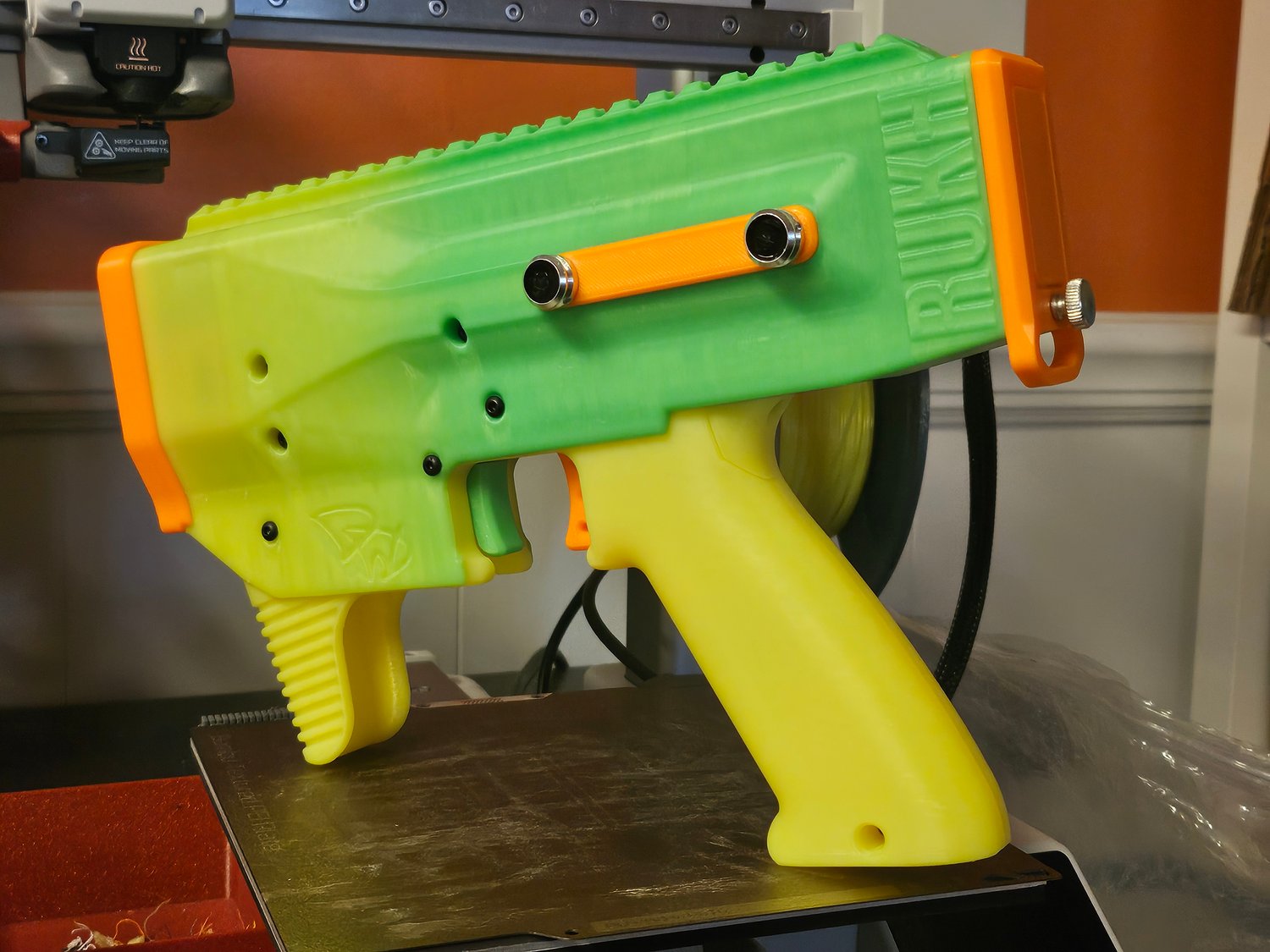

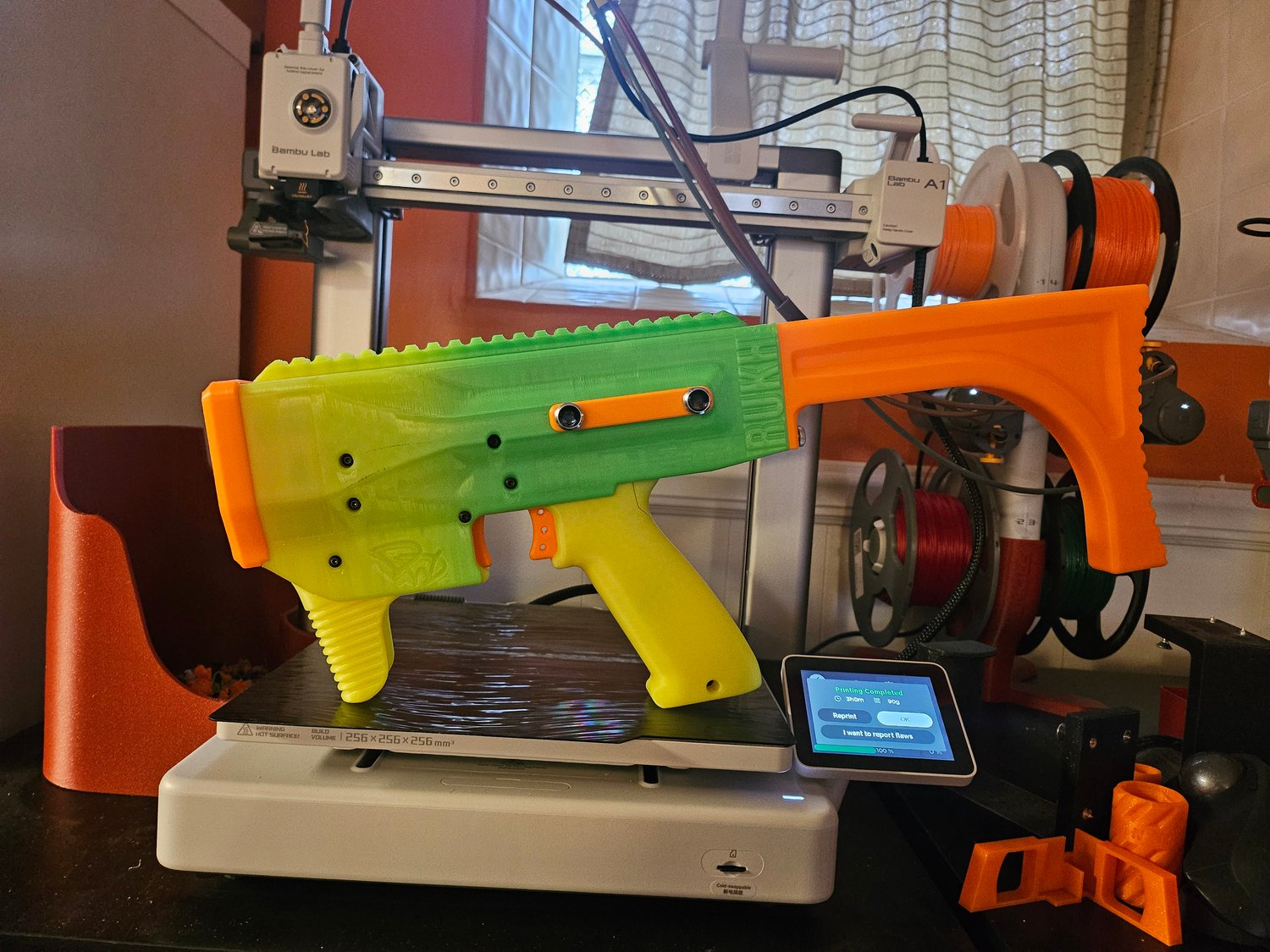

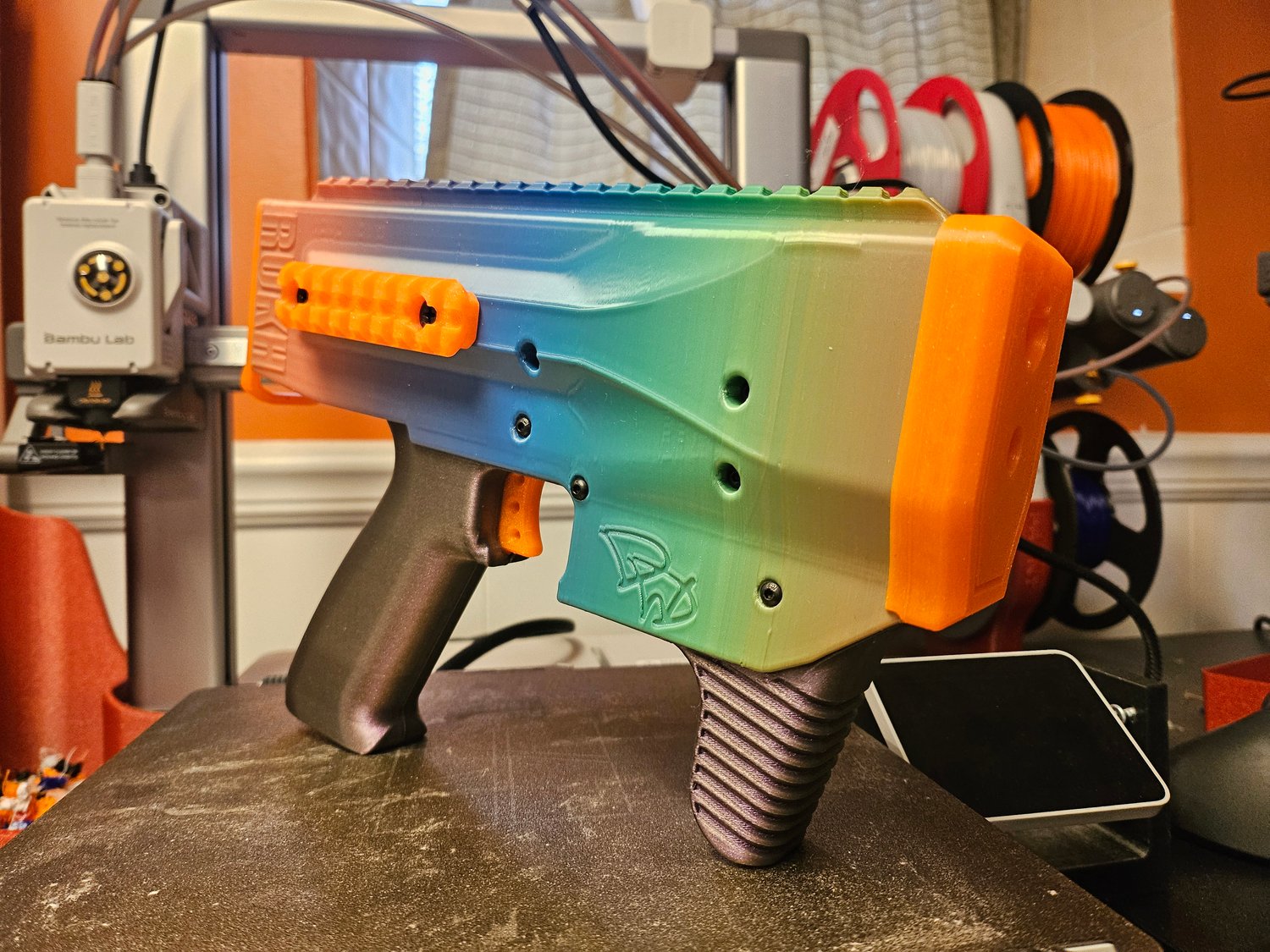

The RUHK is a toy foam dart blaster powered by the Flycore system from OldFusionDesigns.

Named for the enormous bird in Arabic folklore (also spelled Roc), the Ruhk is a straight talon flycore and noidcore micro flywheel blaster. It can utilize any flywheels from Worker Nightingale wheels at 19.5mm crush up to Spartan Flywheels at 23.5mm.

Fileset:

The Fileset contains the STL files for the blaster shell and a build guide.

NOTE: This is a FLYCORE blaster. You will need to download, print, assemble, and wire the proper Flycore files from OldFusionDesigns to complete this blaster. Flycore files can be found here: https://github.com/Oldfusiondesigns

Building this blaster requires knowledge of circuits and soldering. It is NOT recommended for beginners.

REQUIRED HARDWARE (NOT including Flycore hardware)

• 8 Heatset Inserts (same kind as used in the Flycore - m3 x 6mmL x 5mmOD)
• 14 M3 x 8mm screws
• 2 M3 x 16mm screws (for mag release)
• 1 m3 x 8mm thumbscrew (for battery door/optional stock)
• Optional
• M5 x 8mm flathead screws (2 per picatinny side rail)
• Medium Fidlock Magnets (8mm shank) (2 per side)

Electronics

• 2 130 Hobby Motors
• N20 pusher motor OR Neutron Solenoid
• 2 Omron style 15/21 amp microswitches (without levers)
• 1 Cherry DB2 style 5/10 amp microswitch (with lever) (for N20 flycore w/ cycle control)

LICENSING - Standard Digital File License

Each purchase of these files entitles the buyer to unlimited prints for your personal use OR ONE SOLD SET OF PRINTS OR COMPLETED BLASTER. Additional sales require additional purchases of the files. If you would like to produce these commercially you must contact me to discuss a licensing agreement.
