Zoom Factor Pro

Apply architectural zoom presets through a convenient AutoLISP and DCL interface. Zoom Factor Pro helps you adjust model-space views and set exact architectural scales inside layout viewports.

Features

• 12 architectural scale presets: 6″, 3″, 1″, ¾″, ½″, ⅜″, ¼″, 3⁄16″, ⅛″, 3⁄32″, 1⁄16″, and 1⁄32″ per foot.
• Model-space zoom and layout viewport scaling modes.
• Support for models drawn in inches or feet.
• Automatic zoom-factor calculation.
• Optional viewport locking after applying a scale.
• Remembers your selected scale and units during the AutoCAD session.

Your download includes

• AutoLISP program (.LSP)
• Dialog interface (.DCL)
• Installation and operating instructions

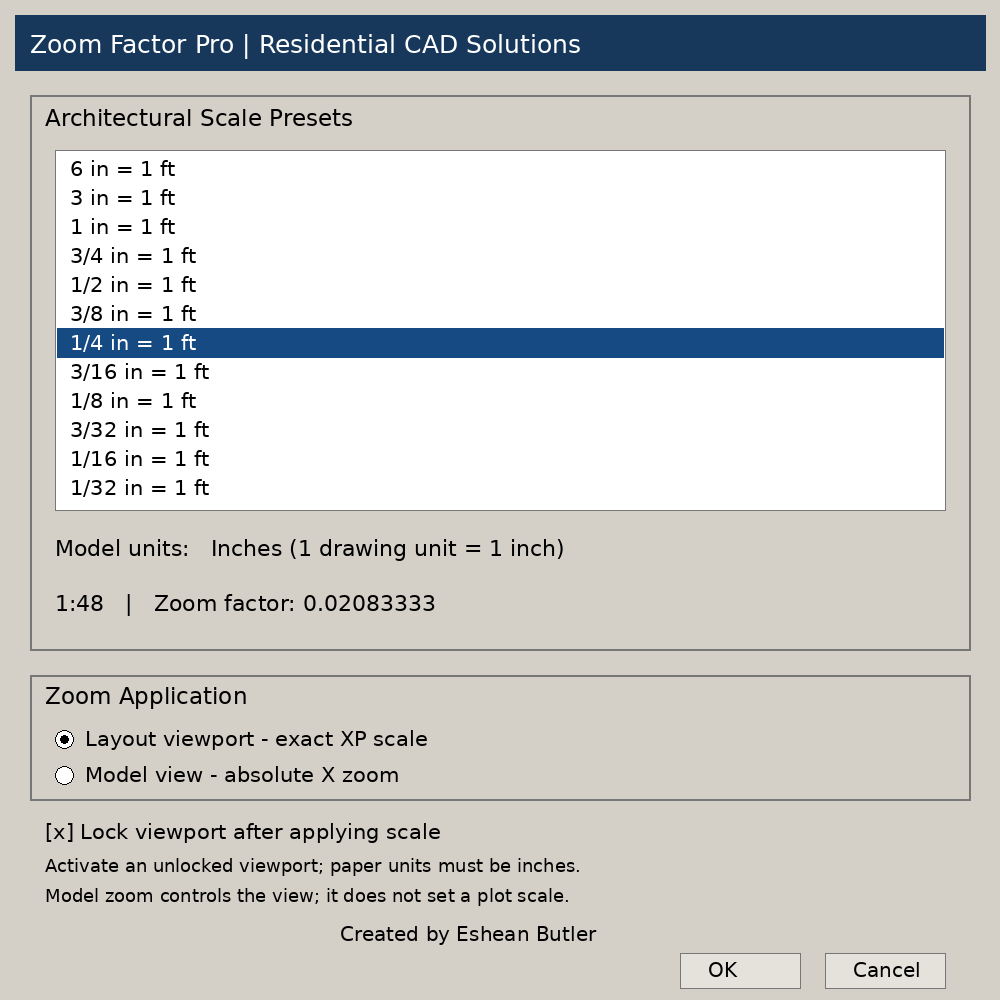

• DCL preview image

Command: ZFP or ZOOMFACTOR

Designed using core AutoLISP and DCL for AutoCAD 2002 and later. AutoCAD runtime testing is pending. Exact viewport scaling requires paper-space units in inches; model-space zoom changes the view without setting a plot scale.

Digital download. AutoCAD software is not included.
