From Prototype to Production: Inside a Modern Ceramic PCB Manufacturing Facility

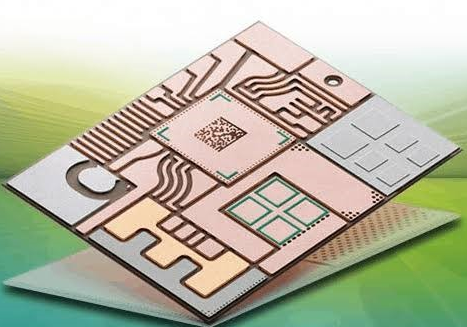

When it comes to electronics that can take a beating - think aerospace tools, electric cars, or medical scanners -ceramic PCB manufacturer technology is often behind the scenes. These boards are built to survive heat, stress, and long hours of operation. But few people know what actually happens between the design stage and the moment those tiny boards roll out of production. Let’s break it down in simple terms.

Where It All Begins - The Prototype

The process kicks off with engineers and designers working on the first few prototypes. At this stage, everything is about getting the basics right - layout, materials, and how well the board handles heat. A ceramic PCB manufacturer doesn’t just print a design and call it done; every prototype goes through cycles of tweaking and testing.

During this early phase, teams focus on things like:

• Choosing between alumina or aluminum nitride for the base material
• Checking if the board can handle the expected thermal load
• Making sure the connections stay stable even under pressure

Prototypes are where the biggest learning happens. If one detail is off, the rest of the process doesn’t stand a chance.

Precision Is Everything

Once the design clears testing, the focus shifts to production. Ceramic PCB fabrication isn’t a regular “press a button” kind of job. It’s a sequence of tightly controlled steps - lasers, heat treatment, and metallization all playing their part.

A few steps that make this process special:

• Substrate cleaning: Removing even tiny dust particles before printing
• Metallization: Adding conductive metal layers through screen printing or sputtering
• Firing: Heating the board beyond 800°C to bond the metal and ceramic
• Testing: Checking for micro-cracks, uneven layers, and electrical resistance

Each board is tracked through multiple inspections before it’s approved for use.

From Factory Floor to Real-World Reliability

Before shipment, boards are tested under real-world conditions - high voltage, heat cycling, and long operation hours. A trusted manufacturer of Ceramic PCBs makes sure each batch holds up to demanding industrial and automotive standards.

Modern facilities are also blending automation with skilled technicians. Robots handle repetitive steps, while human experts oversee quality and fine adjustments.

The most advanced ceramic PCB manufacturer setups are quietly redefining reliability - creating boards that are smaller, stronger, and built to last. It’s a mix of science and craftsmanship that keeps the world’s toughest electronics running without missing a beat.
