Garden Room Plan Design IV Hexagon with Corner Weight (Diagonal Balance)

This is a scaled adaptable architectural garden framework for experienced gardeners and designers who prefer structured spatial planning over template-based layouts.

What’s Included

• One complete high-resolution Garden Room PDF with 3 room variations.
• Three finished design plates exploring variation within a single rectilinear enclosure organized through orthogonal circulation and compartmental massing.
• A title and cover plate.
• Grid system for practical planting use for 3 room variations.
• Plant mass reference glyphs and a plant legend offering general plant suggestions.
• Interpretive design notes and visual reference material.

Concept

The Garden Room series is conceived as a set of spatial studies rather than rigid specifications. Each room is treated as a composed enclosure, defined by proportion, repetition, edge, and movement, where planting is understood as mass and relationship rather than inventory. The work draws from historical garden and architectural traditions associated with the late Renaissance through the early Enlightenment period, when gardens were communicated through plates and variation rather than instructions.

The intent is to offer a way of organizing gardens as legible rooms capable of holding complexity without rigidity. The plates are meant to be read slowly and interpreted, functioning as reference objects and planning tools for gardeners, designers, and homeowners who prefer judgment and adaptation over fixed templates.

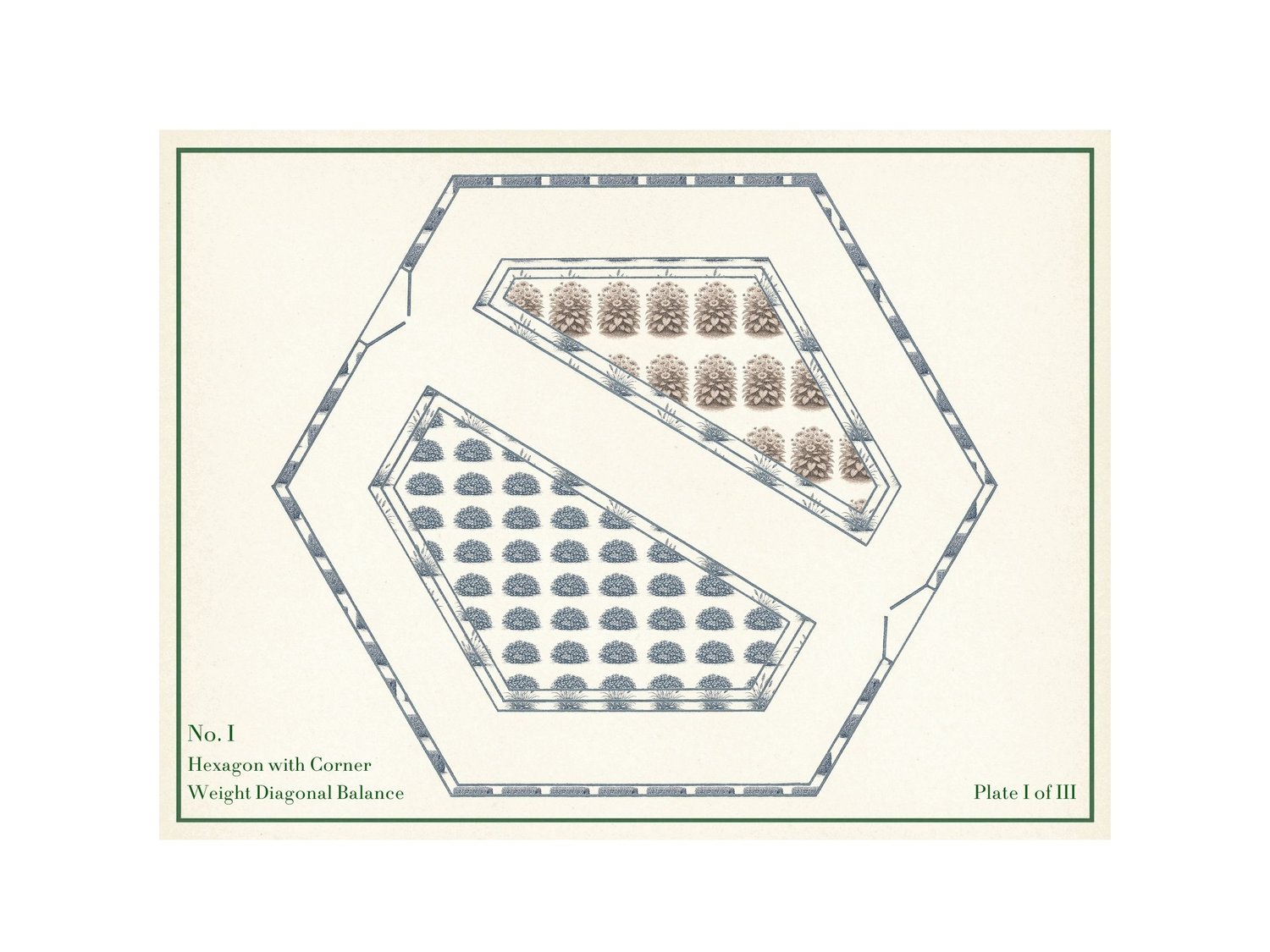

Hexagon with Corner Weight (Diagonal Balance)

This Garden Room explores a regular hexagonal enclosure structured through diagonal balance. Two large enclosed planting compartments occupy opposing sectors of the hexagon, creating a clear diagonal tension across the space. The remaining sectors remain open, allowing circulation to move diagonally between the two masses and continue along the perimeter without creating additional enclosed regions.

The geometry establishes strong containment while allowing movement to feel continuous and intentional. The design reads as balanced without symmetry, with visual weight concentrated across one diagonal axis.

Planting Strategy

The planting palette is deliberately restrained and organized as two primary opposing masses.

One enclosed compartment is planted as a continuous field of Echinacea ‘Sombrero Orange Red’, forming a dense, warm flowering plane of upright stems and strong seasonal presence.

The opposing compartment is planted entirely with Nepeta ‘Walker’s Low’, forming a broad, low violet-blue mass of equal visual weight and contrasting texture.

Each planting compartment is fully surrounded by a continuous band of Sesleria autumnalis, forming a soft inner collar that separates the flower masses from circulation space while reinforcing the geometry.

The outer hexagonal boundary is defined by Anglo-Japanese Yew (Taxus × media), clipped into a continuous enclosing edge that stabilizes the composition and holds the room as a coherent figure.

The planting reads as mass and contrast rather than mixture, with clarity between warm and cool fields and a stable structural perimeter.

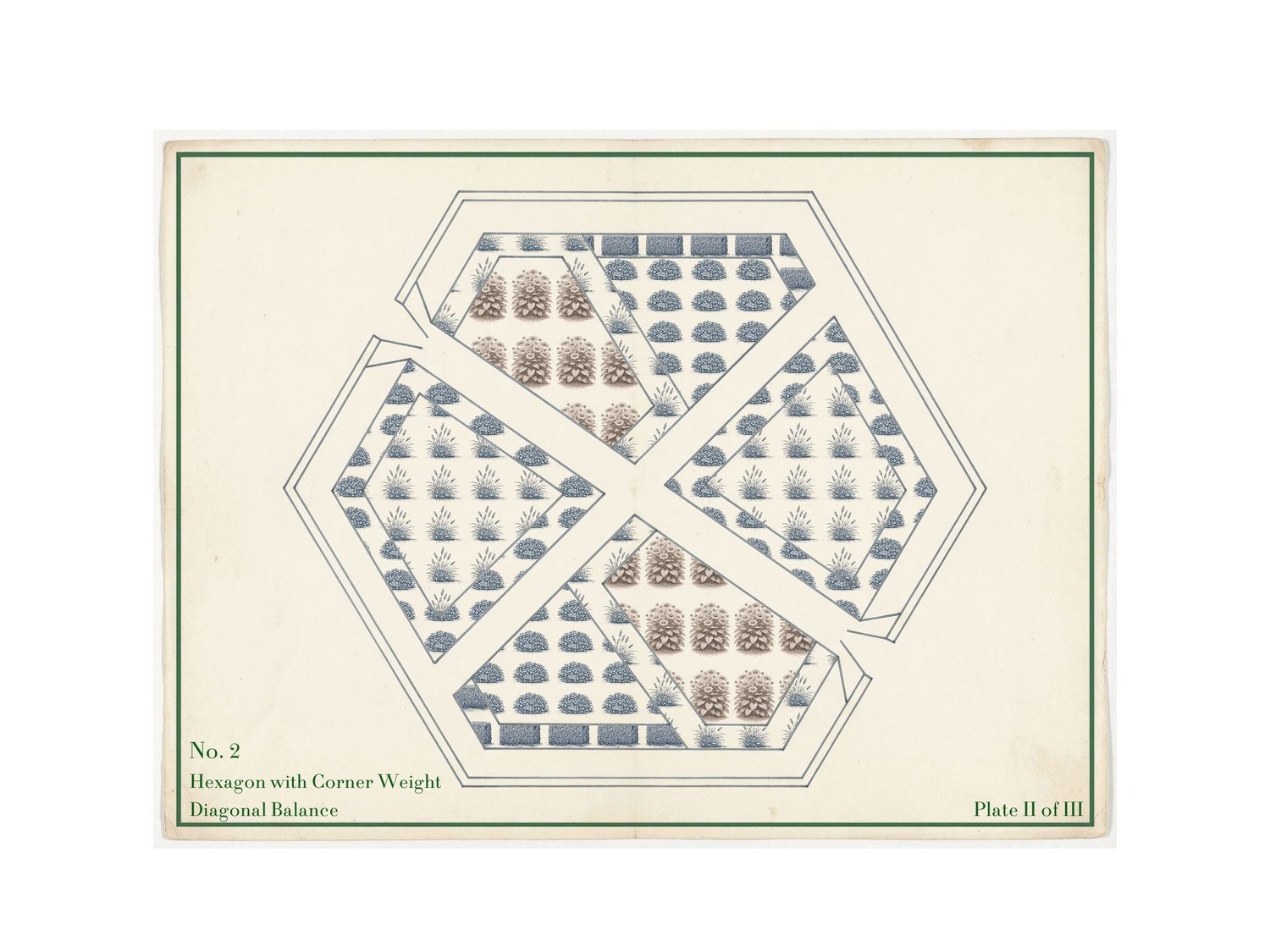

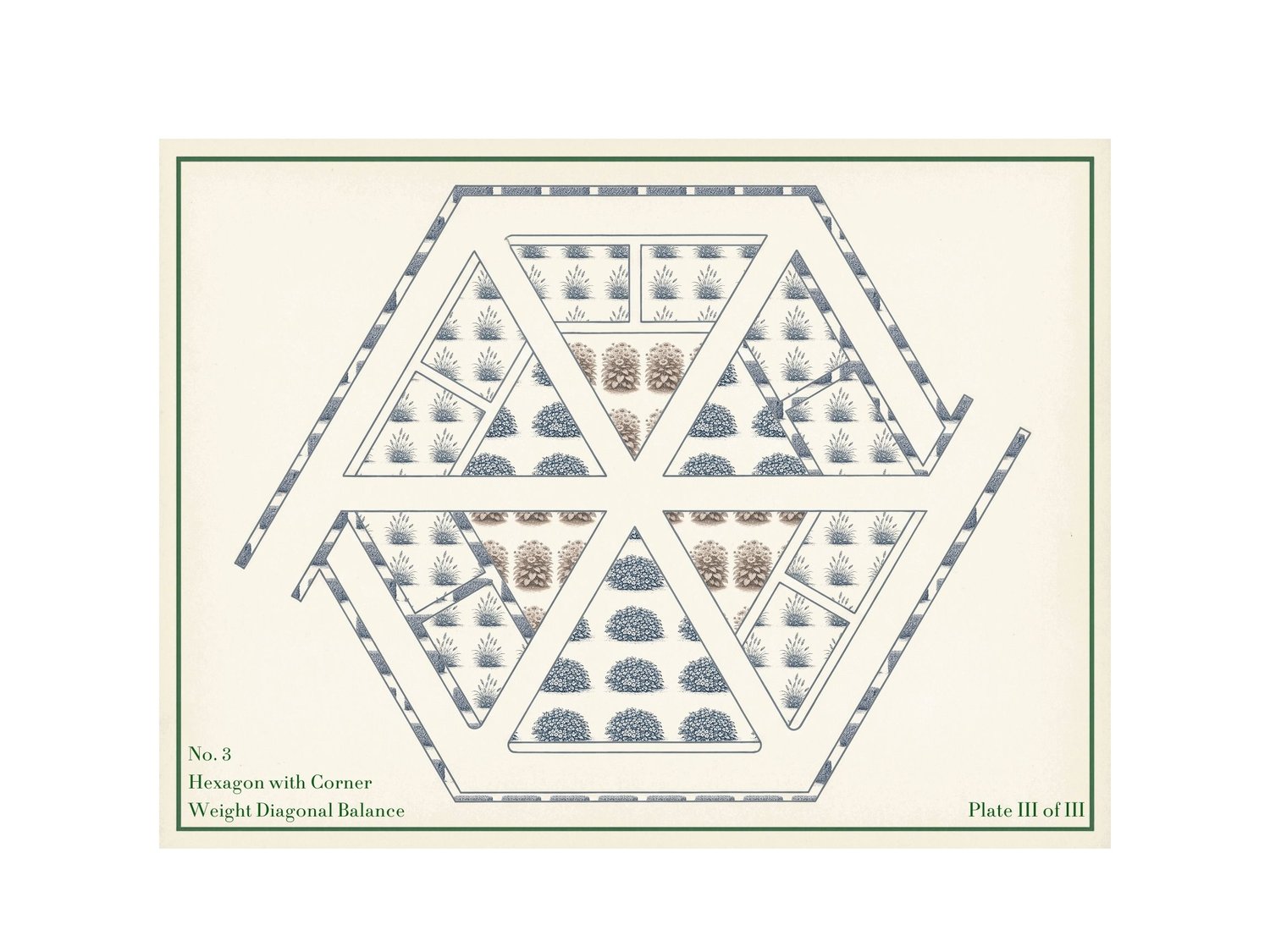

Variation Across the Plates

Across the three plates, the same geometric logic and planting roles are recomposed to explore subtle shifts in compression, openness, and diagonal emphasis within the hexagonal framework. Circulation remains legible and continuous, and the diagonal relationship between the two primary masses is preserved.

Rather than presenting alternatives, the plates describe related moments within the same spatial idea, inviting the viewer to imagine walking, pausing, and crossing the diagonal axis within a calm interior landscape shaped by proportion, repetition, and deliberate restraint.

The plates and grid overlays may be studied, scaled, adapted, or translated into real spaces according to the user’s context, climate, and judgment. Plant selections are presented as general guidance and spatial roles, intended to be adjusted to local conditions and preference.

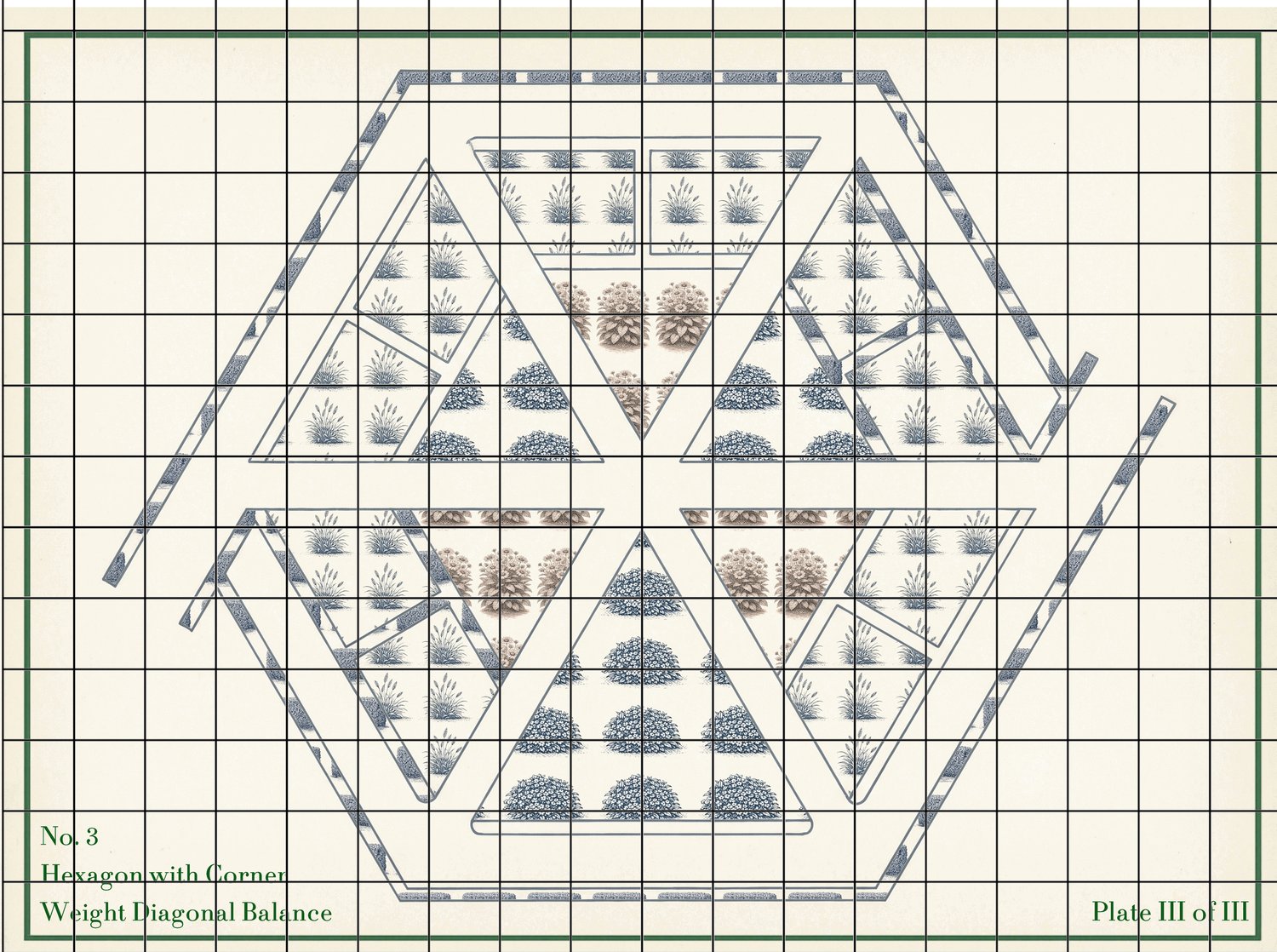

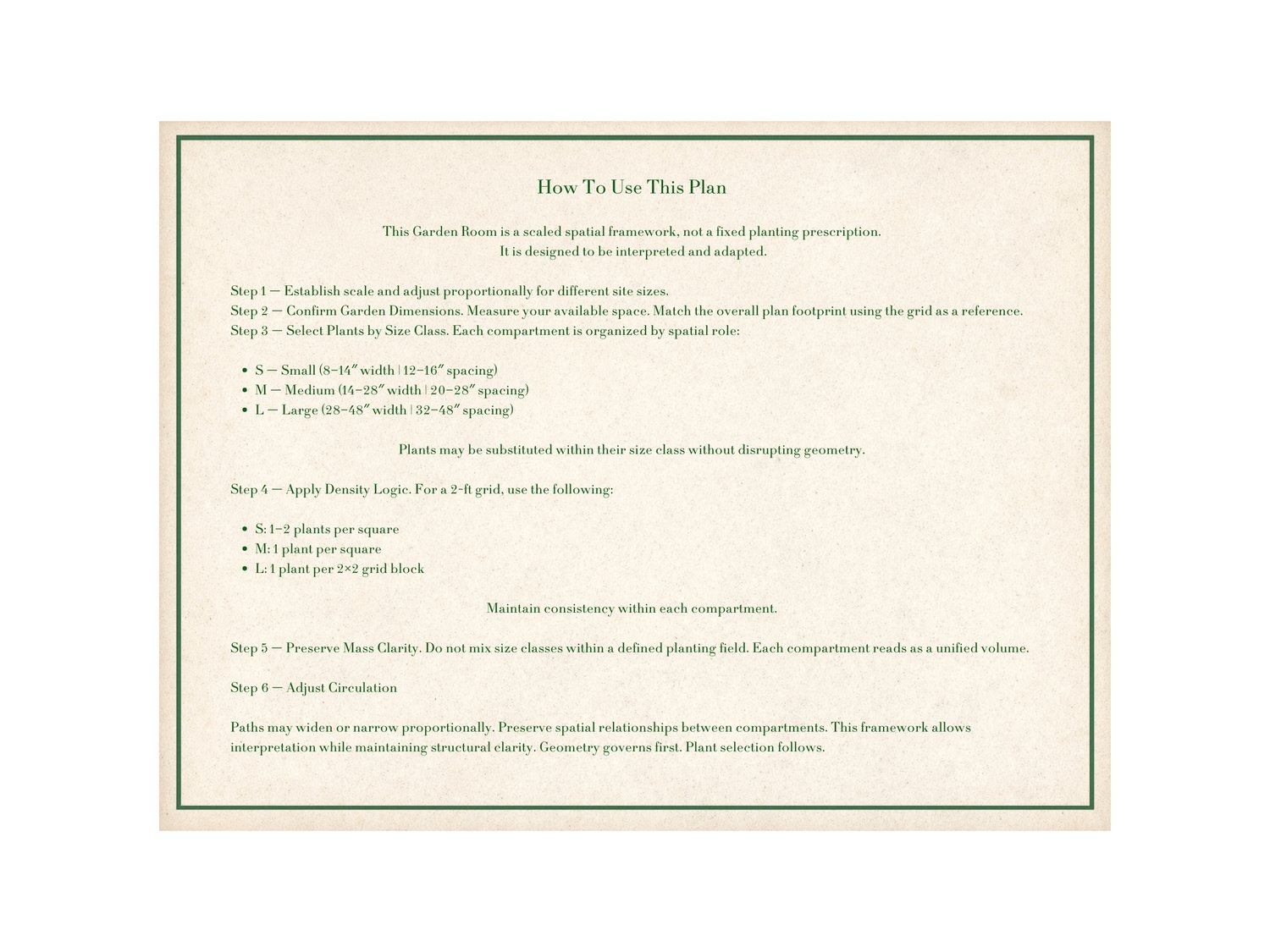

How to Use the Grid

The grid functions as a proportional scaling tool. Each square corresponds to the scale indicated on the specific plate (1 ft, 1.5 ft, or 2 ft). Use the grid to translate planting mass into appropriate on-center spacing. Small plants occupy tighter intervals, medium plants align approximately one per square at their spacing, and large plants extend across multiple squares according to mature width. Maintain a single size class within each compartment to preserve spatial clarity. Plants may be substituted within the same size range without altering the underlying geometry.

The plant glyphs shown on the plates represent planting types listed in the legend and are decorative indicators of mass, not literal quantities per grid square.
