2t Footing Design Template

The features of the 2.0t footing design template include;

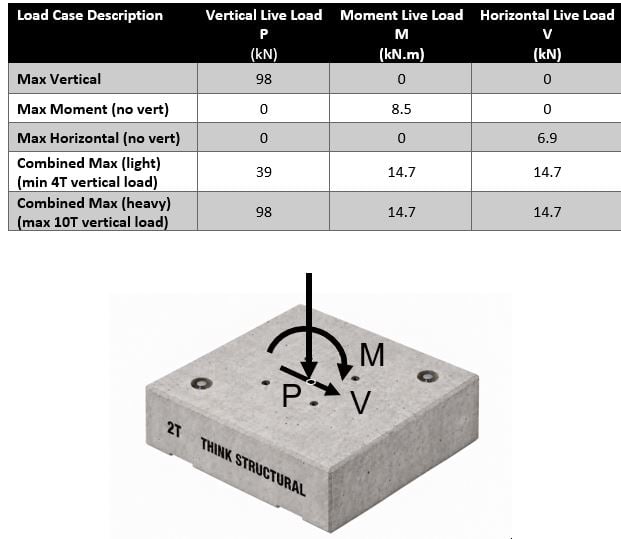

•  Vertical design load up to 10T under design conditions #
•  Overturning capacity of 8.5kN.m *
•  Footing Dimensions 1.5m x 1.5m x 0.4m
•  Footing Weight approx. 2.0t
•  Designed for 2-point lift
•  Swift Lift anchor points
•  Design report included
•  Fully compliant to AS 3600 - Concrete Structures
•  Adjustable anchor spacings to suit required base plate
•  Applicable for building, mining, oil & gas and marine industry in Australia
•  Design package includes;
•  GA Drawing (PDF)
•  Detail Drawing (PDF)
•  Calculation Report (PDF)
•


# Applied at the centre of footing. Eccentric load cases available upon request. Footing placed on level, compacted ground with min 200 kPa allowable bearing pressure.

* Overturning capacity can increase to 14.7kN.m with minimum 4T of permanent load. Enquire for specific load cases.

Note: This is for design template only. Actual footing not included.
