Abbi Tiny House Plan: 566 sq ft, 1 Bed/1 Bath (PDF Downloadable Blueprints)

The Abbi Tiny Home Plan – 1 Bed / 1 Bath Small House Design | 566 sq ft | Instant Download PDF Blueprints

Build your dream tiny home—affordable, stylish, and ready to go!

The Abbi Home Plan is the perfect 1-bedroom, 1-bathroom layout for first-time home builders, minimalists, retirees, Airbnb hosts, or anyone wanting a beautiful and budget-friendly place to call home.

This thoughtfully designed plan features vaulted ceilings, an open layout, and efficient use of space—making it feel much bigger than it is. Whether you’re downsizing, building a guest house, or investing in a short-term rental, Abbi checks every box.

Instant Digital Download – No waiting or shipping. Receive your blueprints within minutes!

Home Details:

Heated Living Space: 566 sq. ft.

Covered Porch: 32 sq. ft.

Total Under Roof: 598 sq. ft.

Home Dimensions: 22'-8" W x 27'-0" D + 2’-6” rear concrete pad

Ceiling Heights: 8’ flat in bath/closets, vaulted in main living & bedroom

Roof Style: Gable Roof (6:12 pitch main, 3:12 porch)

Exterior: Hardiplank or vinyl siding

Foundation: Slab-on-grade (easy and affordable to build)

What’s Included in Your PDF Plan Set:

All professionally drawn to scale (24" x 36") and ready for permitting, quotes, and building:

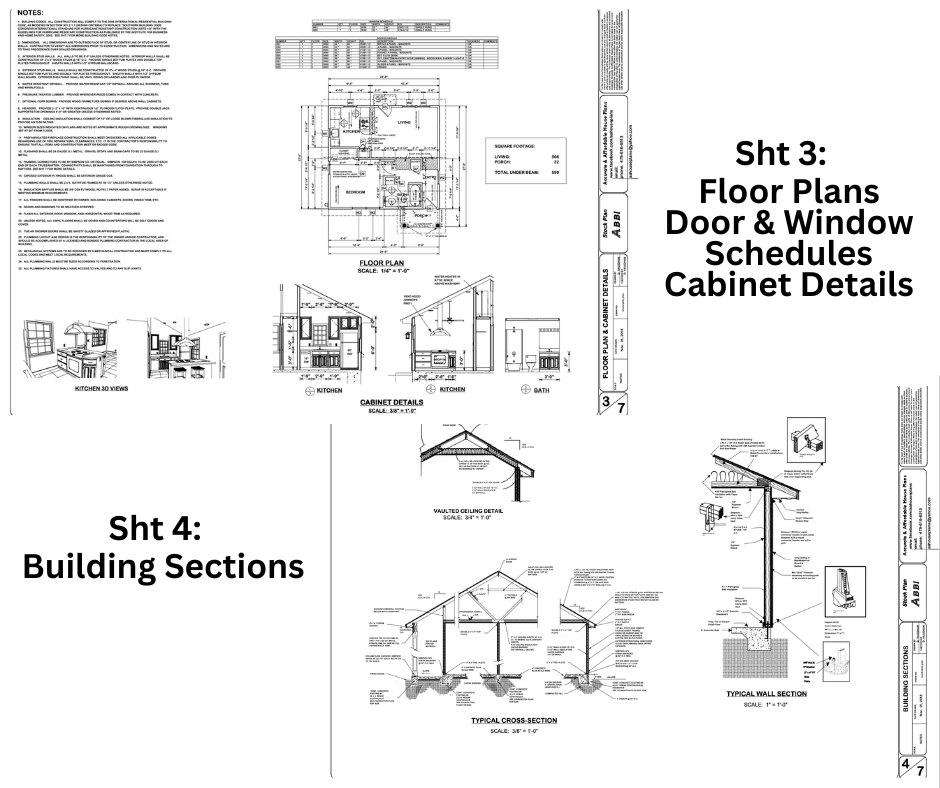

✅ Front, Rear & Side Elevations

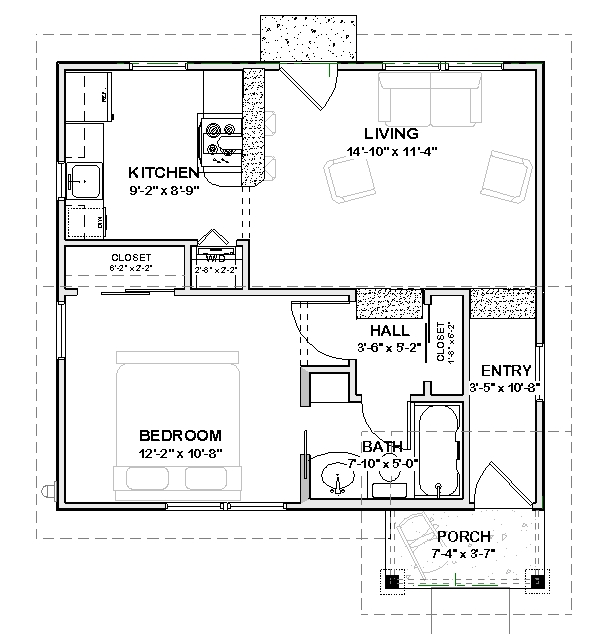

✅ Floor Plan

✅ Foundation & Footing Plans

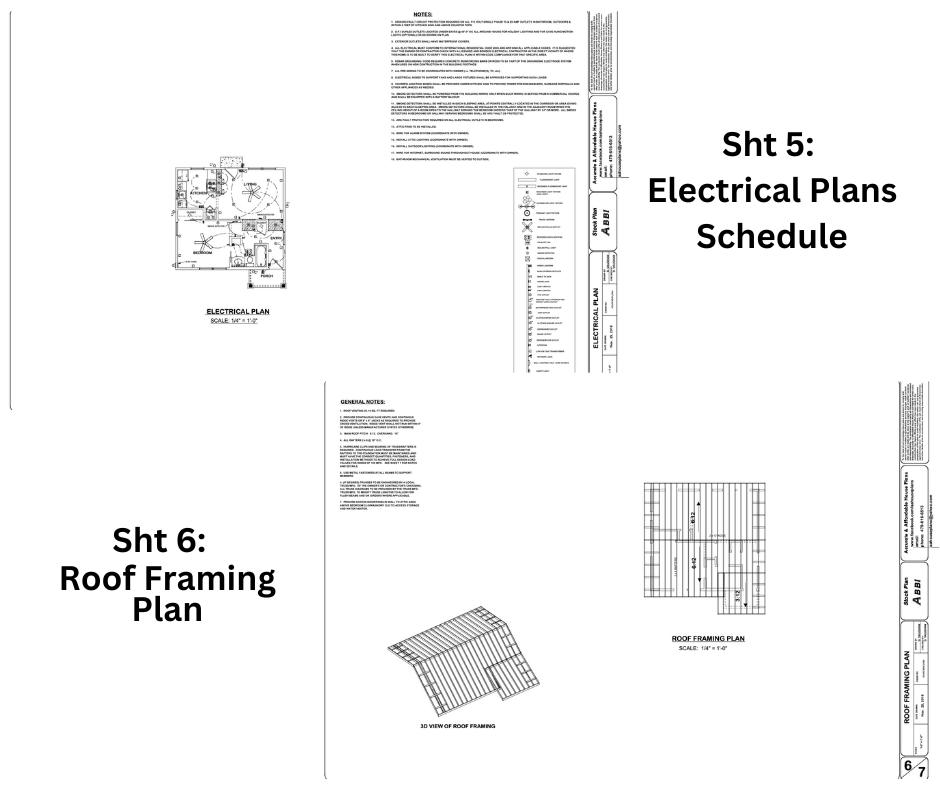

✅ Roof Framing Plan

✅ Electrical Layout

✅ Door & Window Schedules

✅ Wall & Cross Sections

✅ Cabinet Details

✅ IRC Code Notes + 120mph Wind Rating Notes (as applicable)

✅ May also include 3D views or ceiling framing details

Not Included:

Architectural or Engineering Stamp (check local codes)

Site Plan specific to your lot

HVAC or Plumbing layout (your contractors usually provide these)

Energy Reports or Materials List

Revisions to the plan

Why Buyers Love This Plan:

Instant Access – Start building or planning today

Unlimited Prints – Print what you need, when you need it

Flexible Sizes – Full-size for permits, smaller for subs

Simple Build – Great for DIYers, builders, or remote/off-grid homes

40 Years of Design Experience – Built by a professional Residential Designer

Important Notes:

Plans are copyright protected – for personal use only (no resale/sharing).

Due to the digital format, all sales are final and non-refundable.

Ready to turn your tiny home dream into a reality?

Add The Abbi Plan to your cart now and download instantly—start building today!
