ESP-01 USB Programmer Breakout Board — KiCad Project

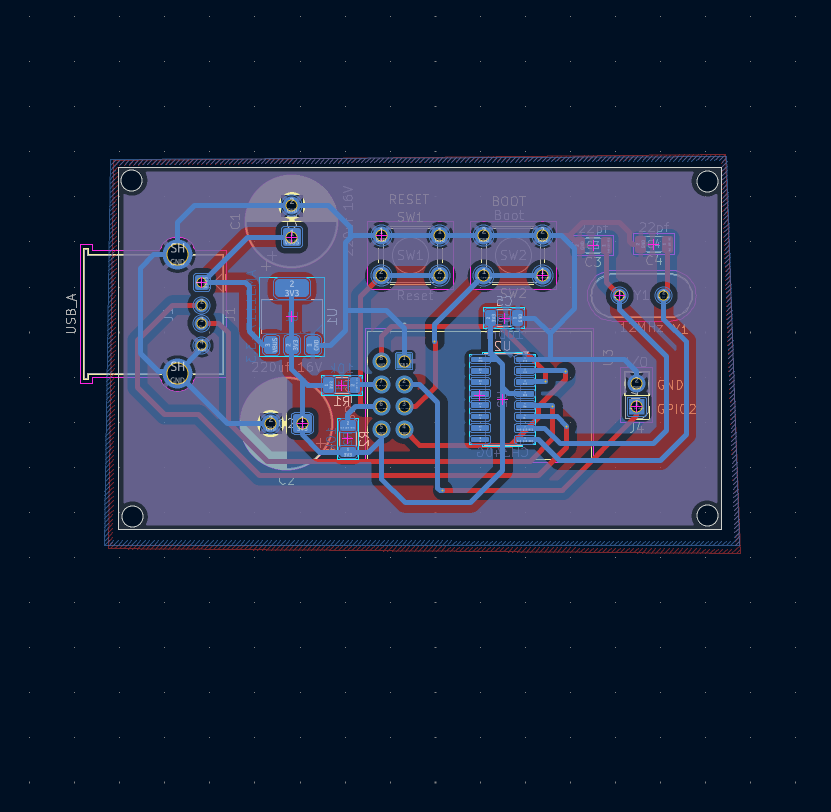

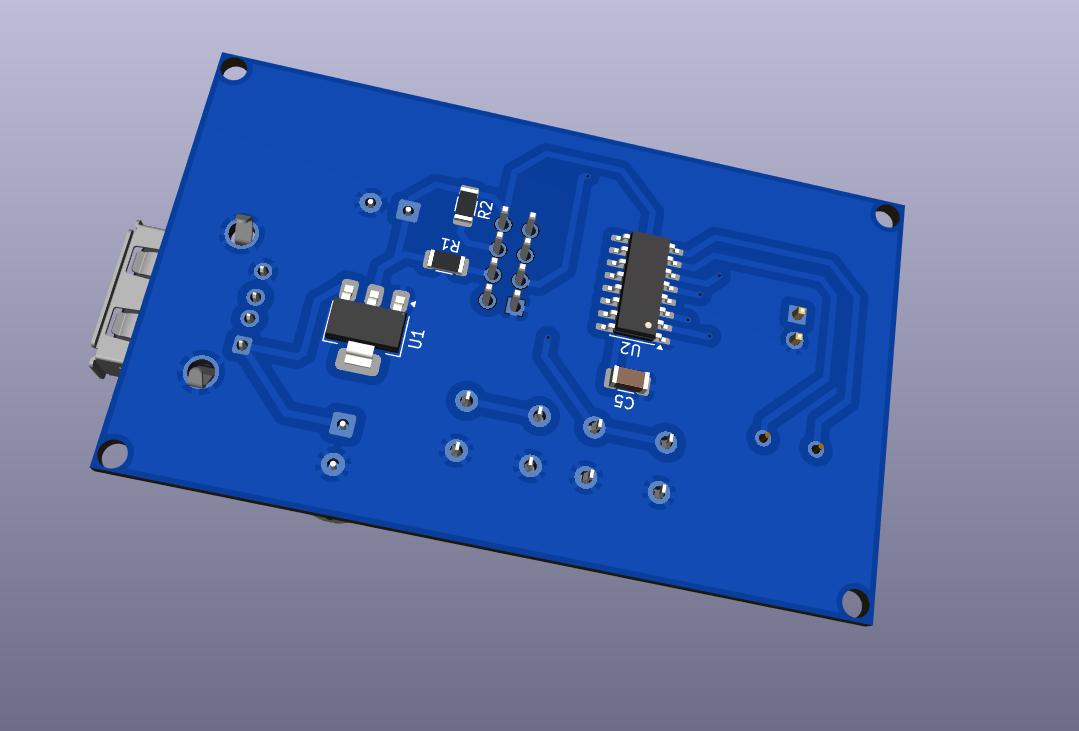

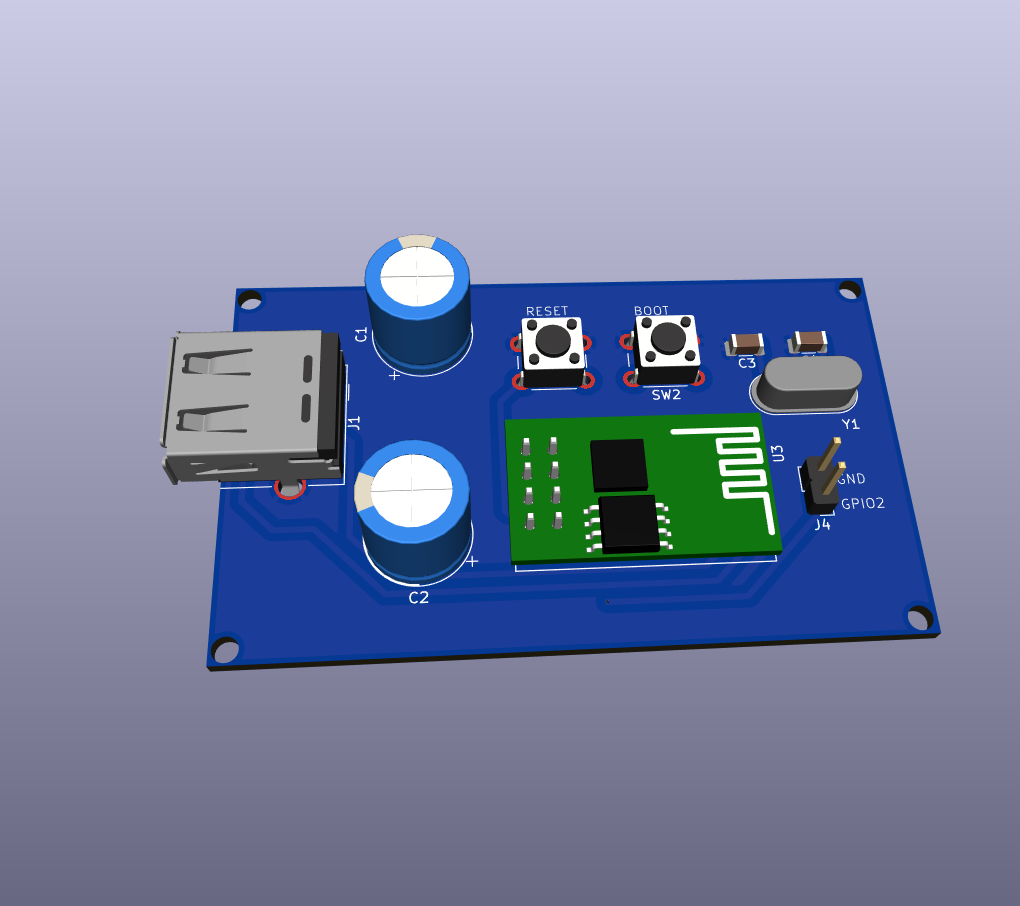

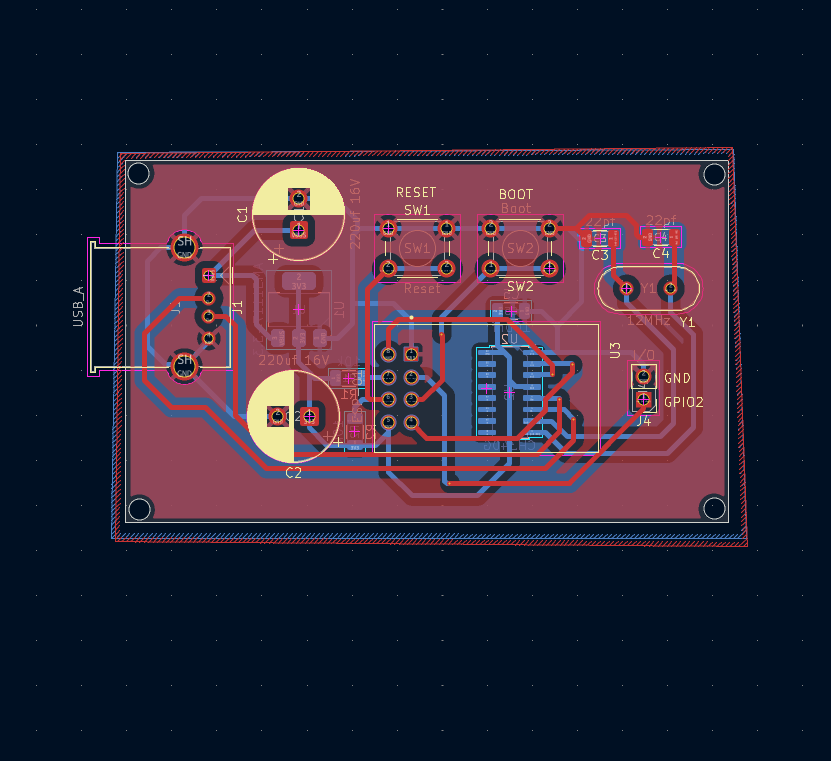

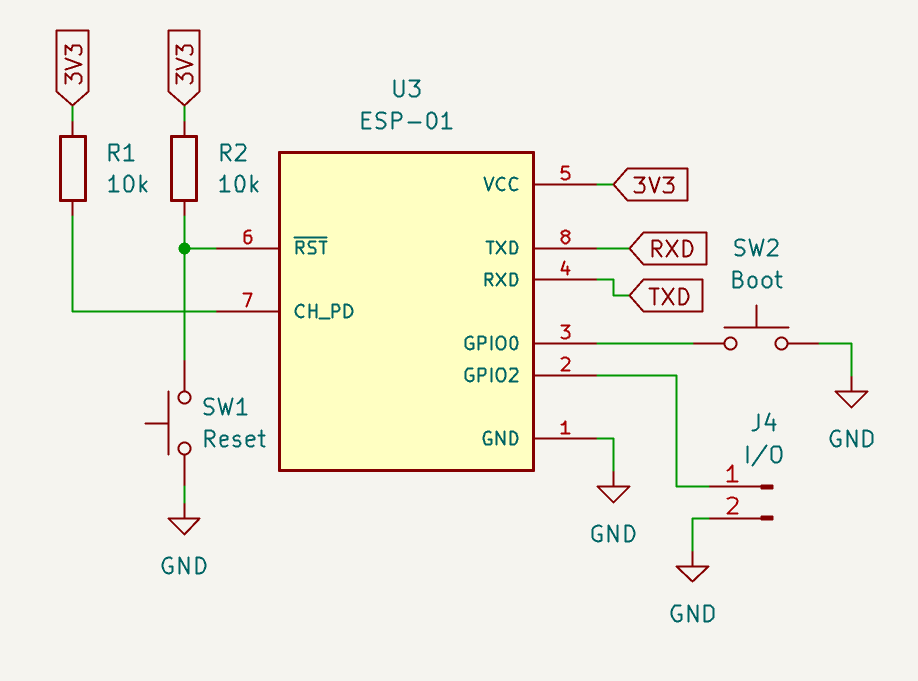

Get the complete, editable KiCad project for this ESP-01 USB Programmer Breakout Board. It includes the full schematic, PCB layout, footprints, libraries, and 3D models.

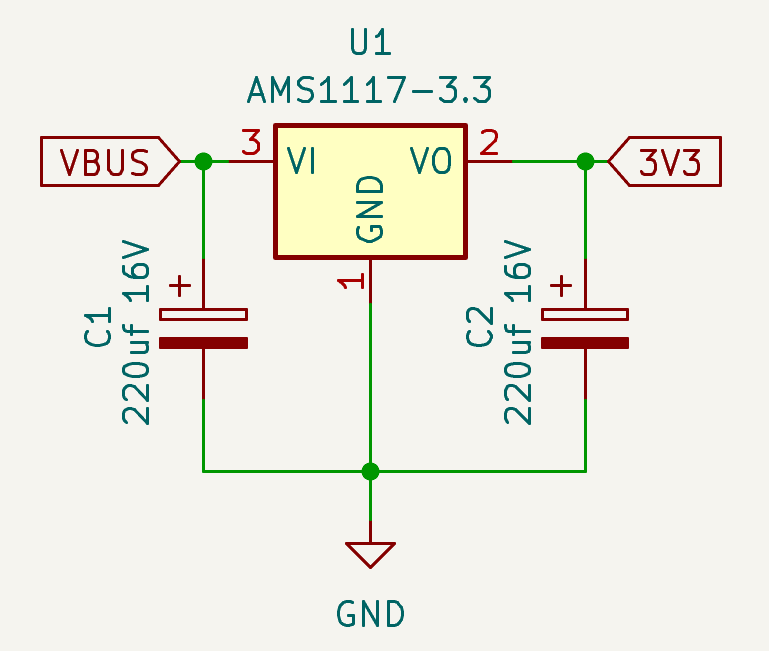

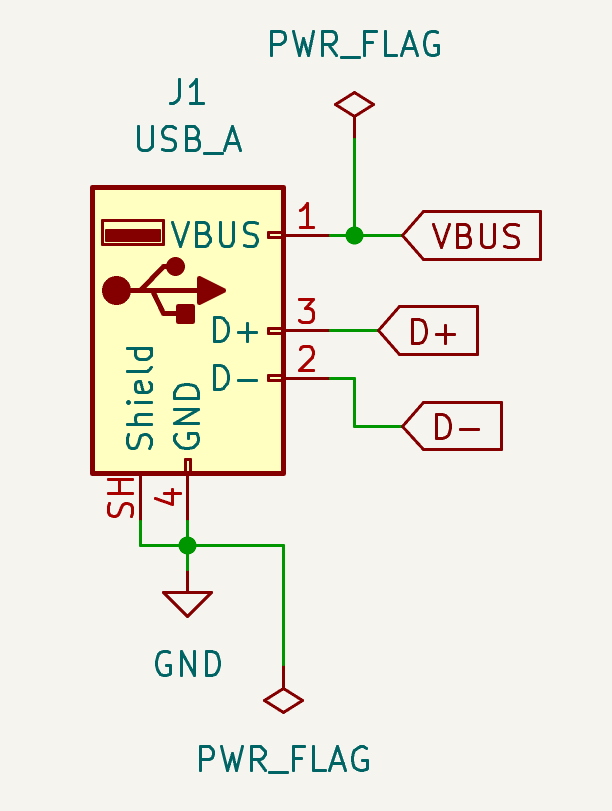

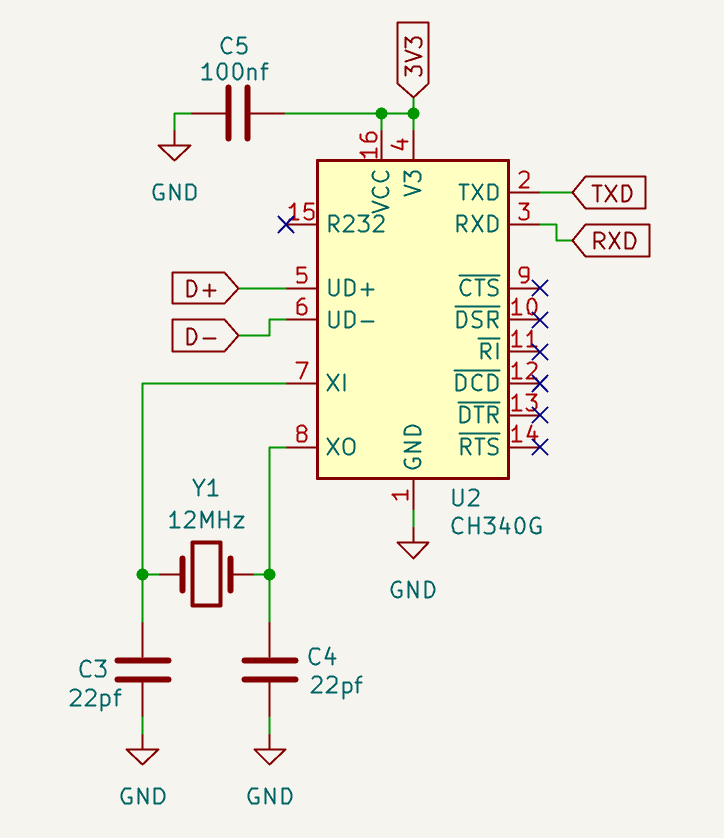

Features: CH340G USB-to-Serial, onboard 3.3V regulator, USB power, Reset & Boot buttons, and a GPIO header.
Perfect for learning, customizing, prototyping, and manufacturing your own ESP-01 projects.
The ESP-01 symbol and footprint used in this project can be downloaded from SnapMagic:
