V-528D Spain| Modern two Bedroom house Plan + 2 bathroom with swimming pool one story home floor Plan Tiny house with gable roof
V-528D
------------------
House Description:
Bedroom 2 Nos.
Bathroom 2 Nos.
Living 1 No.
Visitors 1 No.
Dinning 1 No.
Kitchen 1 No.
Porch 1 No.
Balcony 1 No.
Laundry 1 No.
Pantry 1 No.
------------------
Floor Print WxL 37 x 47.6 Feet (13.3 x 14.5 Meter)
Total Area 146 M2 = 1575 F2
------------------
Drawing Description:
Furniture's Layout 1 No.

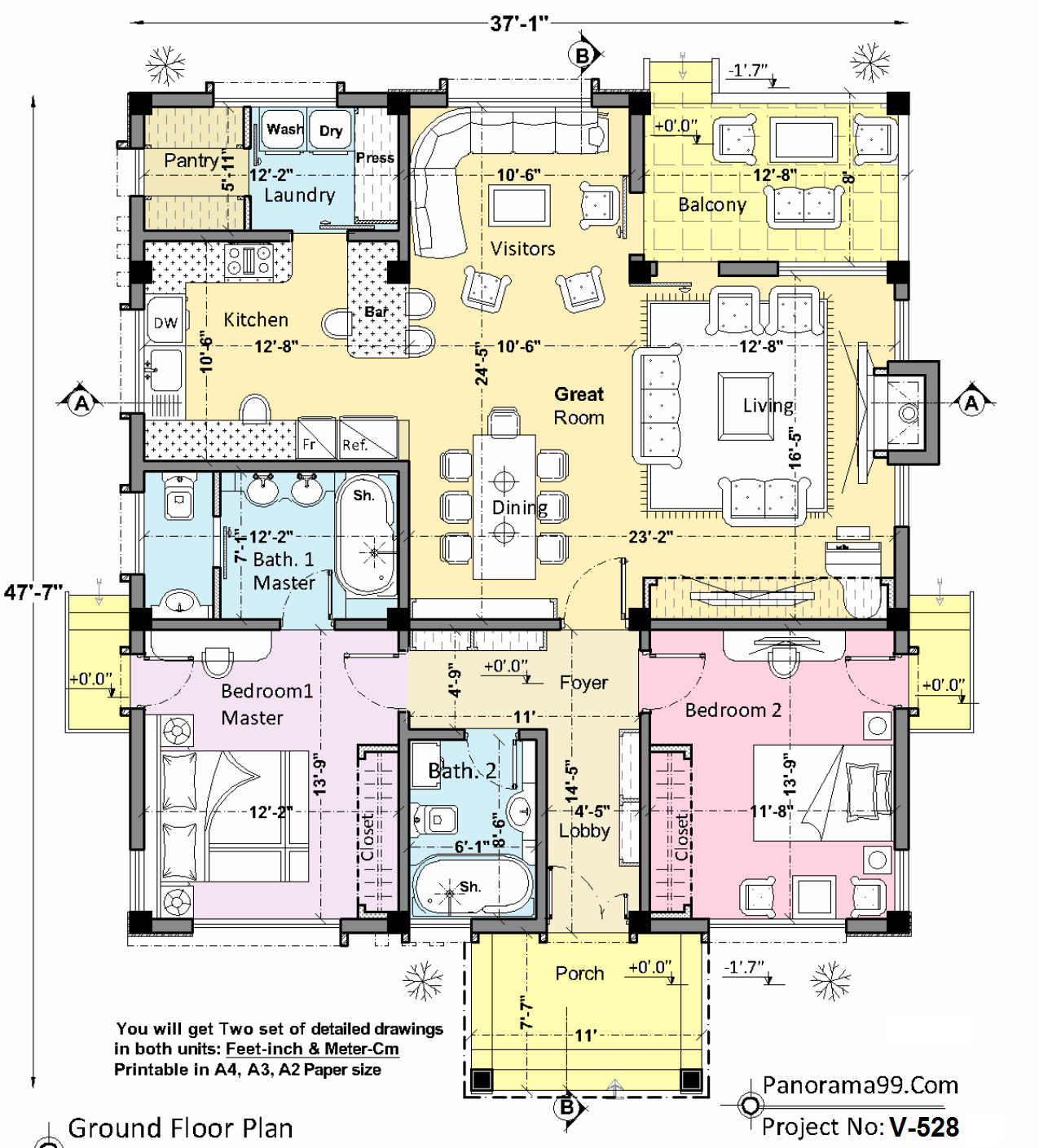

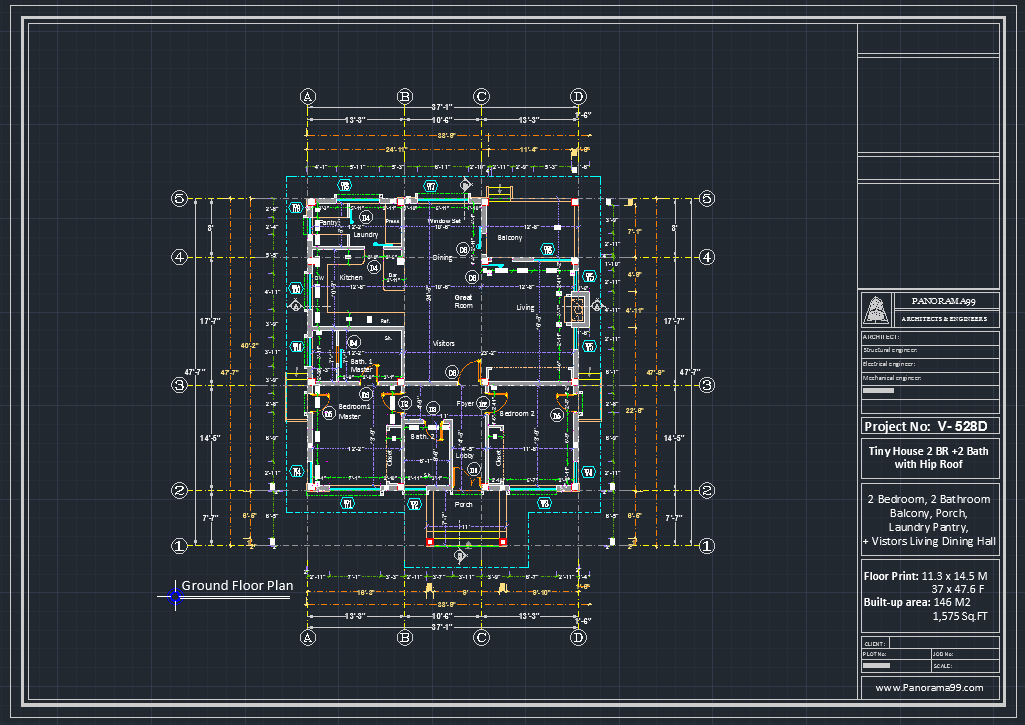

Floor Plan 1 No.

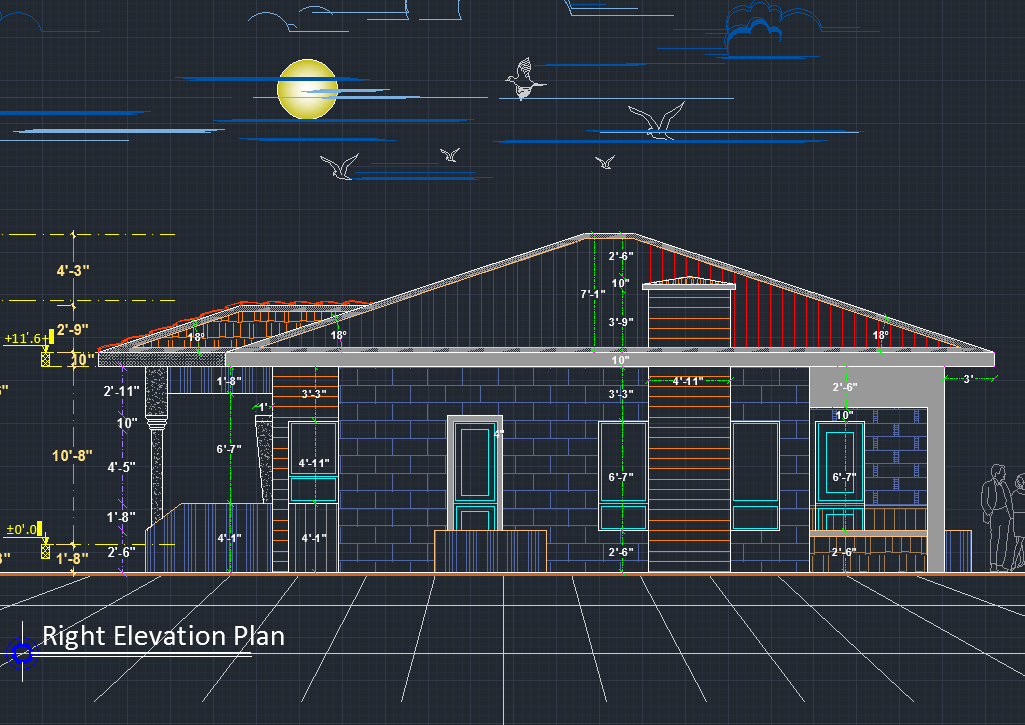

Elevation Plan 4 Nos.
Section Plan 2 Nos.
Roof Location 1 No.
Roof Top Plan 1 No.
Foundations Beams 1 No.
Columns Centre 1 No.
Typical Details 1 No.
D & W Schedule 1 No.
Setting out Plan 1 No.
3D Rendering 9 Nos.
------------------
* General Notes:
1- We are selling all our house plans as PDF digital file only, and Nothing will be sent by post.
2- You will get Two Sets of Detailed Drawings as PDF file, in Both units (Feet - inch and Meter-Cm)
so you can print multi copies any time in any Paper size A3, A2 only
3- All the house plan drawings are ready to download
