Multi-Groove Chip-Control Grooving Cycle
PARAMETRIC MULTI-GROOVE CHIP-CONTROL GROOVING CYCLE
Complete Multi-Groove OD Grooving, 45° Chamfering & Full-Retract Chip-Control Machining From One Reusable CNC Cycle
Machining multiple deep OD grooves can quickly become repetitive, especially when every groove requires multiple plunges, chip-clearing retracts, accurate spacing, corner preparation and separate finishing movements.
The Parametric Multi-Groove Chip-Control Grooving Cycle combines the complete operation into one reusable CNC machining cycle.
Enter the required groove dimensions, groove quantity and spacing — the cycle automatically controls the repetitive machining sequence.
Peck the groove. Clear the chips. Finish the profile. Move to the next groove. Repeat automatically.
Define the job. Run the cycle. Reuse it.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
⚙️ CYCLE CAPABILITIES
✅ 2-axis X/Z CNC lathe machining
✅ Parametric OD groove machining
✅ Automatic multiple-groove production
✅ Editable stock outside diameter
✅ Editable groove root diameter
✅ Editable finished groove width
✅ Editable 45° outer chamfer size
✅ Editable first groove position
✅ Editable number of grooves
✅ Editable center-to-center groove spacing
✅ Automatic groove-position calculation
✅ Automatic multi-groove progression
✅ Full-retract chip-control peck machining
✅ Complete tool withdrawal after every peck
✅ Controlled rapid return through the previously machined groove
✅ Progressive depth roughing
✅ Automatic groove-width roughing
✅ Progressive chamfer roughing
✅ 45° corner preparation before finishing
✅ Reduced finishing load
✅ Automatic left-side finishing
✅ Automatic right-side finishing
✅ Outside-to-center finishing strategy
✅ Full retract between finishing sides
✅ Flat-bottom groove machining
✅ Straight groove-wall finishing
✅ Automatic progression to the next groove
✅ Independent roughing and finishing cutting conditions
✅ Reusable for different groove diameters
✅ Reusable for different groove widths
✅ Reusable for different groove quantities
✅ Reusable for different groove spacing
✅ Designed for repetitive production
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🔵 COMPLETE MULTI-GROOVE MACHINING STRATEGY
The cycle automatically controls the complete machining sequence for every programmed groove.
Each groove is machined using a stored production strategy that combines roughing, chip clearance, chamfer preparation and profile finishing.
For every groove the cycle automatically performs:
✅ Safe outside positioning
✅ Progressive 45° chamfer roughing
✅ Full-retract peck roughing
✅ Controlled machining across the groove width
✅ Complete chip-clearance retracts
✅ Left-side profile finishing
✅ Full retract
✅ Right-side profile finishing
✅ Full clearance before repositioning
✅ Automatic movement to the next groove
The same complete strategy is automatically repeated until the programmed groove quantity has been completed.
No need to manually program each groove individually.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🔨 FULL-RETRACT CHIP-CONTROL PECKING
Deep grooving can create serious chip-control problems when the tool remains buried inside the component.
Long chips, chip packing, heat build-up and poor coolant access can quickly affect tool life and machining consistency.
This cycle uses a controlled full-retract peck strategy.
After every cutting peck, the grooving tool completely exits the stock before returning for the next cutting movement.
This provides:
✅ Improved chip evacuation
✅ Better coolant access
✅ Reduced chip packing
✅ Reduced heat concentration
✅ Improved tool clearance
✅ Controlled deep-groove machining
✅ More manageable chip formation
✅ Reliable repetitive roughing
The complete pecking sequence is automatically controlled by the cycle.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🔄 CONTROLLED RE-ENTRY
The tool does not simply rapid blindly into uncut material after each retract.
The cycle uses the previously machined groove as the controlled return path.
The machining strategy becomes:
Cut → Fully retract → Clear chips → Return through cleared groove → Cut deeper → Fully retract
This combines aggressive chip clearance with controlled re-entry into the component.
The actual material-removal movement remains a controlled feed move.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📐 PARAMETRIC SQUARE-GROOVE GEOMETRY
The groove geometry is controlled directly from the required component dimensions.
The cycle automatically adapts to changes in:
✅ Stock diameter
✅ Groove root diameter
✅ Finished groove width
✅ Chamfer size
✅ Groove position
Change the component dimensions and the cycle automatically adjusts the machining strategy to suit the new groove.
No need to rebuild the complete roughing and finishing toolpath.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

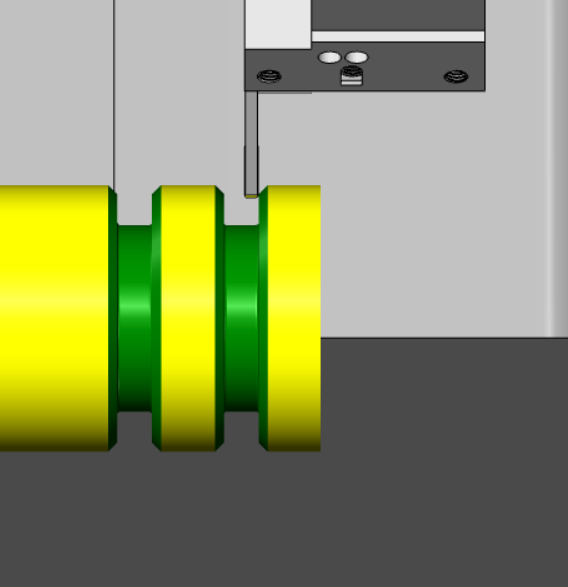

◼️ FLAT-BOTTOM GROOVE MACHINING
Unlike a V-groove cycle, this machining strategy produces a straight-sided groove with a controlled flat-bottom profile.
The cycle automatically handles:
✅ Groove depth
✅ Groove width
✅ Straight side walls
✅ Flat bottom
✅ Left outer corner
✅ Right outer corner
✅ Final profile finishing
This makes the cycle suitable for a wide range of repetitive external groove applications.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📐 45° OUTER CHAMFER MACHINING
Both outside groove corners include integrated 45° chamfer machining.
The chamfer size is adjustable for the required component.
The cycle automatically prepares both sides of every groove before the final finishing operation.
This creates a complete finished groove profile without requiring a separate manually programmed chamfer operation.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🔨 PROGRESSIVE CHAMFER ROUGHING
The 45° corners are not left as large amounts of material for the final finishing pass.
The cycle progressively roughs the chamfer regions first.
This helps reduce:
✅ Heavy finishing cuts
✅ Sudden tool loading
✅ Excessive corner engagement
✅ Heat concentration
✅ Finishing-pass stress
The final 45° profile is therefore produced from a controlled amount of remaining material.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
✨ OUTSIDE-TO-CENTER FINISHING
The finishing strategy is designed to machine each side independently.
The first side is finished:
Outside edge → 45° chamfer → Straight wall → Groove root → Center
The tool then completely retracts.
The opposite side is then finished:
Outside edge → 45° chamfer → Straight wall → Groove root → Center
This avoids forcing one long finishing movement through the entire groove from one outside edge to the other.
Each side is controlled independently and finishes toward the groove center.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🔄 AUTOMATIC MULTI-GROOVE MACHINING
One of the main advantages of the cycle is automatic repetitive groove production.
The operator defines:
✅ First groove position
✅ Number of grooves
✅ Groove center spacing
The cycle automatically creates and machines the complete groove pattern.
Need 1 groove?
Set 1.
Need 3 grooves?
Set 3.
Need 6 grooves?
Set 6.
The complete roughing, chip-control, chamfering and finishing sequence is repeated automatically for every groove.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
↔️ AUTOMATIC GROOVE SPACING
There is no need to manually calculate the position of every groove.
Define the required center-to-center spacing and the cycle automatically positions each additional groove.
This makes one reusable cycle suitable for:
✅ Single grooves
✅ Double grooves
✅ Triple grooves
✅ Multiple repeated grooves
✅ Custom groove patterns
✅ Production components with equal groove spacing
Different spacing?
Change the job setting.
The complete groove pattern automatically adjusts.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🧠 AUTOMATIC MACHINING CONTROL
From a compact set of component dimensions, the cycle automatically manages:
✅ Groove depth
✅ Groove width
✅ Groove position
✅ Groove quantity
✅ Groove spacing
✅ Full-retract peck progression
✅ Chip-clearance movements
✅ Controlled return positions
✅ Groove-width roughing
✅ Chamfer preparation
✅ Left-side finishing
✅ Right-side finishing
✅ Flat-bottom finishing
✅ Multi-groove progression
The operator concentrates on the required finished component rather than programming hundreds of repetitive movements.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🏭 BUILT FOR REUSABLE PRODUCTION
The Parametric Multi-Groove Chip-Control Grooving Cycle is designed as a reusable machining tool rather than a one-job CNC program.
Once configured and proven, the same machining strategy can be reused across different groove configurations by changing the required job dimensions.
Ideal for:
✅ Deep OD grooves
✅ Multiple external grooves
✅ Chip-sensitive grooving applications
✅ Wide grooves
✅ Flat-bottom grooves
✅ Chamfered grooves
✅ Repetitive production components
✅ Maintenance components
✅ Replacement components
✅ Prototype machining
✅ CNC automation applications
✅ Repetitive grooving production
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
💡 WHY CHIP-CONTROL GROOVING?
Conventional continuous plunging can leave the grooving tool buried in the cut while chips accumulate around the insert.
The full-retract strategy gives the cutting zone repeated opportunities to clear.
This is especially valuable when machining:
✅ Deeper grooves
✅ Wider grooves
✅ Materials that produce continuous chips
✅ Components requiring repeated plunge cuts
✅ Production parts where consistent chip evacuation matters
Instead of relying on the operator to manually manage every retract, the strategy remains built into the reusable cycle.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
⚙️ ONE CYCLE — MULTIPLE GROOVE CONFIGURATIONS
Different stock diameter?
Change the job dimensions.
Different groove depth?
Change the root diameter.
Different finished width?
Change the groove width.
Different chamfer?
Change the chamfer size.
Need more grooves?
Change the quantity.
Different groove spacing?
Change the center spacing.
The complete chip-control roughing and finishing strategy remains stored inside the cycle.
No need to rebuild the complete CNC program every time the component changes.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📦 COMPLETE DOWNLOAD PACKAGE
Package includes:
✅ Parametric Multi-Groove Chip-Control Grooving Cycle
✅ Reusable CNC machining cycle
✅ Example calling program
✅ Complete user guide
✅ Setup instructions
✅ Parameter explanation
✅ Machining-sequence explanation
✅ Full-retract peck explanation
✅ Chip-control strategy explanation
✅ Groove-spacing setup guidance
✅ 45° chamfer setup guidance
✅ Progressive chamfer roughing explanation
✅ Outside-to-center finishing explanation
✅ First-run setup guidance
✅ Prove-out procedure
✅ Reusable production-cycle structure
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🌐 CONTROLLER SUPPORT
Controller-specific packages are designed for supported CNC systems.
The machining concept remains the same:
✅ Parametric groove dimensions
✅ Automatic multiple-groove positioning
✅ Full-retract chip-control pecking
✅ Progressive 45° chamfer preparation
✅ Automatic profile finishing
✅ Reusable production machining
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🛒 AVAILABLE STANDALONE OR INSIDE CNC AUTOMATION PRO
The Parametric Multi-Groove Chip-Control Grooving Cycle is available as a standalone downloadable package or as part of CNC Automation Pro.
CNC Automation Pro provides access to reusable custom CNC cycles, CNC macros, programming modules, software and CNC training resources.
CNC Automation Pro:
https://payhip.com/b/9IpYU
MacroMill CNC:
www.macromillcnc.com
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
PARAMETRIC MULTI-GROOVE CHIP-CONTROL GROOVING CYCLE
One reusable cycle.
Multiple grooves.
Full-retract chip control.
45° chamfer preparation.
Automatic finishing.
Built for reusable CNC production.
