Perforated Facade Kit Lite (Free): 3 CAD Panel Patterns (DXF, SVG, PNG) with Fabrication Data

Three real panels from the Perforated Facade Kit, free

Try the files before you decide. Lite contains 3 of the 36 panels of the full kit, with the same DXF and SVG files, the same seamless textures and the same measured numbers, so you can open them in your CAD software, drop them into a render and see whether the format fits your workflow.

What you get

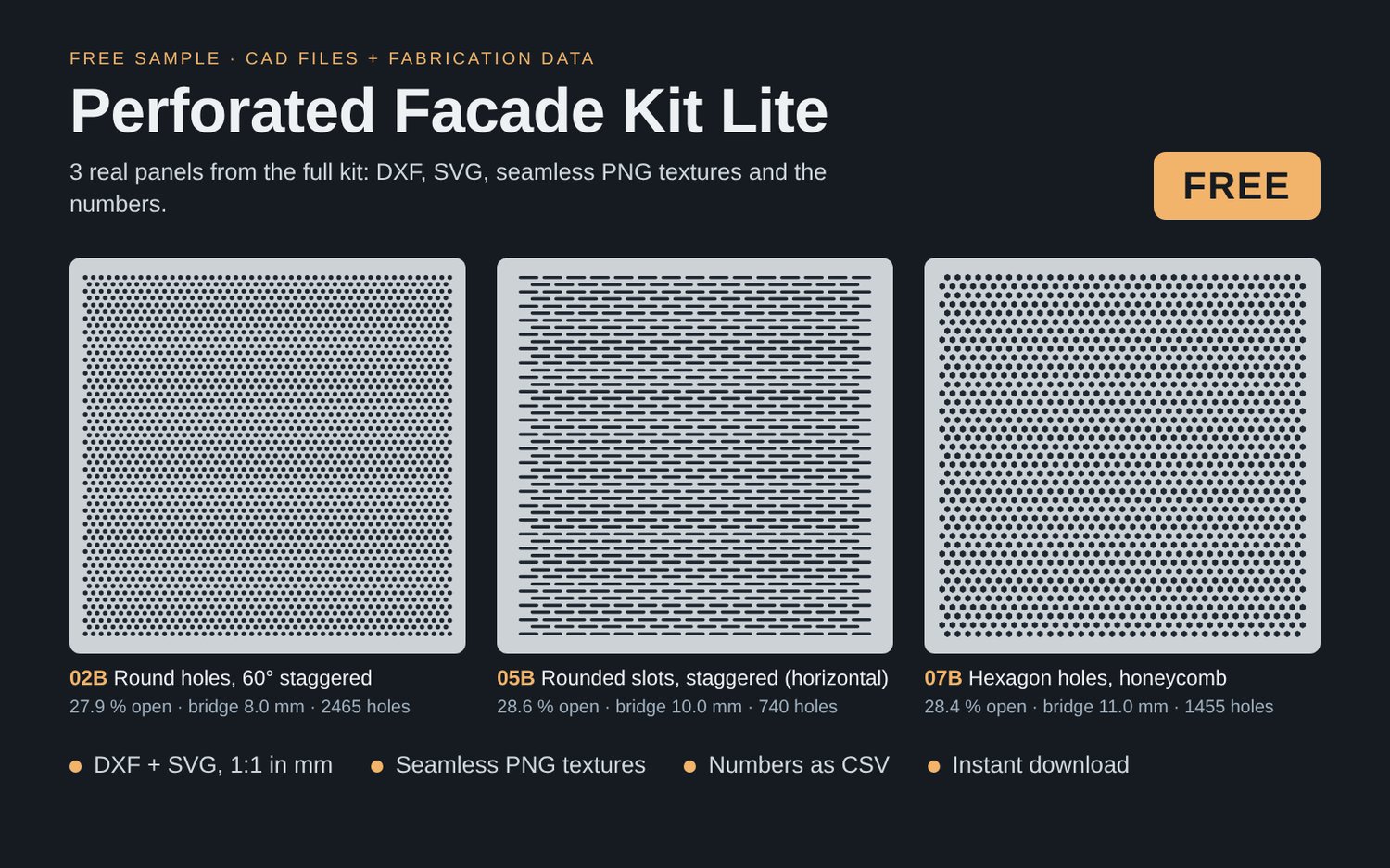

• 3 panels, each 1000 × 1000 mm with a 30 mm solid border, drawn 1:1 in millimetres: round holes 60° staggered (02B), rounded slots staggered (05B) and hexagon holes in a honeycomb (07B)
• DXF (R12 ASCII, layers CUT and OUTLINE) and SVG for every panel
• Seamless PNG textures for each pattern: RGBA with transparent holes, plus a greyscale mask

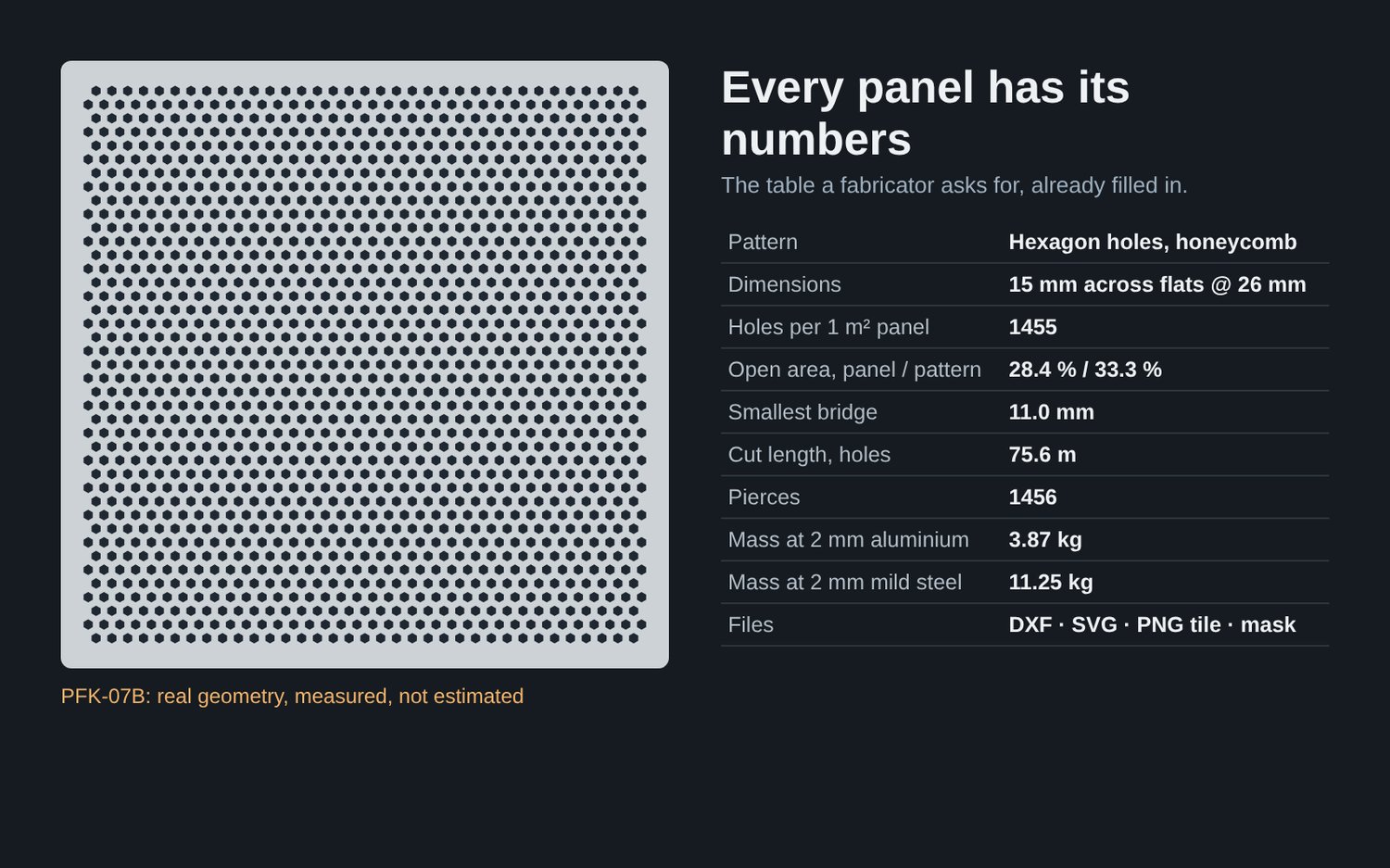

• fabrication_data.csv with open area, smallest bridge, smallest hole, cut length, pierce count and mass (aluminium, mild steel, stainless 304) for each panel
• README and licence

What is only in the full kit

The other 33 panels (12 pattern families × 3 densities), the offline configurator for any panel size and any dimensions with DXF and SVG export, the 15-page pattern catalog (PDF) and the full data tables. Find it in the store: Perforated Facade Kit (full).

Licence

Use the files in your own projects and for clients, including built and rendered work. Do not resell or share the files themselves. Full text in LICENSE.txt.

What it does not do

This is geometry and nominal data. It does not assess structure, stiffness, wind load, fire, acoustics, corrosion or compliance with any code, and open area is a geometric ratio, not a ventilation rating. Confirm minimum bridge, minimum hole size and tolerances with your fabricator, and have a qualified engineer check any load-bearing use.

FAQ

Does it work in SketchUp? Import the DXF with units set to millimetres, or apply a PNG texture and set its width to the tile size shown in the file name.

Is it really free? Yes. It is a sample of the full kit.
