Residential Egress & Window Well Compliance Assistant Pro

Take the guesswork out of preliminary residential egress-window and window-well reviews with Residential Egress & Window Well Compliance Assistant Pro—an advanced AutoLISP and DCL toolkit designed for AutoCAD 2002 and later.

Enter the actual clear-opening dimensions, sill height, window-well measurements, ladder information, and project conditions. The program calculates the opening area, compares the information against editable screening criteria, and produces a clear PASS, REVIEW, or FAIL result.

Key features:

• Reviews net clear opening width, height, and area
• Includes grade-floor opening options
• Checks maximum sill height
• Reviews window-well width, projection, area, and depth
• Checks ladder or step requirements
• Reviews covers, grilles, drainage, and operability
• Includes Washington 2021 IRC, 2021 IRC model, 2024 IRC model, and custom profiles
• Allows screening criteria to be edited for local requirements
• Inserts a detailed report directly into the drawing
• Creates an optional window and well schematic
• Exports results to a TXT report

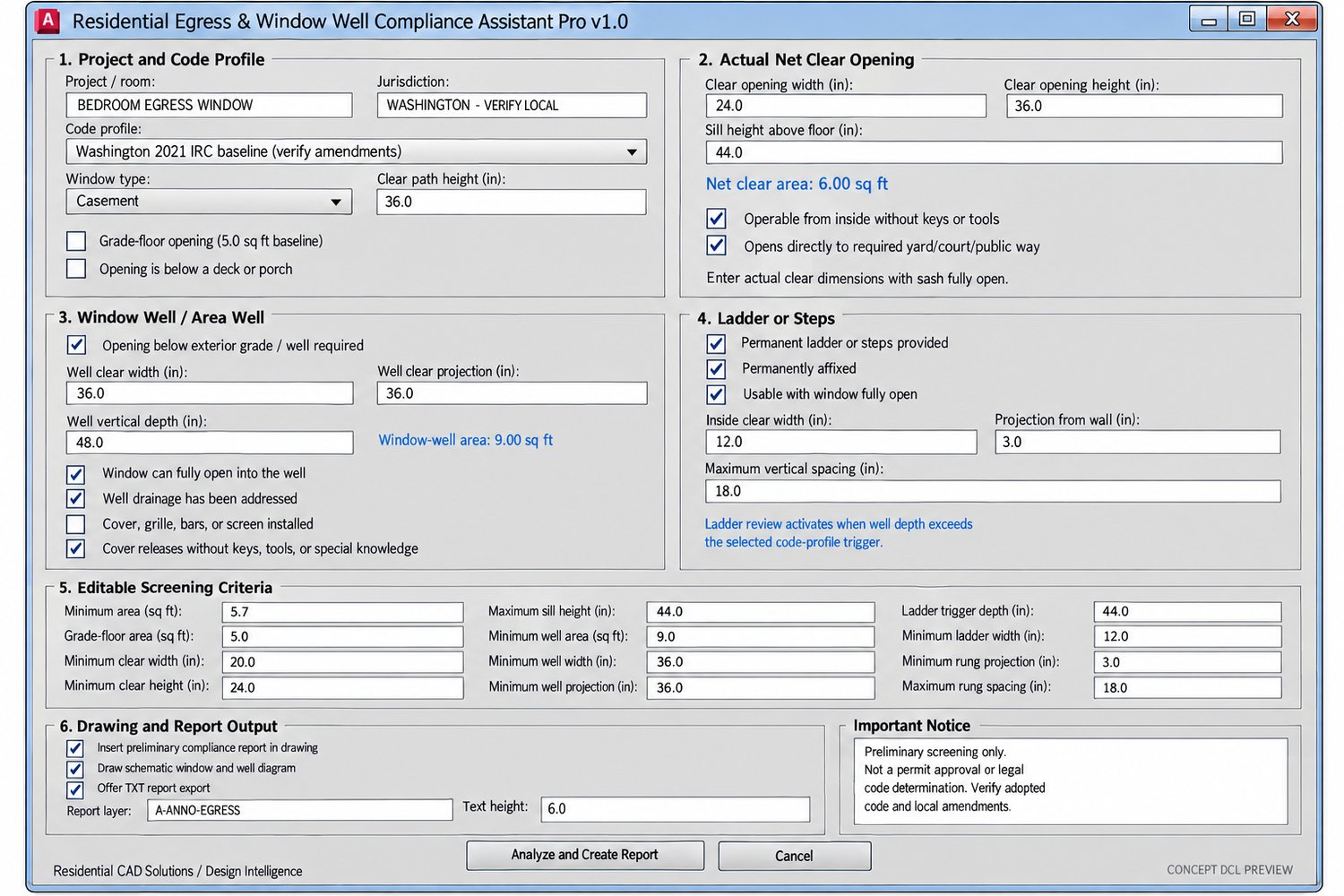

• Uses a clean, organized DCL interface
• Compatible with AutoCAD 2002 and later

Your download includes:

• Residential_Egress_Window_Well_Compliance_Assistant_Pro.lsp
• Residential_Egress_Window_Well_Compliance_Assistant_Pro.dcl
• Complete installation and usage instructions

Commands:

• EGRESSPRO — Opens the complete compliance assistant
• EGRESSCHECK — Alternate command for the assistant
• EGRESSABOUT — Displays program and version information

Important: This software is a preliminary drafting and code-screening assistant. It does not certify code compliance, engineering adequacy, permit approval, product approval, installation quality, or field conditions. Building codes and local amendments vary. All results must be verified against the currently adopted code and confirmed by the authority having jurisdiction or responsible design professional.
