Electrical Blocks with VisualArq template
On Sale
$15.00
$15.00

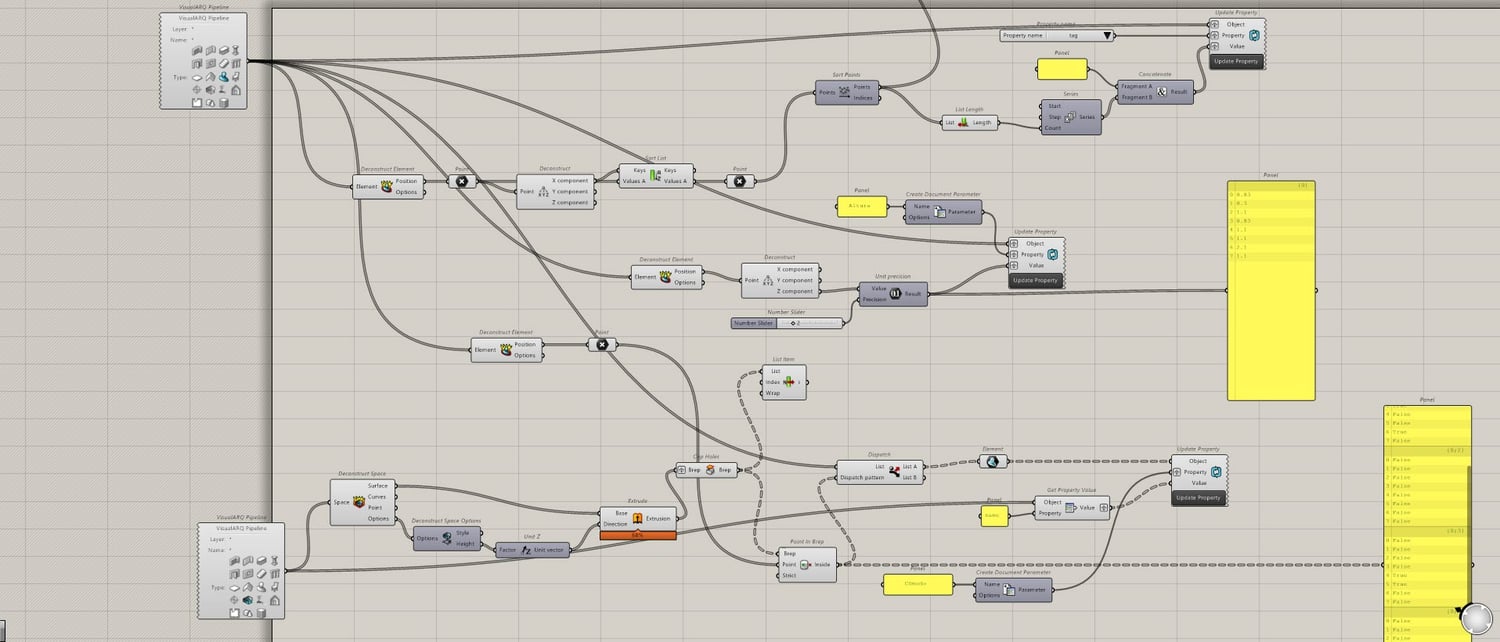

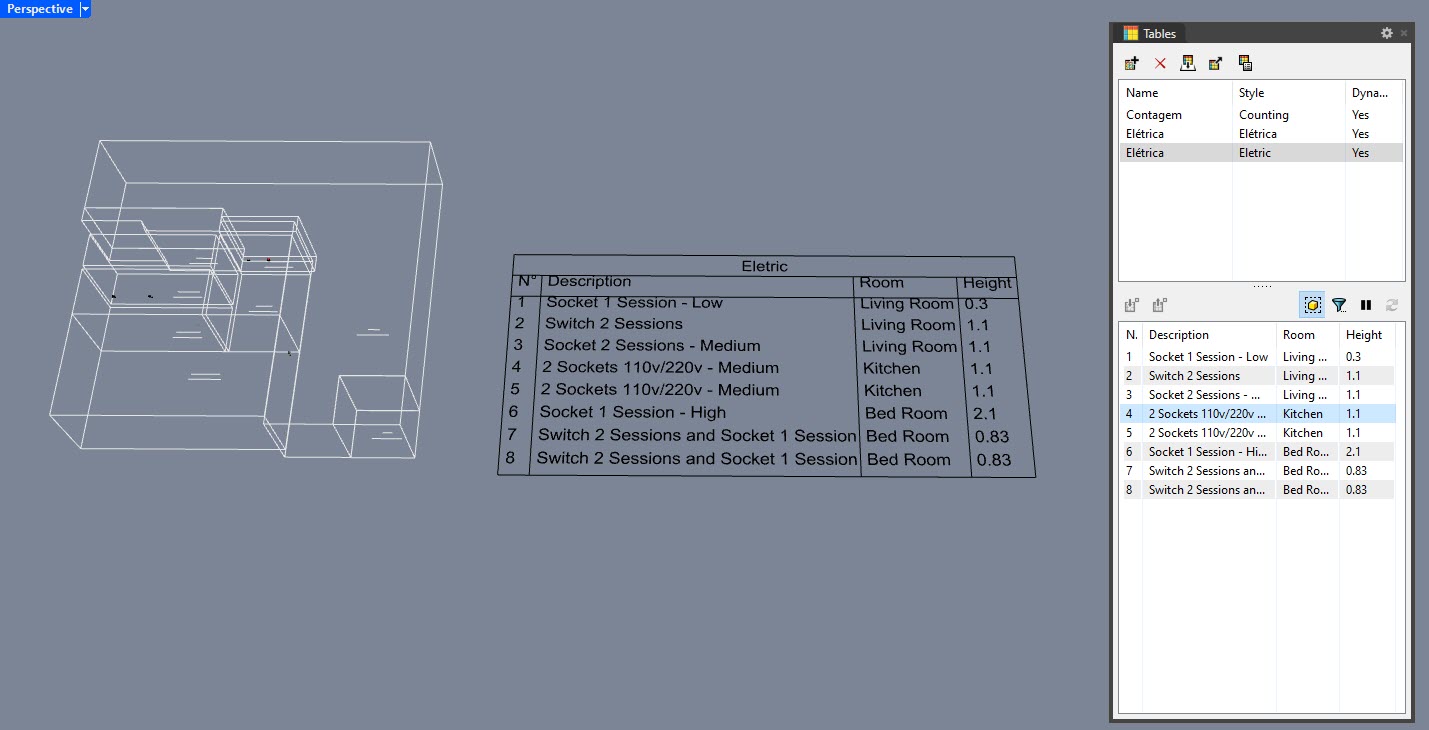

37 Visual Arq elements definitions with their respective 2d representation; 2 table definitions . A grasshopper file to generate the table Height and Room itens; It comes with instructions.
This combo will level up your documentation in the electrical part of the project.

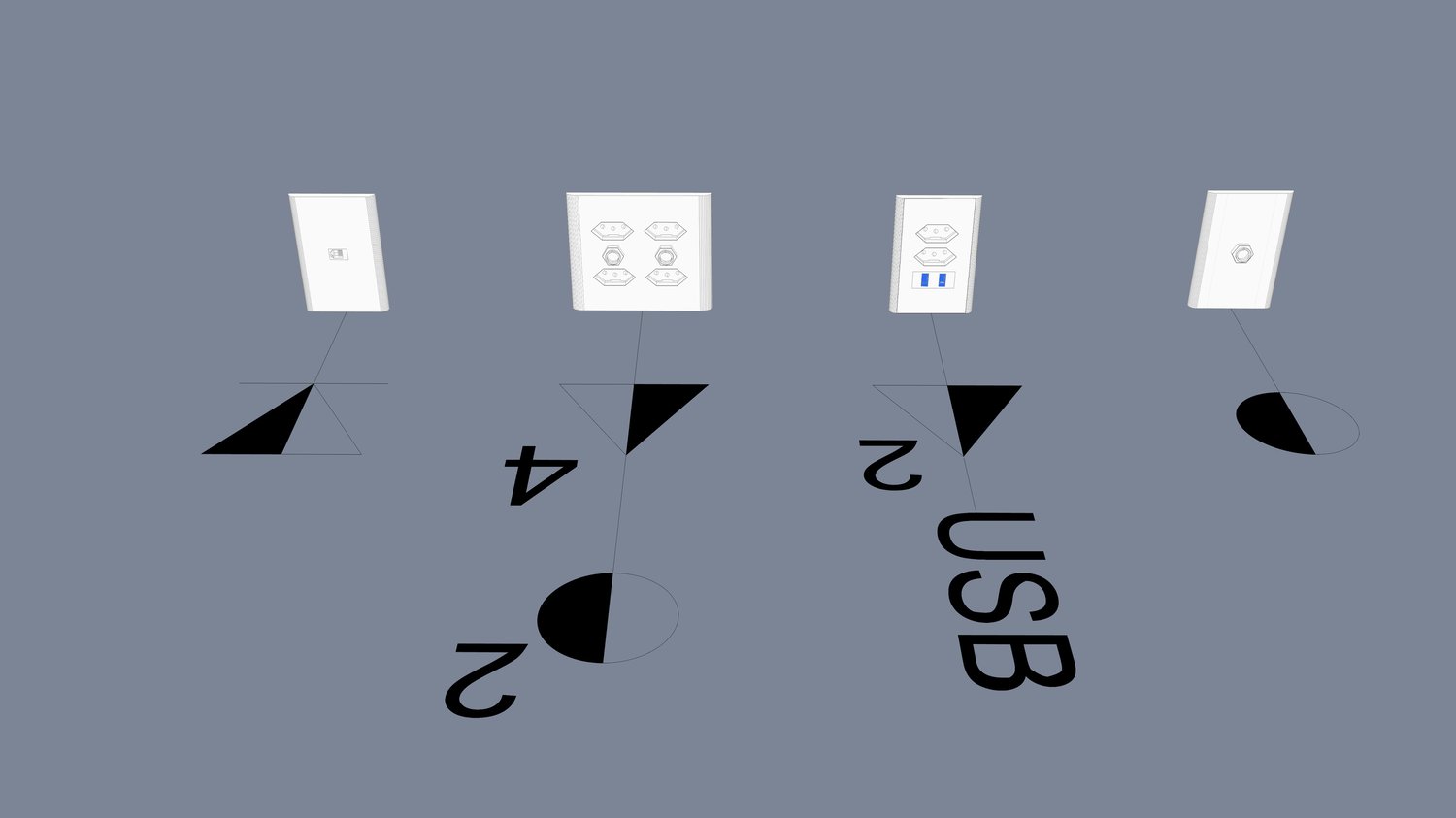

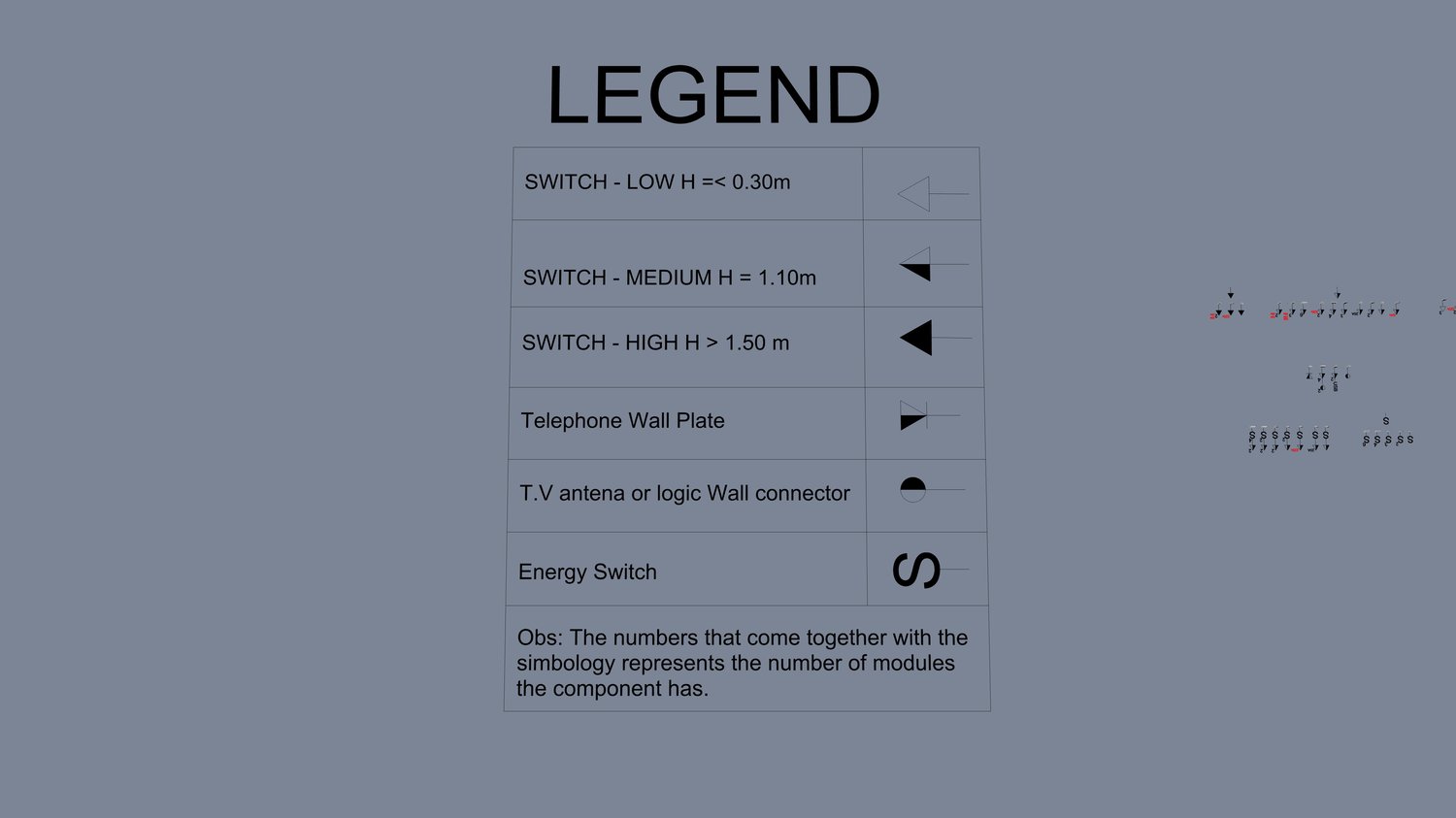

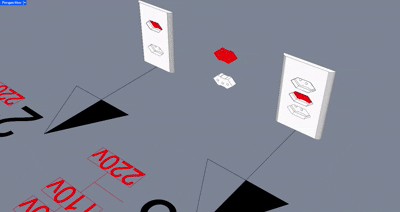

As electrical simbology is different around the world, the blocks are created with the main part as a block which can be edited to be modeled as you need and all others connected will change automatically.
