Barn 150 — 127.7 m² house plan (PDF)

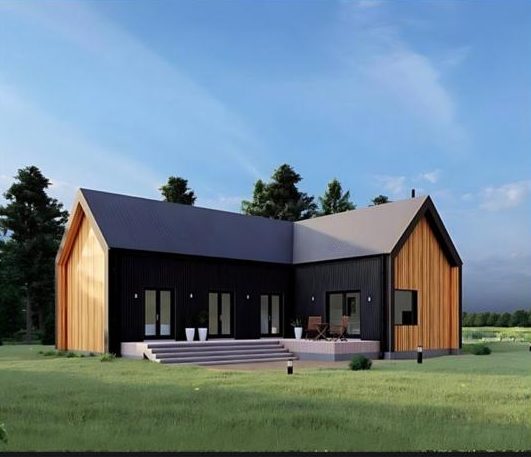

Barn 150: barn-style house, 127.7 m² (1375 sq ft), 3 bedrooms. Plan code G24.

You get a concept design set by residential designer George Trofimov: PDF drawings (floor plans, roof plan, sections, elevations, 3D views, window and door schedules). Metric drawings; imperial on request.

This is a concept design set, not construction drawings. Structural design, engineering, foundation, MEP and permit documents are not included: a local licensed professional must review and adapt the plan before construction. Licence for one build; the designer keeps copyright.

Plan page with all renders and sheets: https://geotrofimov.com/plans/barn-150-g24
