Image Shape

Image Shape Studio

Simplify repetitive shape drafting in AutoCAD with Image Shape Studio, an AutoLISP routine with a companion DCL dialog designed to recreate the reference shape supplied with this product.

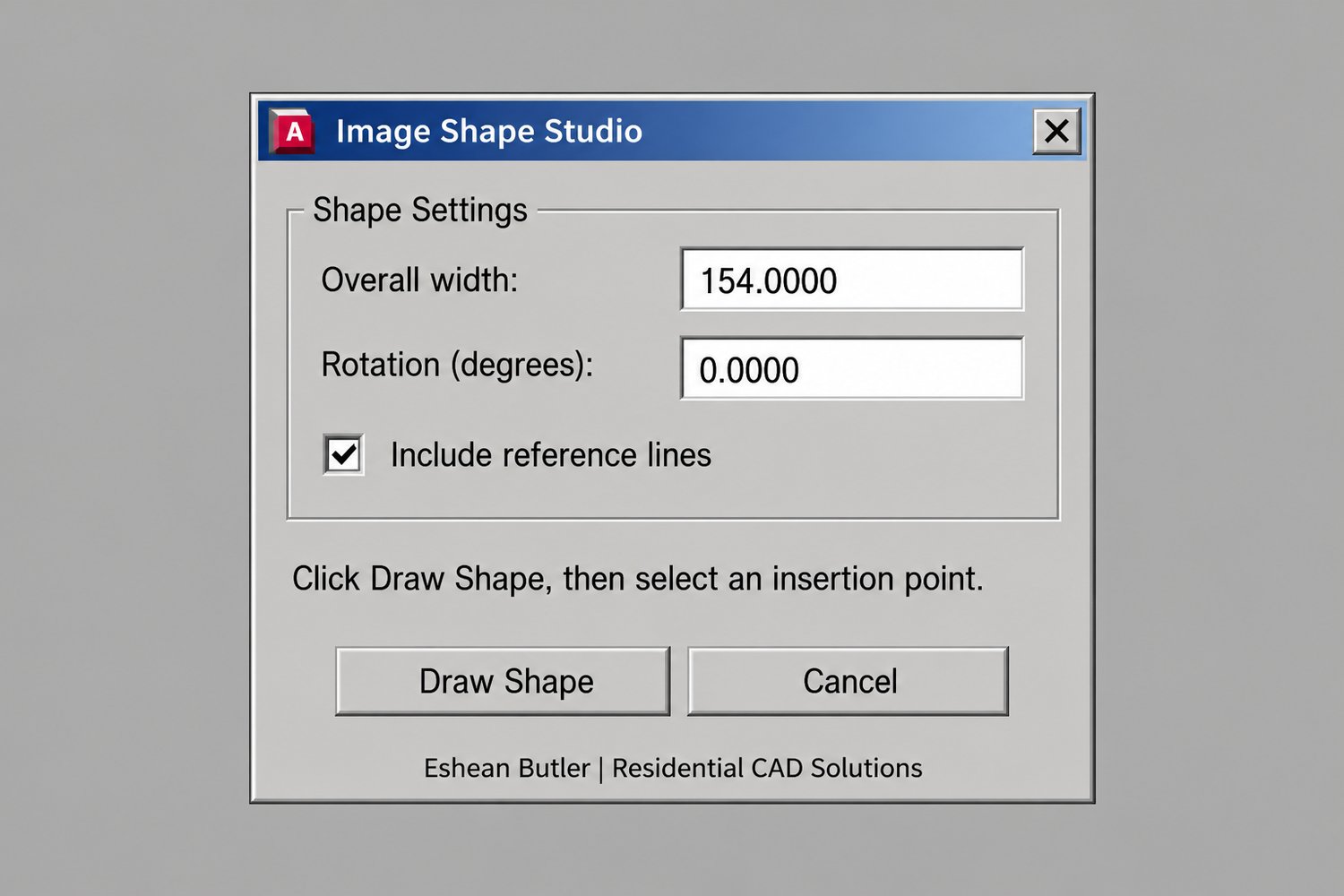

Launch the dialog and follow the drawing prompts to build the shape from scratch, reducing manual drafting steps and making repeated placement more convenient.

Your download includes the LISP routine and matching DCL file.

This tool draws the included reference shape; it does not automatically trace or convert arbitrary images into CAD geometry.

Created by Eshean Butler | Residential CAD Solutions
