Residential Window Placement & Elevation Pro

Residential Window Placement & Elevation Pro v1.0

Create organized window layouts, coordinate window heights, and generate schematic exterior elevations directly inside AutoCAD.

Residential Window Placement & Elevation Pro combines an AutoLISP program with a matching DCL interface to help residential drafters arrange windows, review placement conflicts, and prepare window schedules.

Features include:

• Eight editable window presets, including hung, casement, awning, slider, picture, transom, and custom windows
• Manage up to 200 windows across four walls of a rectangular layout
• Customize tags, dimensions, wall offsets, sill heights, frame insets, decorative grids, and notes
• Center windows and automatically space them along a chosen wall
• Align sill or head heights to a selected window
• Flag overlapping planning rough-opening envelopes, duplicate tags, insufficient pier spacing, and corner or height conflicts
• Generate labeled schematic plans and four exterior wall elevations
• Export CSV window schedules with nominal dimensions, planning rough-opening dimensions, sill heights, head heights, and notes
• Save and reopen project layouts
• Output drawing geometry in inches, feet, millimeters, or meters

Your download includes:

• AutoLISP program and matching DCL interface
• Installation and usage instructions
• Example project and DXF drawing
• Example window schedule and analysis report
• Validation notes

Command: WINDOWPRO

Important information:

This is a preliminary planning and schematic drafting tool. Presets and allowances are illustrative; verify manufacturer dimensions and project requirements. Generated geometry does not cut or modify existing drawing walls.

The program does not calculate structural headers, egress compliance, safety-glazing requirements, ventilation, or energy performance. Decorative grids are schematic.

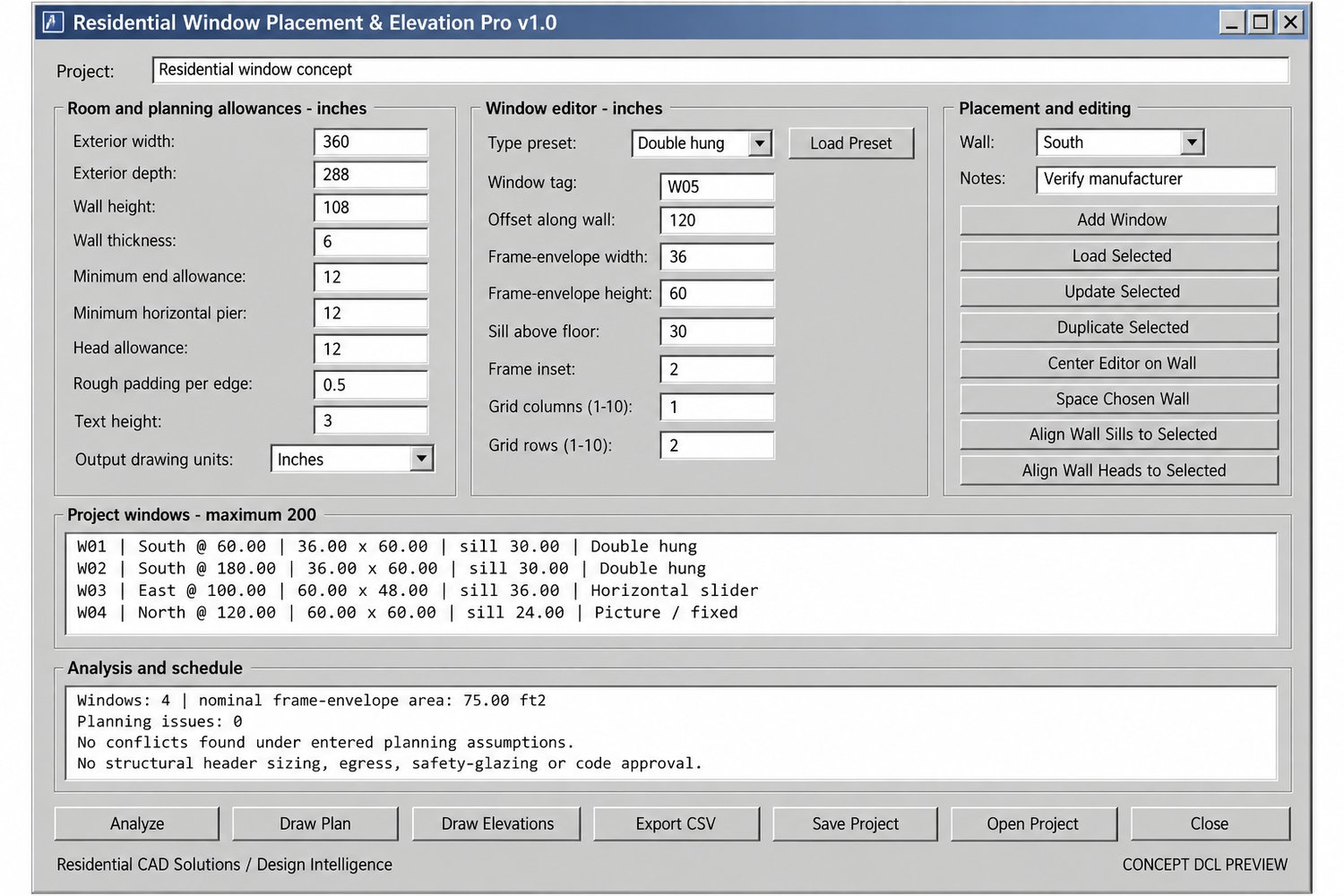

Built with an AutoCAD 2002-oriented foundation for Windows AutoCAD environments supporting AutoLISP, DCL, and Visual LISP/ActiveX. Core checks passed using a test interpreter; native AutoCAD operation has not yet been verified. Product artwork is illustrative, and the DCL image is a concept preview.

Residential CAD Solutions / Design Intelligence
