Dimension String Total Pro

Dimension String Total Pro v1.1

Check whether your dimension strings add up to the overall dimension directly inside AutoCAD.

This AutoLISP and DCL tool totals selected linear or aligned dimensions, compares them with a separate overall dimension, and shows the difference.

Features

• Total multiple dimensions from their geometry
• Display feet/inches and decimal feet
• Compare the segment total with an overall dimension
• Identify projected gaps, overlaps, repeated coverage, and segments beyond the overall endpoints
• Add missing gap dimensions when the selection meets the repair requirements
• Choose drawing units, a measurement multiplier, and fractional inch rounding
• Insert an MTEXT result note or save a TXT report

Your download includes

• Matching v1.1 LISP and DCL files
• Installation and usage instructions

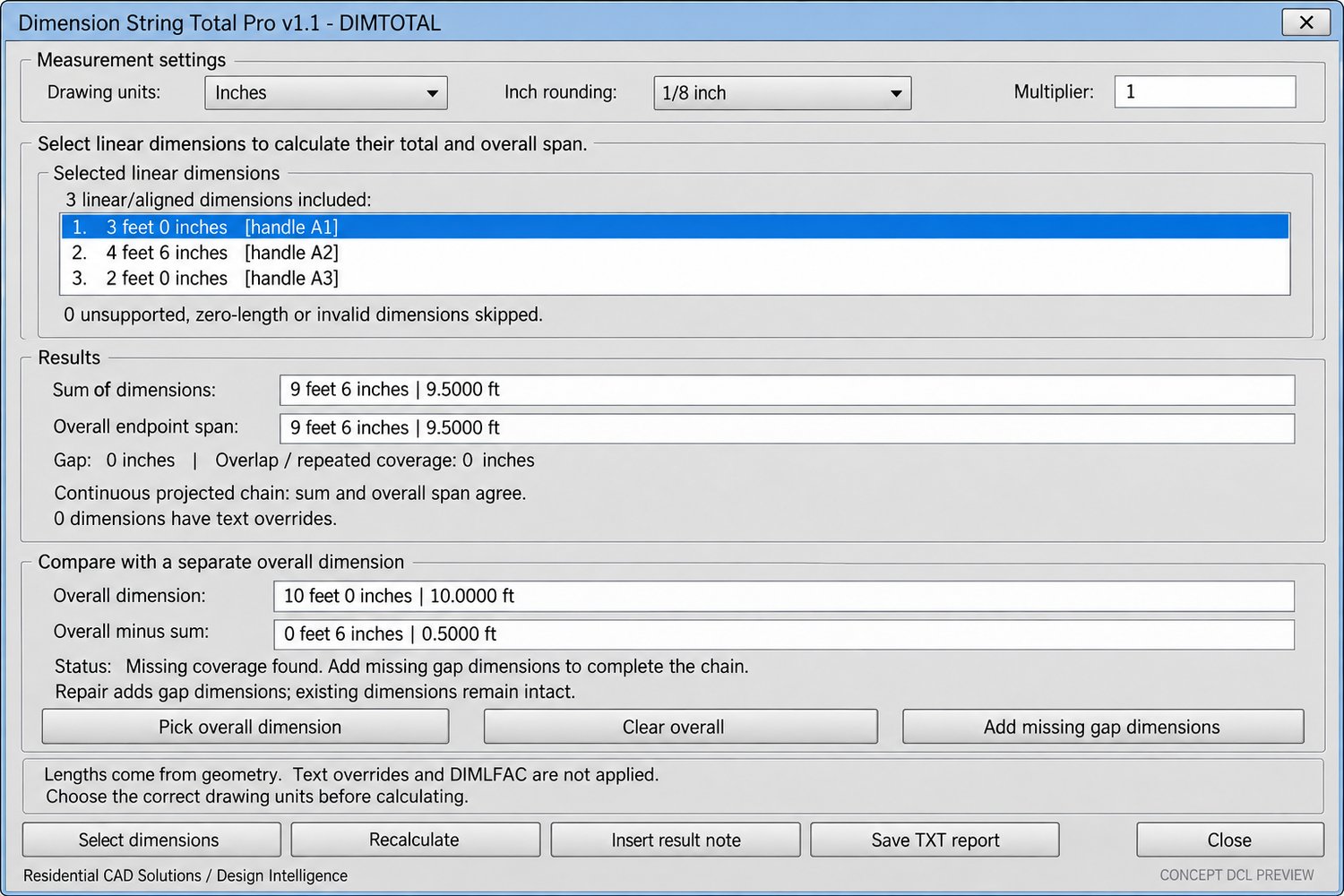

• DCL concept preview PNG

Command: DIMTOTAL

Gap repair: For eligible parallel dimensions on one WCS XY plane, confirm the repair and choose the dimension-line placement. New gap dimensions use the overall dimension’s named style and your current layer. Existing dimensions remain intact.

Important: Results use geometry; text overrides and DIMLFAC are excluded. Overlaps, conflicting directions, and text overrides require review. Verify new dimension locations and displayed values.

Requires Windows AutoCAD with Visual LISP/ActiveX. Designed around AutoCAD 2002-compatible APIs; live compatibility testing is still needed. Test on a drawing copy before production use.

Residential CAD Solutions / Design Intelligence
