Organic A-Frame Micro House Plans with Sleeping Loft 4x3m (13x10ft) | 1 Bedroom 1 Bathroom | Tiny Cabin Plans | PDF DWG SKP

🏕️Build Your Own Unique Organic A-Frame Micro Cabin (OG-003)

Bring your tiny house dream to life with our comprehensive DIY Architectural Building Plans! Designed with a striking Mongolian Bow curved rafter system, this 4x3m (13x10ft) micro house features a cozy sleeping loft, full-height living area, and efficient layout—perfect for a backyard office, guest cabin, or off-grid retreat.

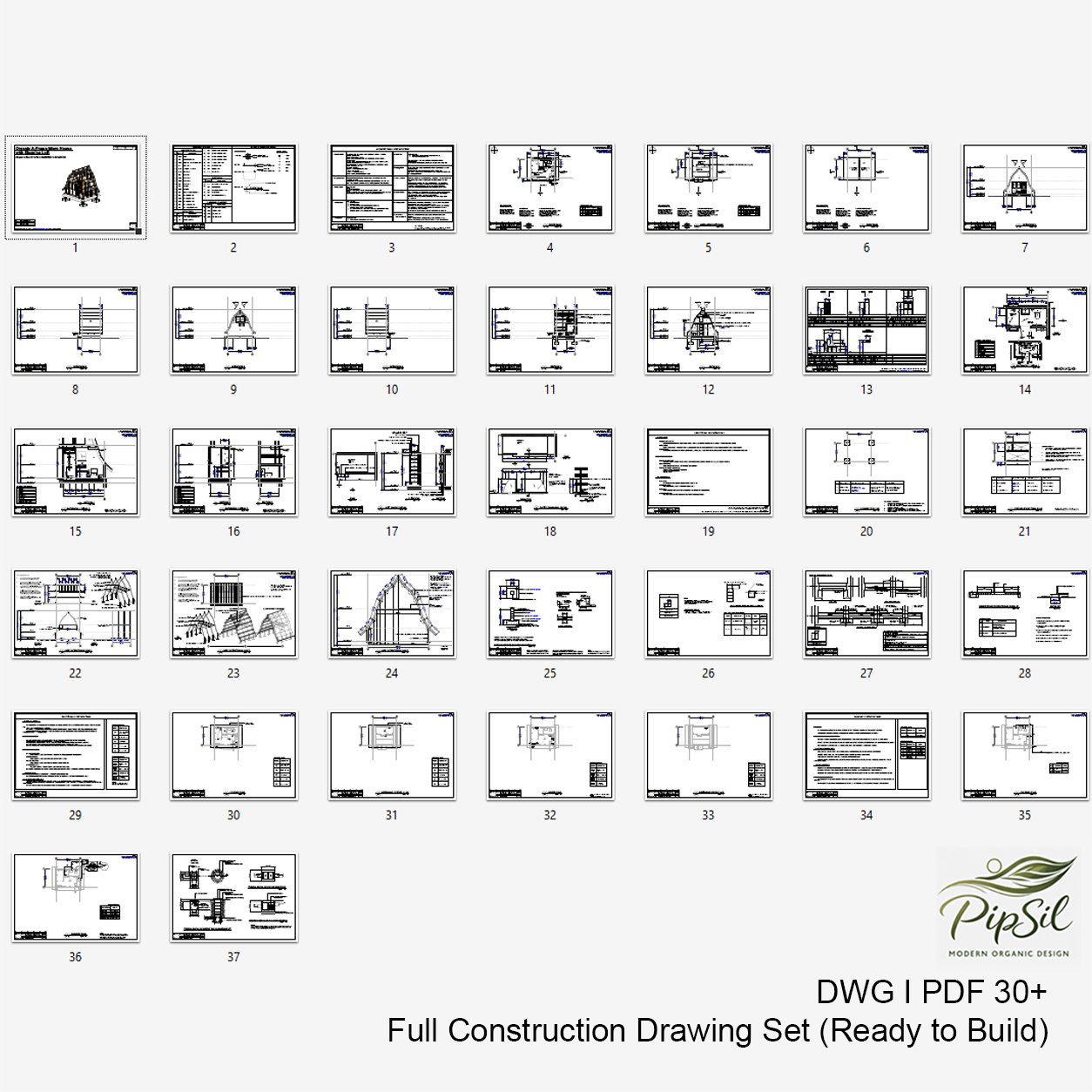

📦WHAT'S INCLUDED IN THE DIGITAL PACK:

✔ Architectural Drawings (PDF)

✔ Structural Drawings (RC)

✔ Electrical & Plumbing Plans

✔ DWG (AutoCAD files)

✔ SKP (3D Model – SketchUp)

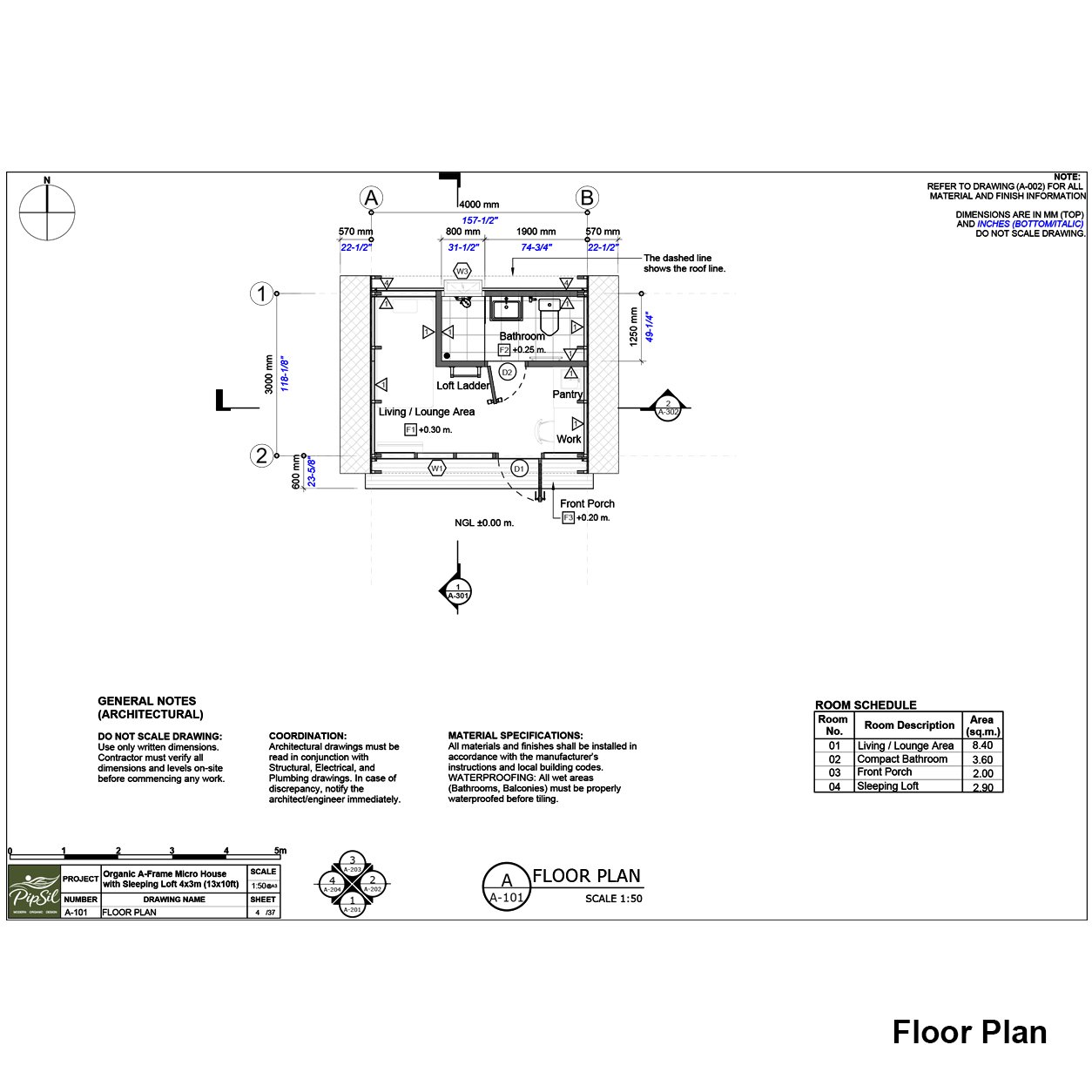

Architectural Drawings: Floor plans, exterior elevations, cross-sections, and 3D perspectives.

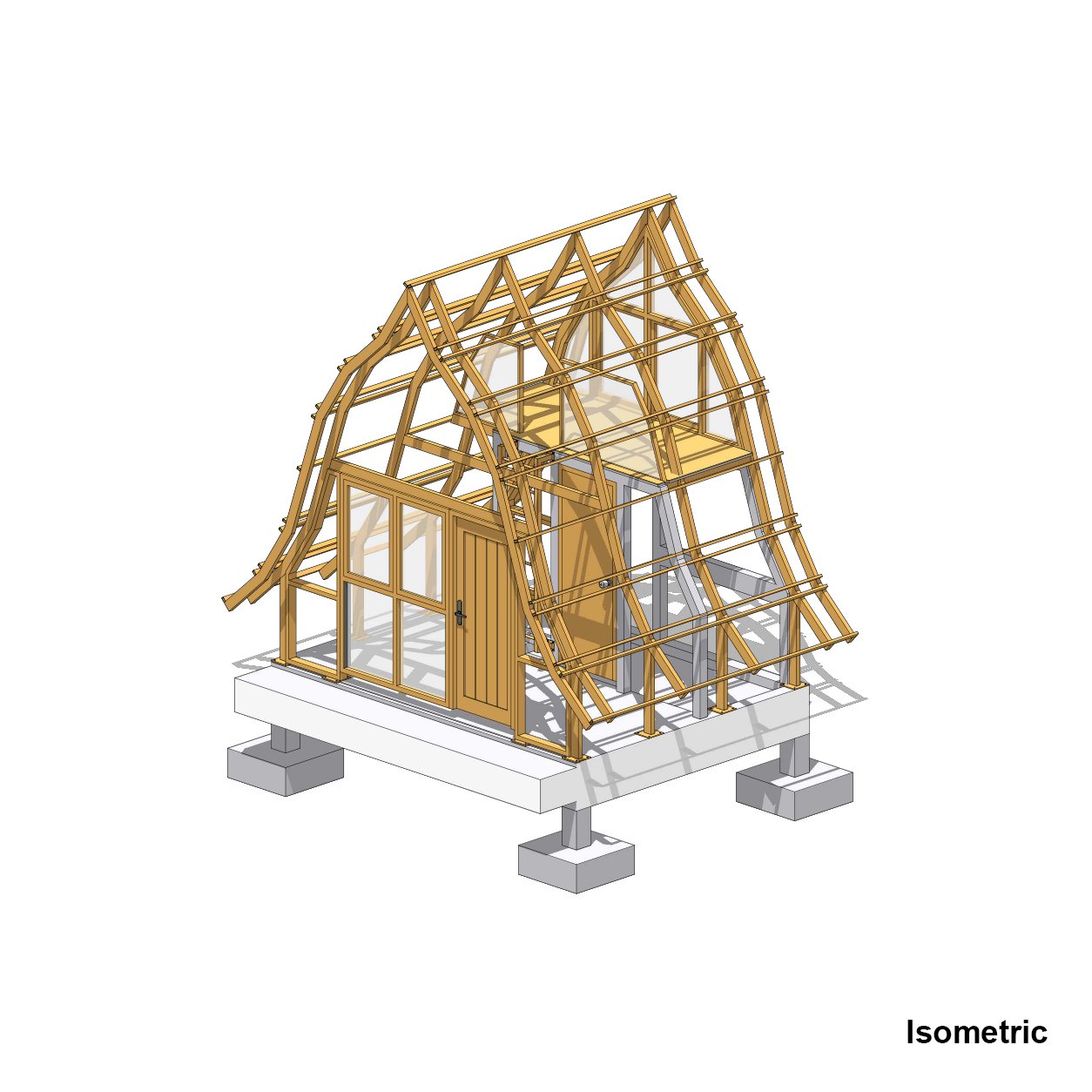

Structural Frame Details: Faceted RHS 100x50mm steel rafter nodes and purlin layouts.

Roof Layer Assembly Guide: Step-by-step layer breakdowns (Exposed Purlins, Plywood Substrate, Insulation, Underlayment, and Asphalt Shingles).

Dimensioned Details: Imperial (ft/in) and Metric (m/mm) measurements included.

Material & Cutting Suggestions: Key material specs for easier sourcing.

✨BUILDING SPECIFICATIONS:

✔Overall Footprint: 4.00 m x 3.00 m (Approx. 13 ft x 10 ft)

✔Total Height: ~4.45 m (~14.6 ft)

✔Tie Beam / Loft Level: 2.25 m (~7.4 ft) headroom

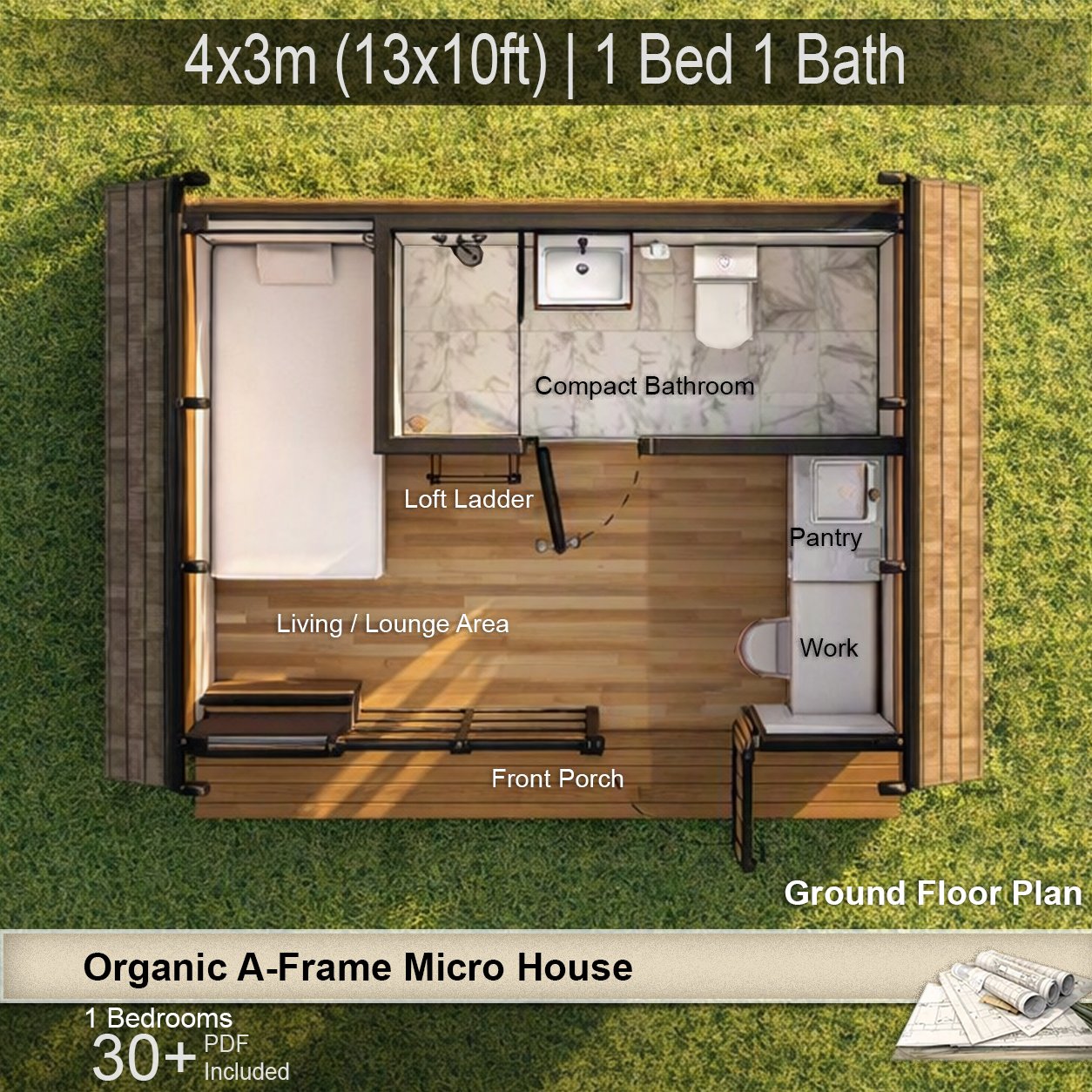

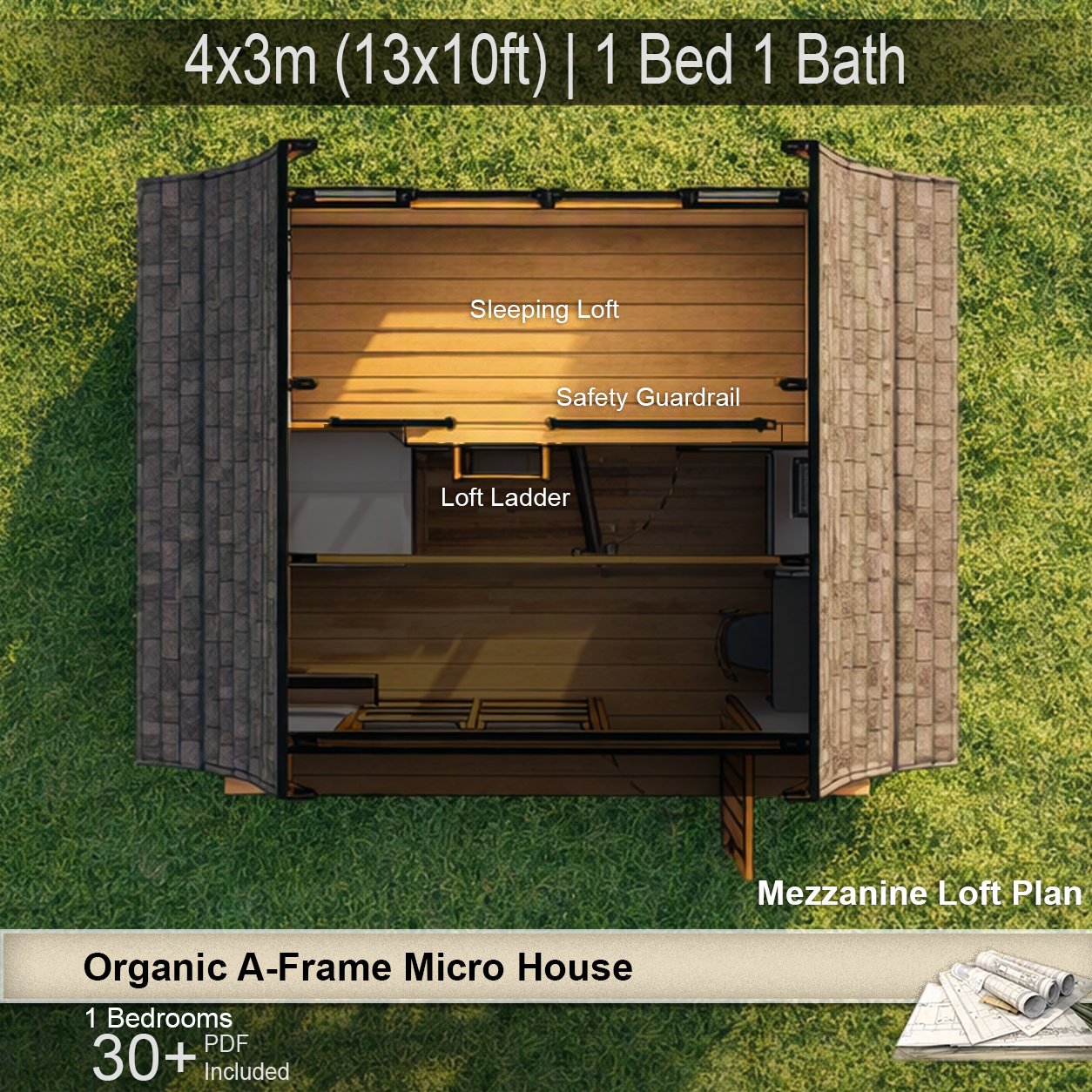

✔Layout: Ground floor living/bathroom space + Upper Sleeping Loft

✔Roof Finish: Weathered Wood Asphalt Shingles over curved frame

This is a digital download. No physical item will be shipped.

⚠️ Important:

This design is based on reinforced concrete construction. Buyers should consult a local engineer or contractor to adapt the structure to local building codes and site conditions.
