BESS Commissioning Toolkit — Checklists, Punch List & Plan Template

Stop rebuilding commissioning documents from scratch on every battery project.

The BESS Commissioning Toolkit is the document package for energization day — a six-sheet Excel workbook plus a complete Word commissioning plan template. Download it, put your project name on it, use it this week.

INSIDE THE EXCEL WORKBOOK (6 SHEETS)

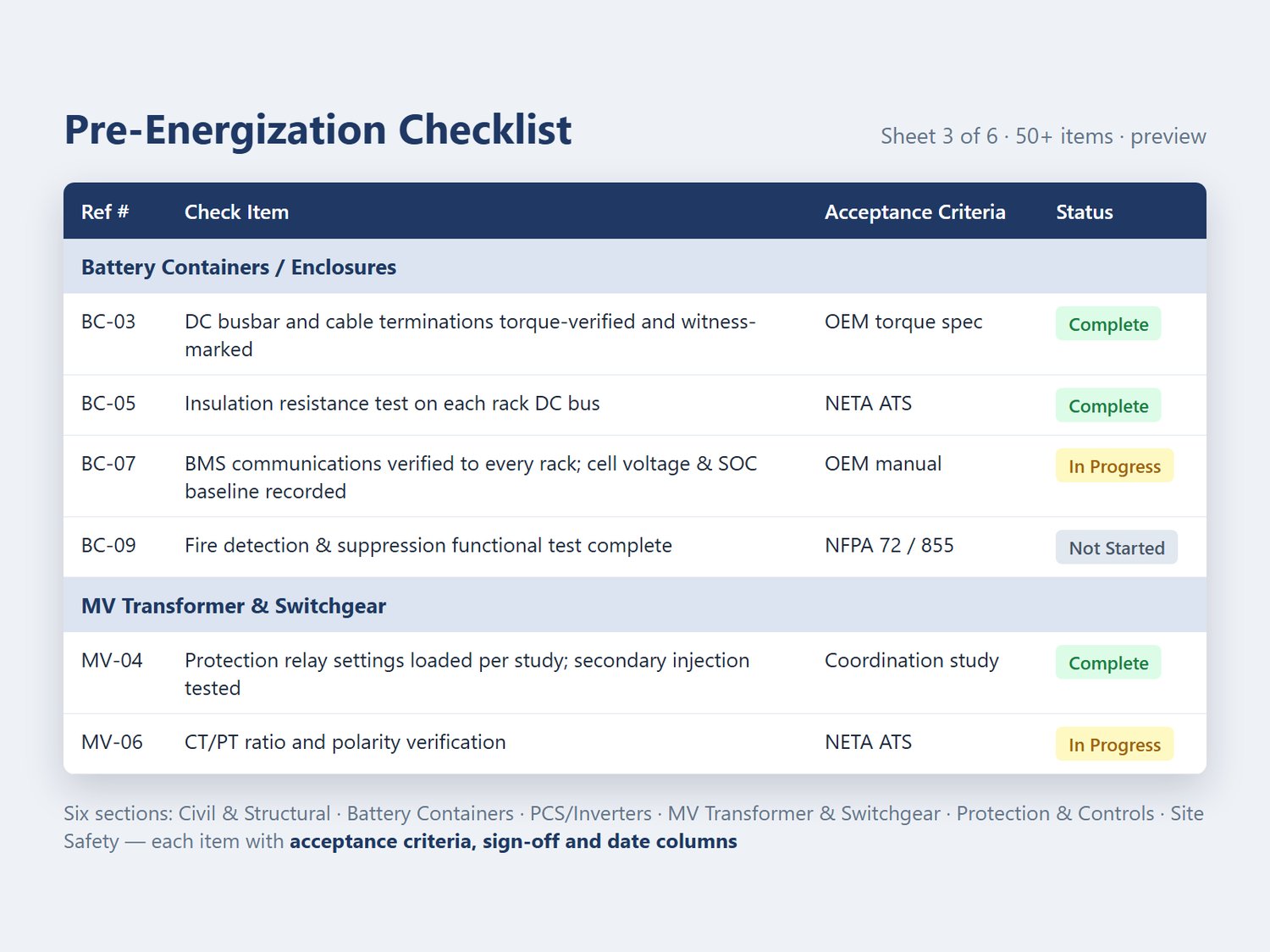

• Pre-Energization Checklist — 50+ verification items across civil & structural, battery containers, PCS/inverters, MV transformer & switchgear, protection & controls, and site safety. Every item carries acceptance criteria referencing the standards your utility and owner's engineer will ask about (IEEE 81, NETA ATS, NFPA 72/855, IEEE 2800), with status dropdowns and sign-off columns.

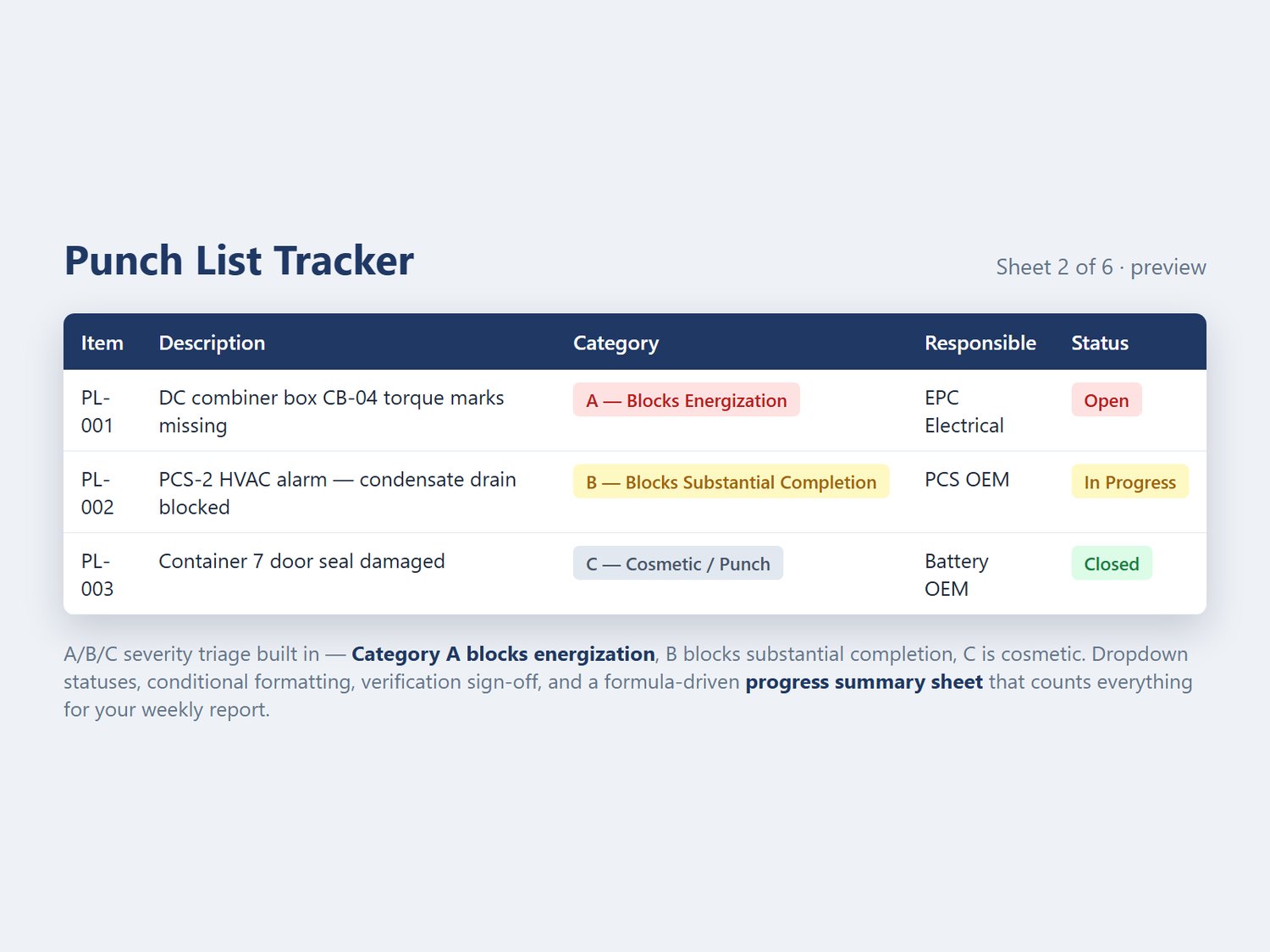

• Punch List Tracker — A/B/C severity triage built in: Category A blocks energization, B blocks substantial completion, C is cosmetic. Dropdown statuses, conditional formatting, responsible-party and verification columns.

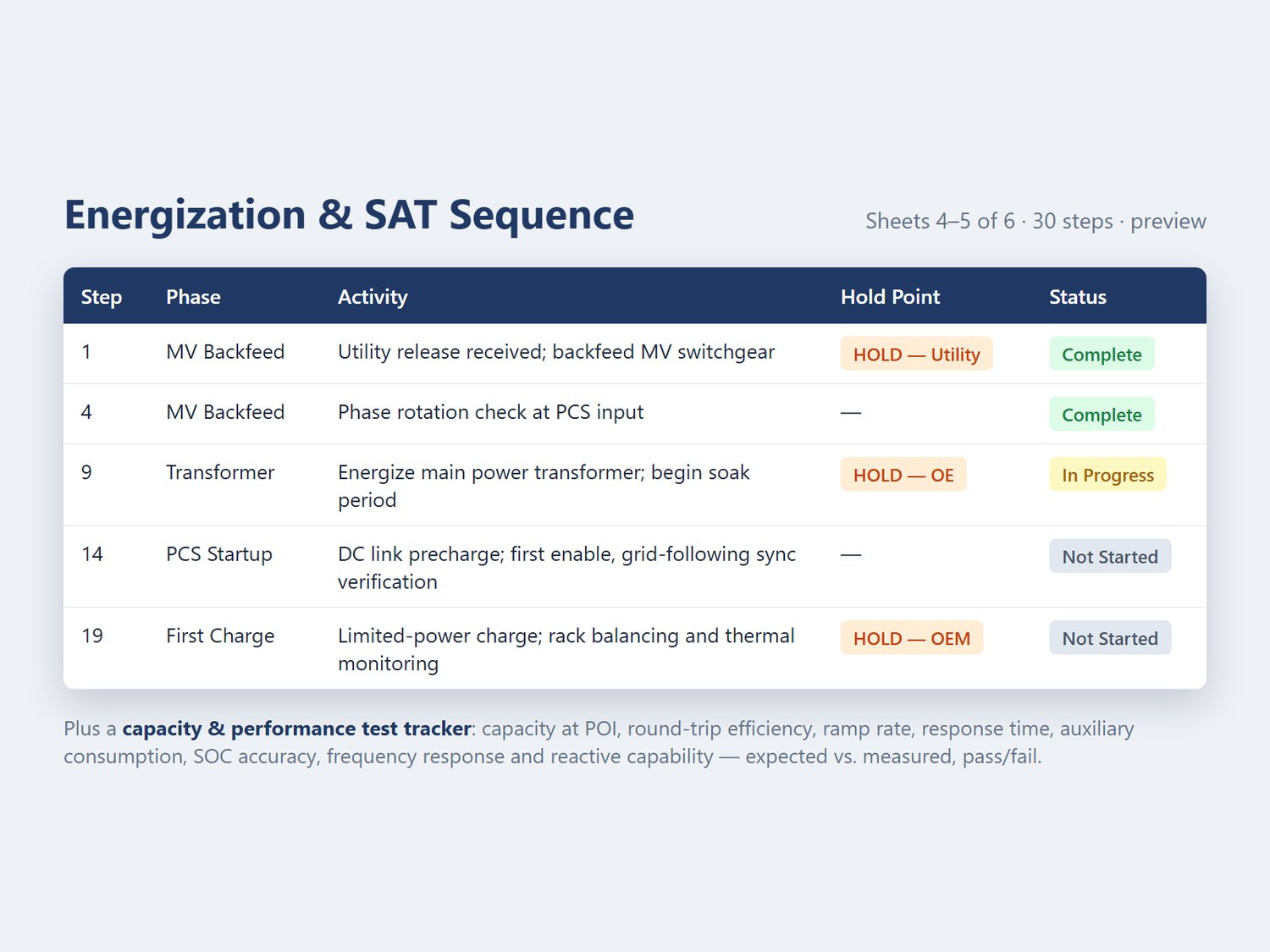

• Energization & SAT Sequence — 30 ordered steps from MV backfeed through transformer soak, PCS startup, first charge/discharge, and functional testing, with hold points and witness requirements flagged.

• Capacity & Performance Test Tracker — capacity at POI, round-trip efficiency, ramp rate, response time, auxiliary consumption, SOC accuracy, frequency response, reactive capability. Expected vs. measured, pass/fail.

• Progress Summary — formula-driven counts and completion percentages, ready to paste into a weekly report.

• How to Use — orientation sheet so your team is productive in minutes.

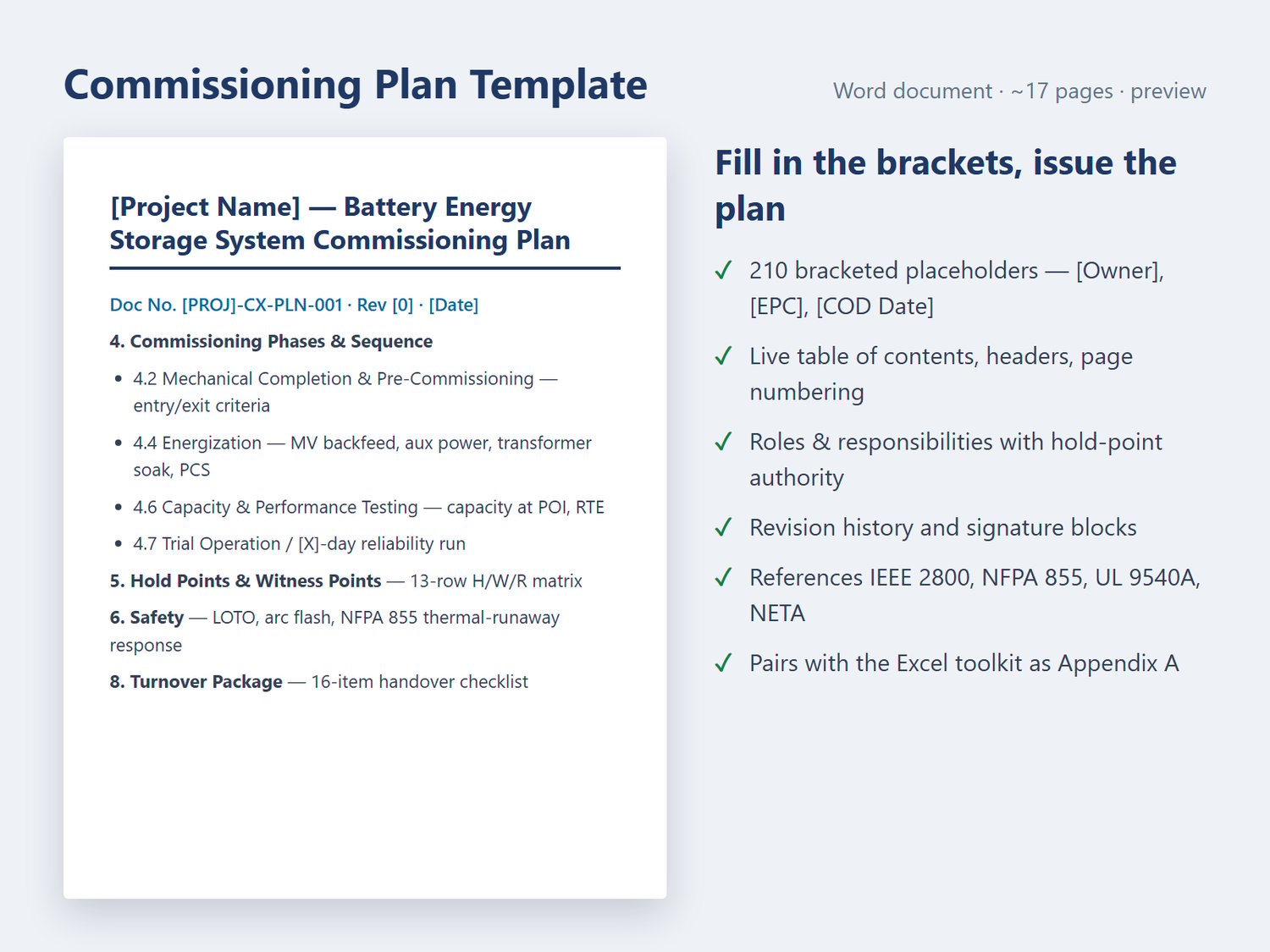

PLUS THE WORD COMMISSIONING PLAN TEMPLATE (~17 PAGES)

All eight phases with entry/exit criteria, roles & responsibilities with hold-point authority, a hold/witness point matrix, safety sections covering LOTO, arc flash, and NFPA 855 thermal-runaway response, quality & documentation structure, and a 16-item turnover package checklist. 210 bracketed placeholders — fill in [Project Name], [Owner], [EPC], and issue.

WHO IT'S FOR

Commissioning managers, startup engineers, owner's engineers, and EPC field teams on utility-scale battery storage projects.

FORMAT & LICENSE

One .xlsx + one .docx. No macros, no subscriptions. Fully editable — adapt to your ITPs, OEM manuals, and AHJ requirements. License covers unlimited projects within your company.

Instant download after checkout.

These are professional templates and a starting point — they complement, not replace, your project-specific inspection and test plans.
