Culina Architectura — Technical Edition

Everything in the Standard Ebook Edition — and the construction files to use it immediately on your next project.

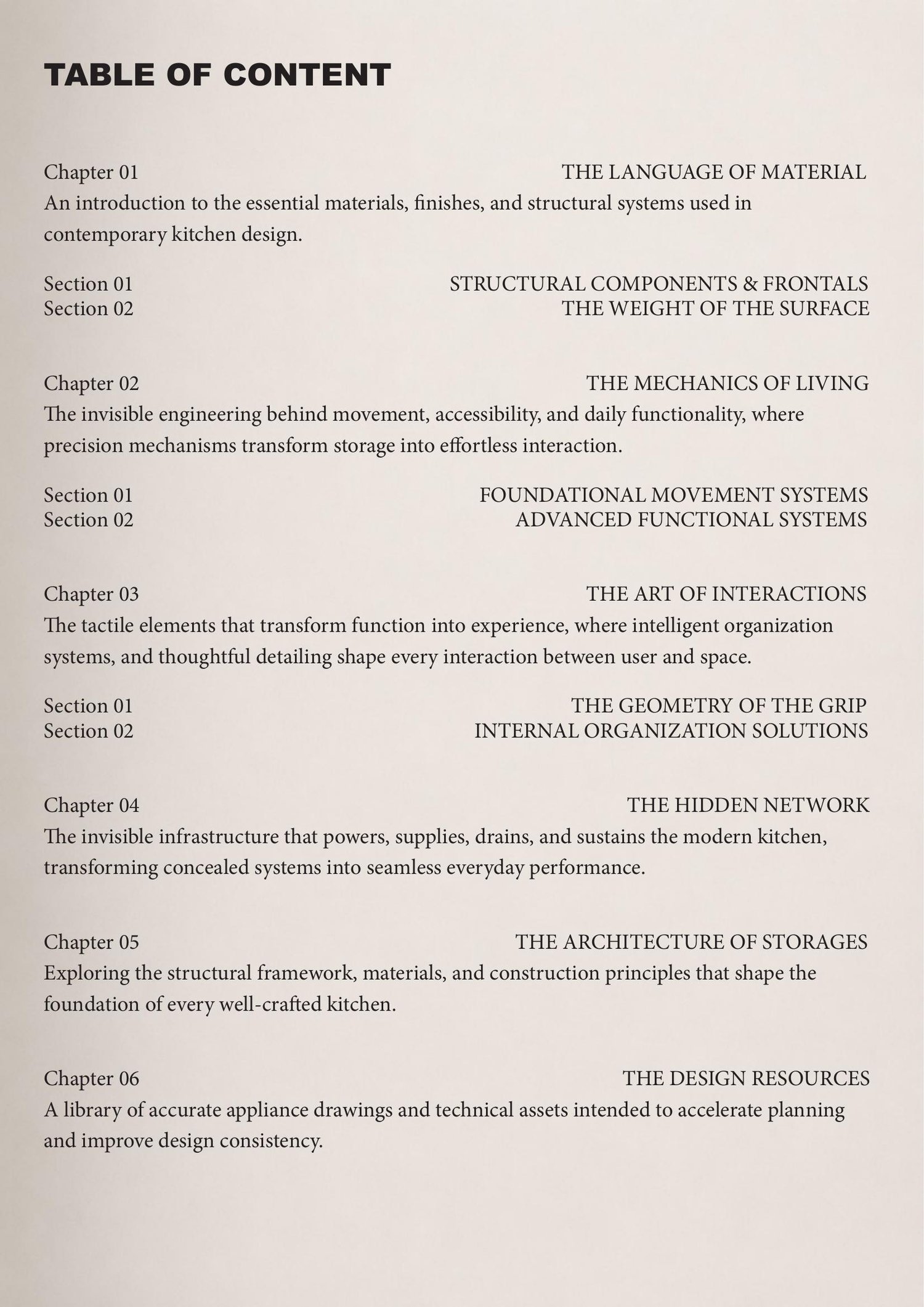

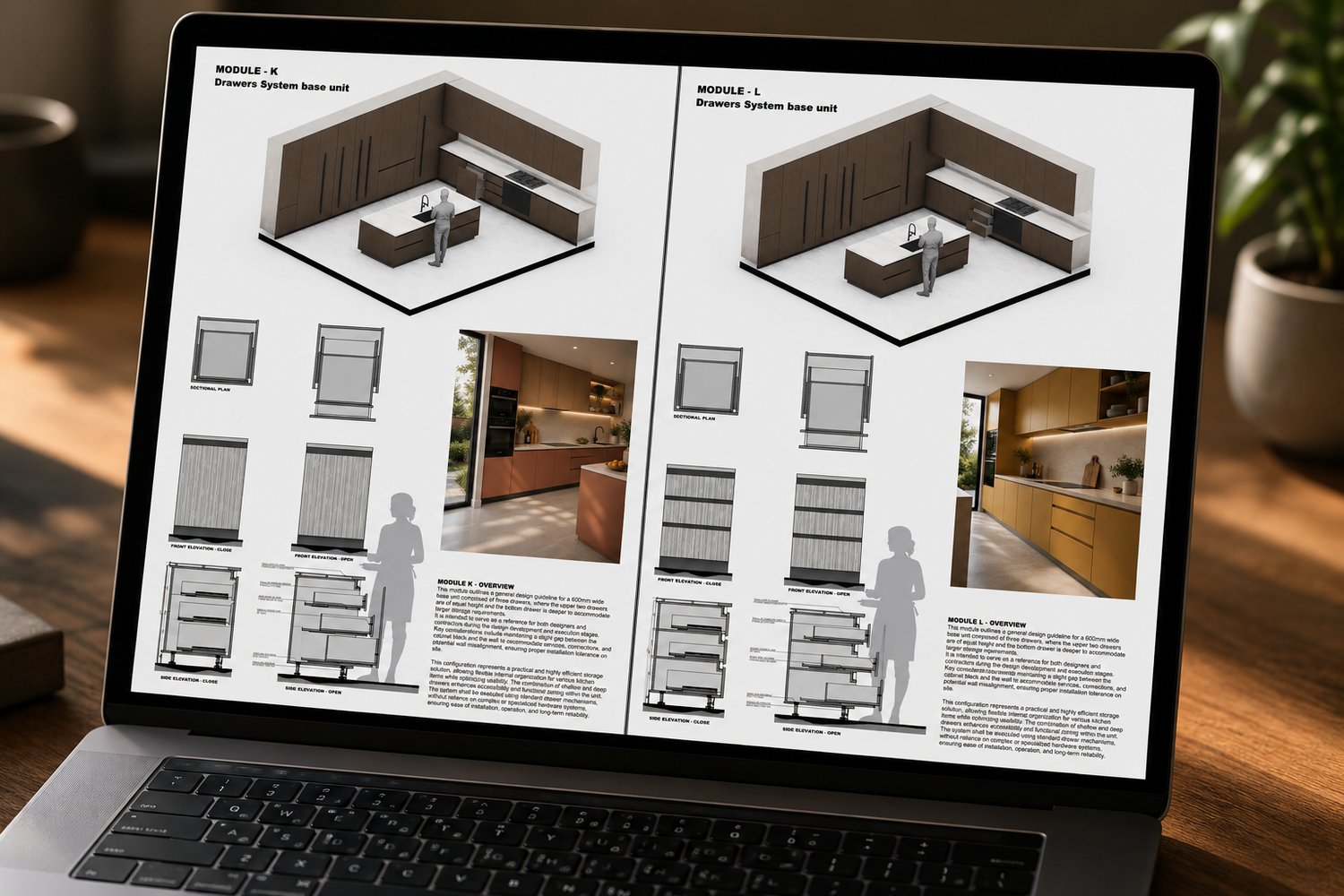

The Technical Edition includes the complete 236-page Culina Architectura reference book alongside a library of 113 DWG construction drawings, organized to match the book chapter by chapter and ready to open directly in AutoCAD, or any compatible CAD environment.

The DWG library includes:

Materials

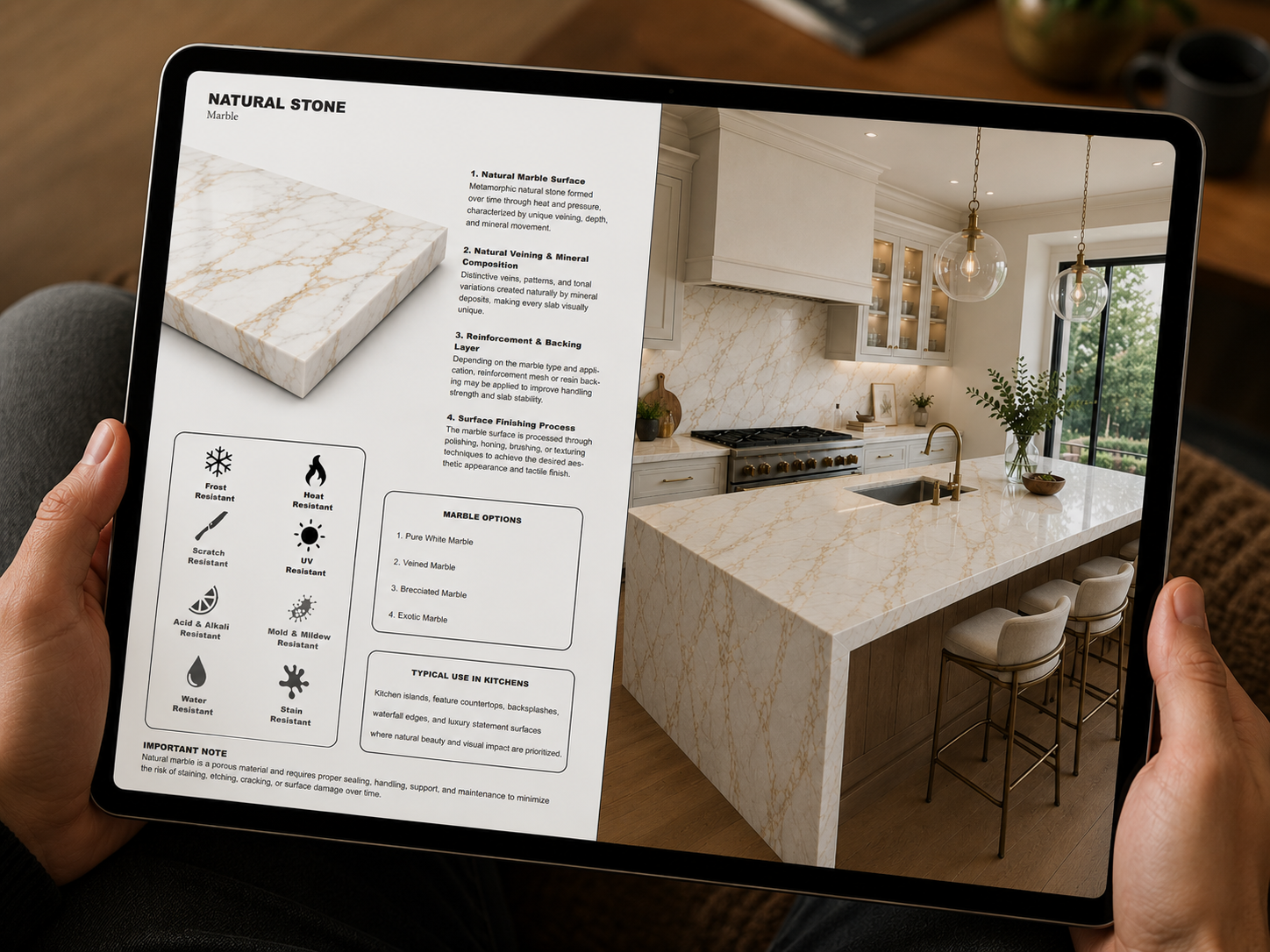

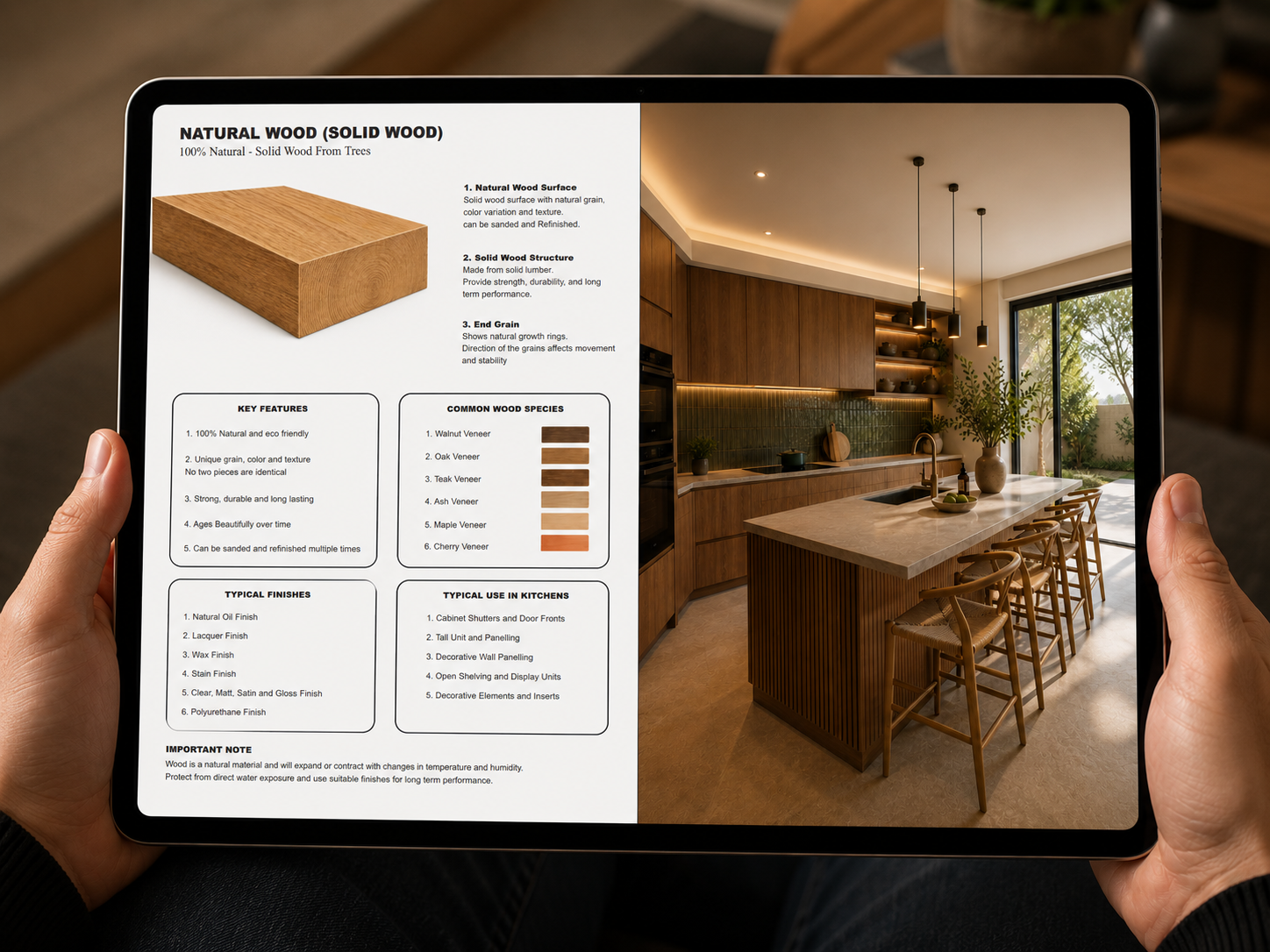

Aluminum and glass profile drawings, particle board construction details, solid wood section files, and stone detail drawings and many more.

Hardware — Hinges and Runners

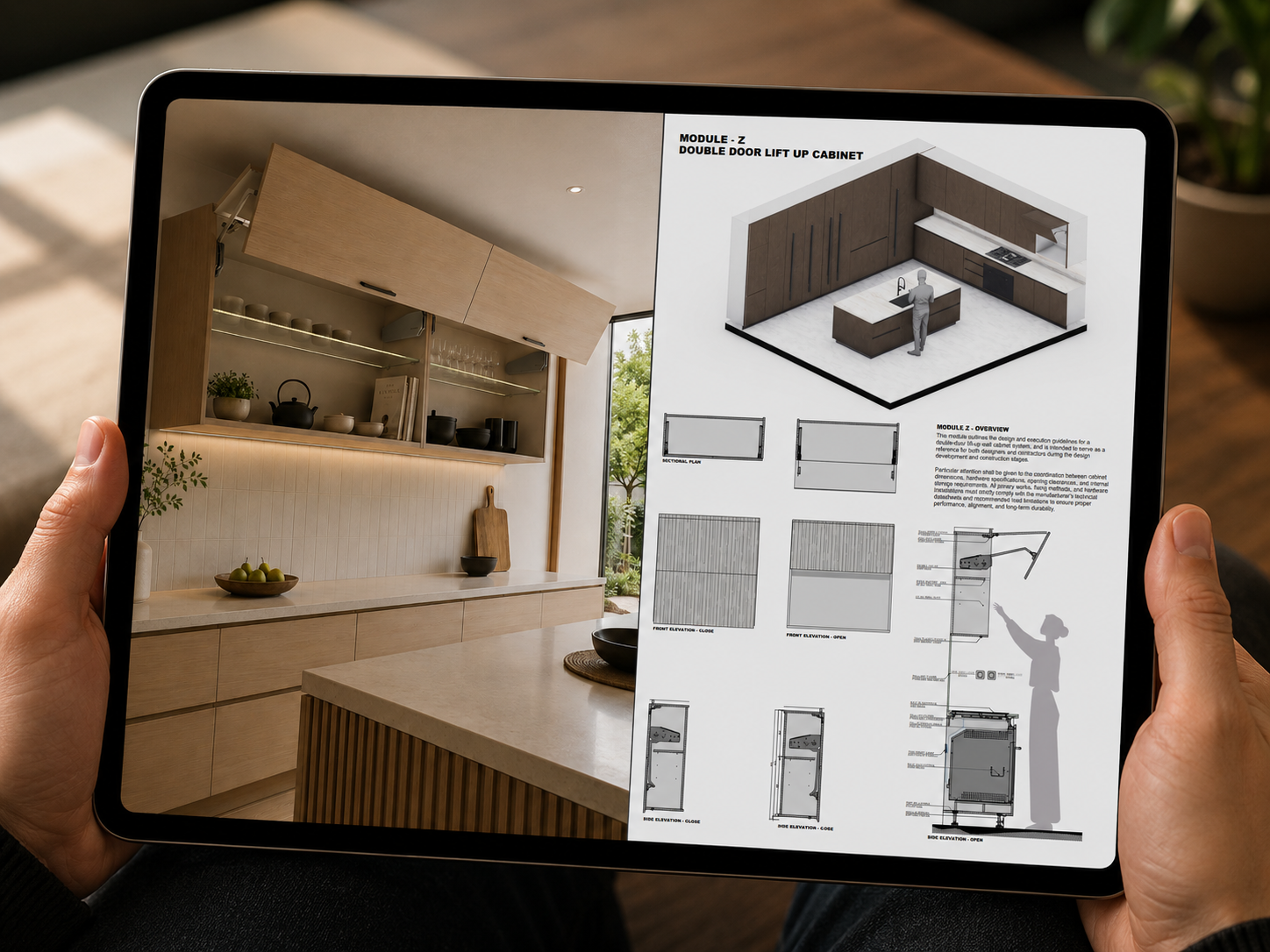

Full overlay hinge sets (multiple configurations), Runners full extension, drop-down system 3D file, swing-up mechanism drawings, and adjustable PVC leg and clip details, and many more.

Pull-Out and Storage Systems

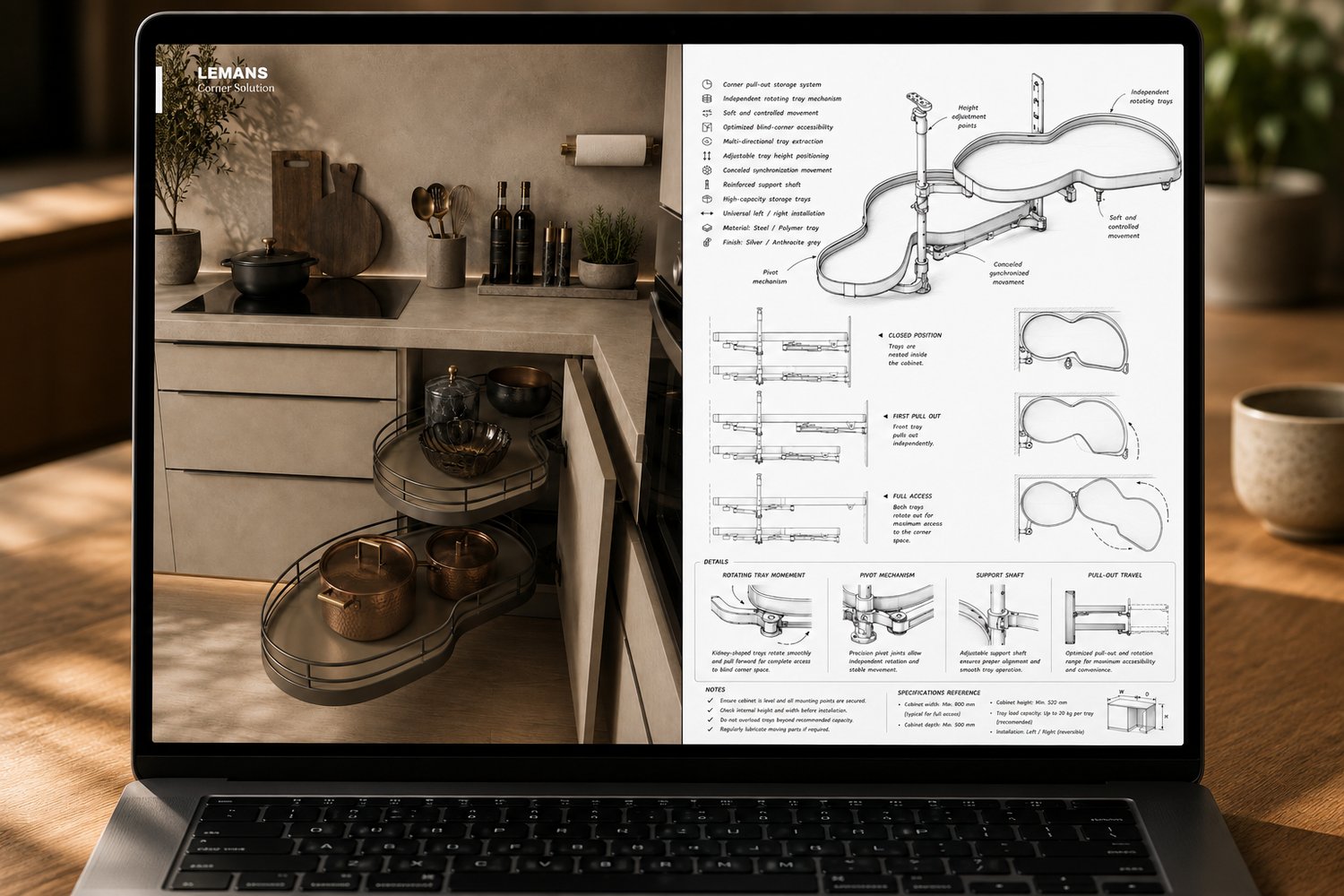

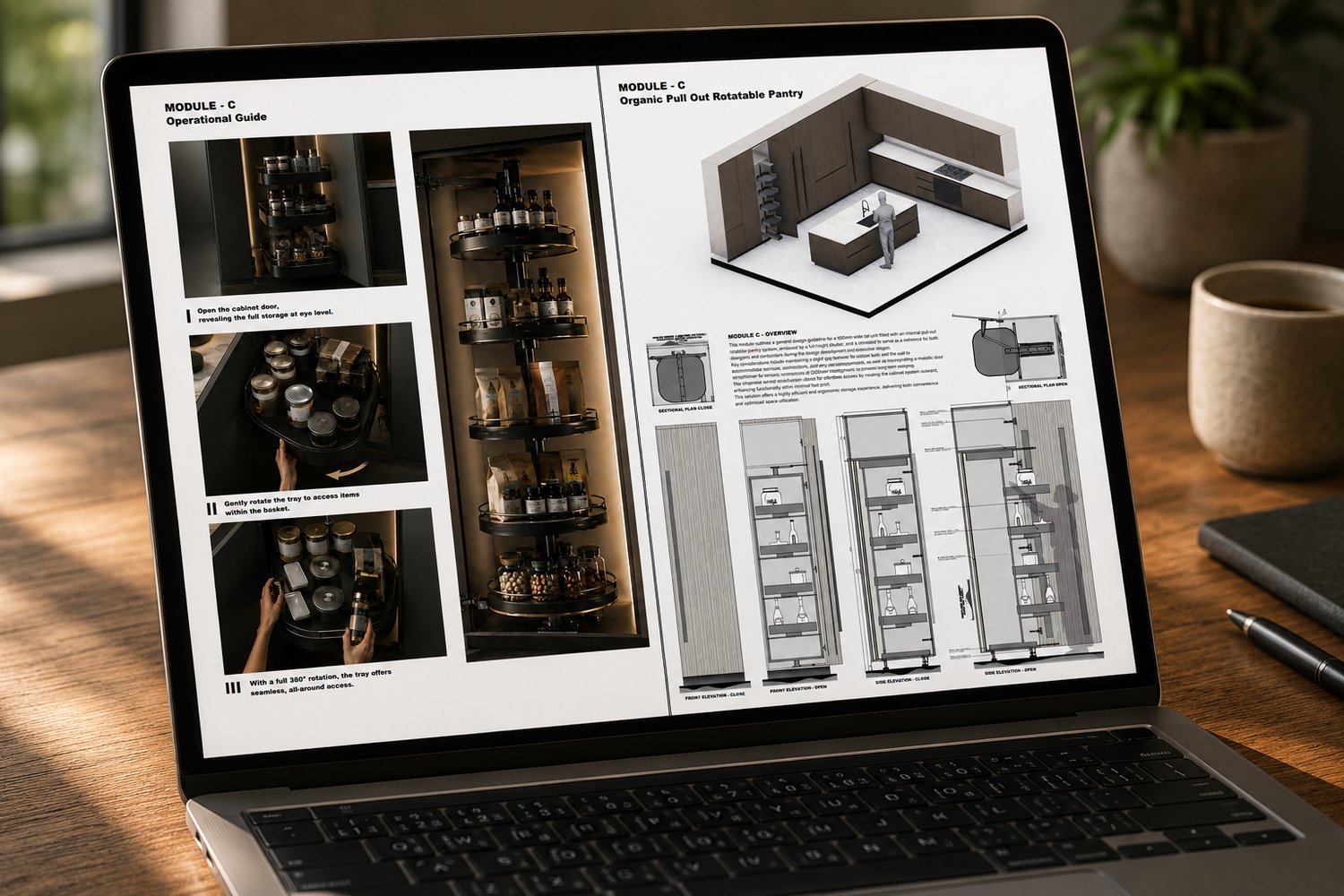

Tall unit pull-out pantry with baskets, larder unit with internal pull-out, full base pull-out pantry, LeMans corner unit, Chef's Table, Cooking Agent, K-Basket, waste collector, extendable worktop, wall unit pull-down 600mm, and wall unit pull-down 900mm — each supplied with 2D DWG files.

Handles

Full handles DWG library for direct integration into your documentation.

Drawer Inserts

14 individual insert types — spice, knife block, rectangular, cross, divider, foil, coffee capsule, four separator box variants, seasoning box, T-cross, and grinder insert — each with 2D DWG files.

Built-In Appliance Modules

Who this is for

Practicing designers and architects who document in CAD and need production-ready references. Fitout contractors and project managers working from technical drawing packages. Anyone who wants not just the knowledge — but the files.

Format: PDF (236 pages, A4) + 113 DWG files, delivered as a single ZIP archive

Language: English

Delivered instantly via secure download link upon purchase.
