B-1 Lancer

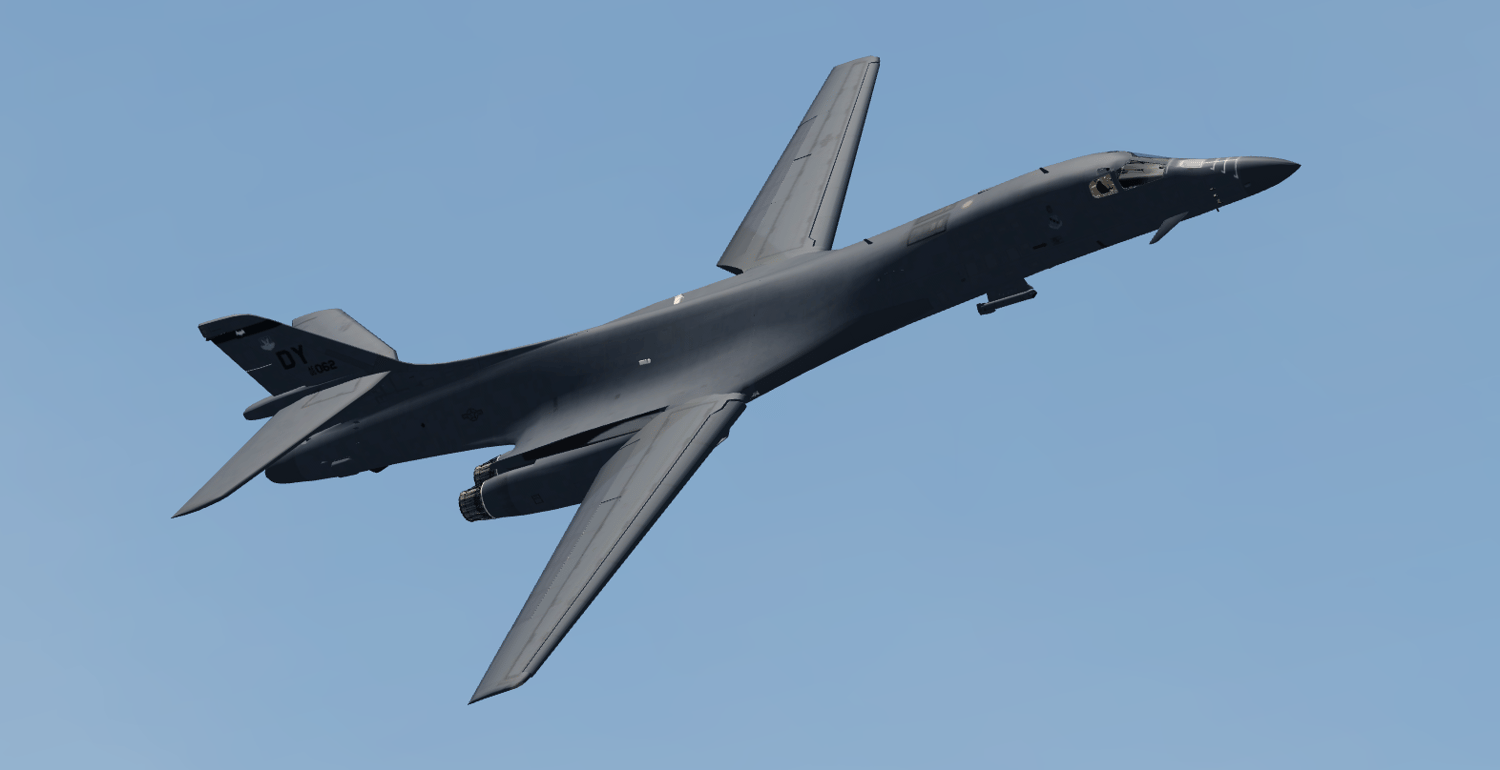

The B-1B Lancer stands as a cornerstone of long-range, multi-mission bomber capability with its advanced blend of speed, payload capacity, and survivability enabled through cutting-edge aerodynamics, avionics, and weapons integration. Featuring a sleek blended wing-body design with variable-sweep wings, the B-1B combines improved maneuverability and long-range endurance. The wing sweep ranges from 15 degrees forward for takeoff, landing, and economical cruise, to 67.5 degrees swept aft for supersonic flight. Its four General Electric F101-GE-102 turbofan engines provide robust thrust with afterburners, supporting a maximum speed of Mach 1.25 at altitude and allowing the aircraft to perform low-level high-speed ingress missions with a speed limit imposed to protect structural integrity and intake performance. Aerodynamically, the B-1B incorporates small triangular ride control fins near the nose and a Structural Mode Control System that dynamically counters turbulence-induced flexing to smooth the ride. Independent control of wing sweep and tail surfaces enhances low- and high-altitude maneuverability, essential for survivability and effective strike profiles. Externally, the bomber is equipped with fully functional variable geometry wings, animated control surfaces, and detailed access panels for avionics, engines, and weapons bays. The sophisticated lighting configuration includes navigation lights, formation illumination, and refueling alignment aids. Ground equipment features extend to crew ladders, intake/exhaust covers, and ground power connections, supporting realistic ramp operations. Internally, the B-1B cockpit supports a crew of four with advanced avionics suites anchored by the IBM AP-101 computers running JOVIAL code. Offensive systems are centered around the Westinghouse AN/APQ-164 forward-looking passive electronically scanned array radar, capable of synthetic aperture radar imaging, ground moving target indication, and terrain-following modes. Defensive avionics include the AN/ALQ-161A radar warning and jamming suite, missile approach detection radar, and flare dispensers capable of deploying large infrared countermeasures. Synthetic aperture radar, GPS-aided inertial navigation, and Link-16 data links ensure high situational awareness and targeting precision. Weapons integration allows the B-1B to carry up to 75,000 pounds of conventional ordnance across three internal bays and six external hardpoints. This includes a wide array of precision and unguided munitions such as Mk-82/84 bombs, cluster munitions, naval mines, JDAMs, JSOWs, LRASMs, and advanced bunker busters, making it a versatile platform for strategic and tactical strike roles. Systems management incorporates full startup and shutdown sequences, hydraulic and electrical system simulations, and environmental controls. Cockpit systems are fully functional with interactive displays, navigation aids, and warning systems, providing crews with realistic operational workflows. Flight control surfaces and landing gear animations follow variable sweep and aerodynamic feedback for authentic handling. Audio-visual effects emphasize the bomber’s power and scale with dynamic engine afterburner visuals, realistic sound packages capturing the roar and spool of the F101 engines, and external effects including vapor trails and environmental lighting. Structural flex under aerodynamic loads and turbulence response further heighten in-flight realism. This comprehensive simulation of the B-1B Lancer offers an immersive experience that authentically captures the aircraft’s unique capabilities as America’s premier supersonic heavy bomber, balancing speed, payload, strategic reach, and mission adaptability within a highly survivable airframe.
