15 Ready-to-Build Raspberry Pi Pico & W Projects with Schematics, Gerber Files, and Micropython Code

Unlock the power of Raspberry Pi Pico and Pico W with this complete digital bundle of 15 tested projects. Perfect for students, hobbyists, and makers, this package gives you everything you need to design, etch, and assemble real-world electronics. Each project includes detailed schematics, PCB Gerber files, copper layer layouts for DIY etching, and tested MicroPython code, so you can build confidently without guesswork.

Inside, you’ll find a wide range of practical and innovative projects, from home automation to LED controllers, smart meters, and motor drivers.

What’s Included?

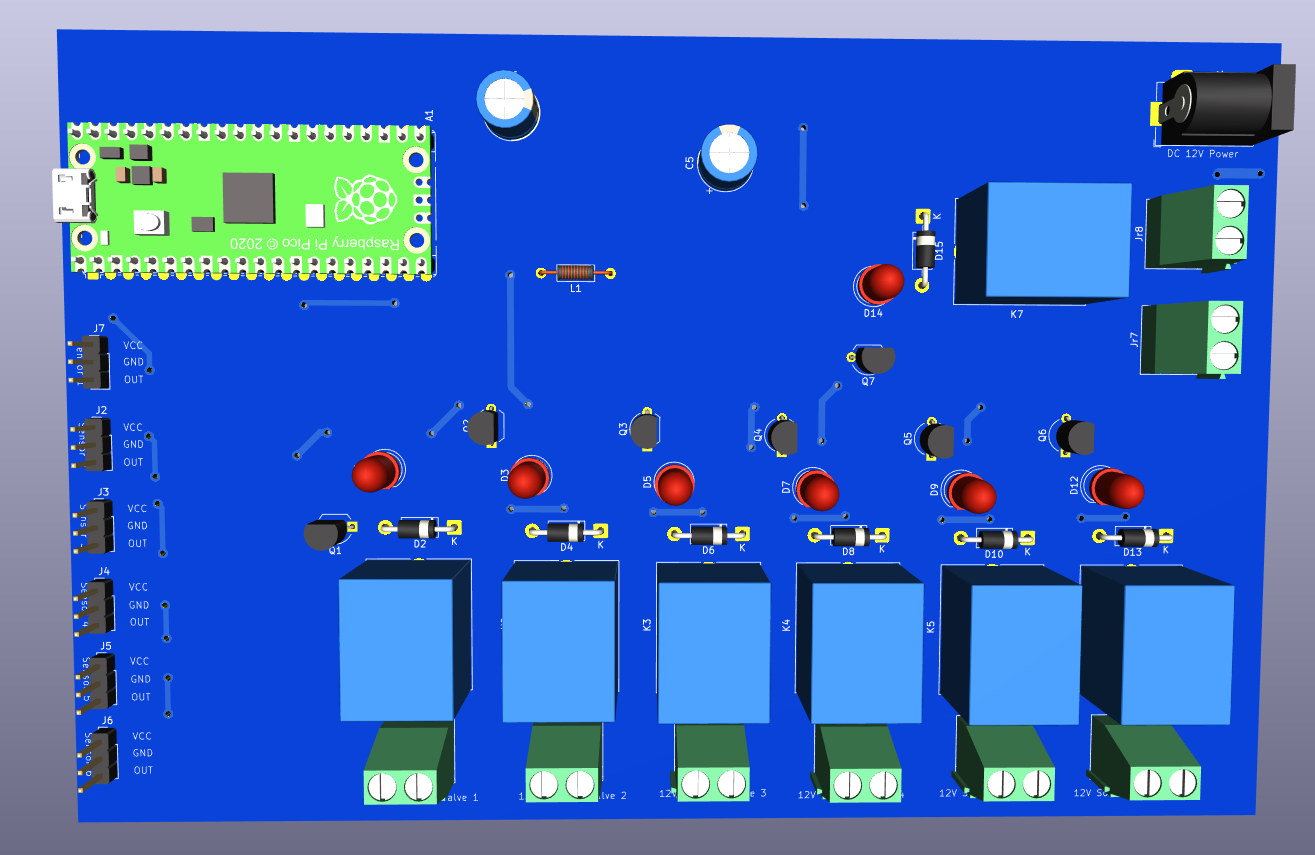

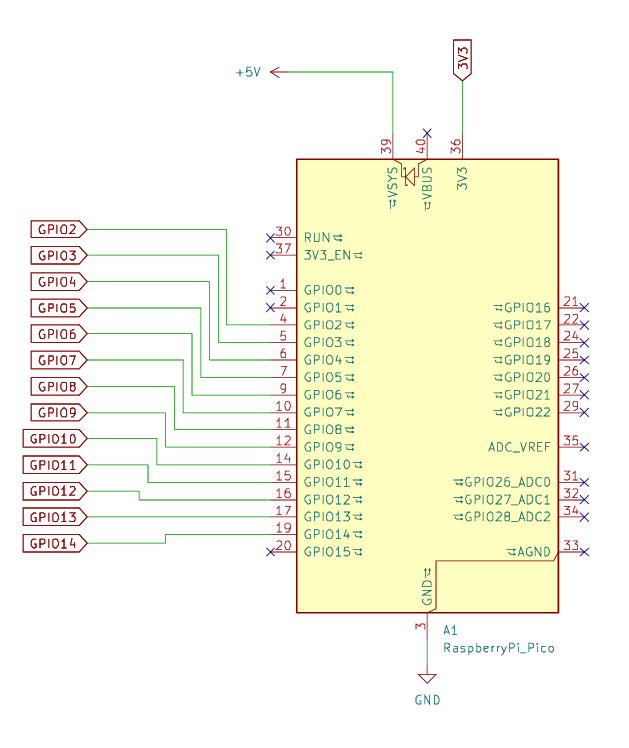

1. Professional schematics & PCB Gerbers for fabrication.

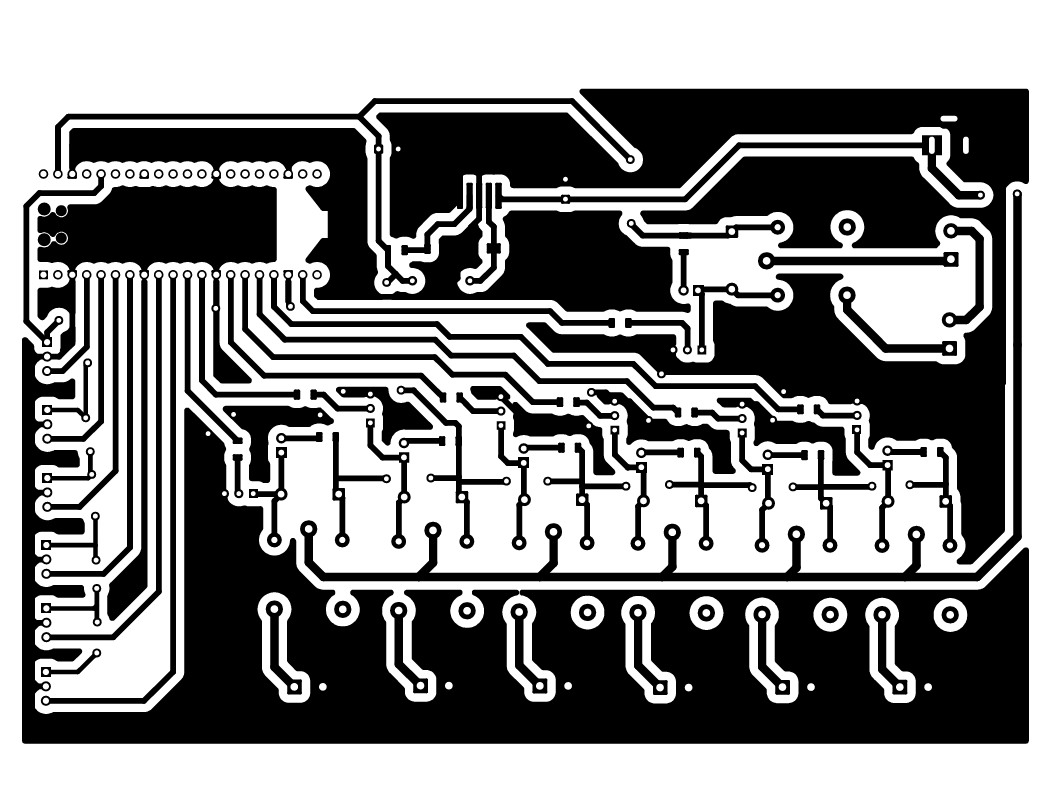

2. Copper layer layout prints for DIY PCB etching.
3. Fully tested MicroPython source codes.
4. Practical, real-world projects you can use at home or in labs.

Projects List:

1. Overload Protector.
2. 5-Channel Touchless Home Appliances Controller.
3. 6-Channel Automatic Water Dispenser.
4. 10-Channel 12V LED Strip Controller (2 Effects & 2 Modes).
5. 12V 5050 RGB LED Strip Controller.
6. Multi-Appliance Controller with Single Rotary Encoder.
7. DC Motor PWM Speed & Direction Controller.
8. Electric Shock-Free Water Tank Pump Controller.
9. 4-Channel Wi-Fi + Bluetooth + Manual Appliances Controller.
10. WS2812 Neo Pixel LED Strip Controller.
11. Simple Function Generator.
12. Digital Weighing Machine (Load Cell Based).
13. Smart Energy Meter.
14. Smart Wi-Fi Door Lock with Manual Unlock Option.
15. Weather Station with Automatic Room Fan Controller.

Perfect for:

1. DIY Electronics Enthusiasts.
2. Engineering Students & Educators.
3. Makers & Innovators.
4. Anyone wanting to learn, build, and deploy real hardware projects.
