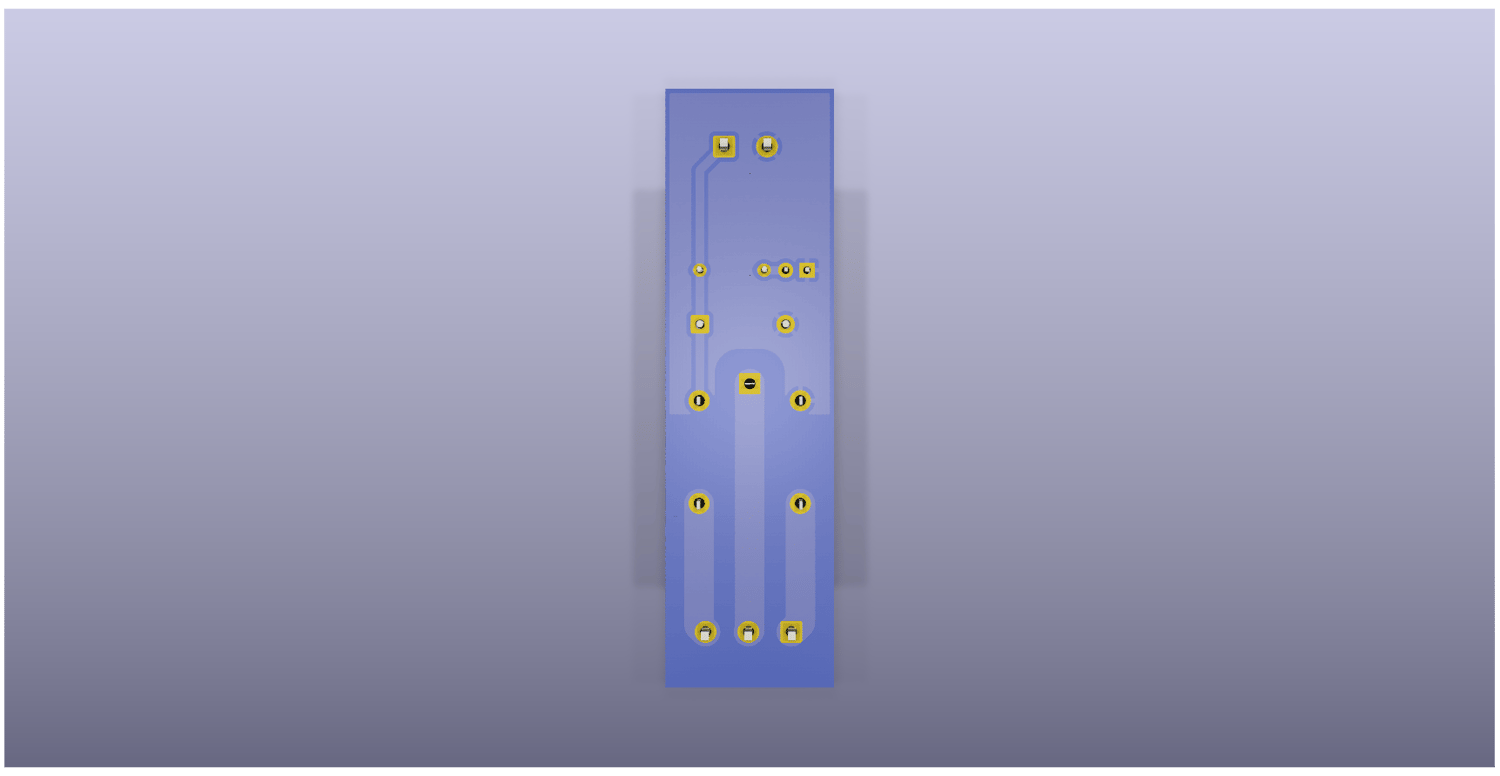

Relay Module 24V | KiCad Project

Single-channel 24V relay module designed for direct PLC control. Dry contact actuation, without optocoupler or transistor isolation.

This project includes complete KiCad files, custom footprints, Gerbers, BOM and 3D models. Optimized for easy assembly and industrial use.

✔ SPDT relay

✔ Screw terminals

✔ Flyback protection

✔ Status LED

✔ Ready for manufacturing

License: CC BY-NC 4.0

Physical manufacturing allowed. File redistribution prohibited.
