Solid Edge convert, flatten and create dxf macro

This macro has been developed by CAD Central to open STEP, SAT and parasolid (x_t) files into solid edge, attempt to convert them to sheet metal. If successful, it will then attempt to flatten the sheet metal file and finally create a dxf file.

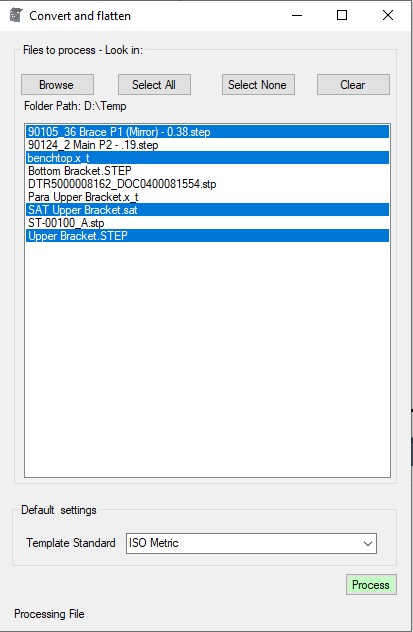

The user can select any number of files from a selected directory using Ctrl+Click or Shift+Click. A report is displayed at the end of processing indicating whether the processes described above are completed.

This process will not complete if the file does not contain geometry that confirms to standard sheet metal or has inconsistent bend relief, etc.
