Radar & ARPA

Radar & ARPA — Operational Use, Collision Avoidance & Real-Time Navigation

75-page Complete Training Presentation (PDF )

This professional 73-slide training package is the most complete and practical guide available today for anyone who wants to master marine Radar & ARPA operations.

Designed for Deck Cadets, OOW, Chief Officers, Masters, maritime academies, and training centers, this presentation covers everything you truly need on watch — from basic principles to real operational scenarios.

Whether you work on merchant ships, cruise vessels, offshore units, or yachts, this material gives you the skills and confidence to interpret radar images correctly, avoid collisions, and use ARPA safely.

What’s Inside the 73-Slide Presentation

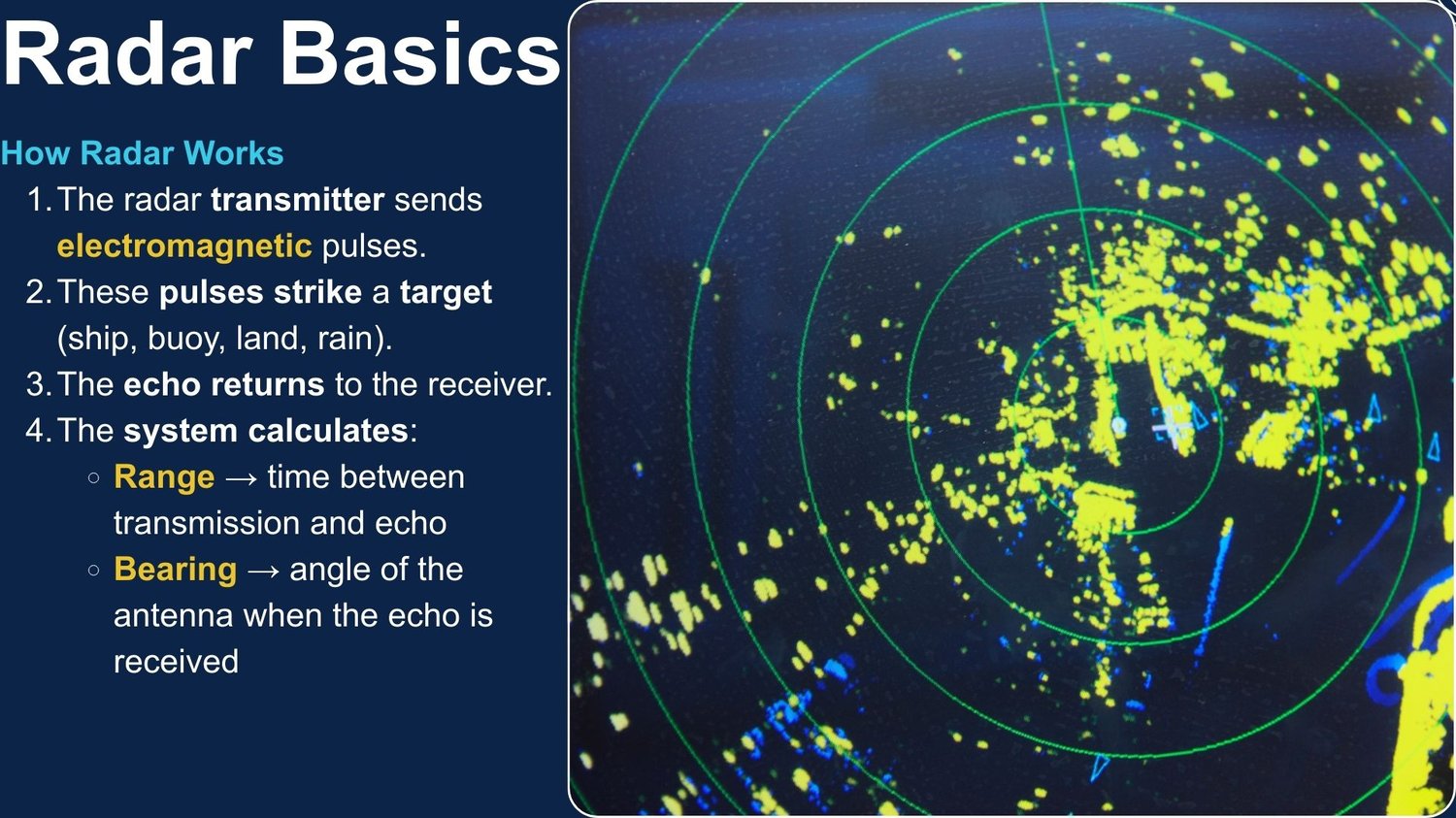

✔ Radar Basics & System Architecture

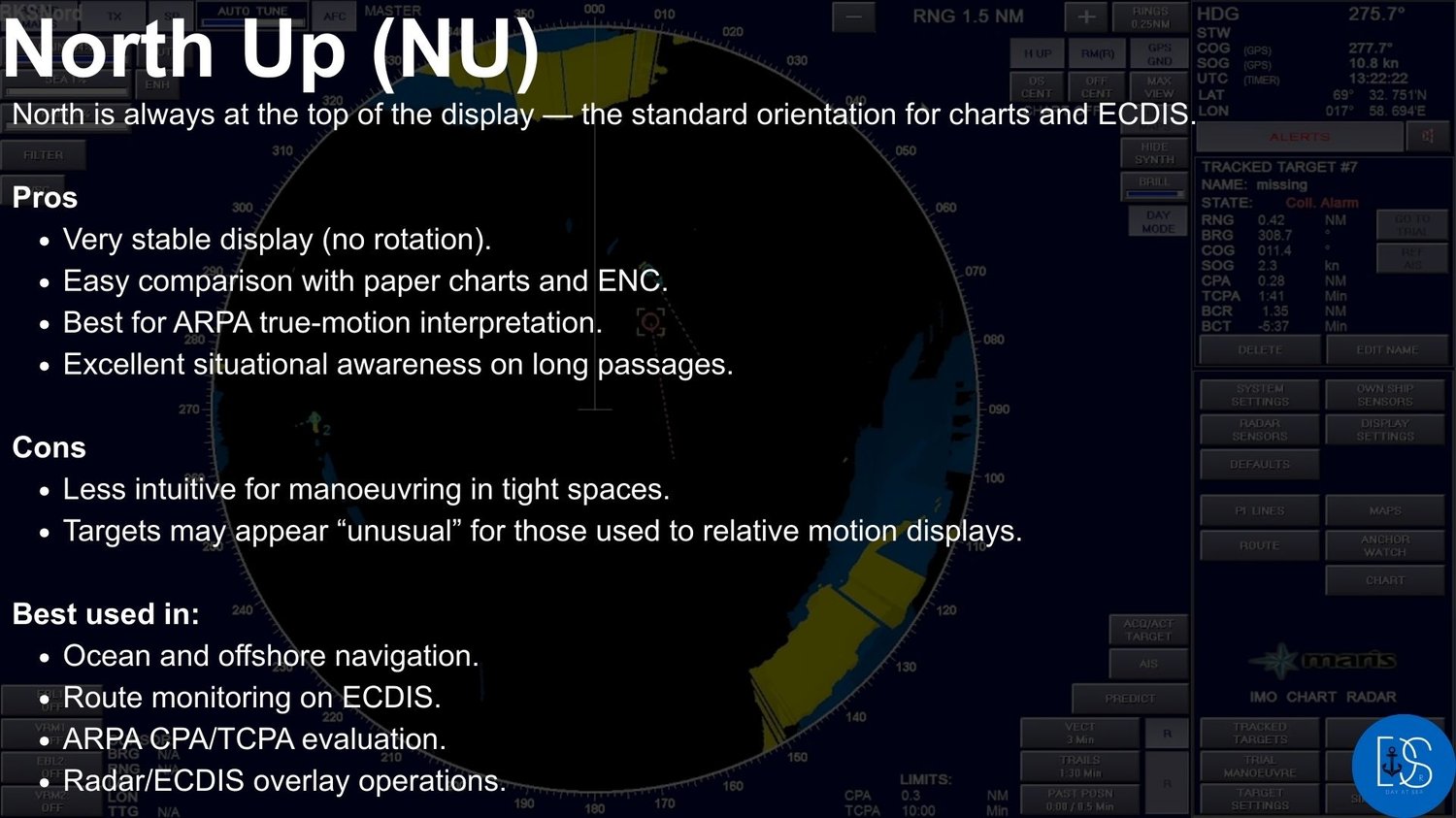

✔ Display Modes (Head-Up, Course-Up, North-Up) — Pros, cons & operational use

✔ True Motion vs Relative Motion — Explained with real scenarios

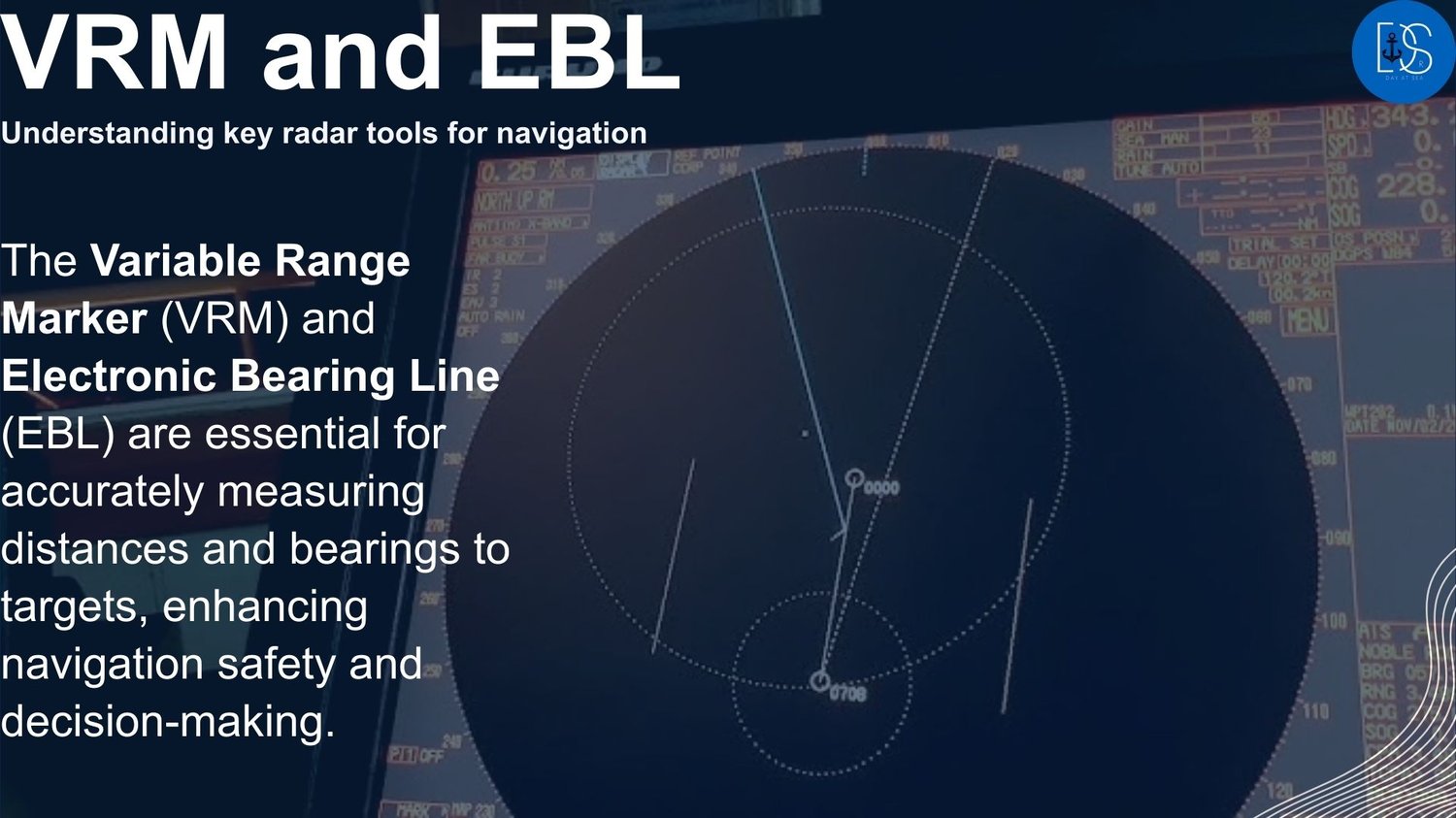

✔ VRM, EBL, PI and advanced radar tools

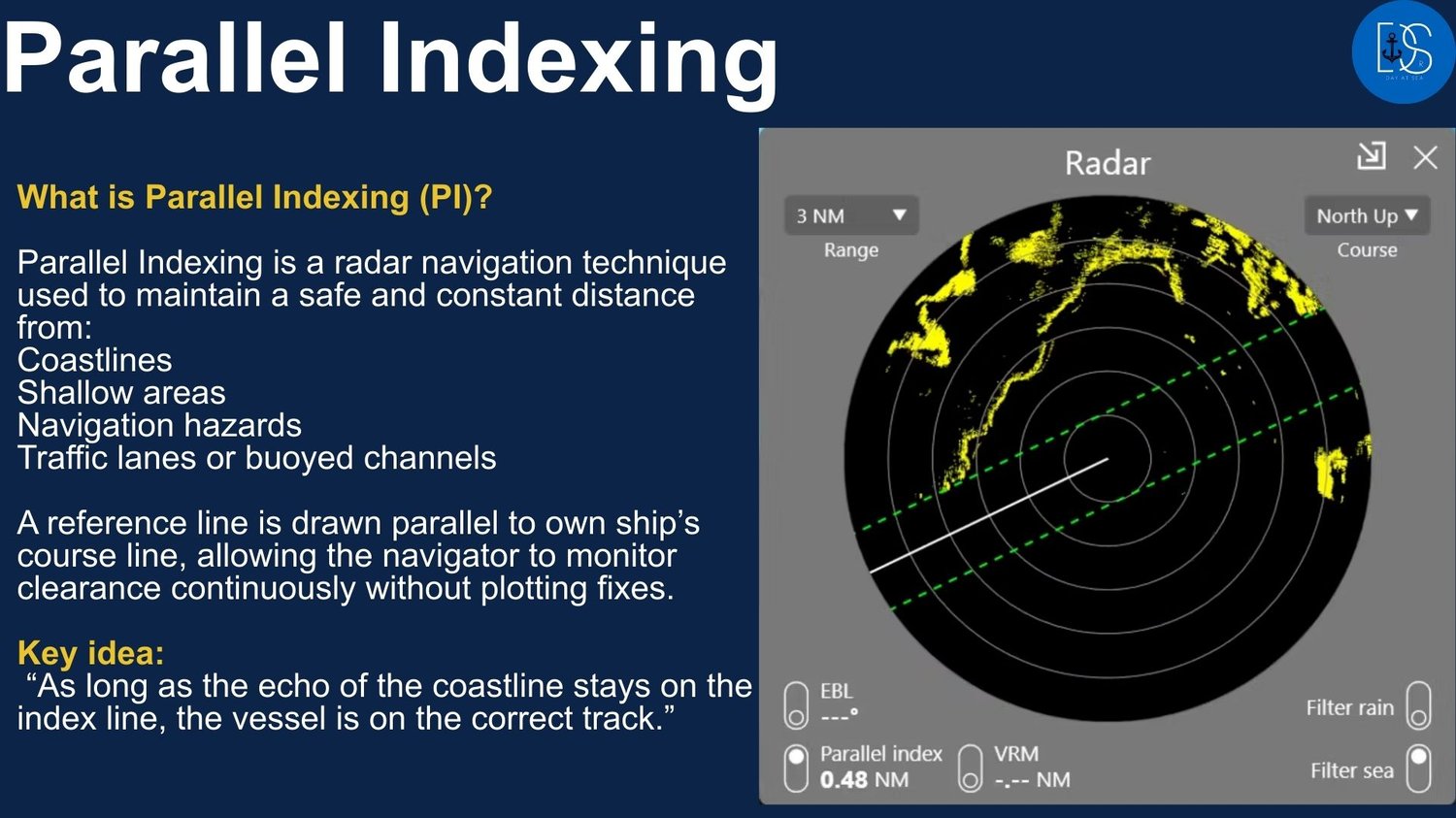

✔ Parallel Indexing (including limitations & turns)

✔ Echo Interpretation (Side-lobe echoes, Second trace, Multiple echoes, Rain clutter, Sargassum, Storm patches)

✔ Performance Limits

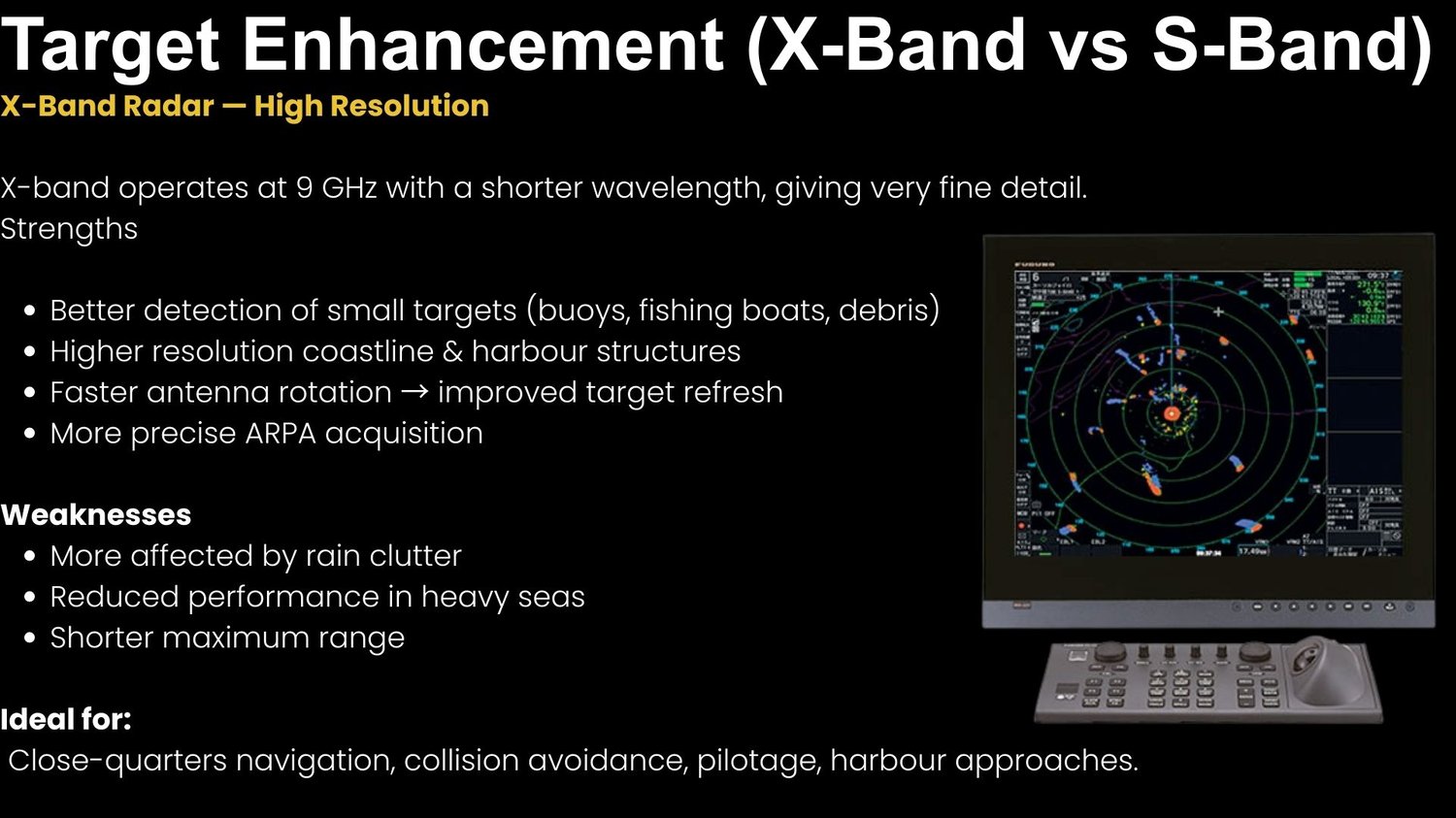

✔ X-Band vs S-Band and target enhancement

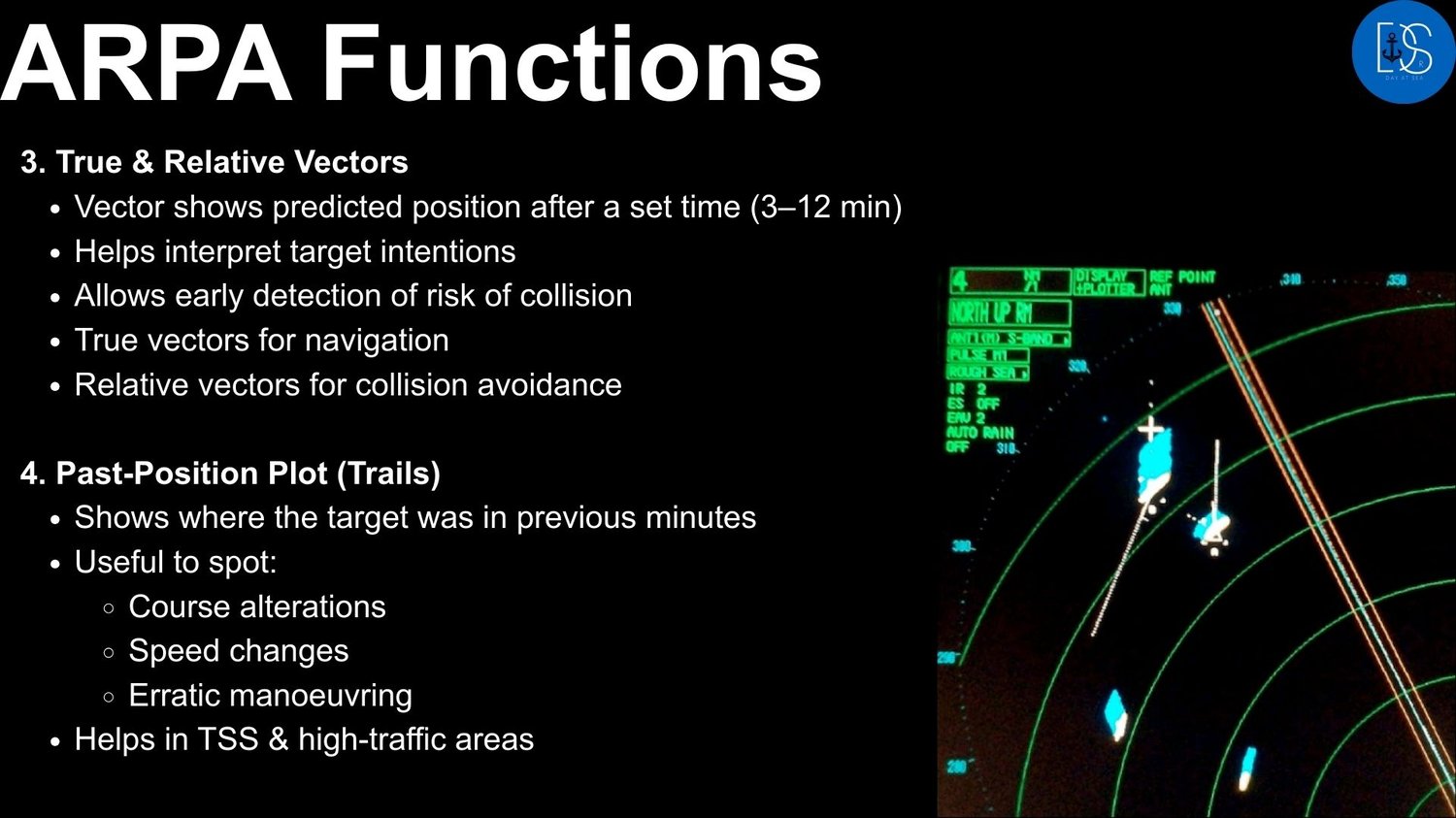

✔ ARPA Functions + ARPA Limitations

✔ COLREG Application using Radar

✔ 3 Real Collision-Avoidance Scenarios (Crossing, Head-On, Overtaking)

✔ Recommended Radar Settings (Port, Coastal, Ocean, Rain, Pilotage)

✔ Arrival / Departure Setup

✔ Best Practices and Killer Mistakes to Avoid

✔ Maintenance, Troubleshooting & Safety Procedures

✔ Final Summary for onboard training

Who is this presentation for?

• Deck Cadets preparing for exams or first contracts
• OOW / Third Officers who want real operational guidance
• Chief Officers training their bridge team
• Maritime academies needing ready-to-teach content
• Safety Officers and internal company trainers
• Cruise ship, tanker, cargo, offshore crews

Why this presentation is different

This is NOT theory from a textbook.

It is a complete operational radar manual in slide format, built exactly around what officers need during real bridge operations:

• How to set the radar for arrival & departure
• How to interpret vectors, CPA/TCPA, motion modes
• How to detect ARPA errors before it’s too late
• How to avoid killer mistakes (low gain, wrong range, no visual check, auto-tuning misuse)
• How to do proper radar tuning in all conditions
• How to cross-check Radar + AIS + ECDIS
• Real scenarios explained like on board

Clear, visual, practical — ready to use on board or in class.

📦 What you receive

• Full 75-slide presentation (PDF) On request also pptx.
• Can be used for training, briefings, courses, self-study, or company onboarding
• Fully compatible with laptop, tablet, phone
• Clear graphics, diagrams, and operational examples

🔒 Bonus

Includes sections on:

• Monkey island safety
• Tag-out procedures
• Radiation hazards
• Troubleshooting radar problems
• How to use X-band and S-band together
• Perfect radar settings for every weather and scenario
